Pneumatic Valve

Método de Controle:Pneumático

Carrétel:2 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*18*13

Peso bruto:6.00 kg

Disponibilidade: Em estoque

1256 Visualizações estão procurando por este produto

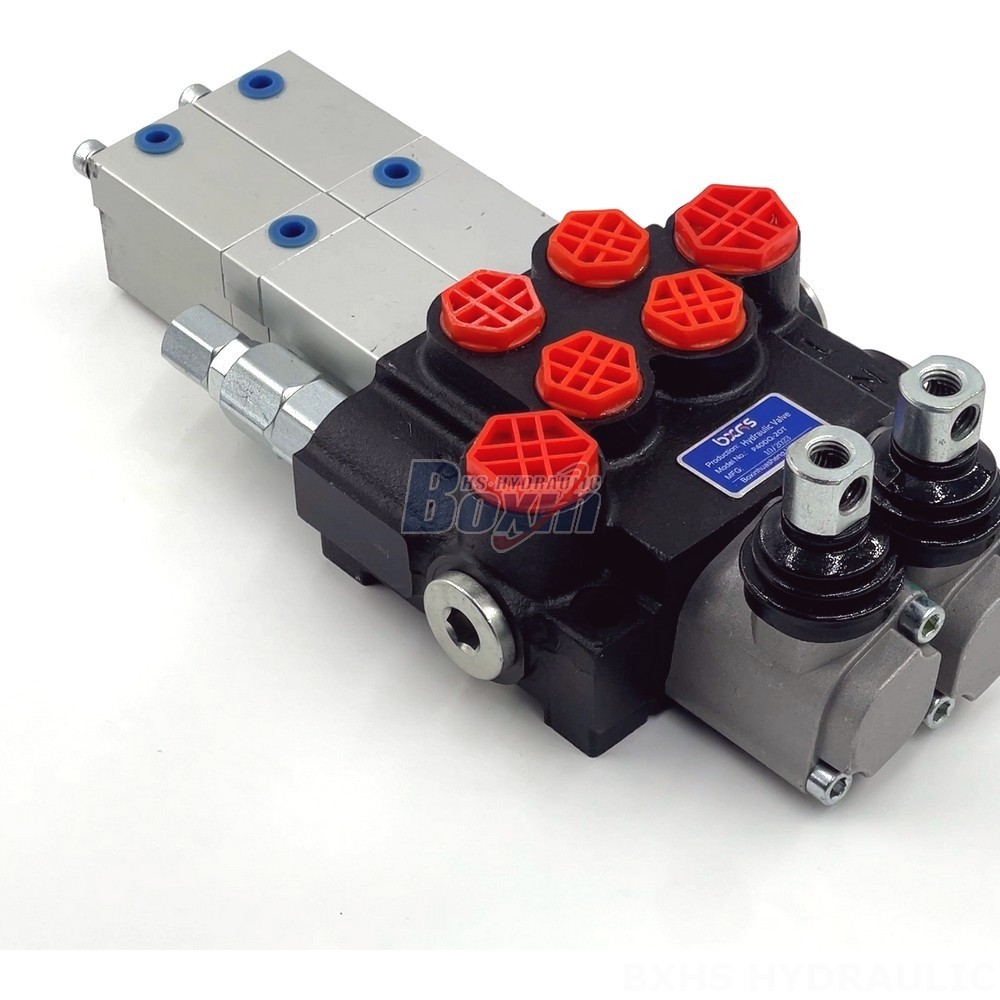

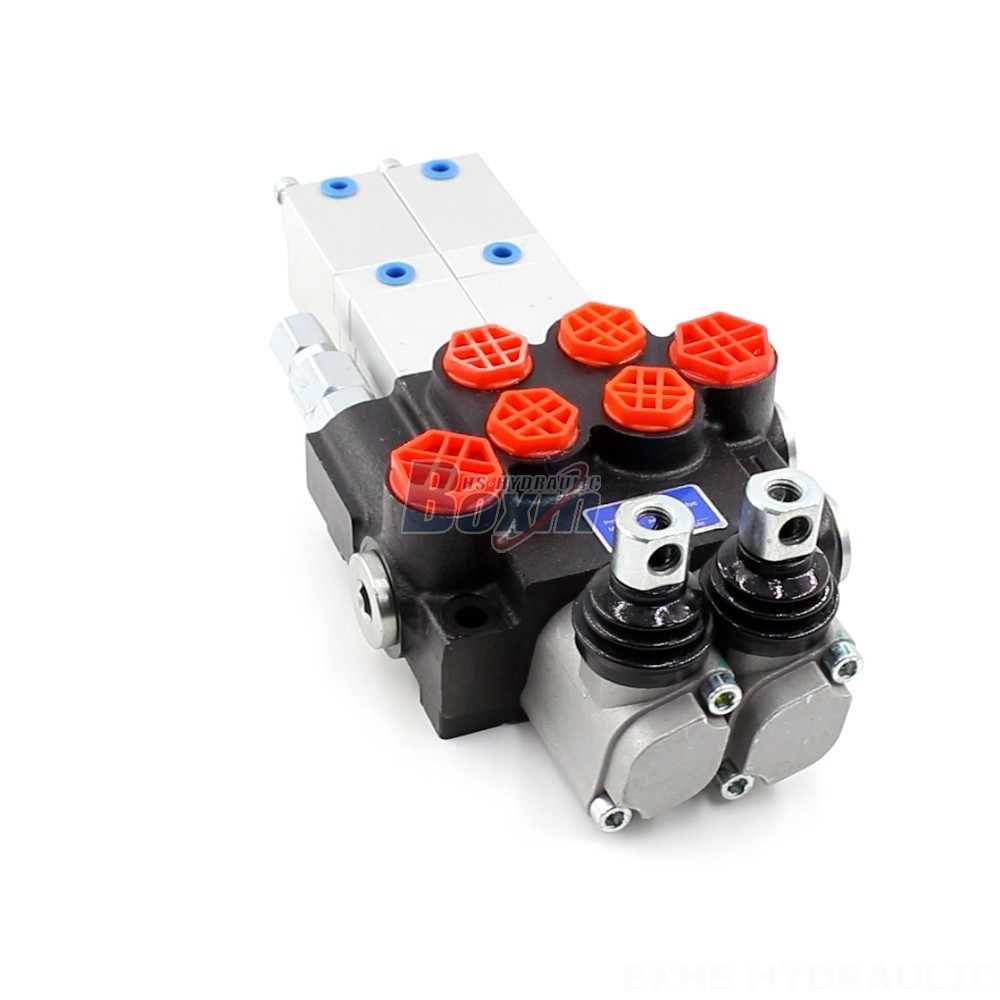

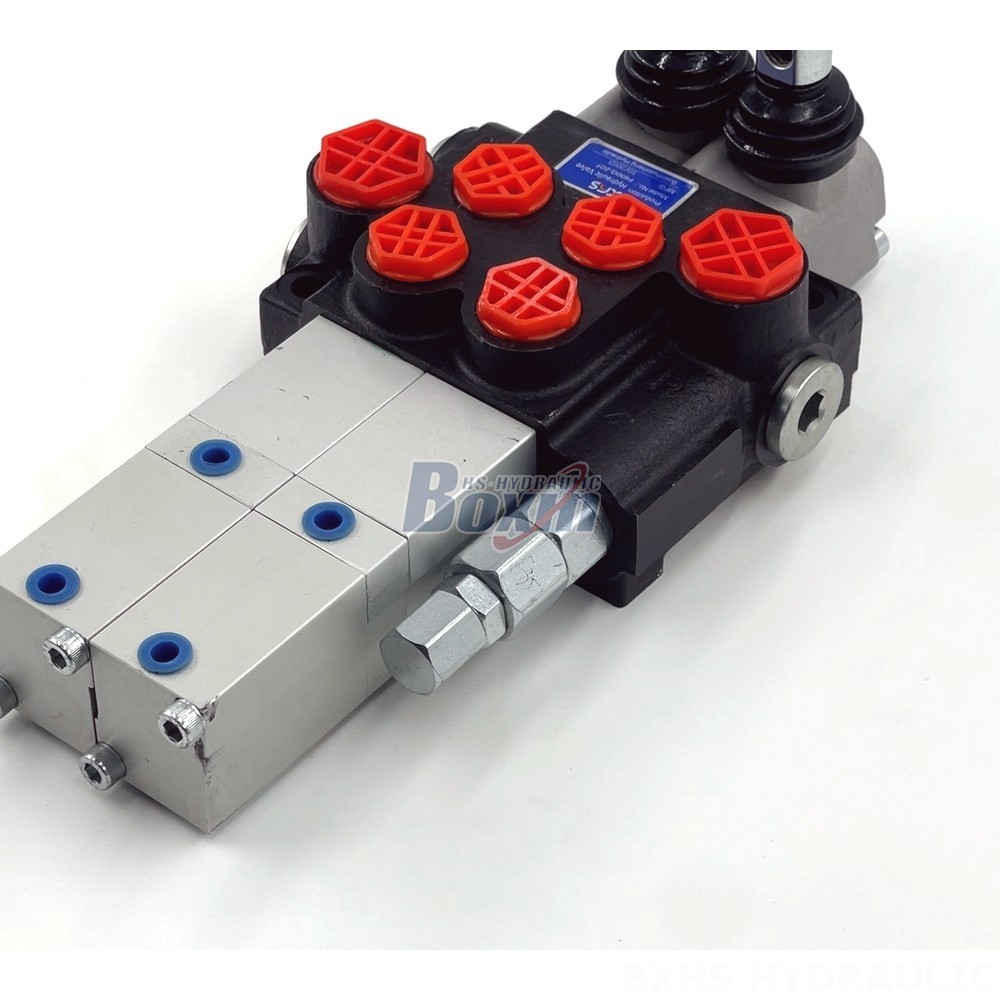

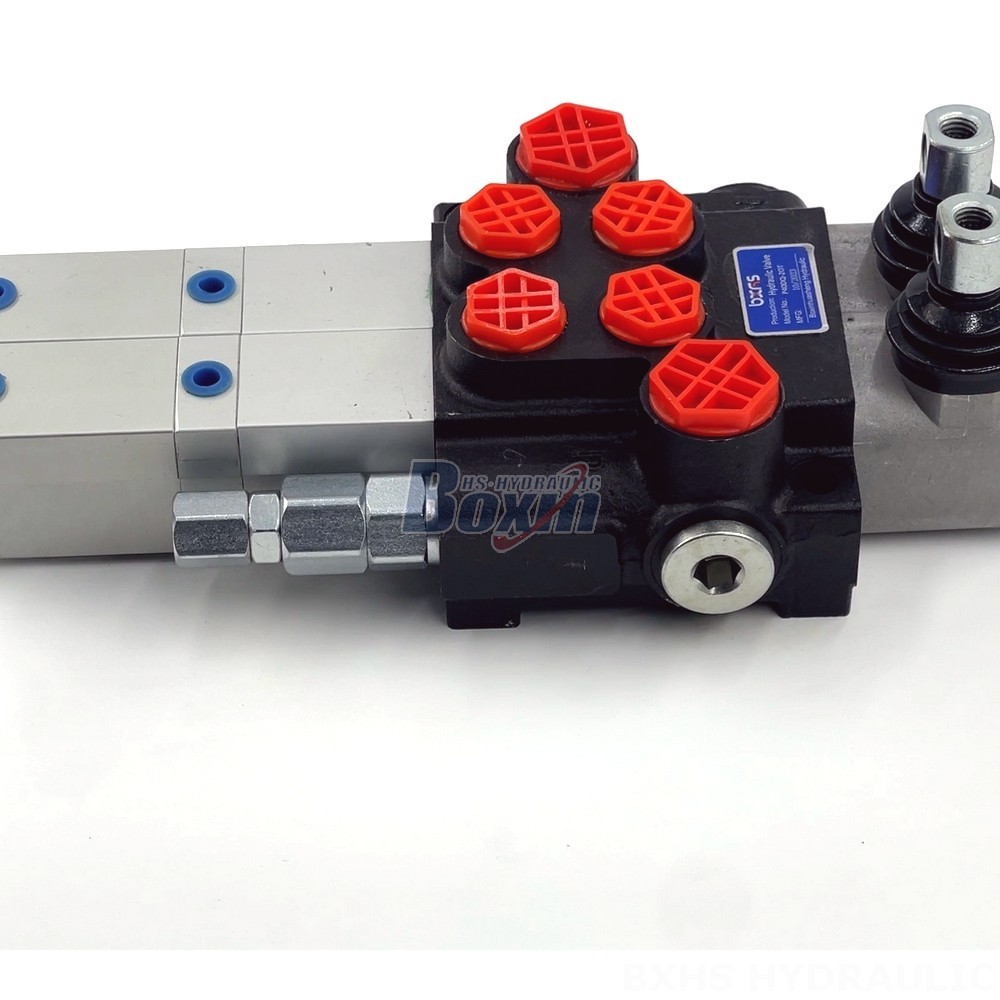

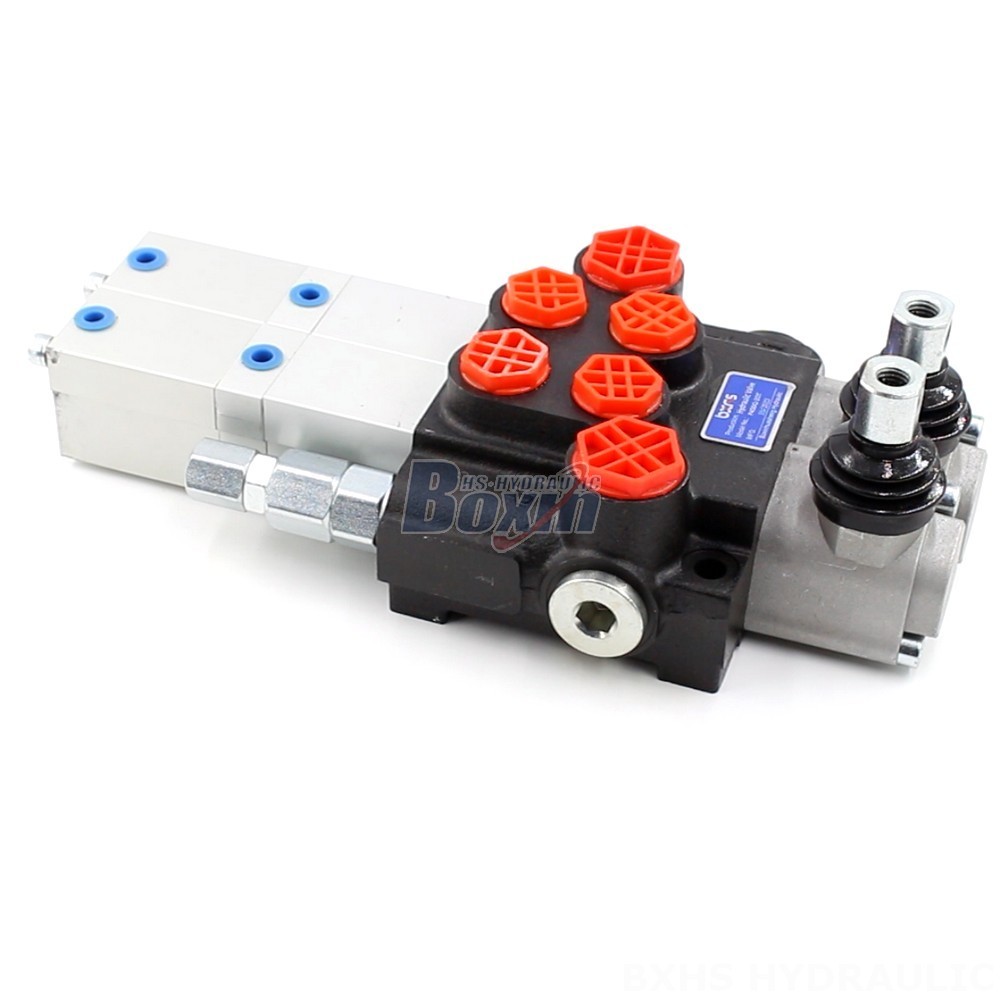

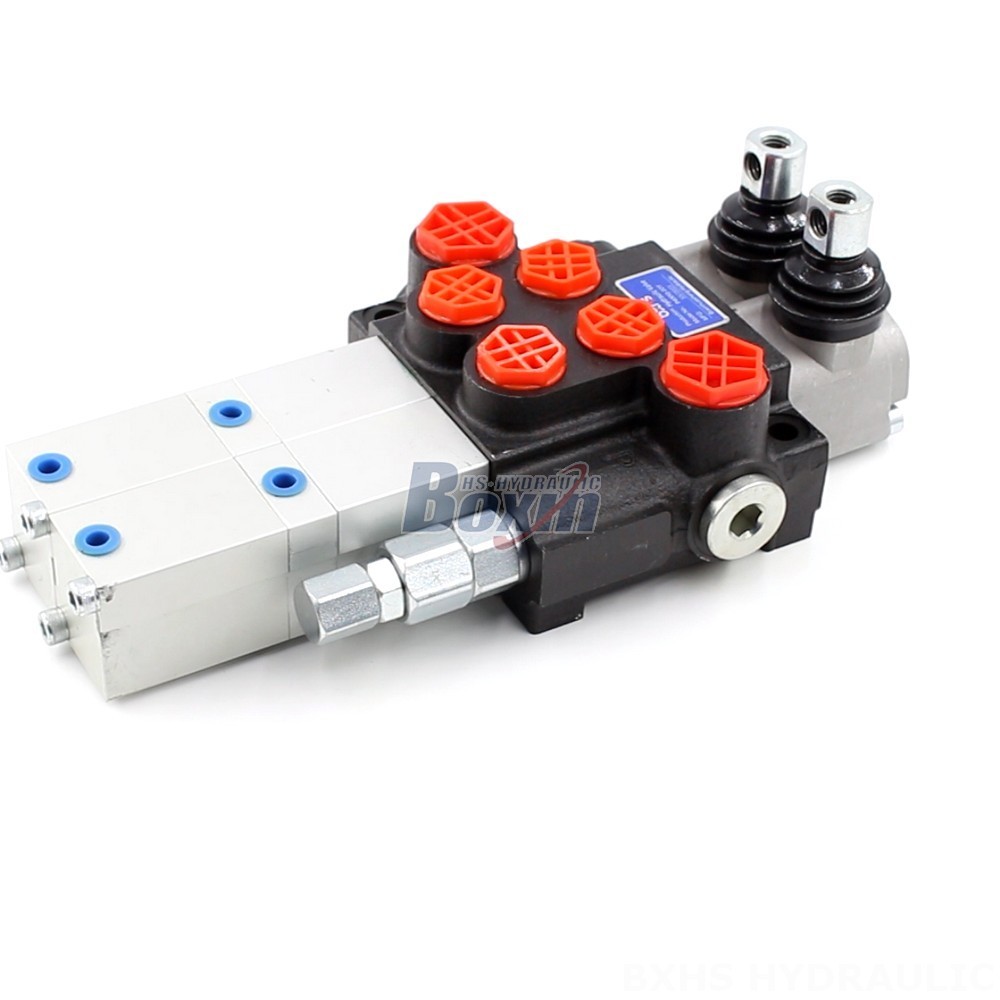

Pneumatic Valve

Pneumatic Valve

Pneumatic Valve drawing image

This P40 Series 6 Port Solenoid Diverter Selector Valve is a high-performance hydraulic valve designed for various applications in material handling, construction, and industrial vehicles. It features a monoblock structure, pneumatic control, and a rated flow of 40 L/min.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Hydraulic 6 Port Solenoid Diverter Selector Valve is a robust and reliable valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a 2-section monoblock structure for durability and efficiency. The valve is controlled pneumatically, allowing for precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides ample flow and pressure capabilities for a wide range of applications. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve operates within a viscosity range of 15-75 mm²/s and can withstand temperatures from -40°C to +80°C. This valve is a versatile and reliable solution for controlling hydraulic circuits in a variety of applications.
