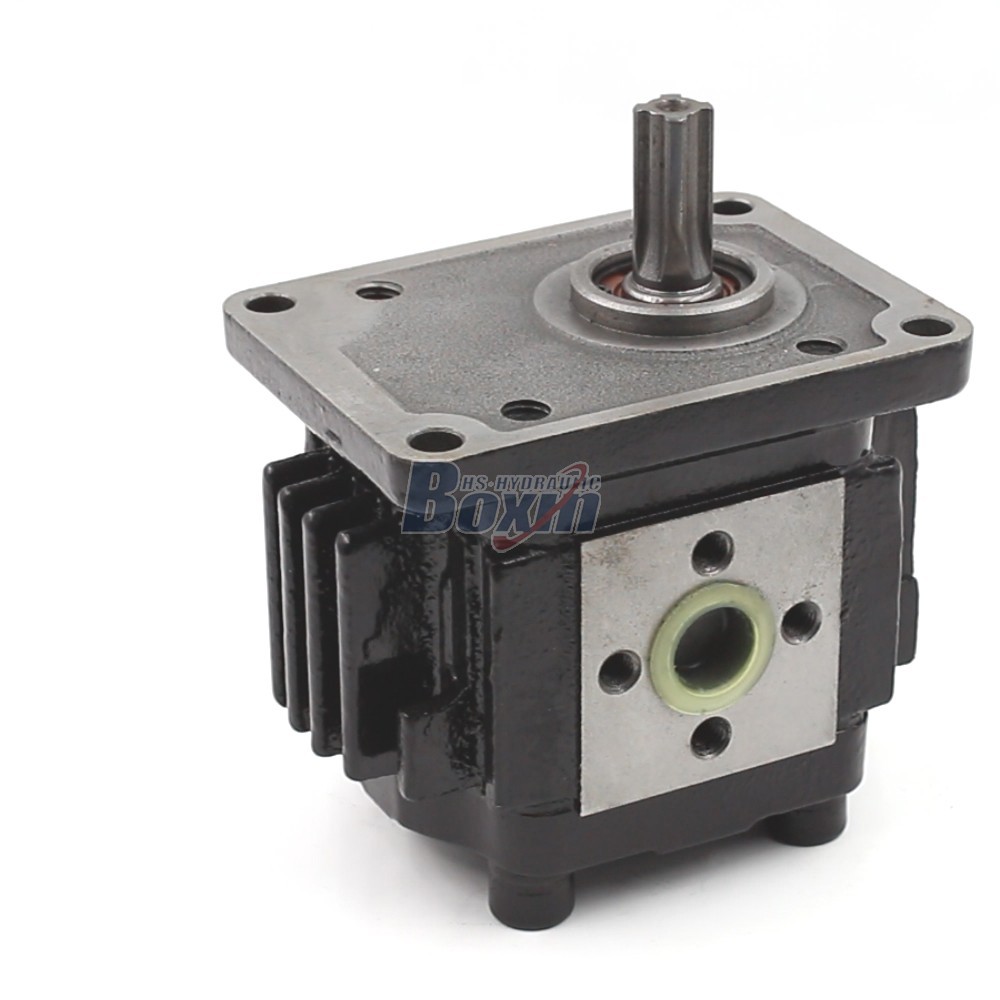

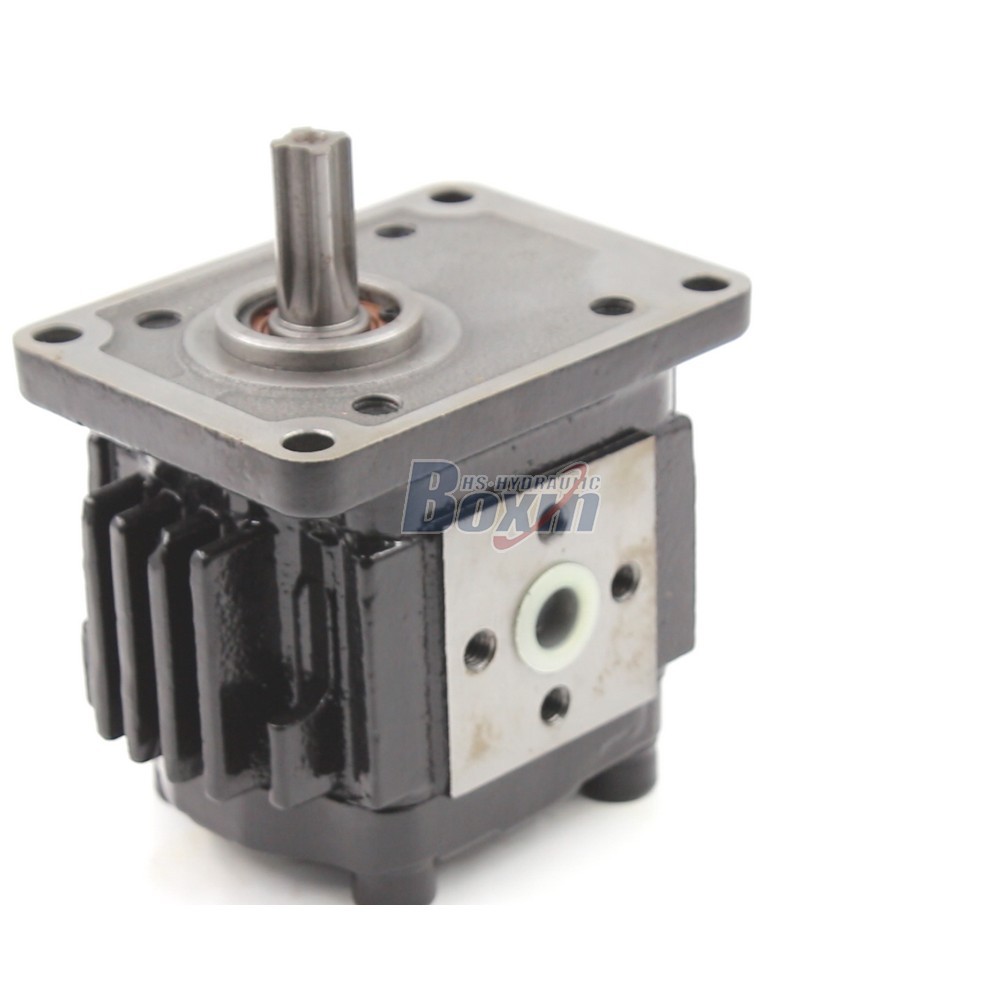

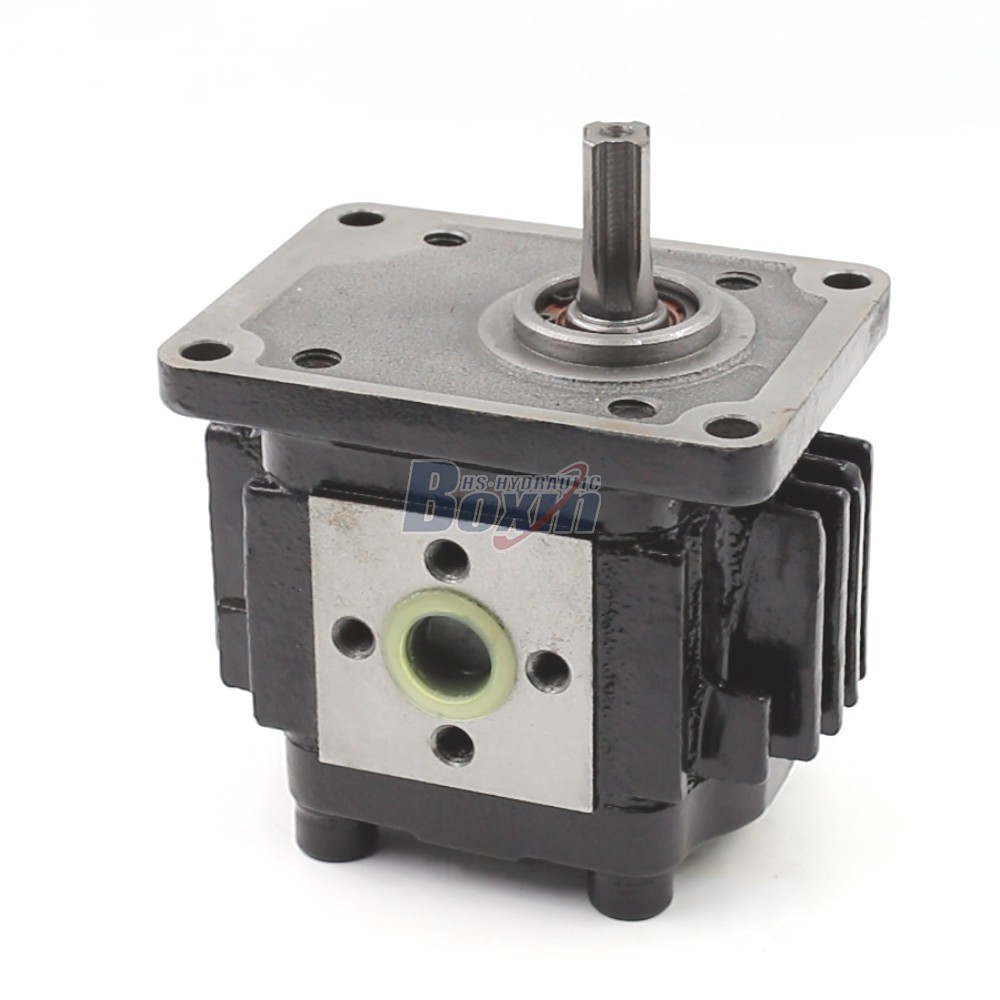

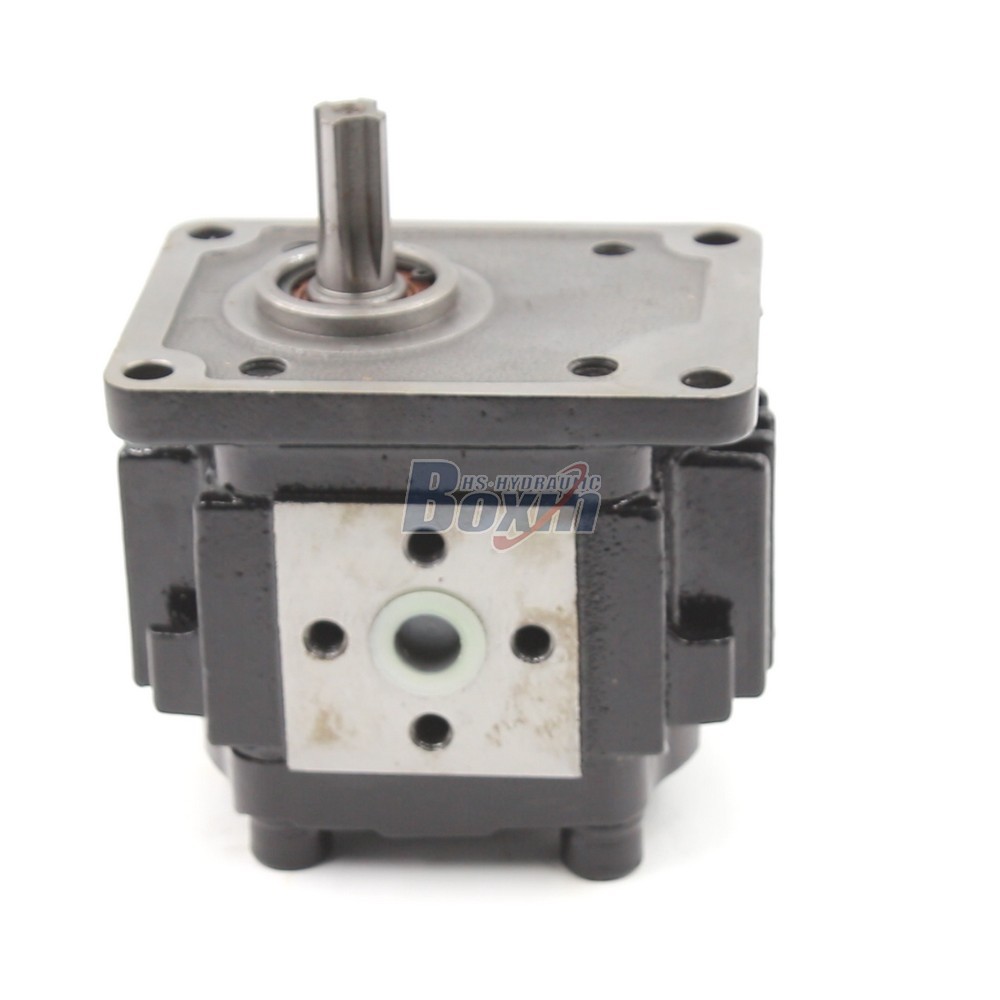

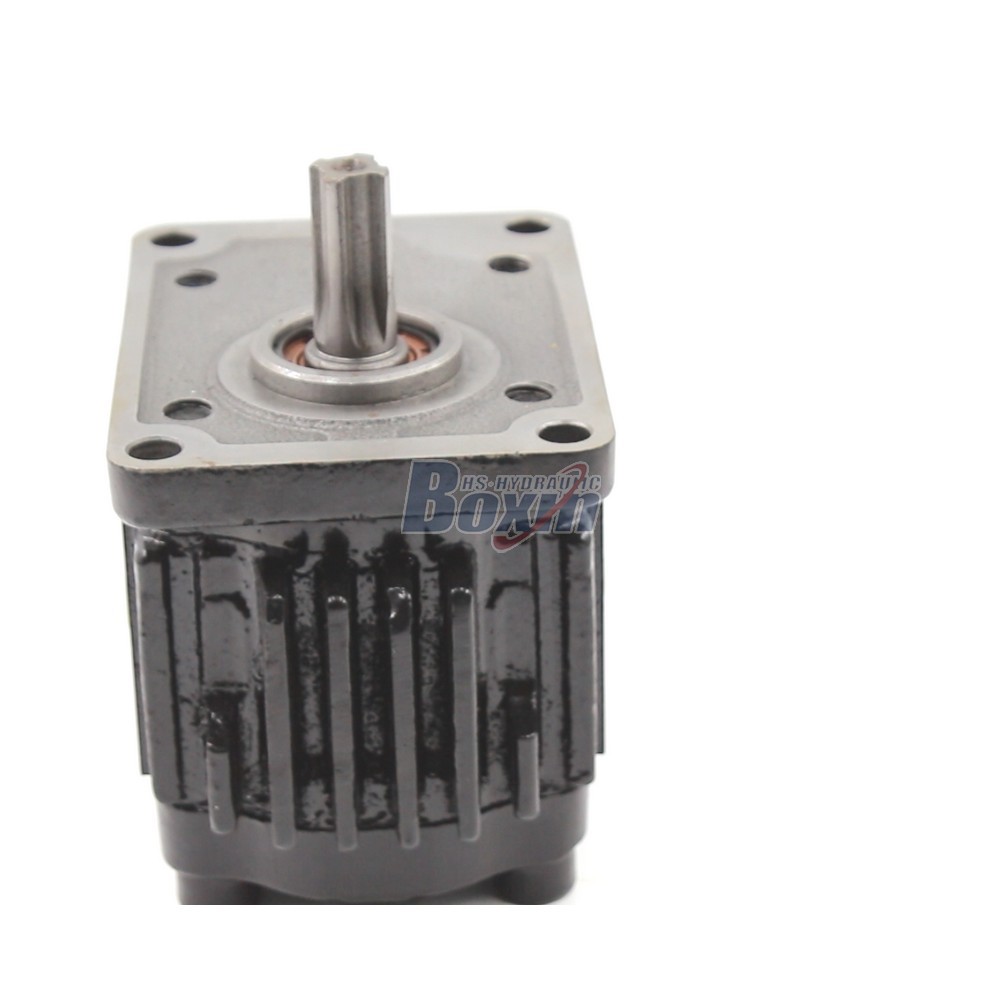

This high-performance hydraulic gear pump is designed for a wide range of applications including material handling, construction, agriculture and industrial vehicles. With a displacement of 16 cc/rev, it is available in various configurations including 50 cc/rev, 32 cc/rev, 45 cc/rev and 63 cc/rev.
| Série CBHS-F3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 16 MPa (2320 psi) |
| Pressão Máxima | 18 MPa (2610 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 2200 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Estrutura | Bomba de engrenagem externa |
| Material | Alumínio |
| Tipo de veio | P: Chave Simples |
| Versão da flange | Flange oval A |
This precision engineered hydraulic gear pump offers global distribution and features a displacement of 16 cc/rev with options for 50 cc/rev, 32 cc/rev, 45 cc/rev and 63 cc/rev. It boasts a rated pressure of 18 MPa (2610 psi) and a max pressure of 20 MPa (2900 psi). The pump operates at a rated speed of 2000 r/min and a max speed of 2200 r/min. Available in both left and right rotations, it comes in various structures including Cam Plate Type, Internal Gear Pump, and External Gear Pump. The pump is manufactured from Aluminium and features an A-Oval Flange and Plain Key shaft type. Belonging to the CBHS-F3 Series, it finds extensive applications in diverse industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. This versatile pump is suitable for various models including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, and harvesters.
