Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Deslocamento:104,5 cc/rev

Pressão Nominal:16 MPa (2320 psi)

Pressão Máxima:17 MPa (2465 psi)

Velocidade Máxima:2400 rpm

Rotação:Bidirecional

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série P51 Bomba de engrenagem hidráulica

Tamanho da embalagem:45*25*18

Peso bruto:18.00 kg

Disponibilidade: Em estoque

158 Visualizações estão procurando por este produto

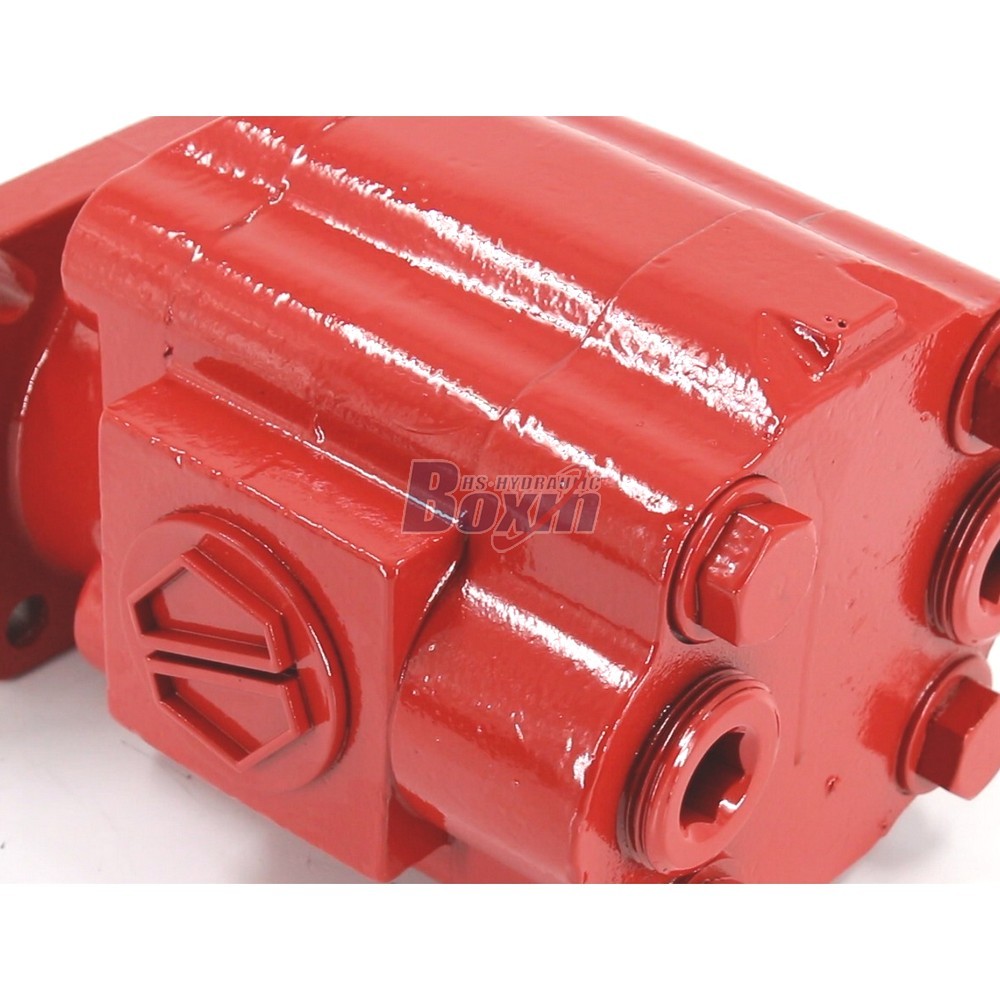

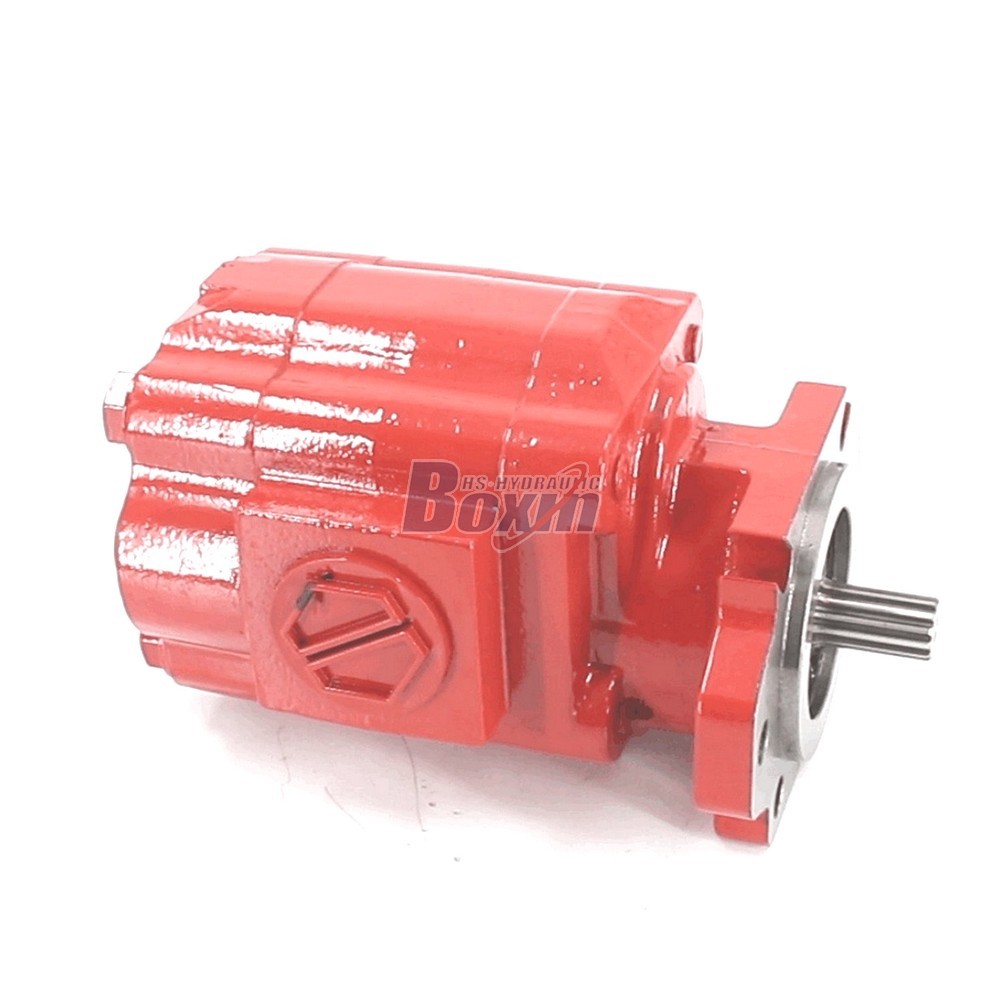

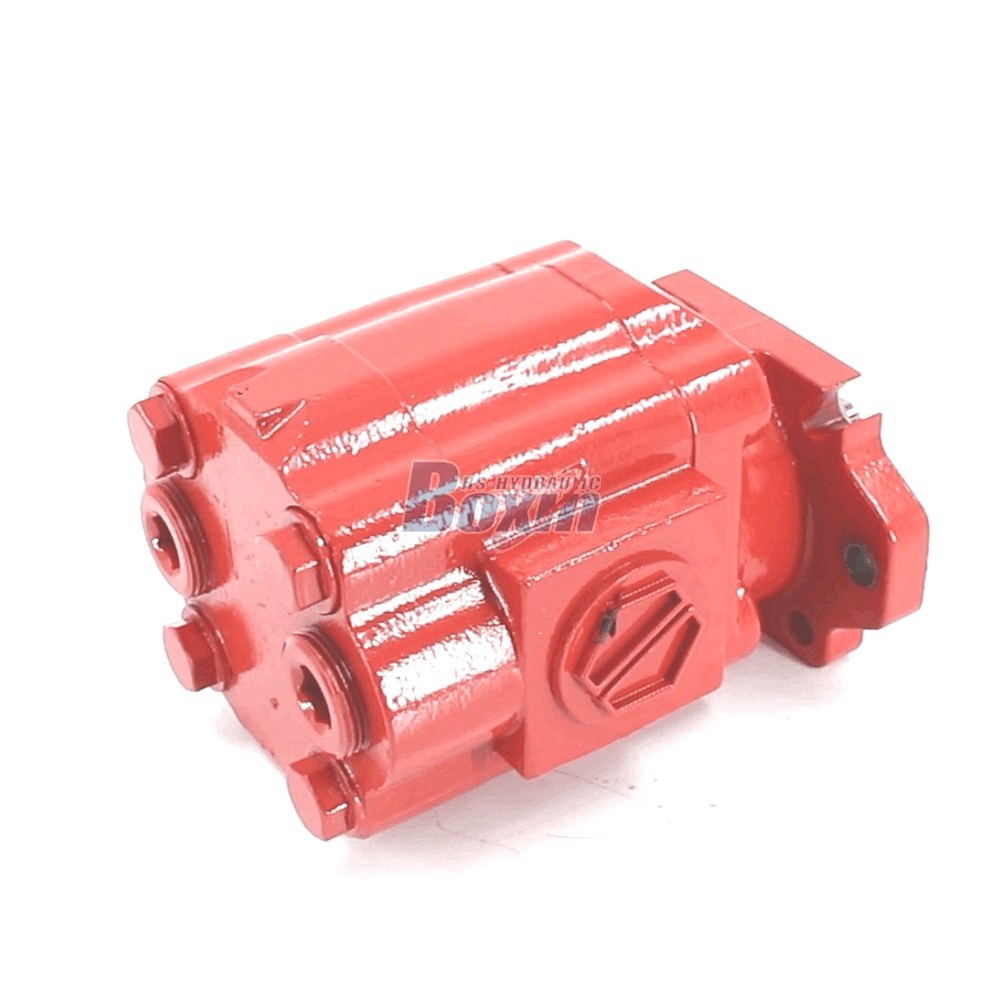

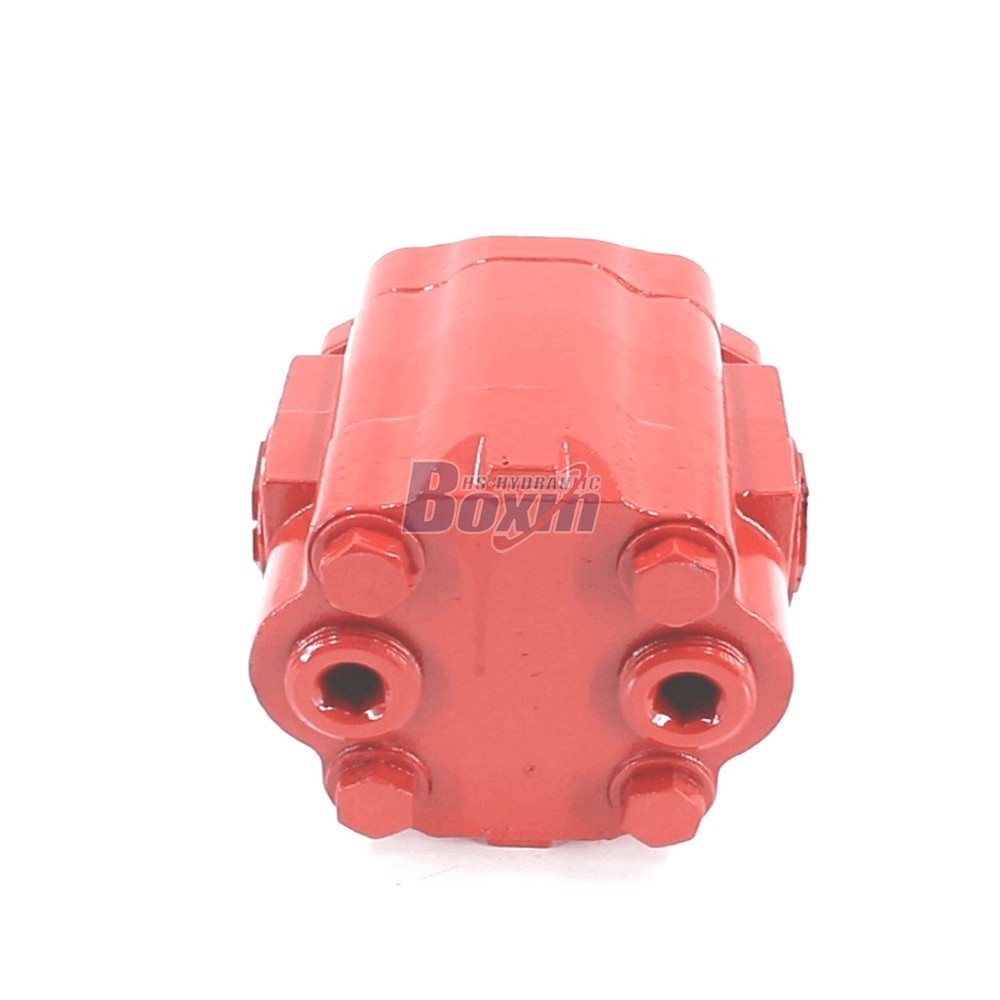

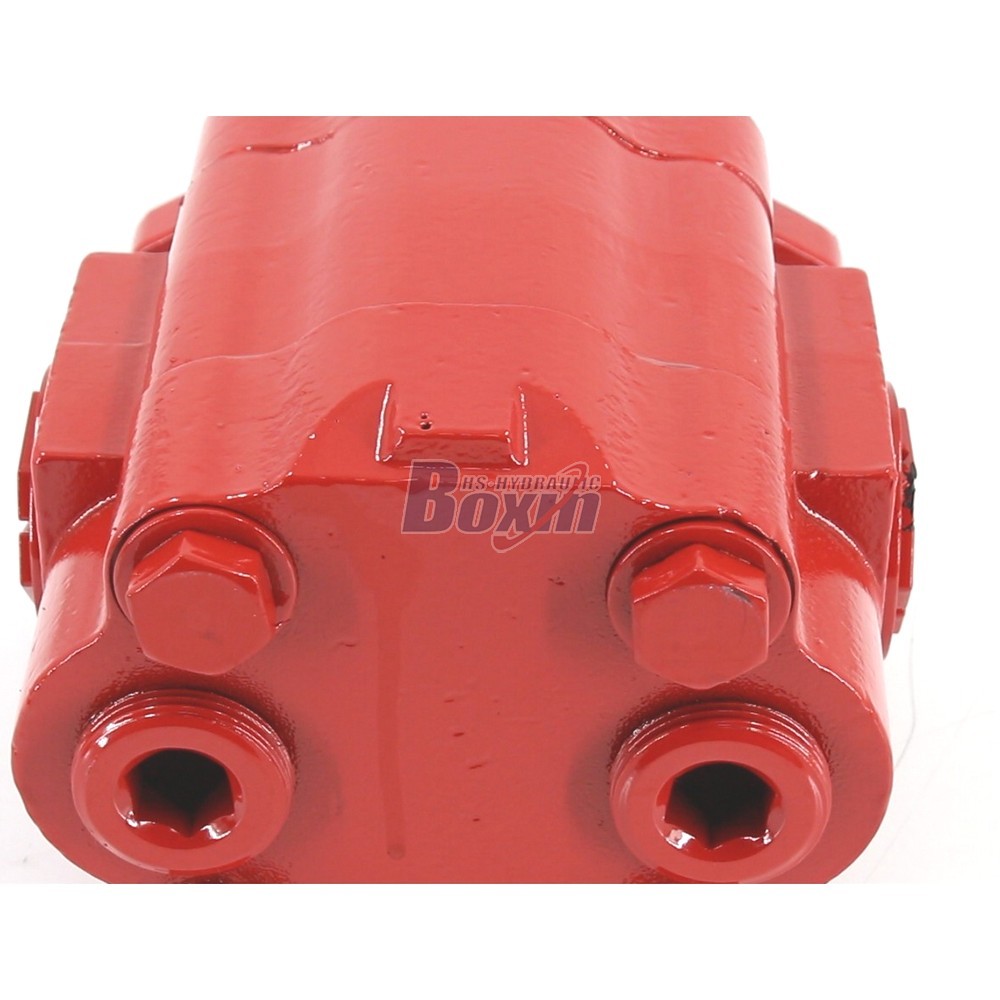

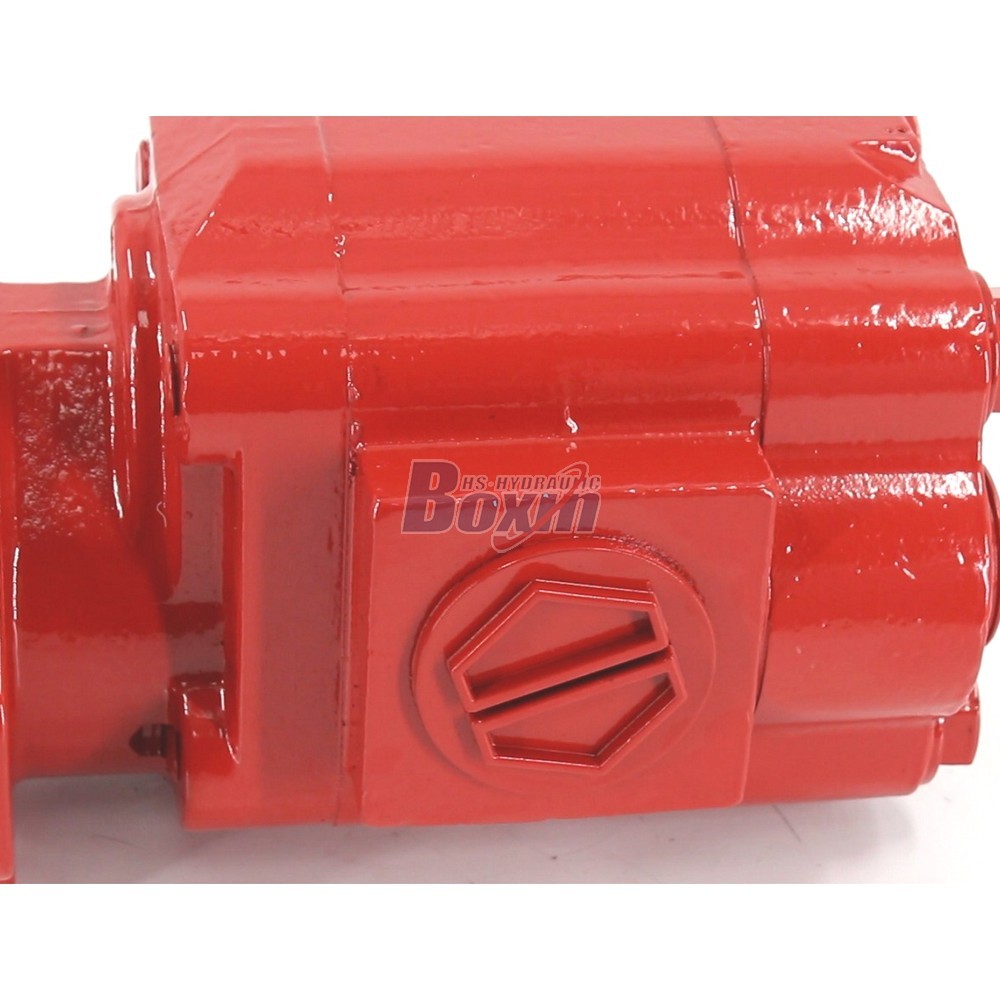

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump drawing image

This P51 Series Hydraulic Gear Pump features a 104.5 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for telehandlers and loaders. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.

Série P51 Bomba de engrenagem hidráulica Parâmetros
Deslocamento 104,5 cc/rev, 21 cc/rev, 41,8 cc/rev, 52,3 cc/rev, 62,7 cc/rev, 64,6 cc/rev
Pressão Nominal 16 MPa (2320 psi)
Pressão Máxima 17 MPa (2465 psi)
Velocidade Nominal 2200 rpm
Velocidade Máxima 2400 rpm
Rotação Bidirecional
Material Ferro Fundido
Estrutura Bomba de engrenagem externa
Versão da flange Flange oval A, Orifícios de montagem ISO-4, Flange SAE
Tipo de veio X: Chaveta involuta

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa, ensuring stable power output.
- Operates efficiently at a rated speed of 2200 r/min (max 2400 r/min) with bidirectional rotation, providing versatile installation options for complex hydraulic systems.

**2. Versatile 104.5 cc/rev Gear Pump Applications**
- Engineered specifically for heavy-duty equipment including telehandlers, forklifts, wheel loaders, skid steer loaders, and backhoe loaders.
- Widely used in material handling, construction, earthmoving, and agriculture sectors, offering seamless compatibility with midi-excavators, tractors, harvesters, and sweepers.

**3. Reliable P51 Series Hydraulic Pump Quality**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, adhering to strict IATF 16949 standards and CE compliance.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity, supported by SGS detection and 25+ autonomous patents for guaranteed durability.

**4. Durable Bidirectional Gear Pump Construction**
- Features advanced anti-rust treatment and heavy-duty wooden crate packaging to ensure safe global delivery and long-term storage stability.
- Designed as a direct replacement for international mainstream brands, offering cost-effective solutions without compromising on structural integrity or operational lifespan.

**5. Factory Direct Sales & OEM Customization**
- Leverage our 25 years of manufacturing expertise and 1.5 million annual production capacity for wholesale direct sales and bulk orders.
- Supported by 35+ senior engineers, we offer comprehensive OEM/ODM services including custom logos, casting modifications, and private label solutions for distributors.
