The SDS180 Sectional Valve is a precision hydraulic control valve designed for use in various applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with a manual operation, a rated flow of 160 L/min, and a maximum pressure of 350 bar.
| Série SDS180 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Hidráulico |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 160 L/min (42,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi), 350 bar (5100 psi) |
| Porta de Entrada | G3/4, G1, SAE 12 |
| Porta de Saída | G1, SAE 16 |
| Tamanho da Porta | G3/4, G1, SAE 12 |

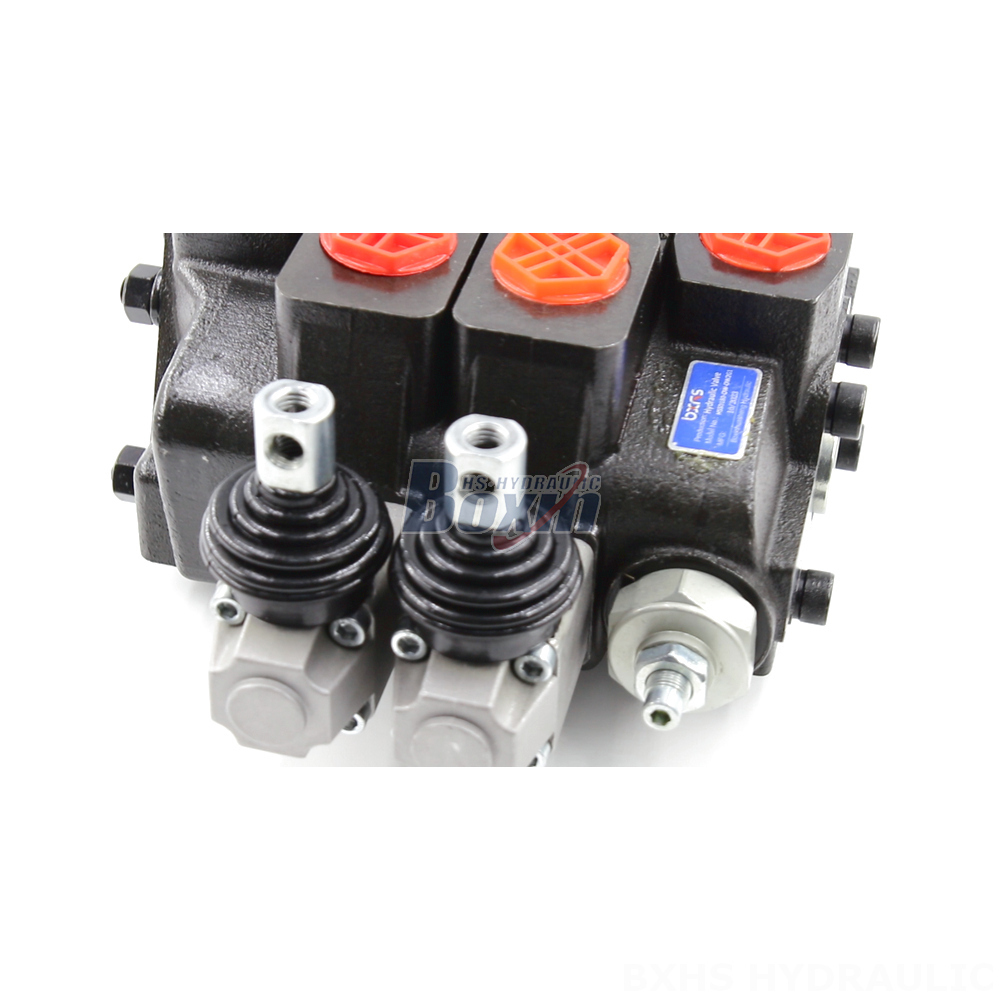

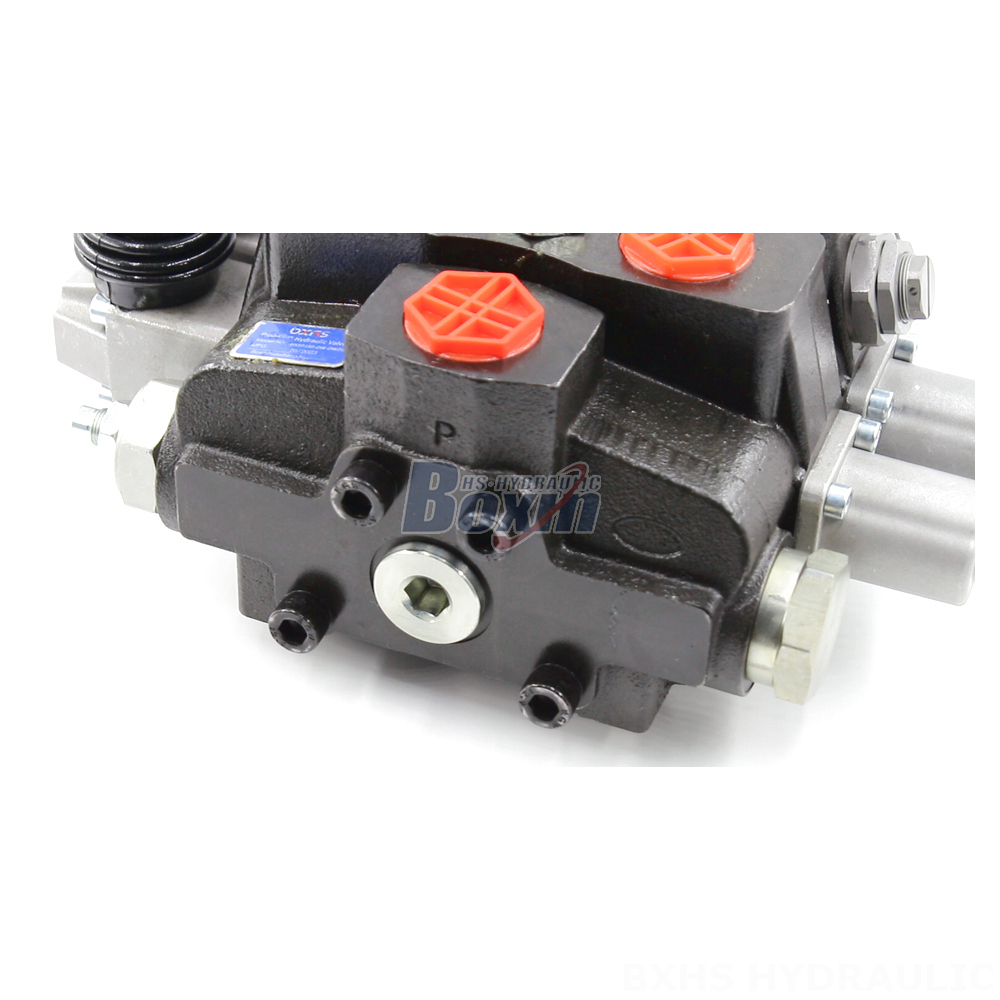

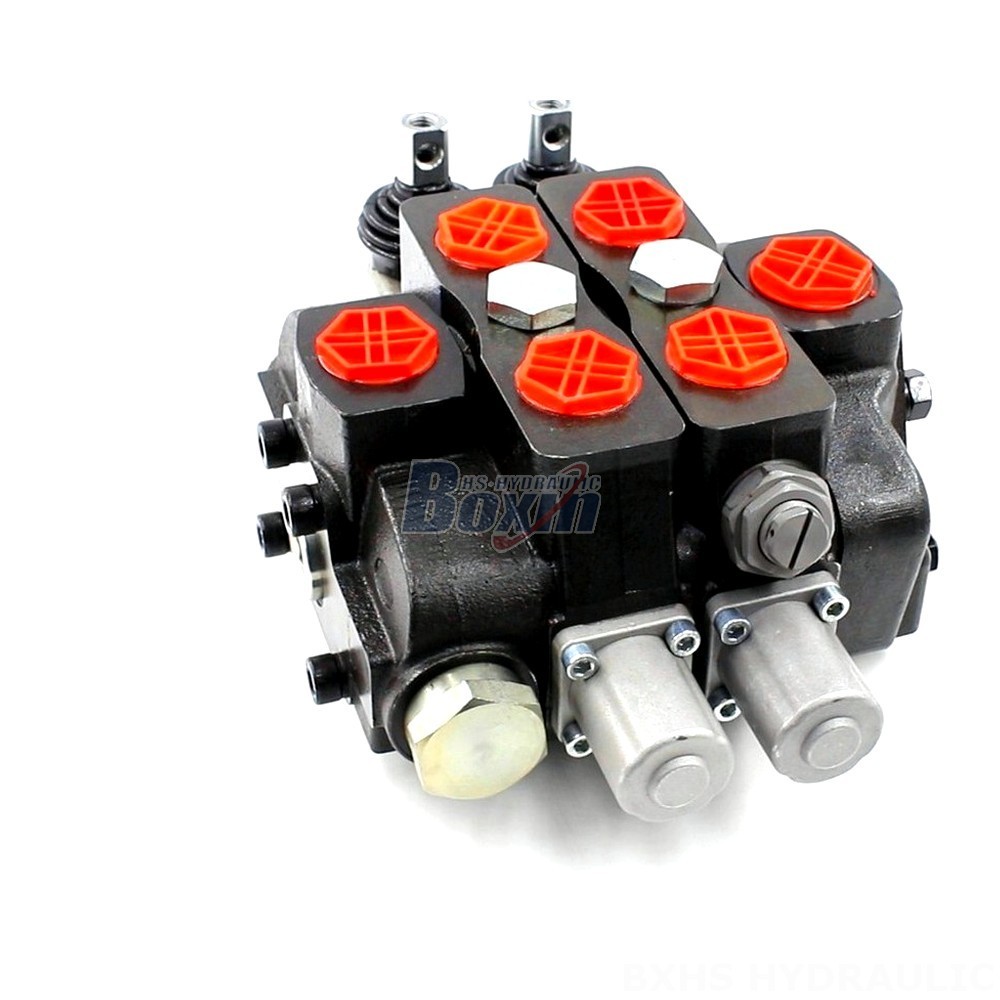

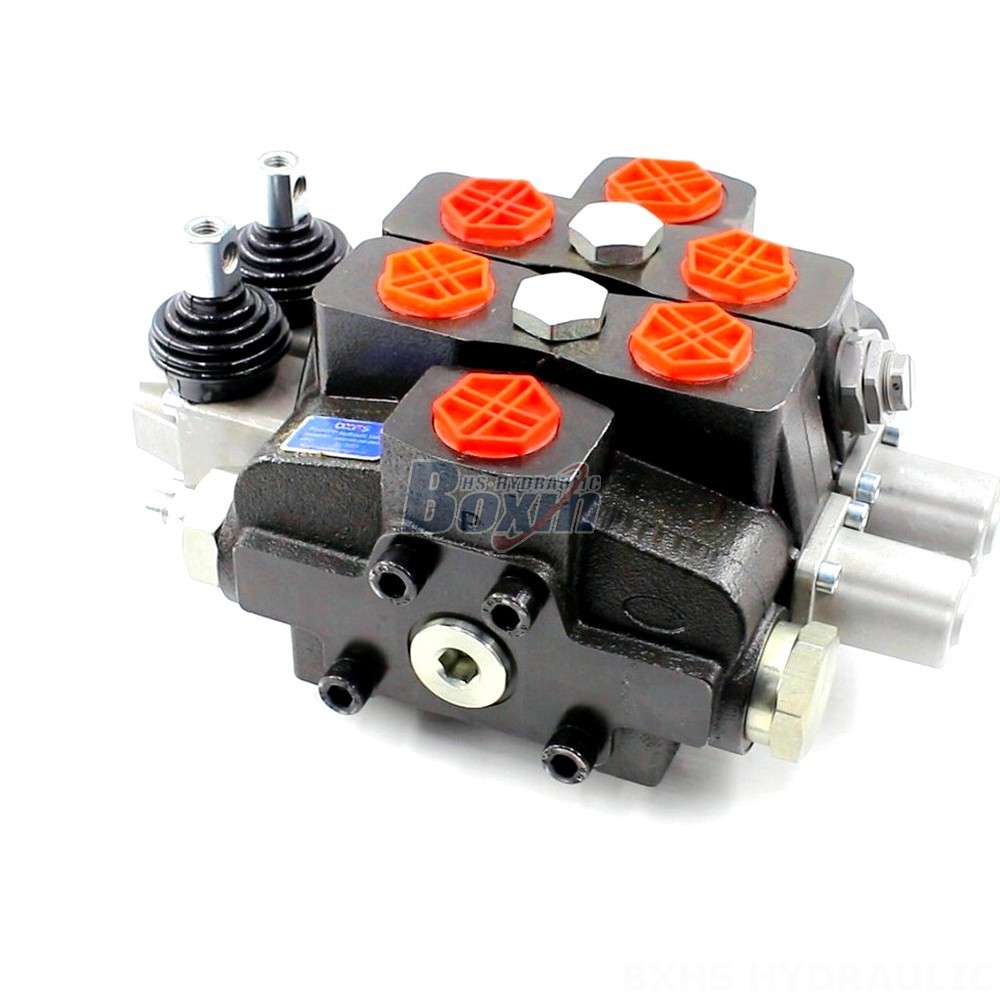

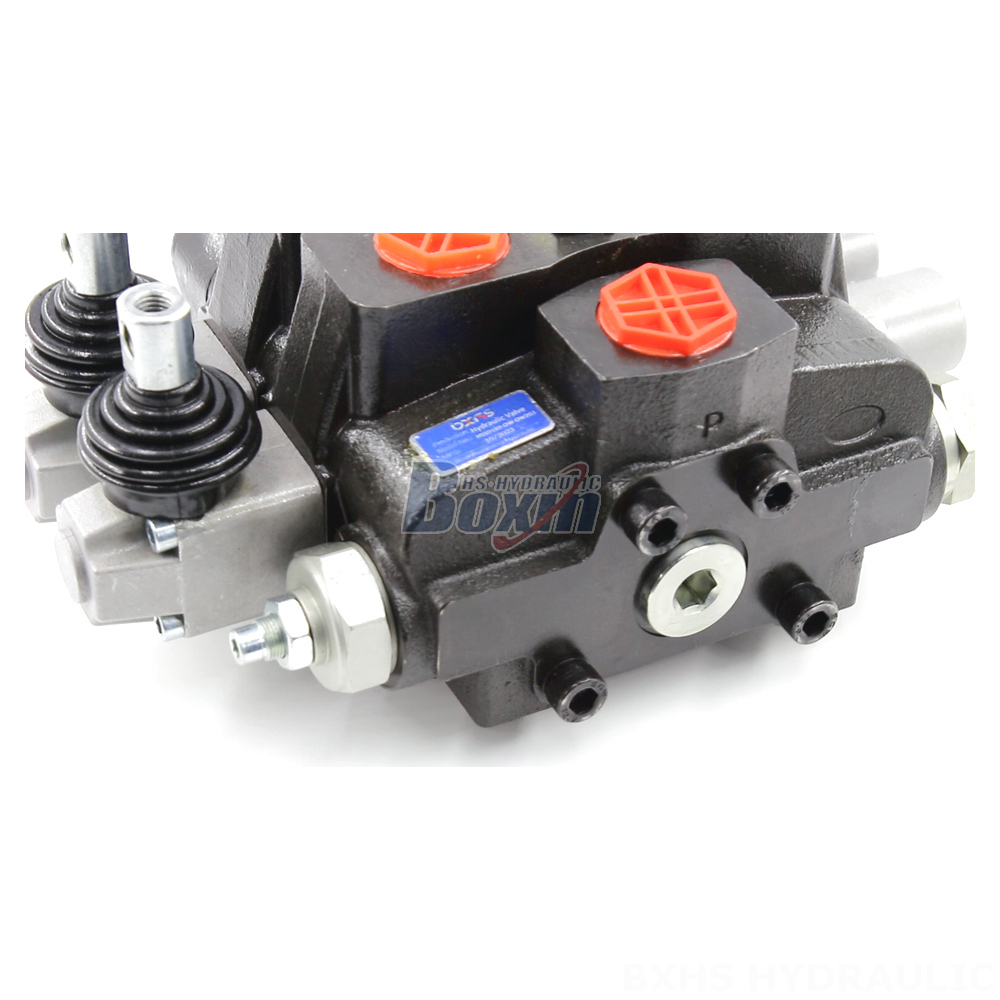

**SDS180 Sectional Valve**
The SDS180 Sectional Valve is a 2-section, manually operated hydraulic valve designed to provide precise control of hydraulic systems. It features a rated flow of 160 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 12 - 400 mm²/s. The valve is constructed using high-quality materials and is engineered to meet the demands of demanding applications.
**Key Features:**
* Manual control for precise operation
* 2-section design for versatility
* Rated flow of 160 L/min
* Maximum pressure of 350 bar
* Operating viscosity range of 12 - 400 mm²/s
* Durable construction for long-lasting performance
**Applications:**
The SDS180 Sectional Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
The SDS180 Sectional Valve is commonly used in the following types of equipment:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
