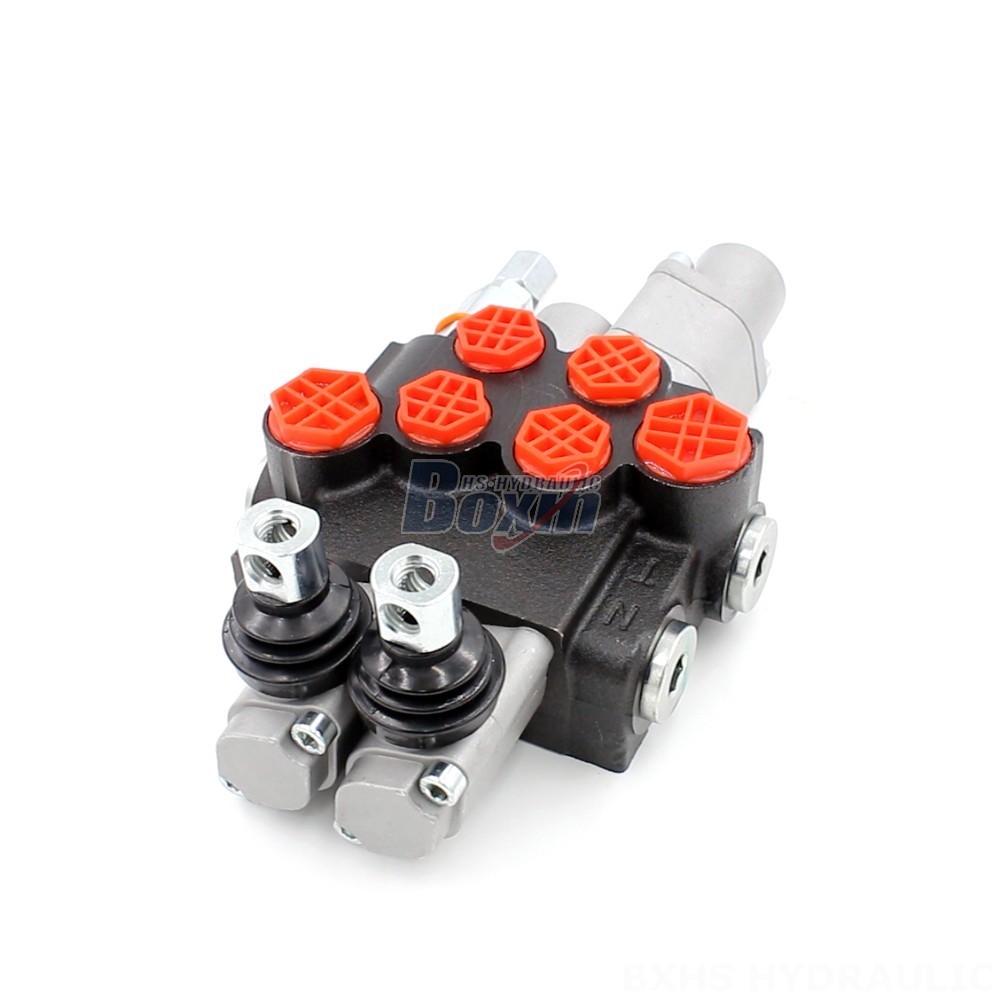

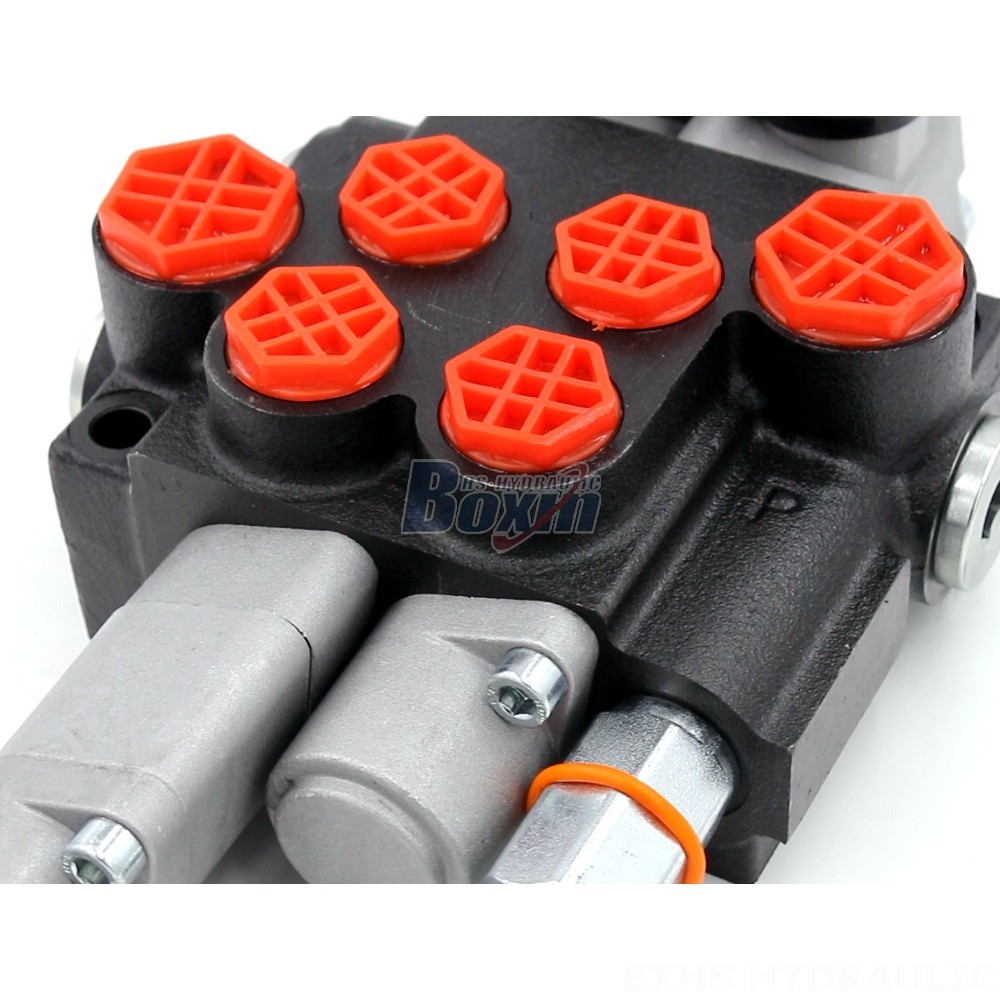

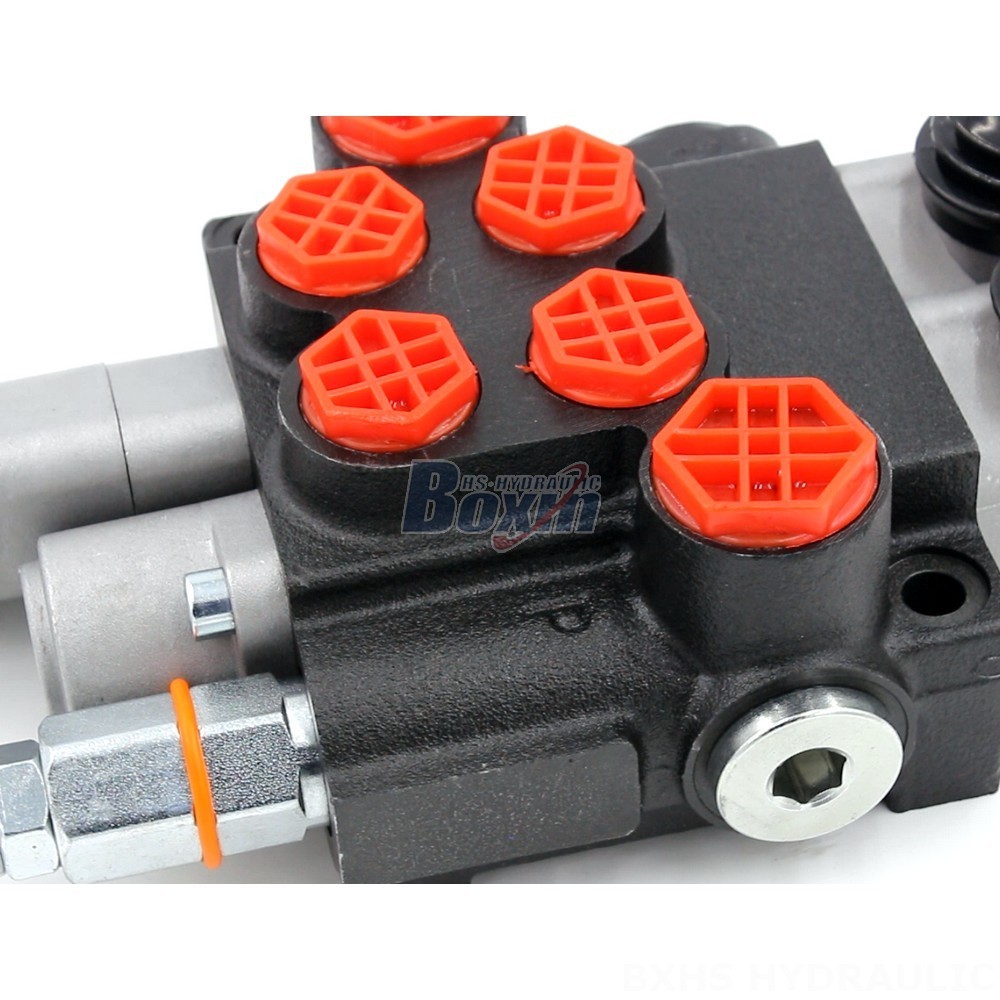

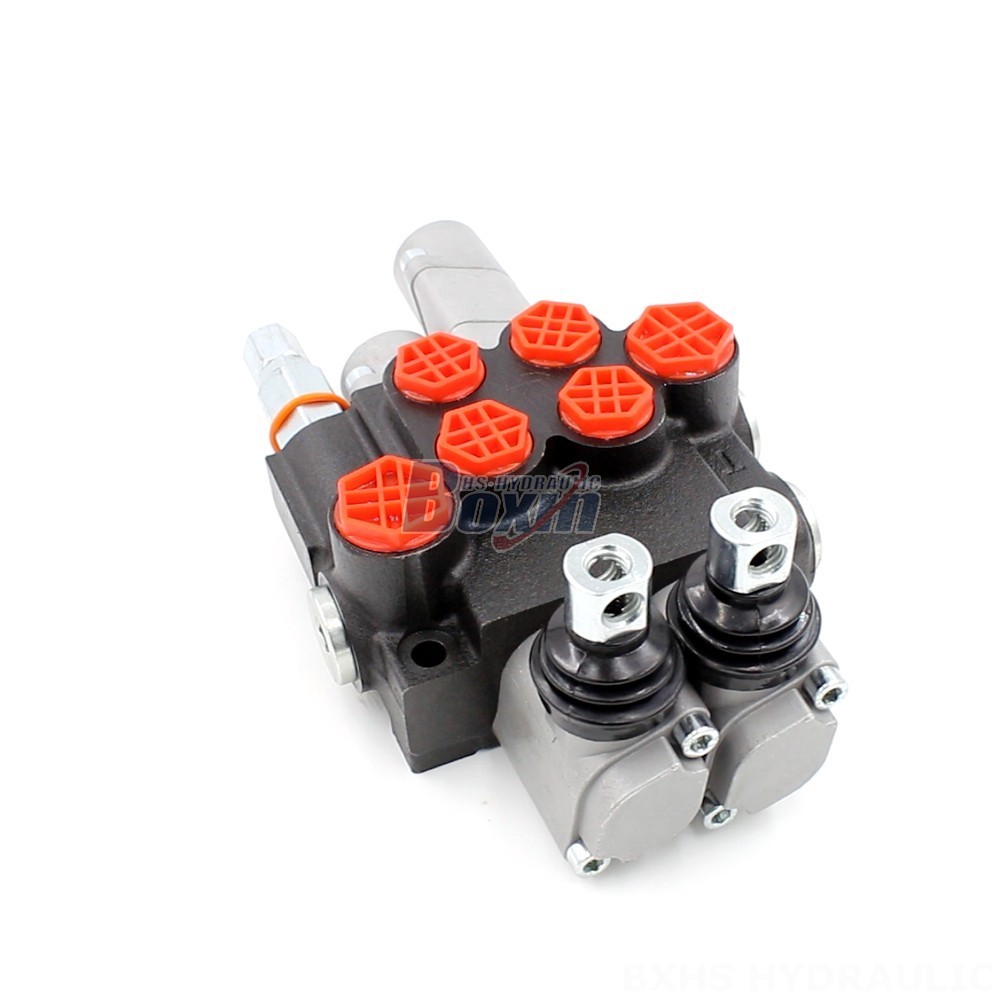

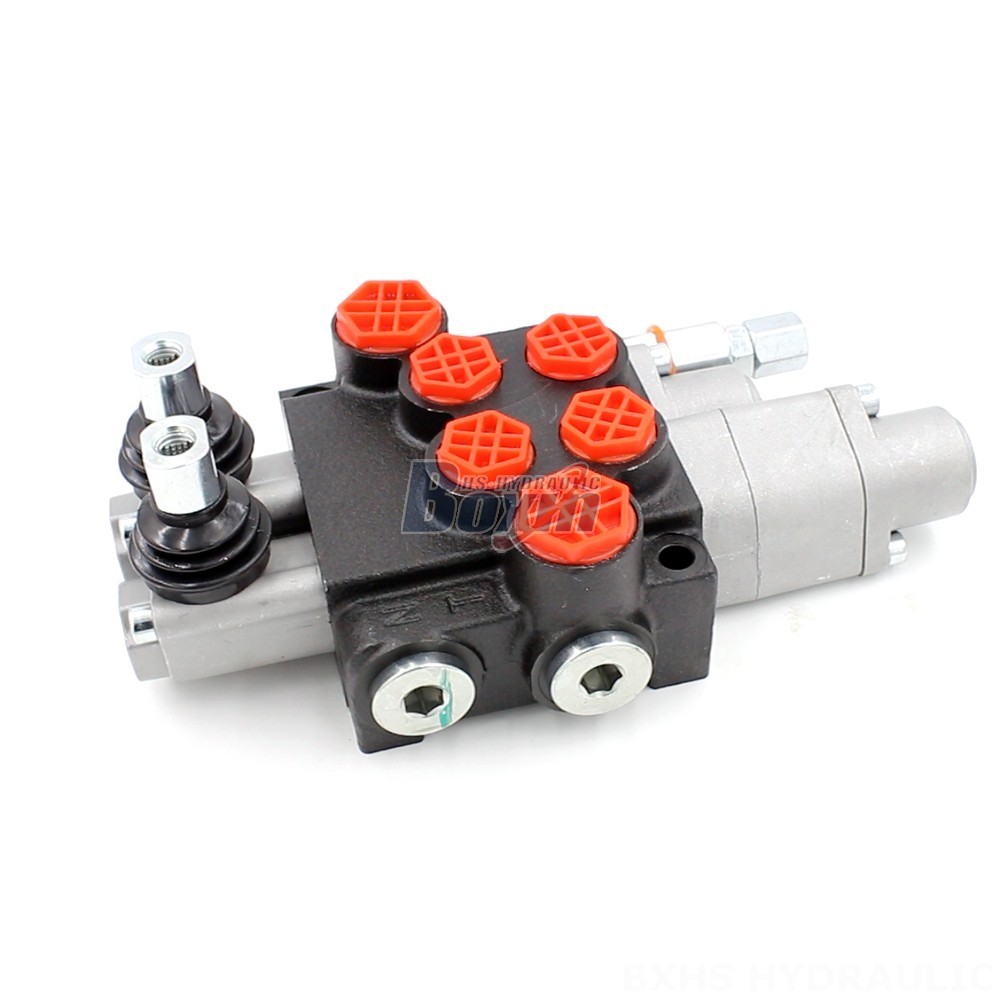

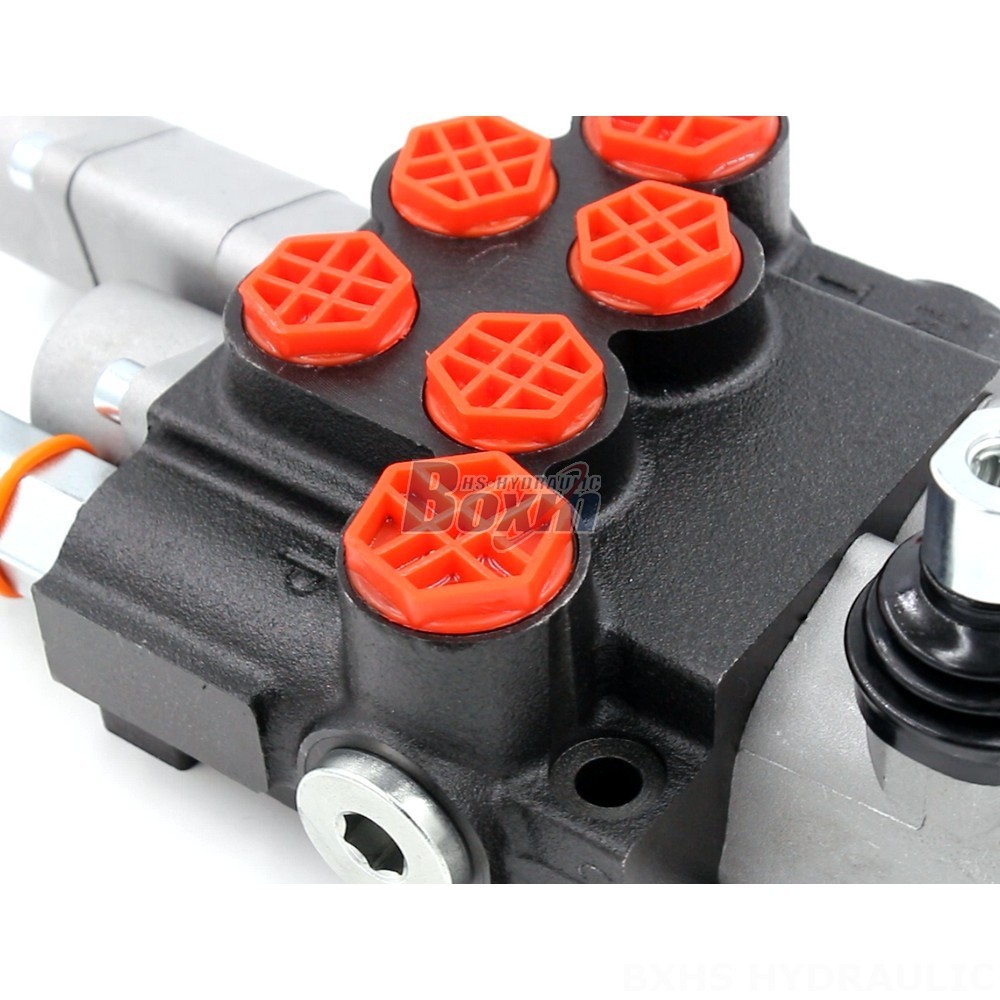

The P40-AQF-G38-G12 is a premium integral hydraulic valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This monoblock valve features manual control, a 2-section design, and a rated flow of 40 L/min, making it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-AQF-G38-G12 is a high-performance integral hydraulic valve designed for demanding applications in various industries. It features a robust monoblock valve design with manual control for precise operation. With a 2-section configuration and a rated flow of 40 L/min (10.5 US gpm), this valve can handle high flow rates and pressures. The P40-AQF-G38-G12 is capable of operating at pressures up to 250 bar (3600 psi) and can handle a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This valve is designed for reliable performance even in extreme environments, with an operating temperature range of -40°C to +80°C (-40°F to +176°F). It is specifically suited for use in various heavy-duty applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and backhoe loaders. The P40-AQF-G38-G12 combines premium quality, high performance, and versatility, making it an ideal choice for demanding hydraulic applications.
