Produção e Entrega
Prazo de produção de 15 a 30 dias

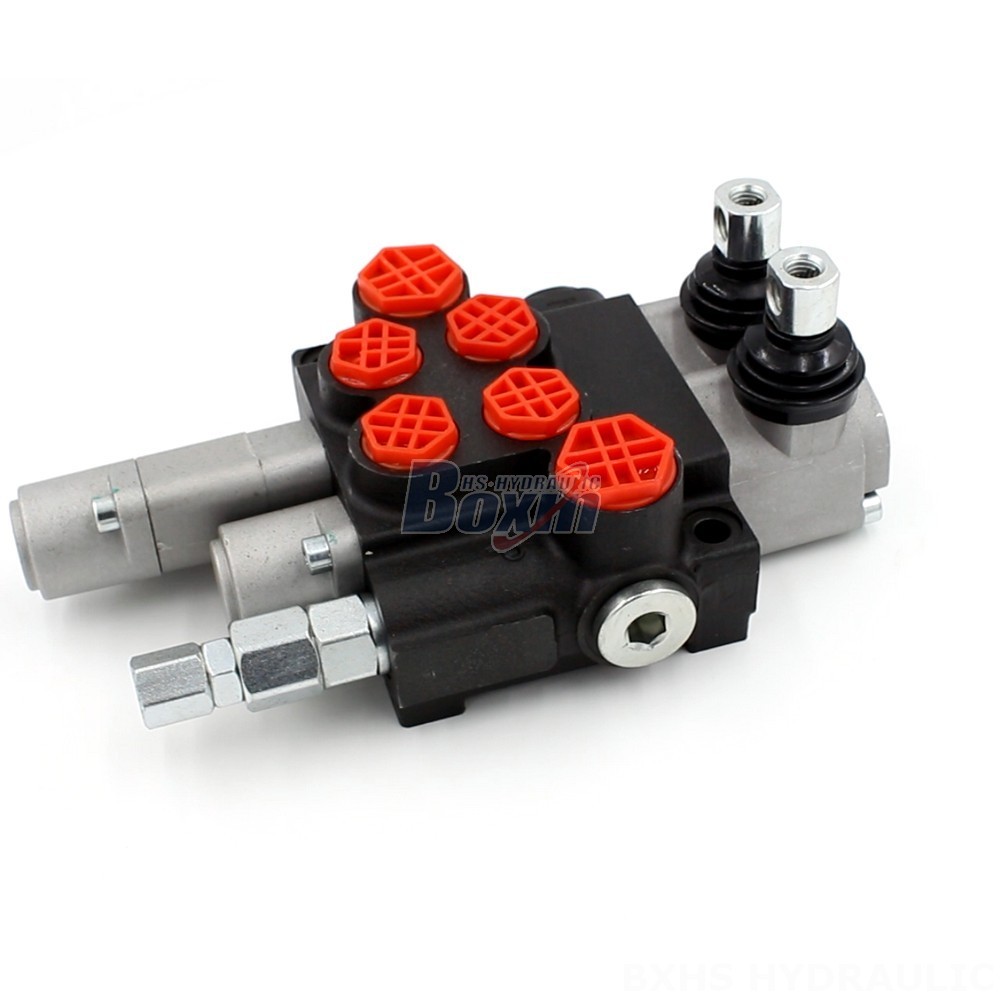

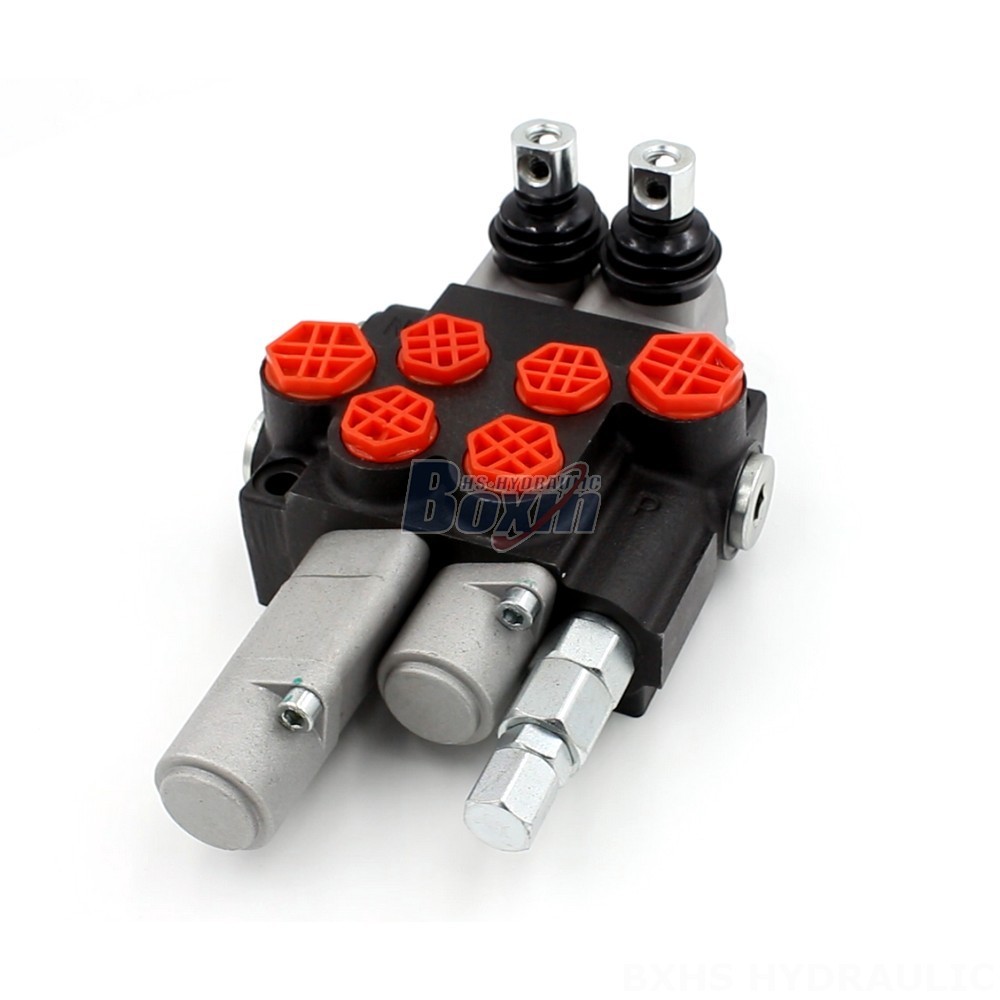

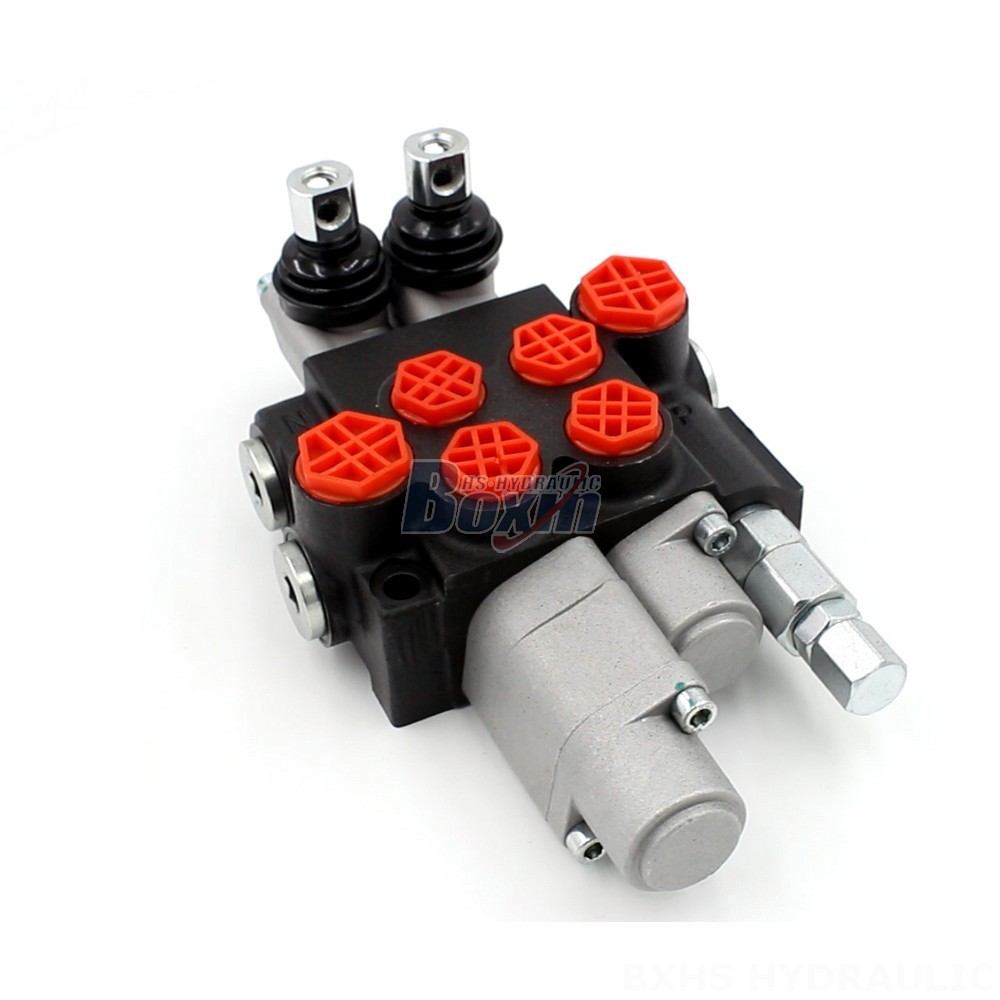

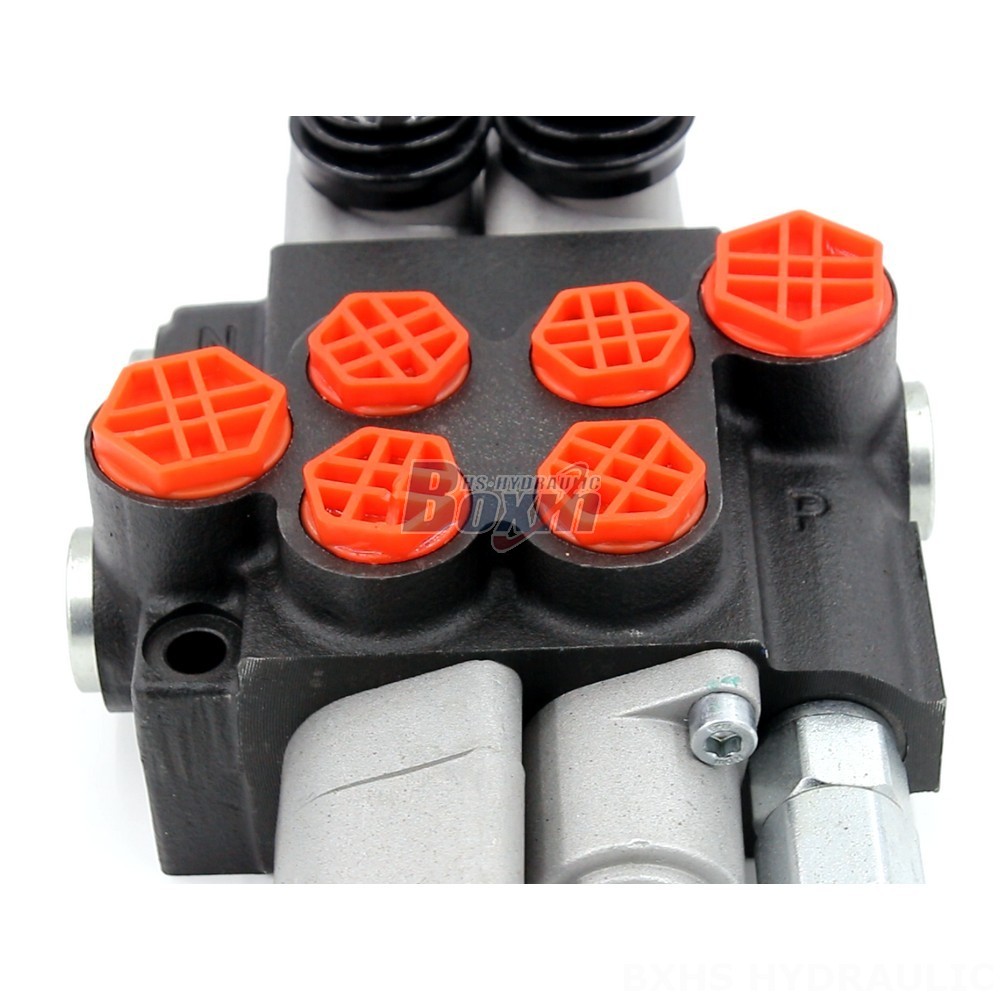

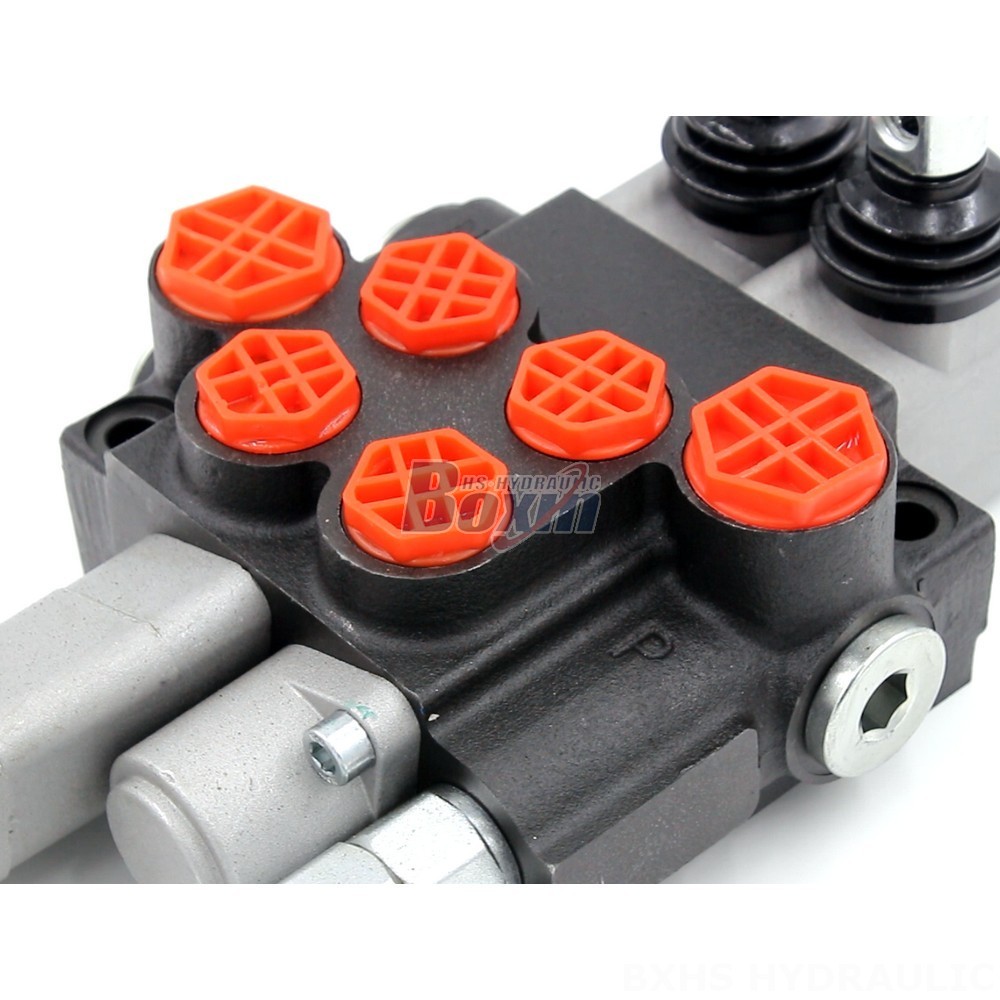

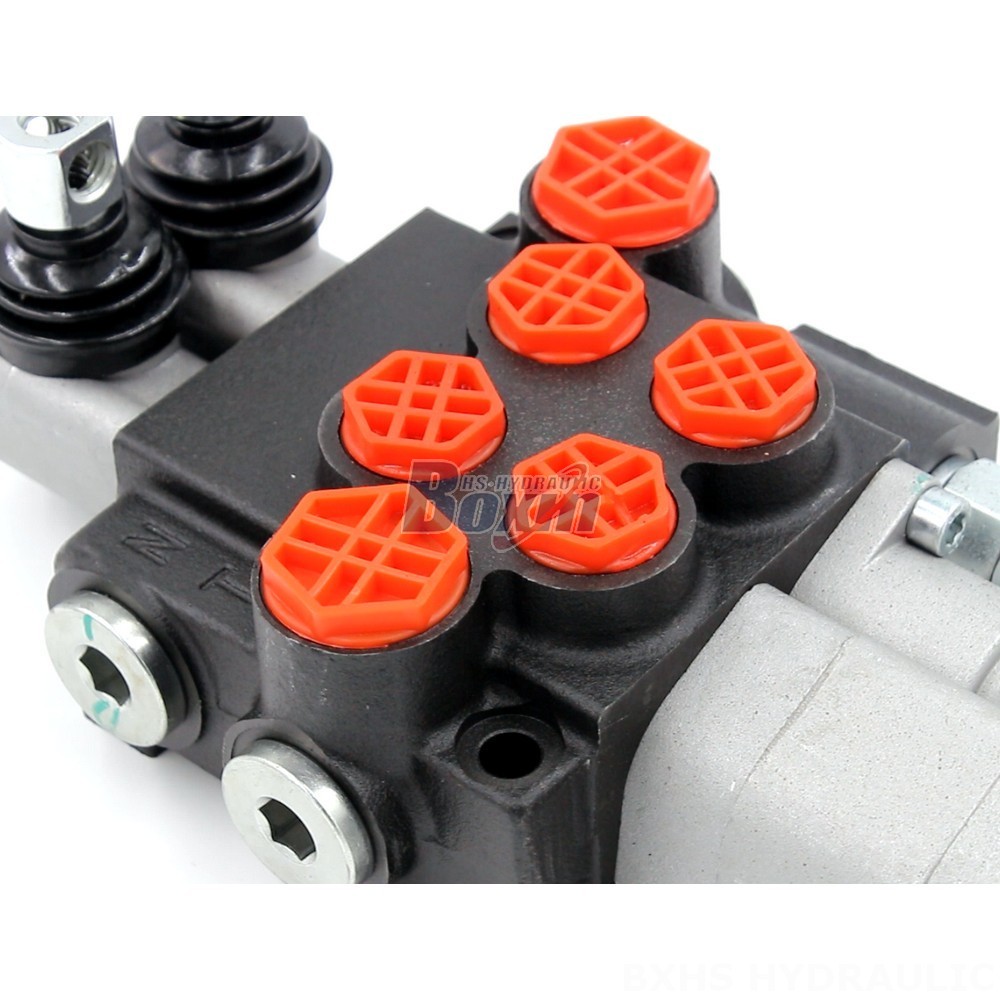

This 12V Hydraulic Spool Valve offers reliable control for various applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 2 sections, and a monoblock design. With a flow rate of 40 L/min and a maximum pressure of 250 bar, it provides robust performance. We offer OEM, private label, and customized solutions to meet your specific needs.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 12V Hydraulic Spool Valve is a high-performance, reliable control solution for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles. Featuring manual control, 2 sections, and a monoblock design, this valve provides precise and efficient operation. It boasts a flow rate of 40 L/min and a maximum pressure of 250 bar, ensuring robust performance in demanding environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve is designed for diverse conditions. Our expertise in manufacturing, OEM, private label, and custom solutions allows us to tailor this product to your specific requirements. We are committed to delivering high-quality hydraulic valves that meet your exact specifications and contribute to your brand's success.
