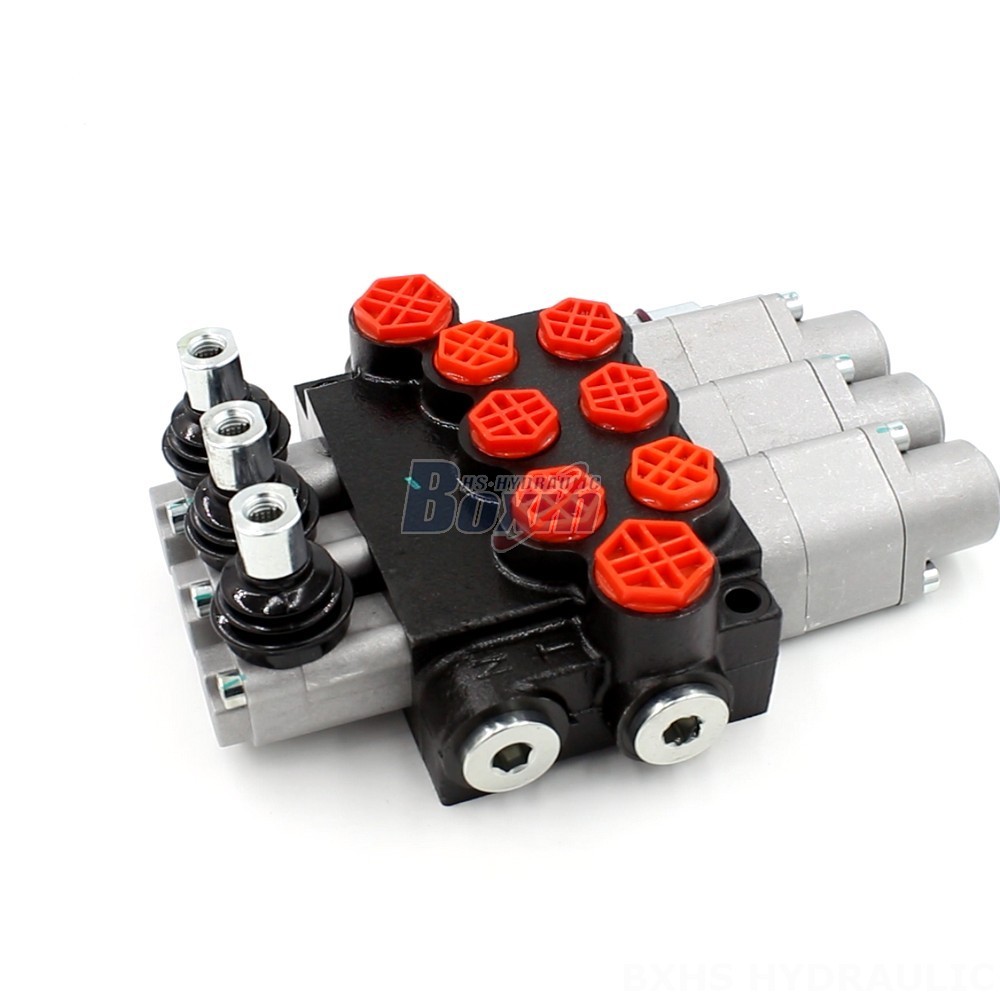

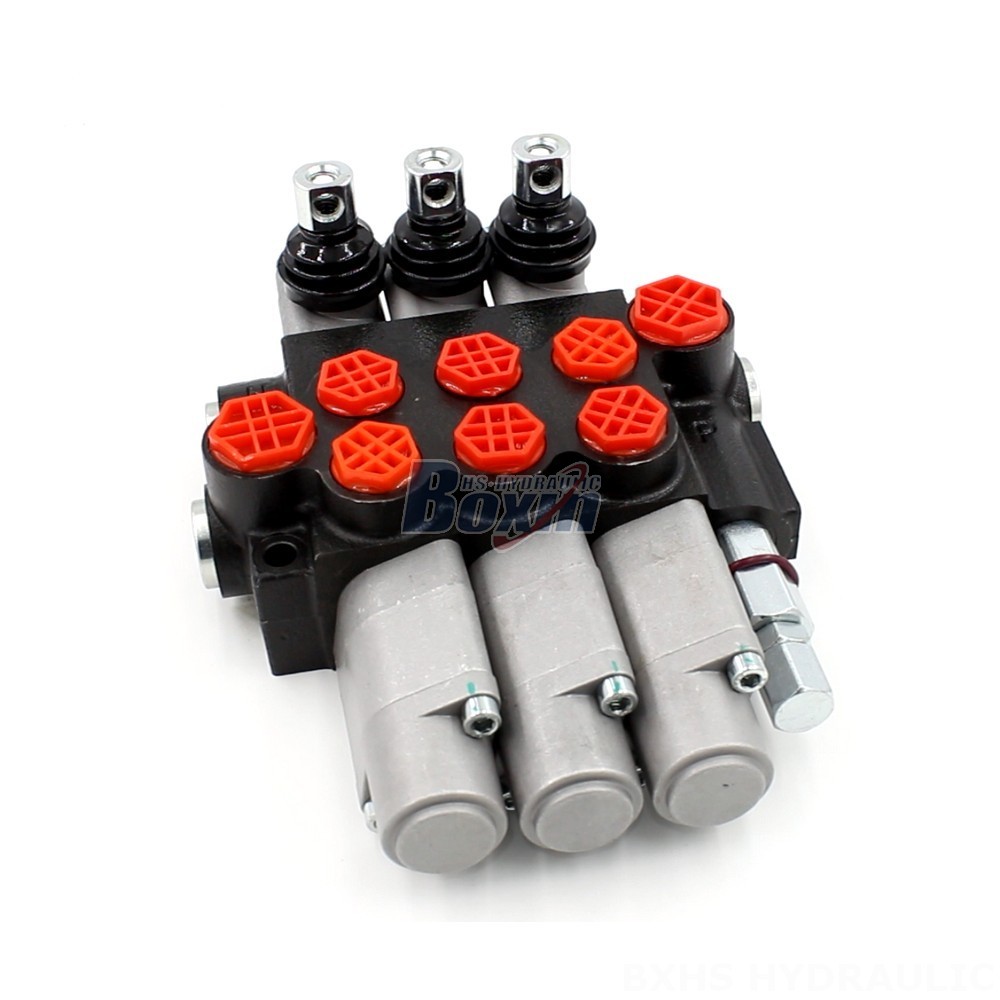

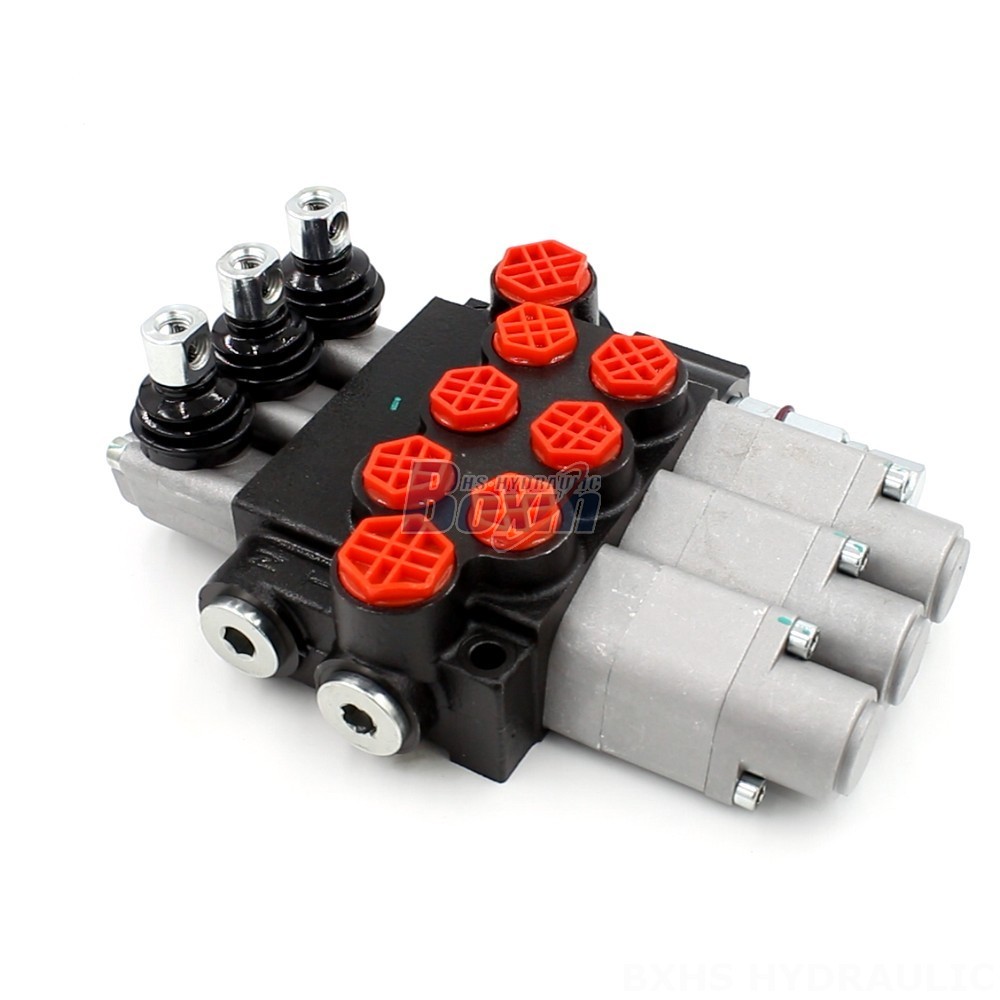

Our P40-G12-G38-3QTW monoblock valve is a high-performance hydraulic component designed to meet the demanding requirements of various industrial and mobile applications. With its sturdy construction, precise control, and customizable options, this valve is an ideal solution for OEMs and system integrators seeking reliable and tailored hydraulic solutions.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- 3-section design for versatility and control over multiple hydraulic circuits
- 40 L/min rated flow capacity to handle high flow demands
- 250 bar maximum pressure rating for durability and reliability
- Wide operating viscosity range from 15 to 75 mm²/s for compatibility with various hydraulic fluids
- Temperature range of -40°C to +80°C for operation in extreme environments
- 3 spool options to suit specific application requirements
- P40 series compatibility for interchangeability and ease of integration
**Applications:**
- Material handling equipment
- Construction and earth-moving machinery
- Agricultural vehicles
- Industrial vehicles
**OEM, ODM, and Private Label Services:**
We offer flexible OEM, ODM, and private label services to meet your specific requirements. Our team of experienced engineers can work closely with you to develop and manufacture customized solutions that align with your brand and application needs. Whether you require tailored valve configurations, custom labeling, or complete design and manufacturing services, we have the expertise and capabilities to deliver the ideal solution for your business.
