Produção e Entrega
Prazo de produção de 15 a 30 dias
248 Visualizações estão procurando por este produto

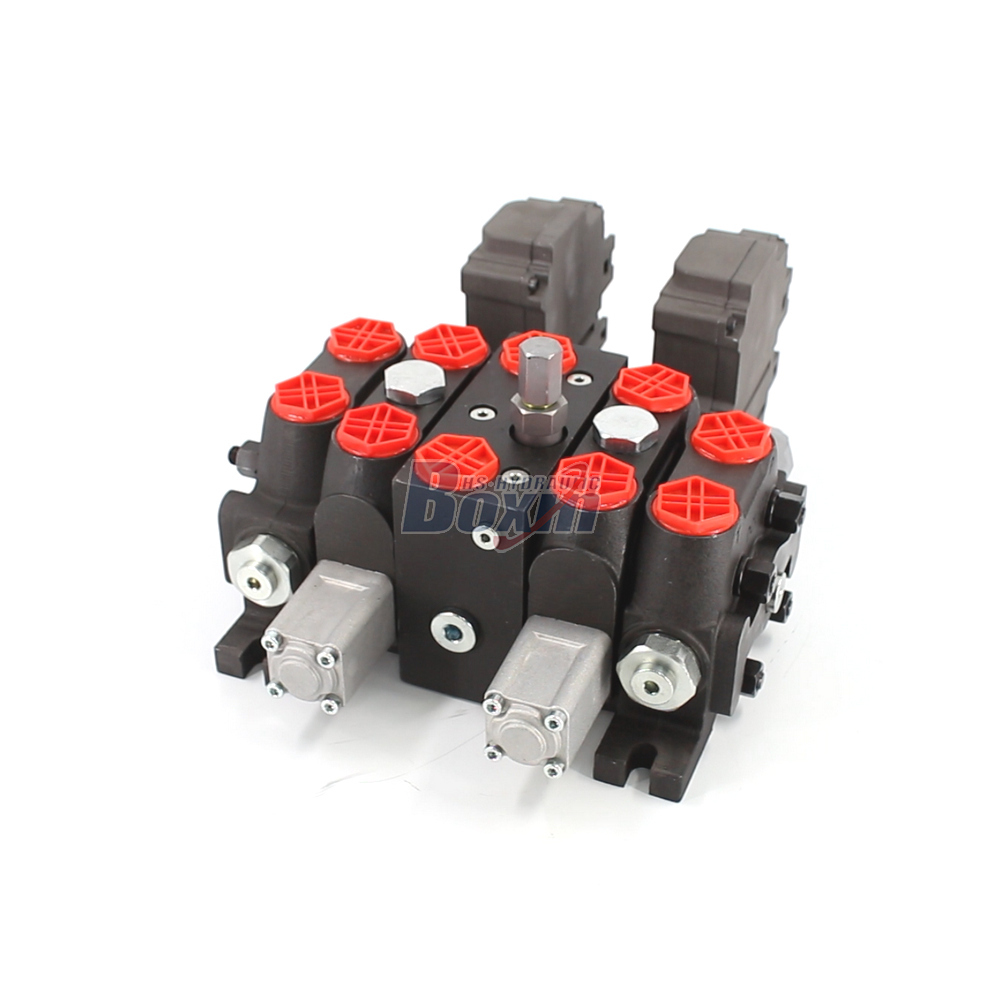

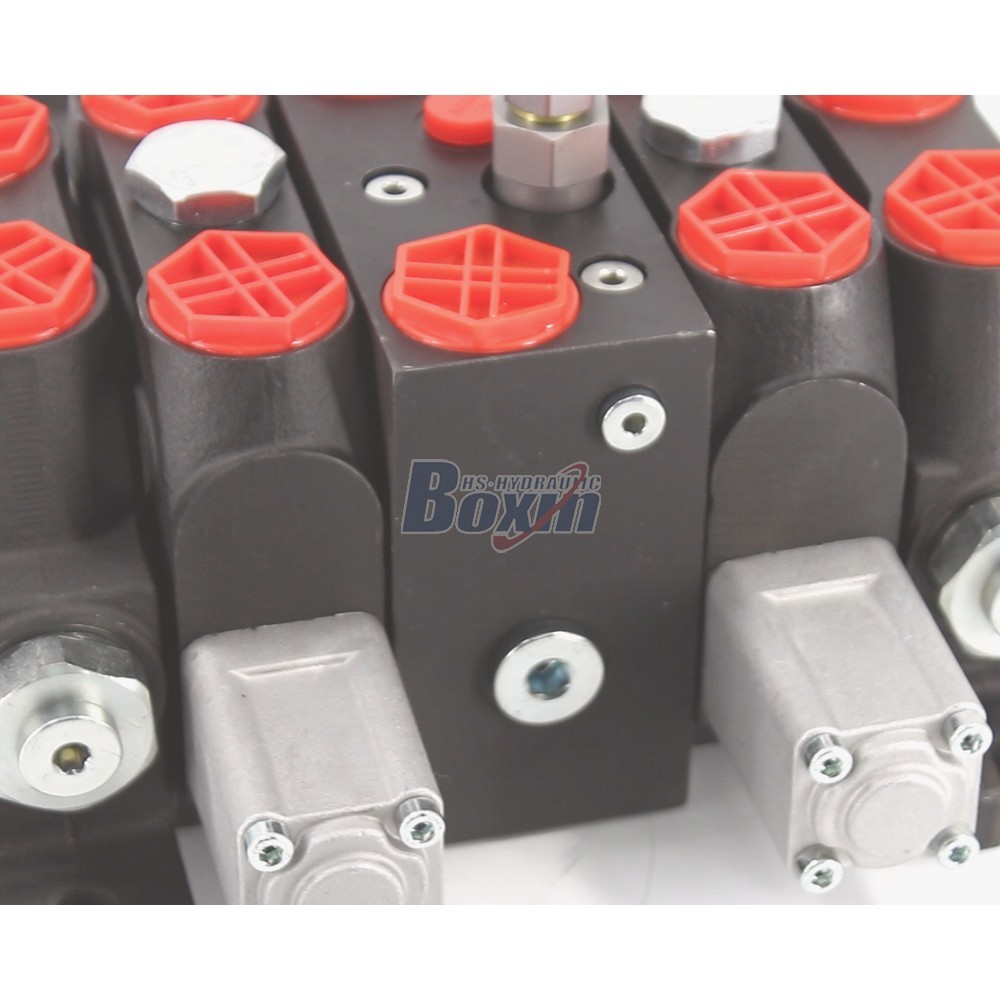

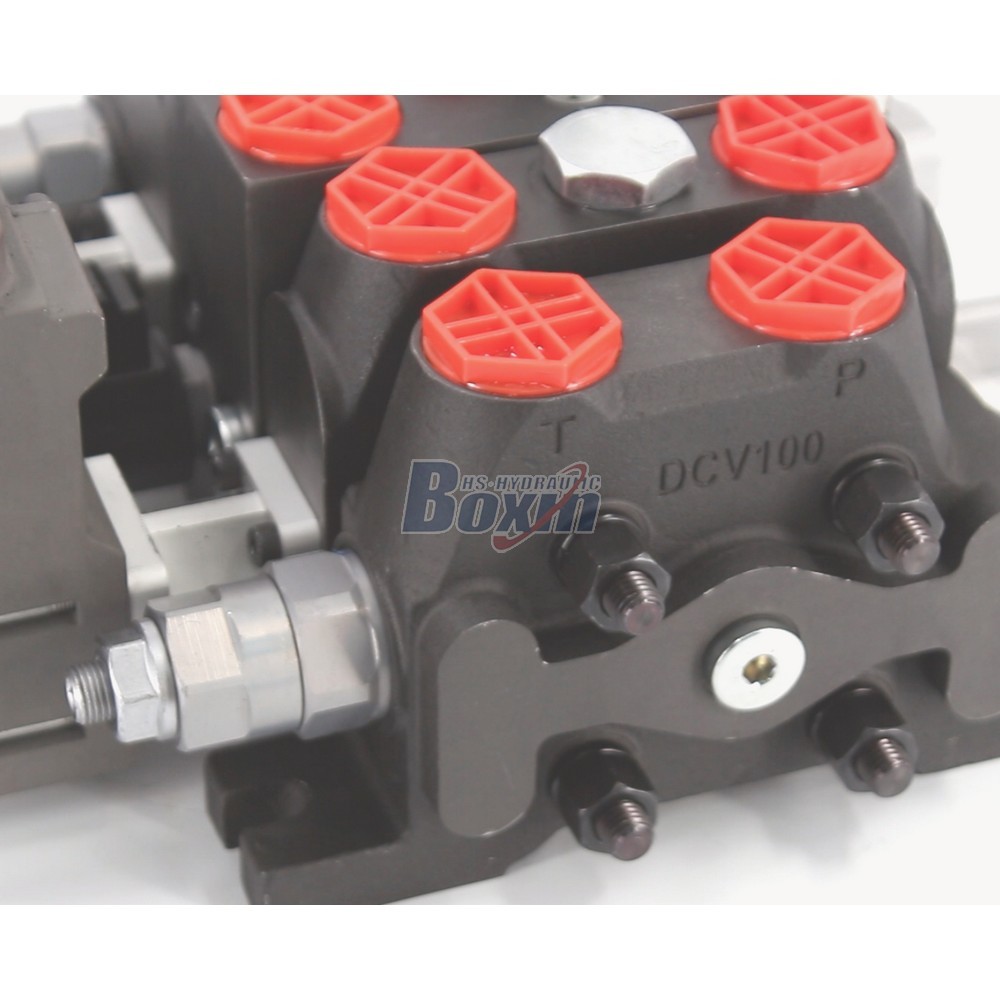

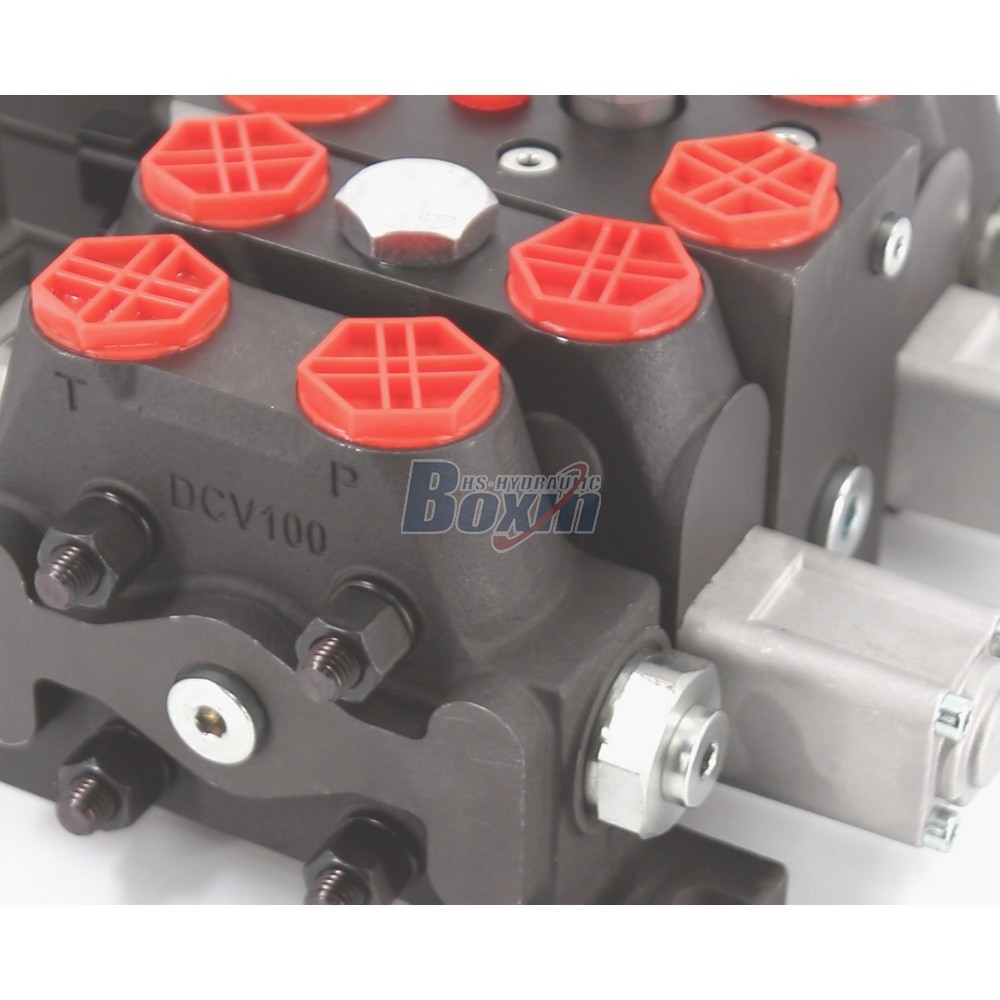

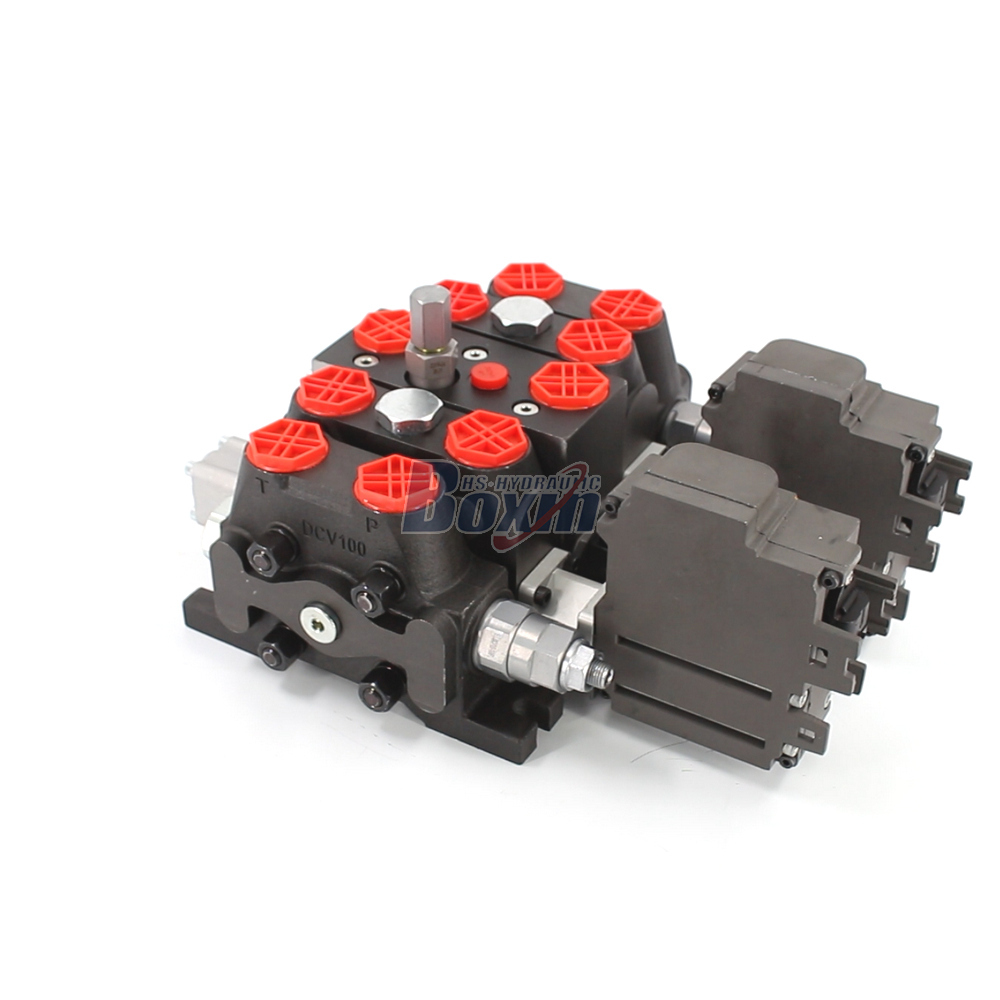

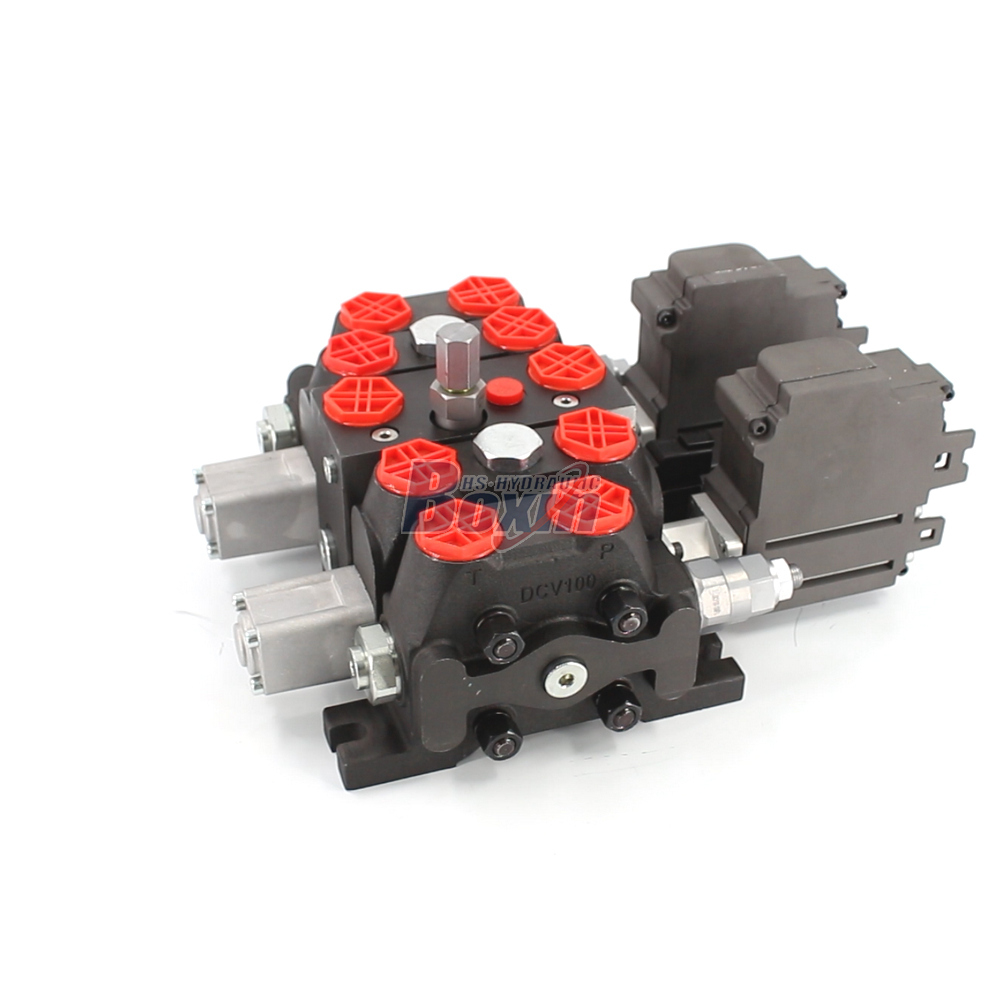

This DCV100 Series Sectional Directional Valve features a 2-spool electric motor control design, handling 100 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for forklifts, telehandlers, and construction machinery with full OEM/ODM support.
| Série DCV100 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Cabo, Joystick, Manual e Joystick, Manual e Eletro-hidráulico, Motor elétrico, Eletro-hidráulico e solenoide |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 100 L/min (26,5 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Porta de Saída | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Tamanho da Porta | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. Factory Direct Sales of Sectional Directional Valve**
- Sourced directly from our 68,000 sqm manufacturing base with 25+ years of expertise, ensuring competitive wholesale pricing.
- Annual capacity of 1,500,000 units guarantees stable supply for large-scale distributors and OEM projects.
**2. Reliable Electric Hydraulic Control Valve Performance**
- Engineered for precise operation with electric motor control, supporting rated flow of 100 L/min (26.5 US gpm).
- Withstands max pressure of 315 bar (4600 psi), ideal for demanding applications in material handling and agriculture.
**3. Durable 2 Spool Directional Valve Construction**
- Features G3/4 inlet and outlet ports, designed for seamless integration into compact hydraulic systems.
- Rigorously tested via 100% bench pressure, flow, and sealing checks to prevent leaks and ensure longevity.
**4. OEM/ODM Available for DCV100 Series Valve**
- Supported by 35+ senior engineers, we offer custom casting, logo laser marking, and private label services.
- Fully compatible with international mainstream brands, providing a cost-effective alternative without compromising quality.
**5. Certified Quality for Global Export**
- Holds IATF 16949, CE, and SGS certifications, backed by 25+ autonomous patents for technical reliability.
- Packaged in heavy-duty wooden crates with anti-rust treatment, ensuring safe delivery for worldwide wholesale clients.
