Reliable Source for Q45-DT-2OT Manual and Electromagnet Monoblock Valve Production

Método de Controle:Eletroímã manual e de tração-compressão (push-pull)

Carrétel:3 Carreteis

Fluxo Nominal:45 L/min (11,8 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série Q45 Válvula Direcional Monobloco

Tamanho da embalagem:22.0*36.5*19.0

Peso bruto:9.00 kg

Disponibilidade: Em estoque

70 Visualizações estão procurando por este produto

Reliable Source for Q45-DT-2OT Manual and Electromagnet Monoblock Valve Production

Reliable Source for Q45-DT-2OT Manual and Electromagnet Monoblock Valve Production

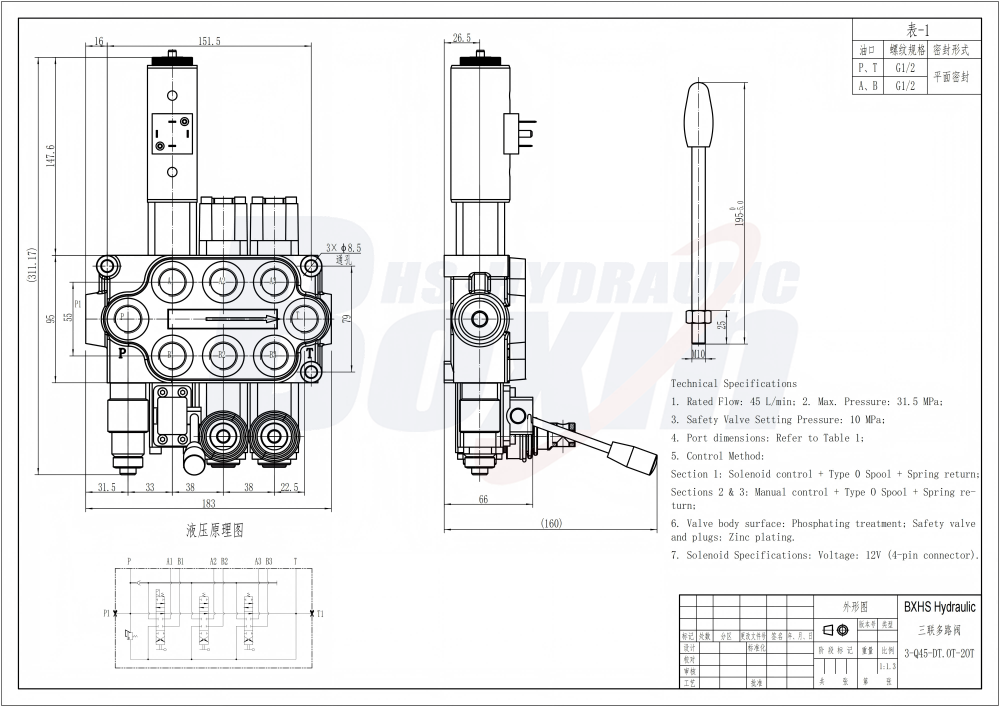

Reliable Source for Q45-DT-2OT Manual and Electromagnet Monoblock Valve Production drawing image

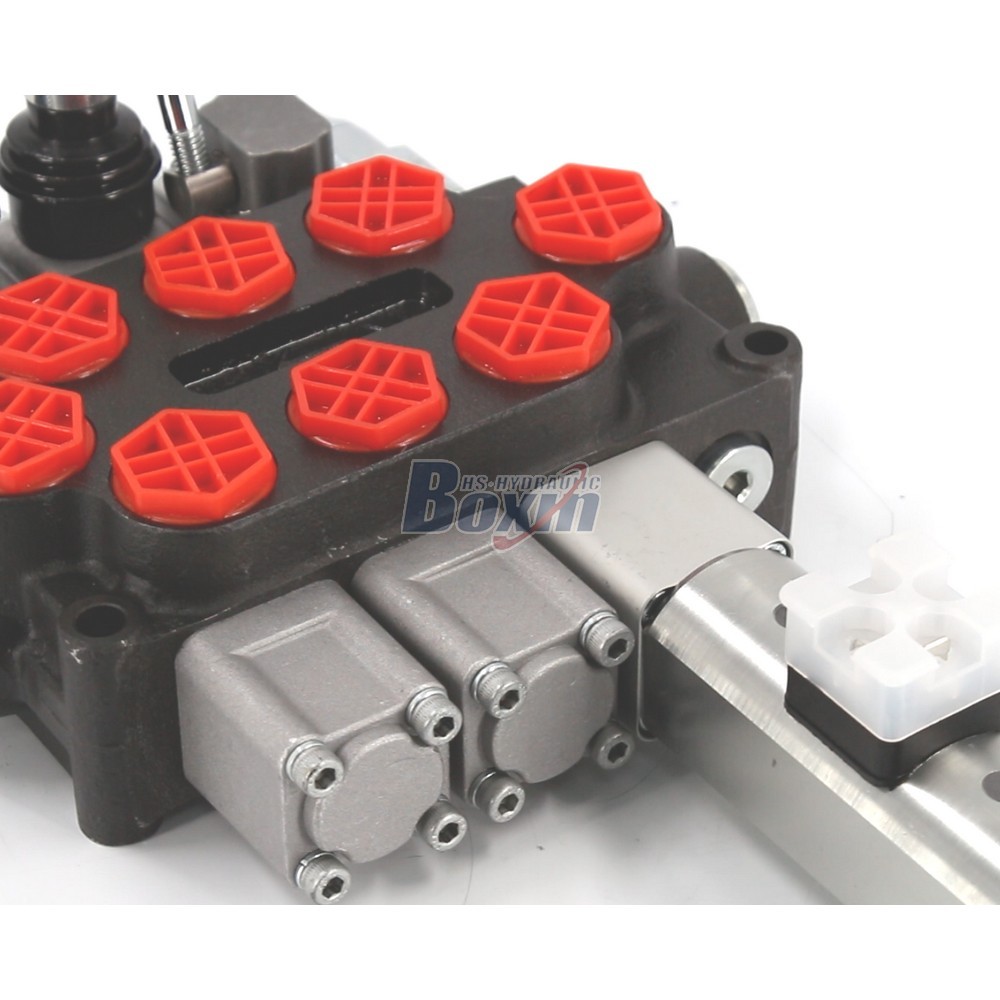

High-performance Q45-DT-2OT 3-spool monoblock valve featuring combined manual and electromagnet control, designed for reliable operation in material handling and agricultural machinery with a 45 L/min flow capacity.

Série Q45 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Joystick, Solenóide e Manual, Eletroímã manual e de tração-compressão (push-pull), Eletroímã de tração-compressão (push-pull)
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -20°C a +80°C (-4°F a +176°F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 45 L/min (11,8 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2
Porta de Saída G1/2
Tamanho da Porta G1/2

As a leading manufacturer specializing in hydraulic system solutions, we present the Q45-DT-2OT series manual and electromagnet monoblock valve. This versatile 3-spool directional control valve supports a 45 L/min rated flow and handles pressures up to 315 bar, making it ideal for construction, agriculture, and industrial vehicle applications like skid steer loaders, forklifts, and mini-excavators. We offer comprehensive OEM and ODM services, providing private labeling and tailored customization to meet specific technical requirements. Our factory-direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term cooperation with experienced distributors, wholesalers, and international traders. Whether you need bulk procurement or specialized custom manufacturing, our factory provides stable production capacity and reliable quality control for all your hydraulic component needs.
