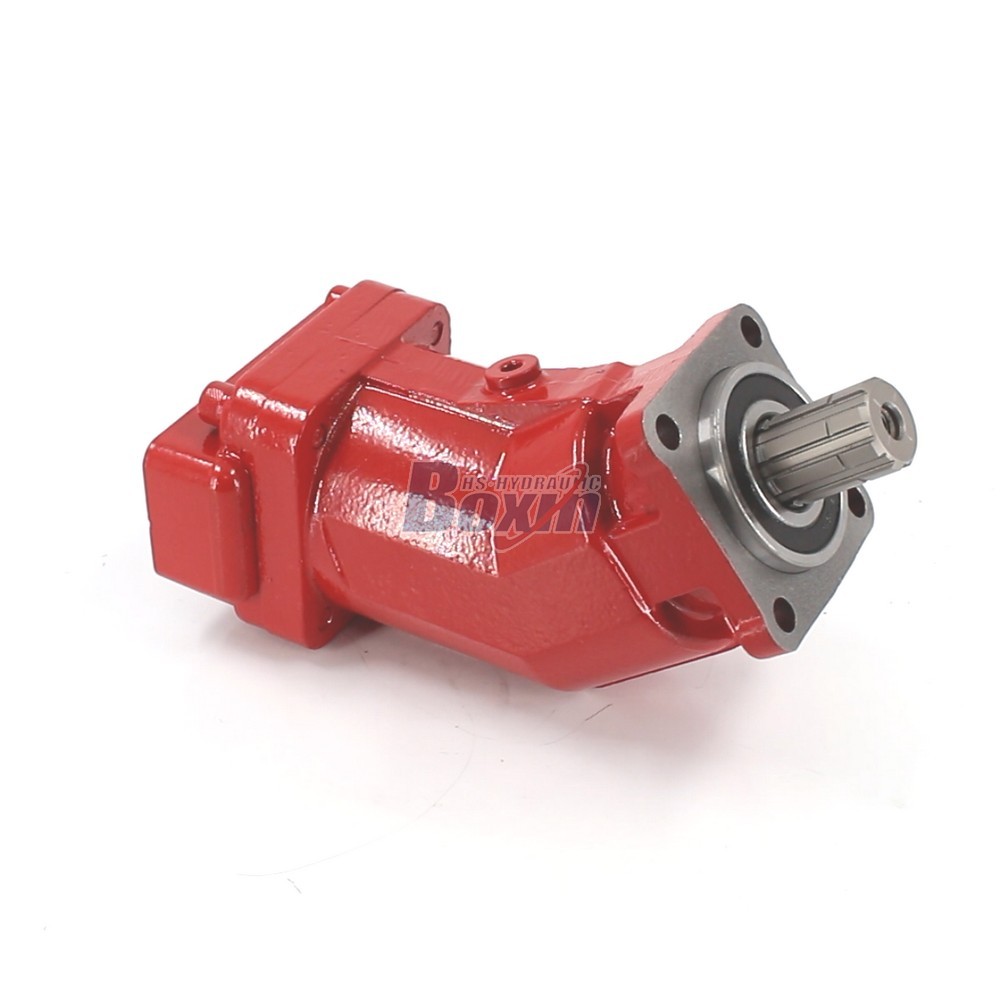

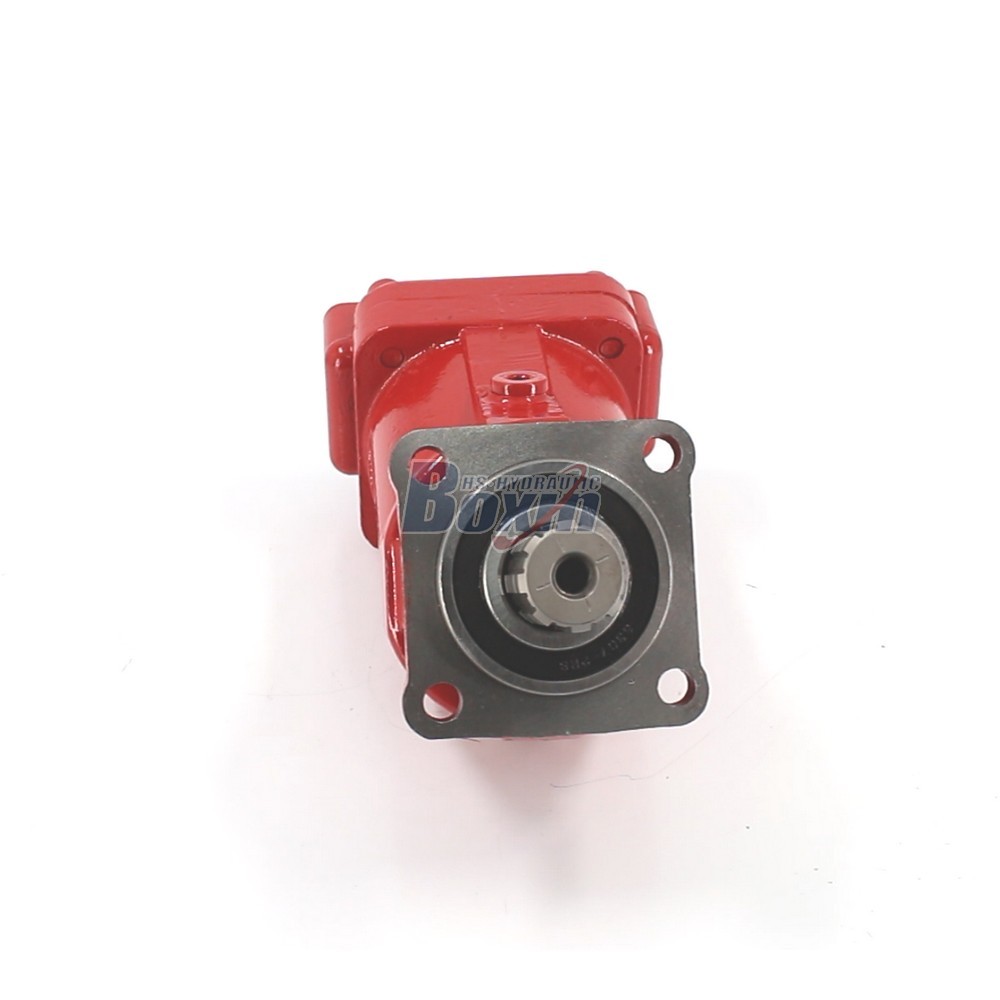

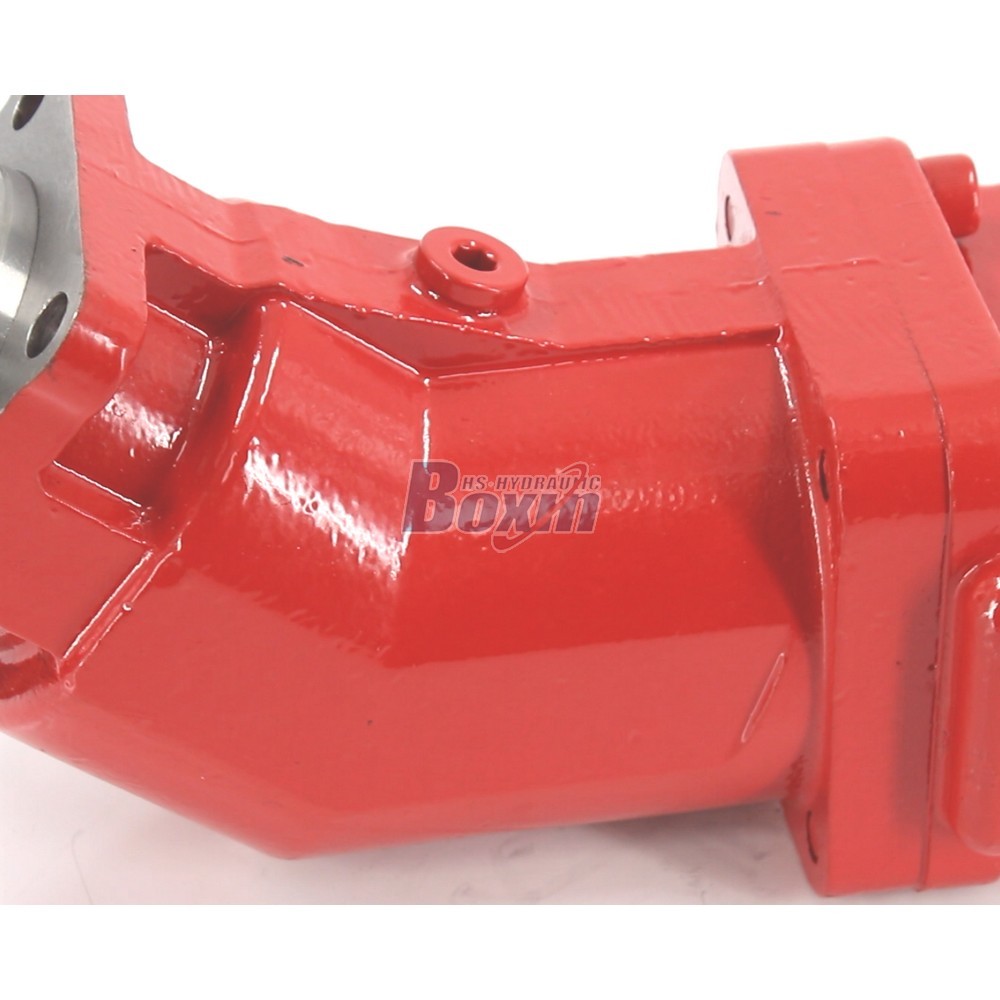

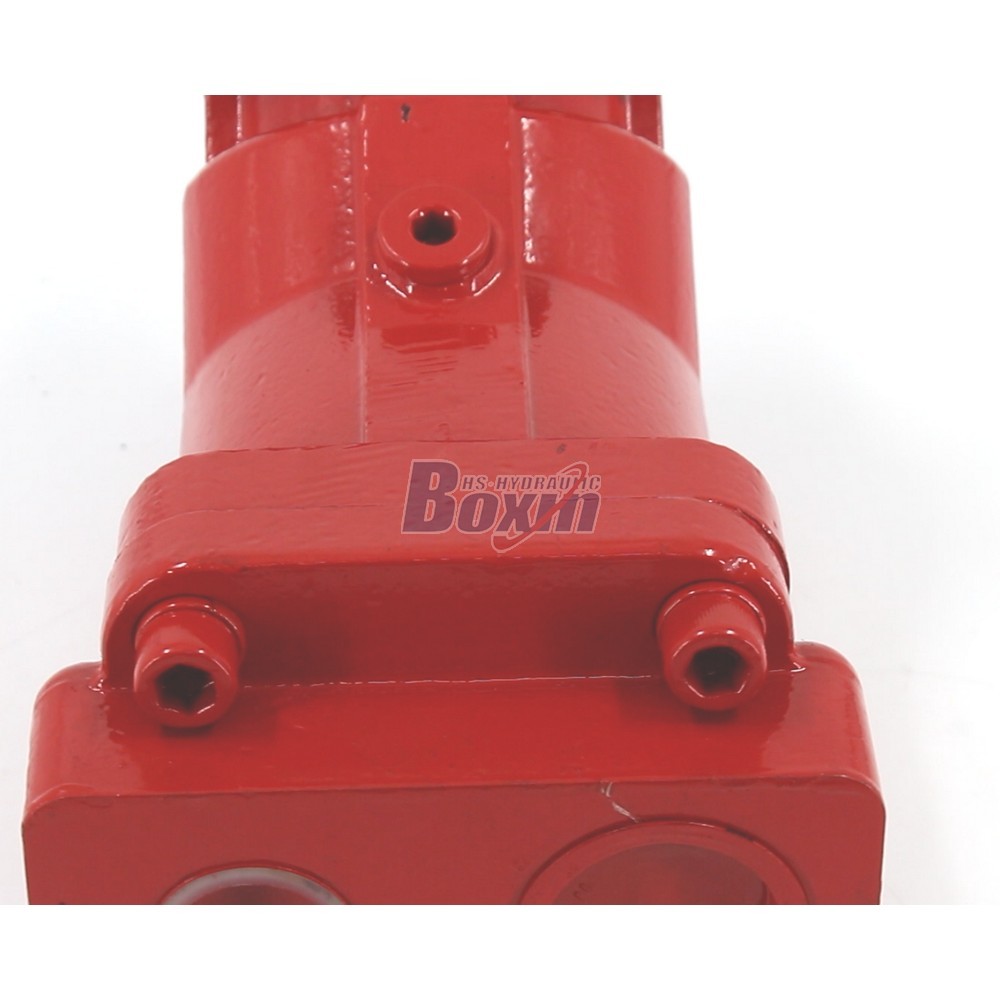

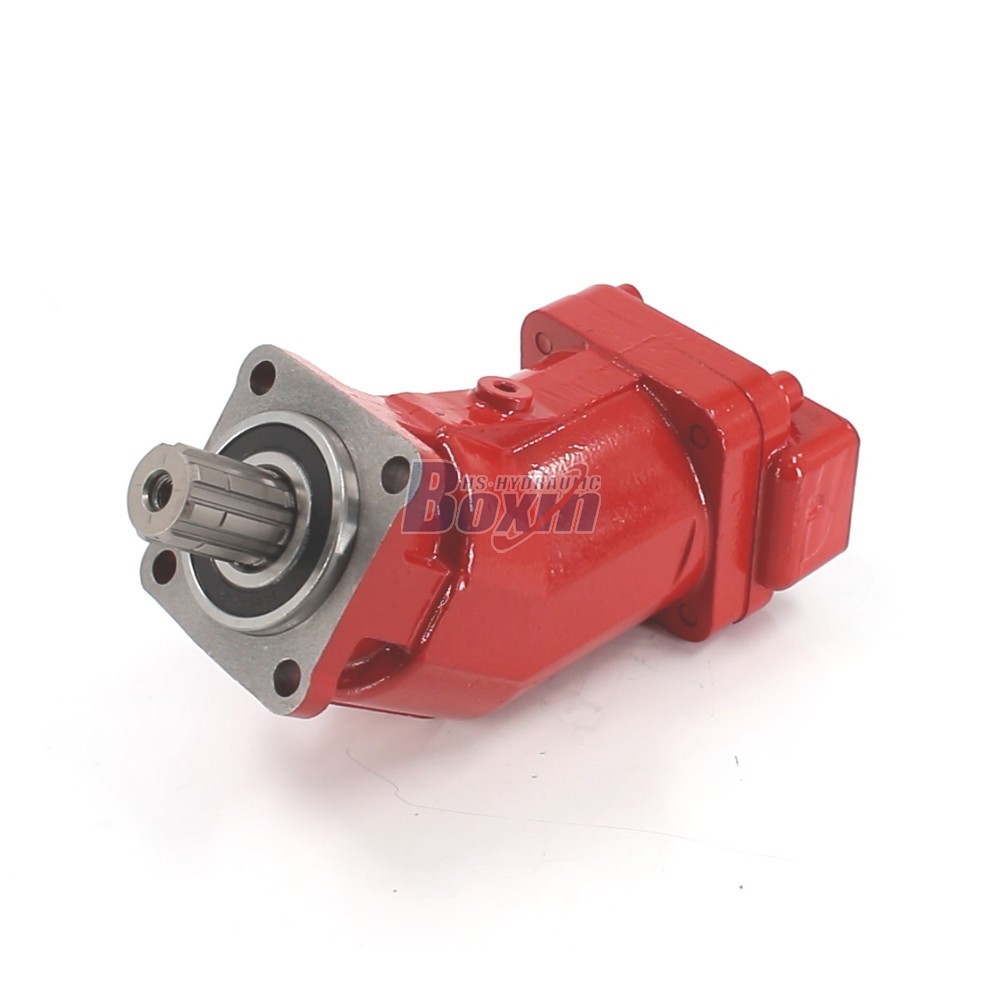

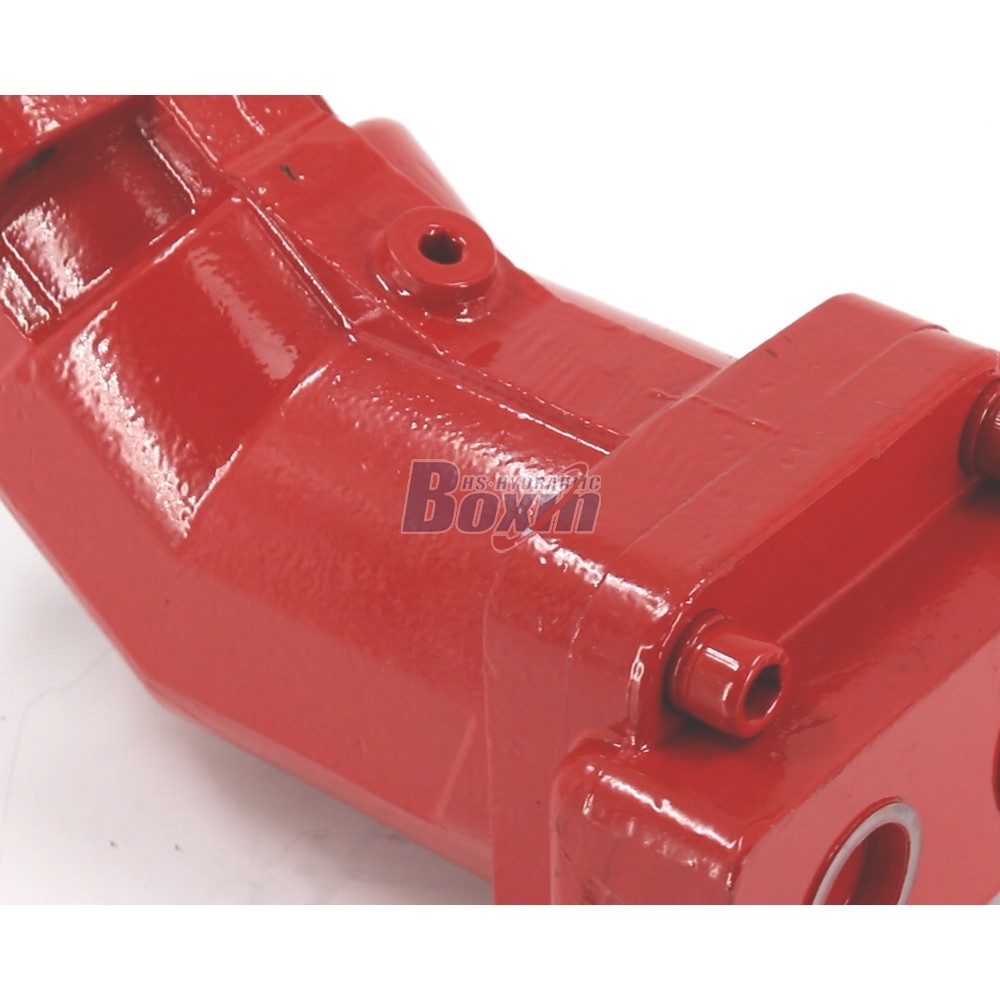

The XPI-63L Series is a high-performance 63 cc/rev hydraulic piston pump engineered for demanding mobile and industrial applications. Designed for reliability under high-pressure conditions up to 42 MPa, this left-rotation pump is essential for construction, agriculture, and material handling machinery, providing efficient power delivery for excavators, loaders, and concrete pumps.
| Série XPI Bomba de pistão hidráulica Parâmetros | |
|---|---|
| Deslocamento | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Pressão Nominal | 38 MPa (5511 psi) |
| Pressão Máxima | 42 MPa (6091 psi) |
| Velocidade Nominal | 1600 r/min |
| Velocidade Máxima | 1900 r/min |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Ferro Fundido |
| Estrutura | Swashplate |
| Versão da flange | Orifícios de montagem ISO-4 |
| Tipo de veio | H: Chaveta retangular |
As a leading manufacturer of hydraulic solutions, we offer the XPI-63L Series 63 cc/rev Hydraulic Piston Pump for the global market. Operating at a rated pressure of 38 MPa and speeds up to 1900 r/min, this pump delivers consistent performance for heavy-duty machinery including mini-excavators, wheel loaders, and harvesters. We specialize in factory-direct supply, providing extensive opportunities for OEM, private labeling, and custom manufacturing to meet specific technical requirements. Our facility supports large-scale wholesale production with rigorous quality control. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and international traders. By choosing our factory-direct wholesale services, partners benefit from reliable supply chains and competitive manufacturing capabilities for construction, agricultural, and industrial vehicle sectors.
