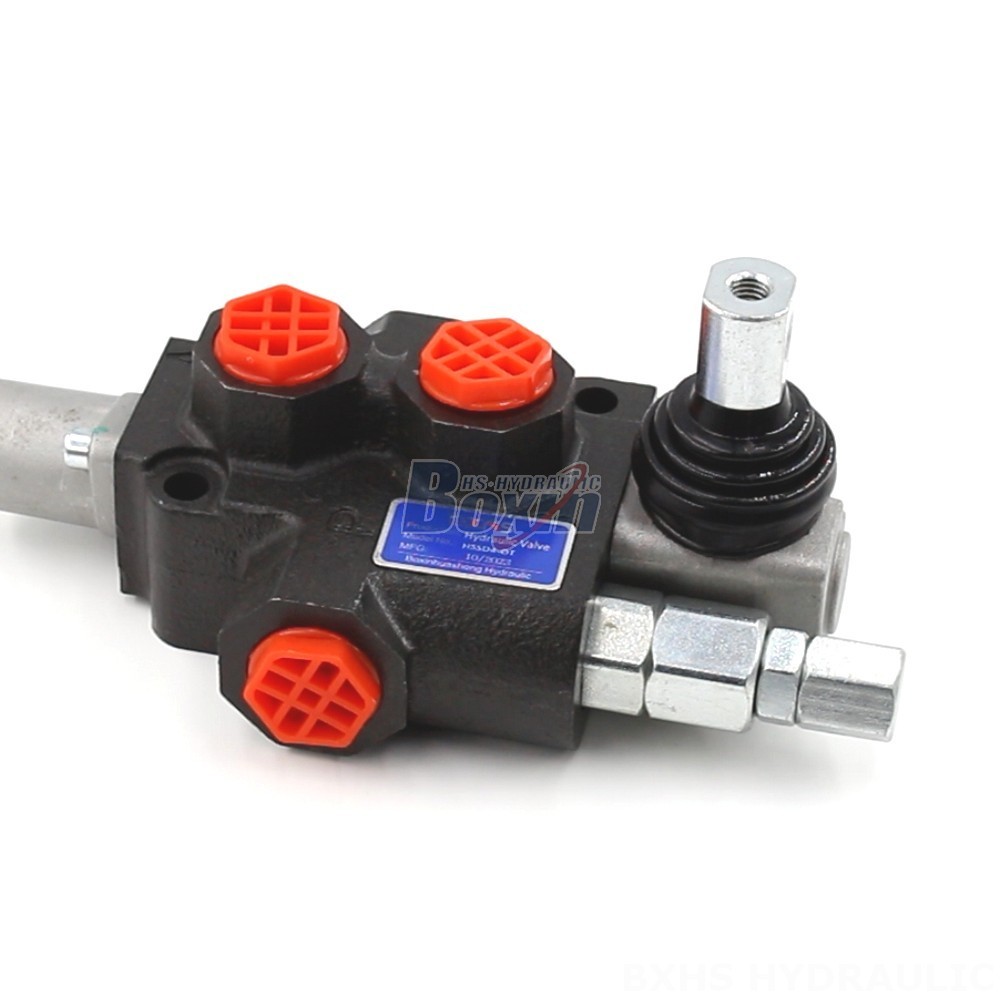

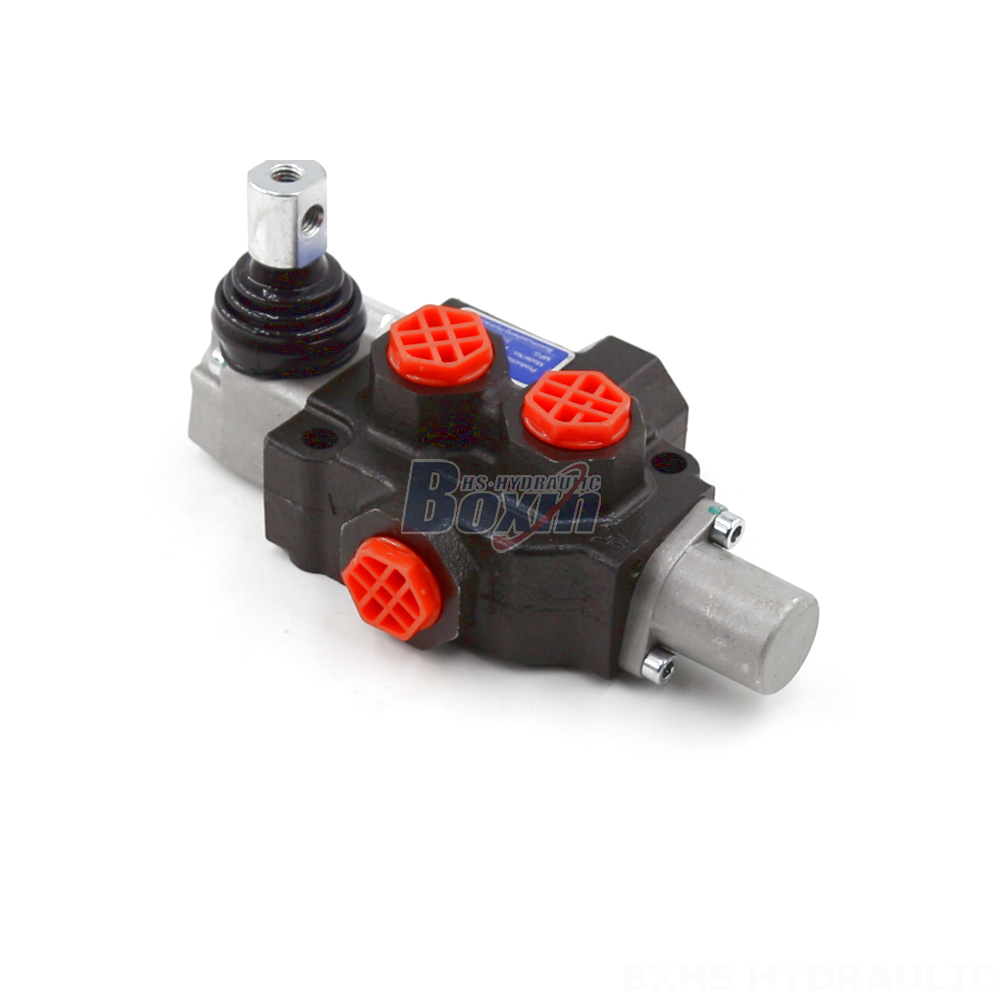

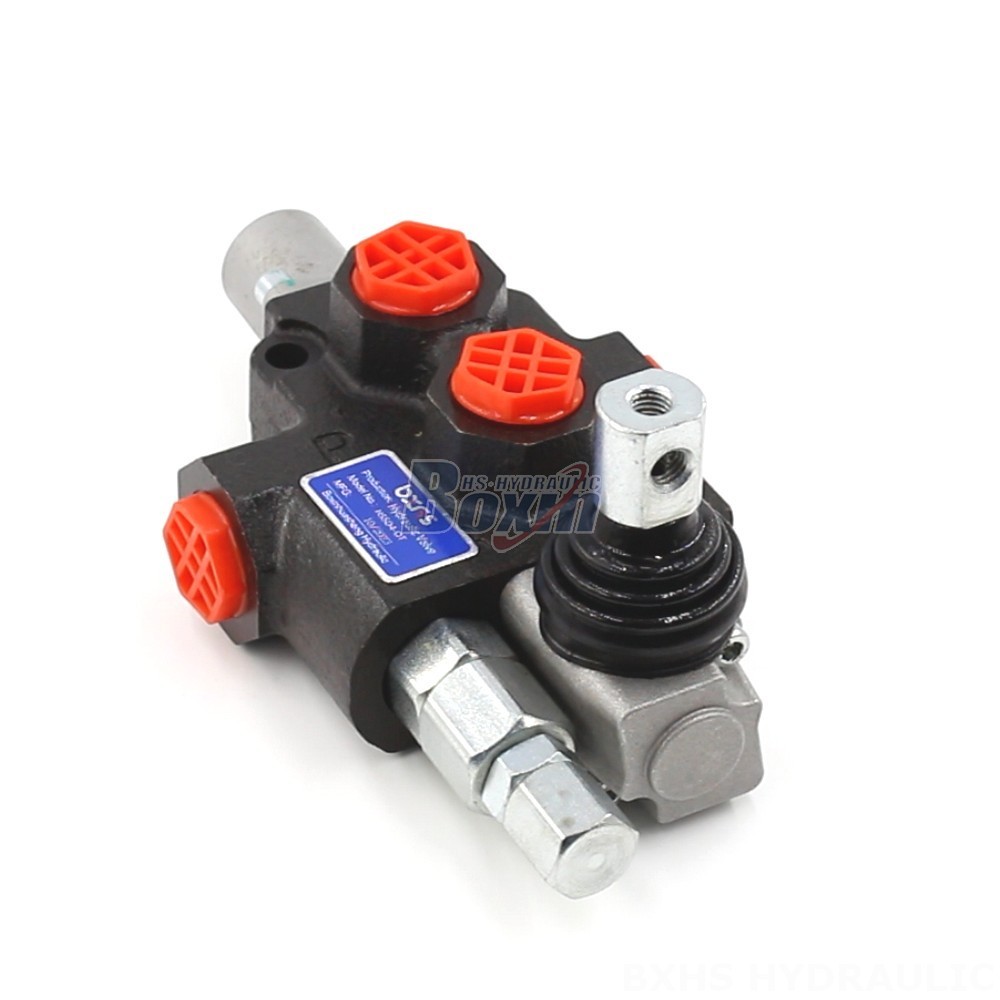

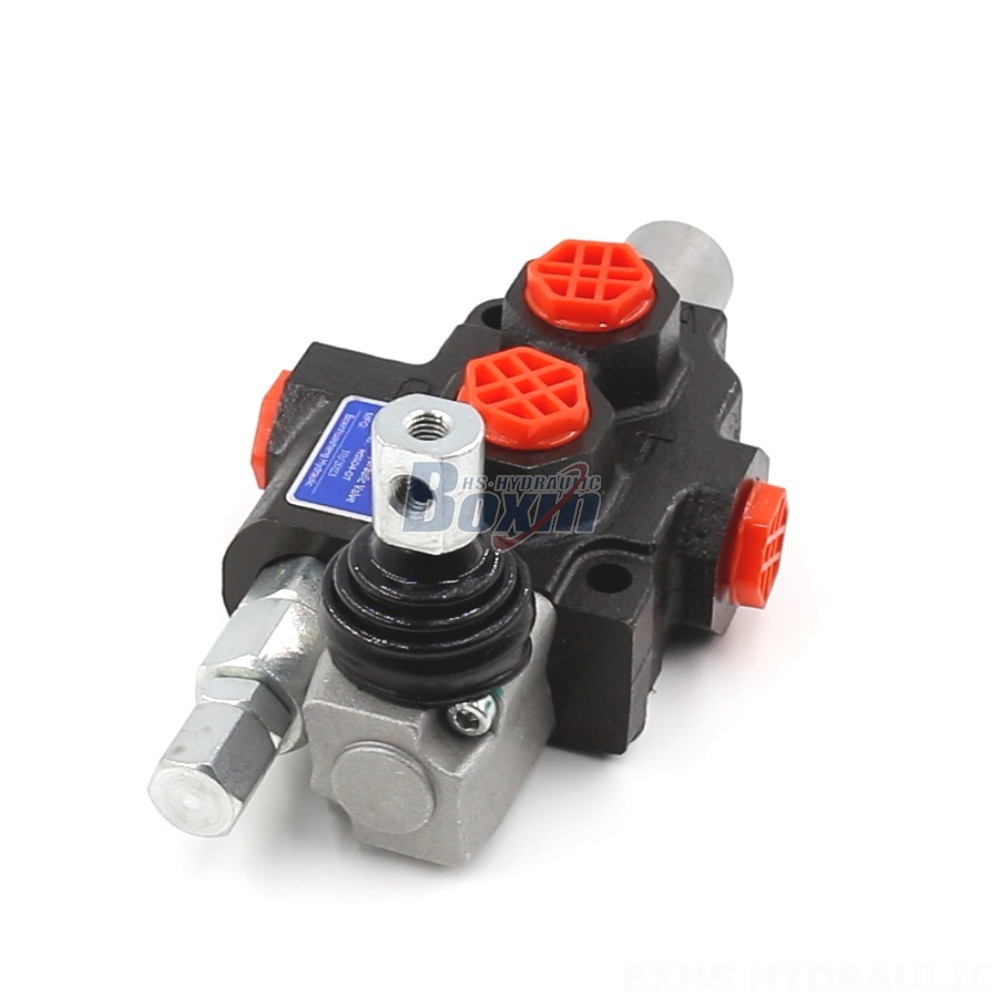

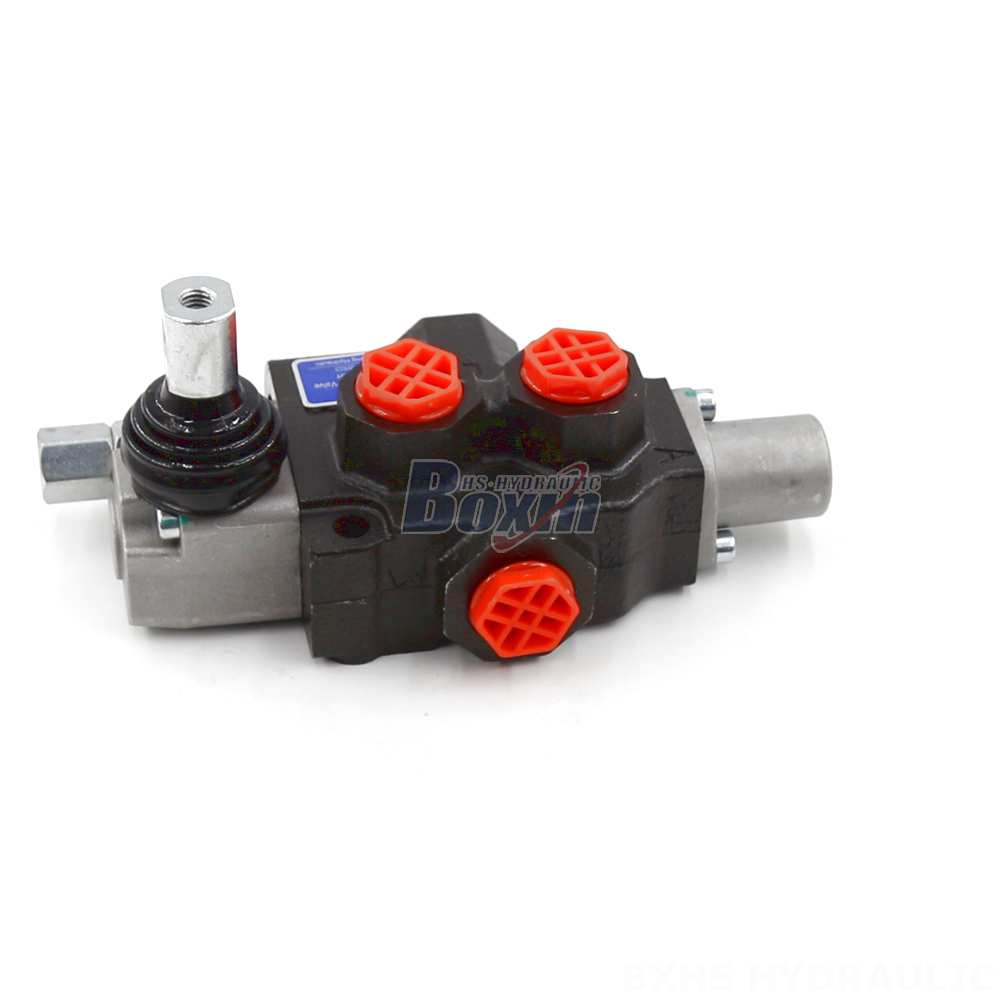

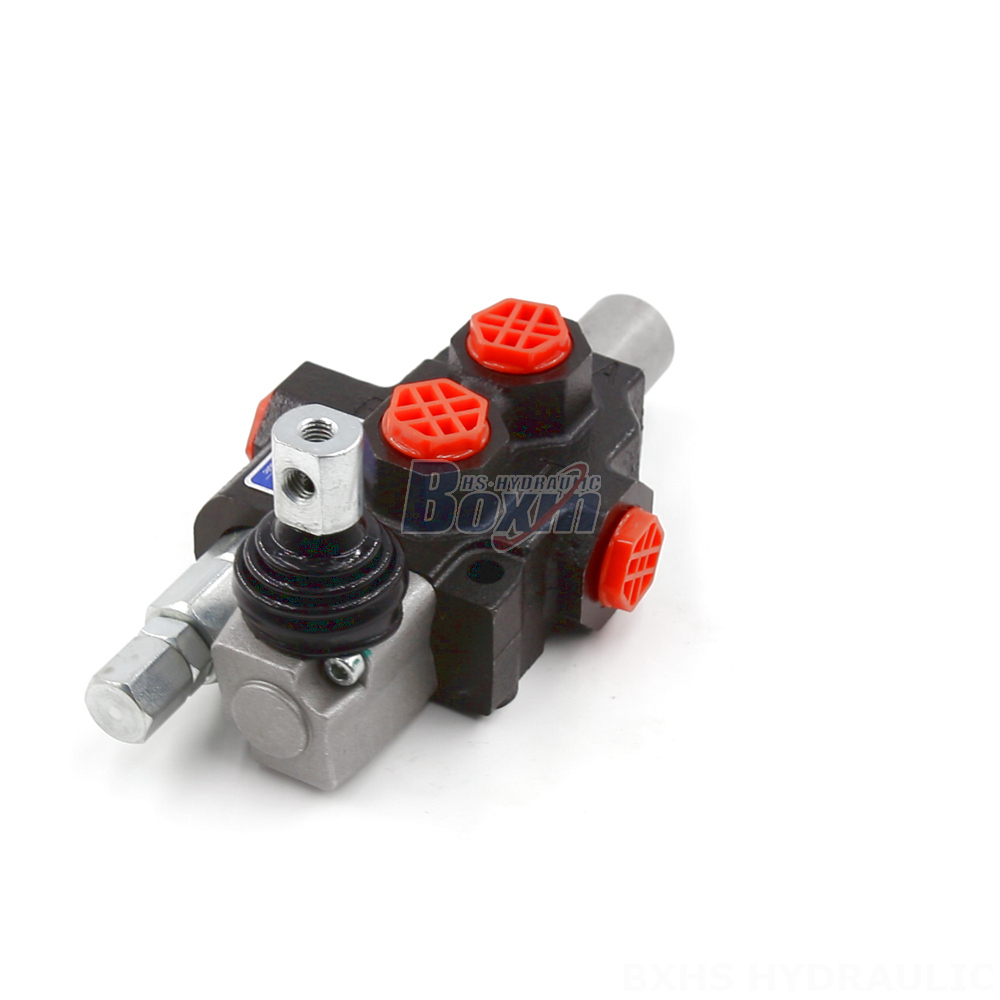

The SD4 Series Directional Valve Block is a high-performance, manually controlled hydraulic valve designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. We offer flexible manufacturing options, including OEM, ODM, and private label.
| Série SD4 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual |
| Carrétel | 1 Carretel |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi), 305 bar (4400 psi) |
| Porta de Entrada | G3/8, SAE 6 |
| Porta de Saída | G3/8, SAE 6 |
| Tamanho da Porta | G3/8, SAE 6 |
| Secção | 1 secção |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The SD4 Series Directional Valve Block is a robust and reliable hydraulic valve that features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 230 bar. The valve is designed for demanding environments and offers a wide operating viscosity range and ambient temperature range. As a manufacturer of hydraulic products, we offer flexible manufacturing options to meet your specific needs. Whether you require OEM, ODM, or private label services, we can customize our products to meet your specifications. We also offer wholesale options for distributors, wholesalers, agents, and traders.
