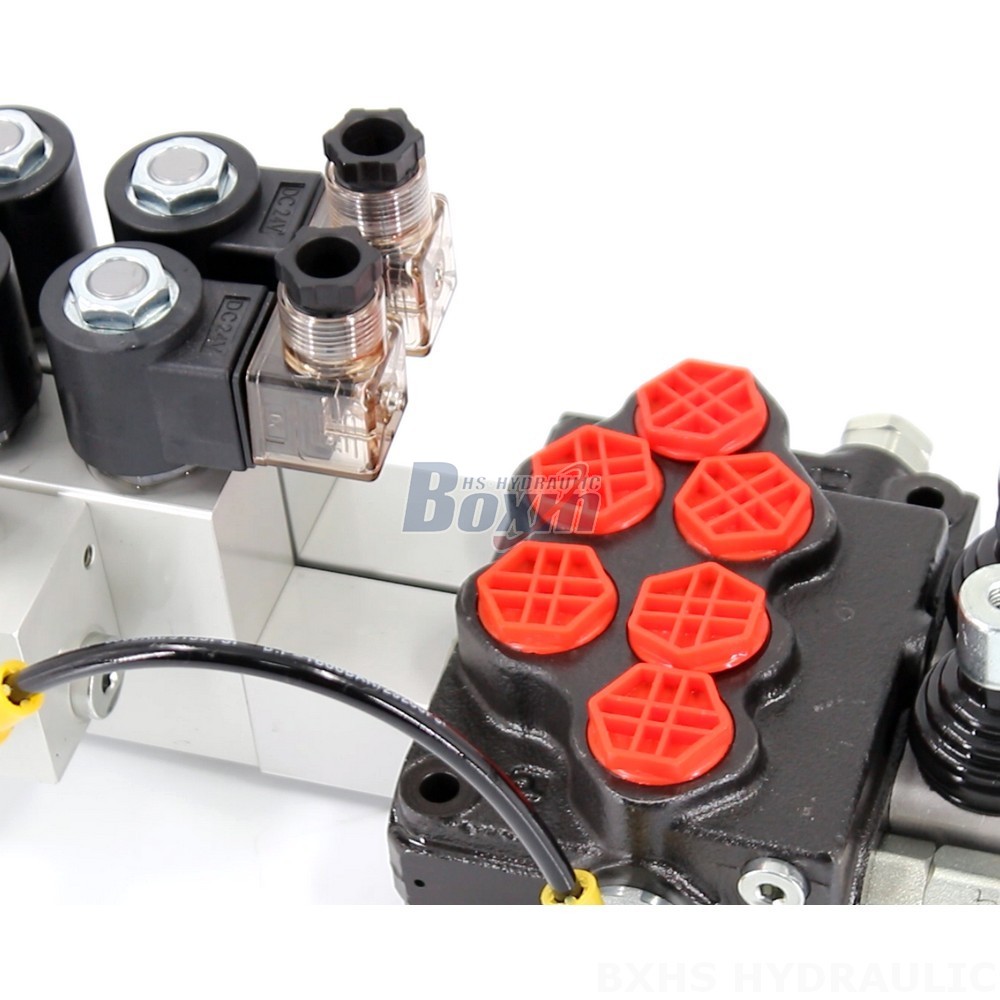

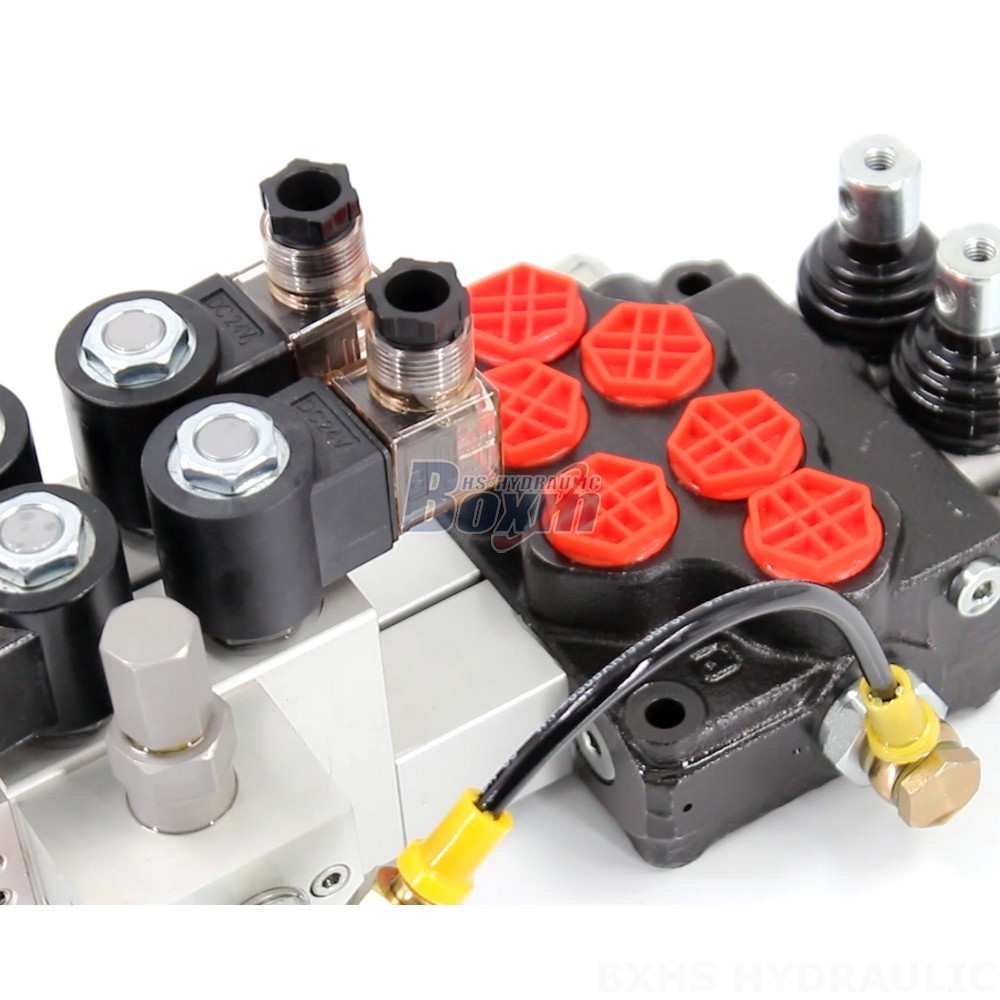

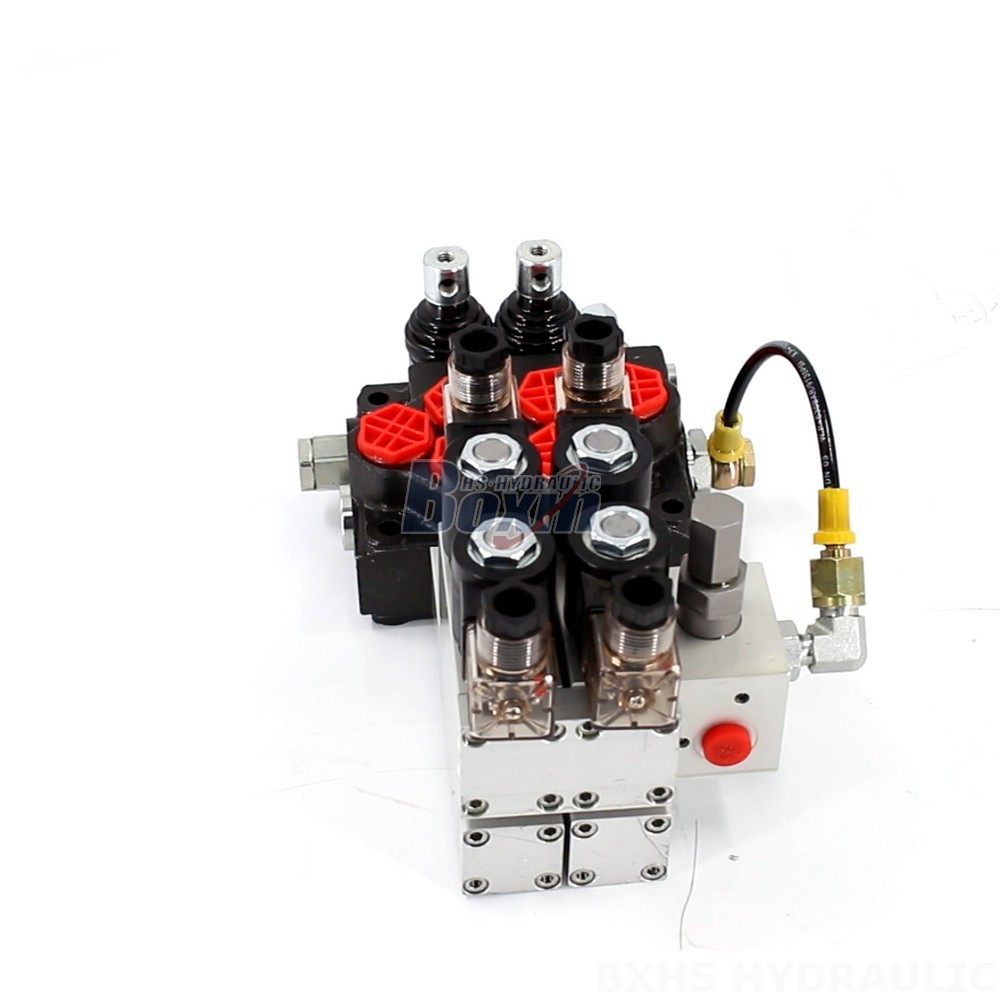

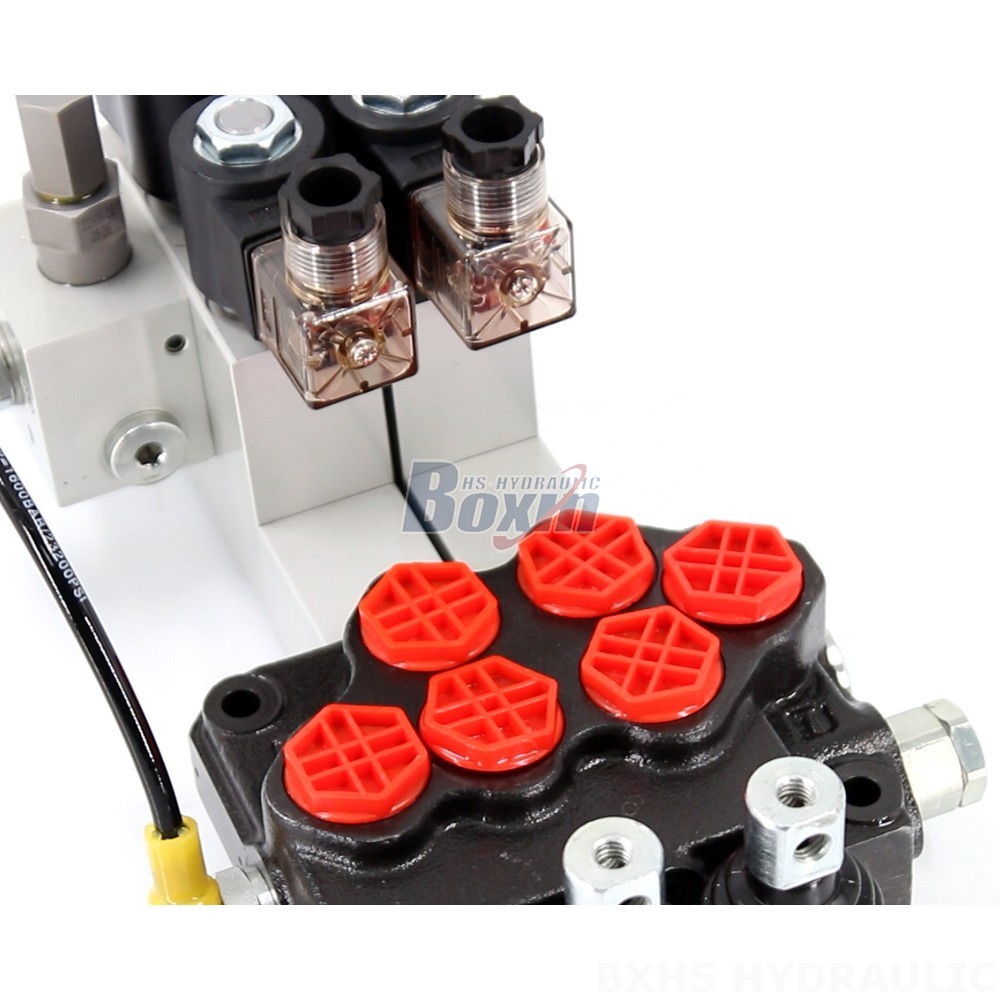

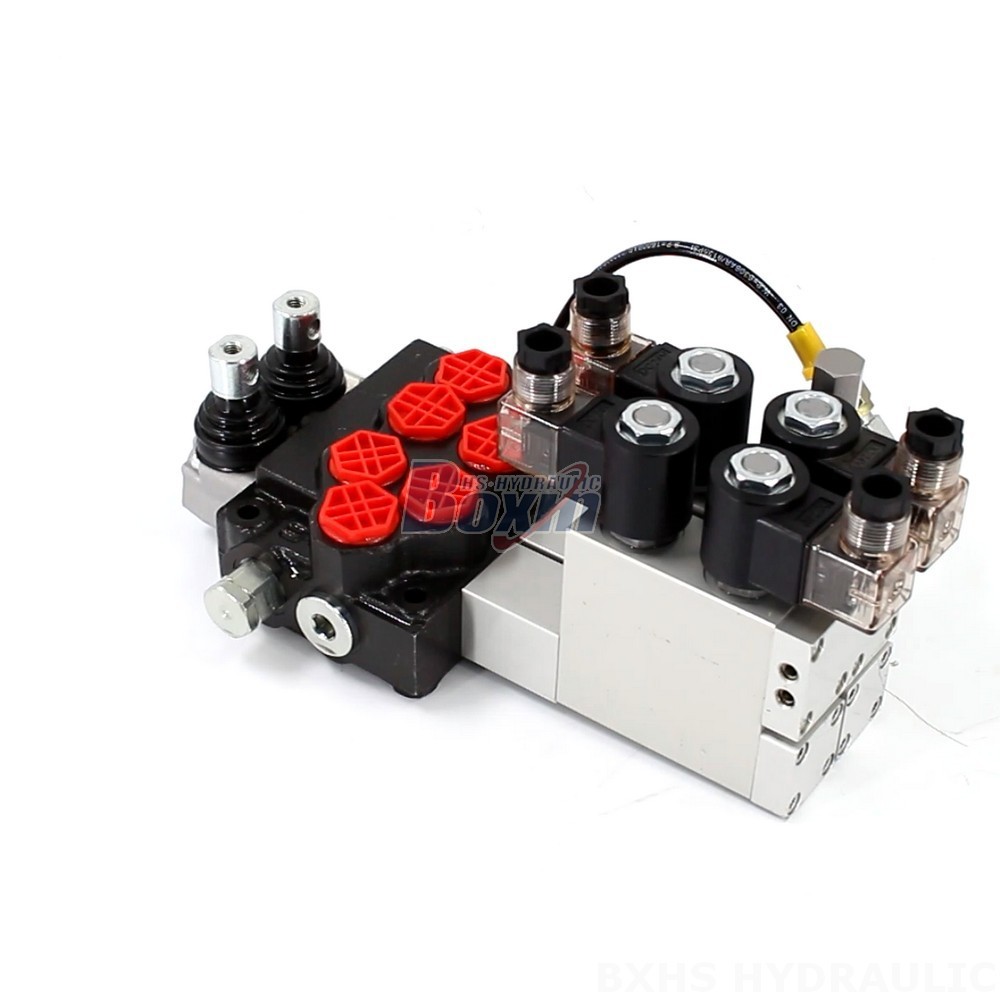

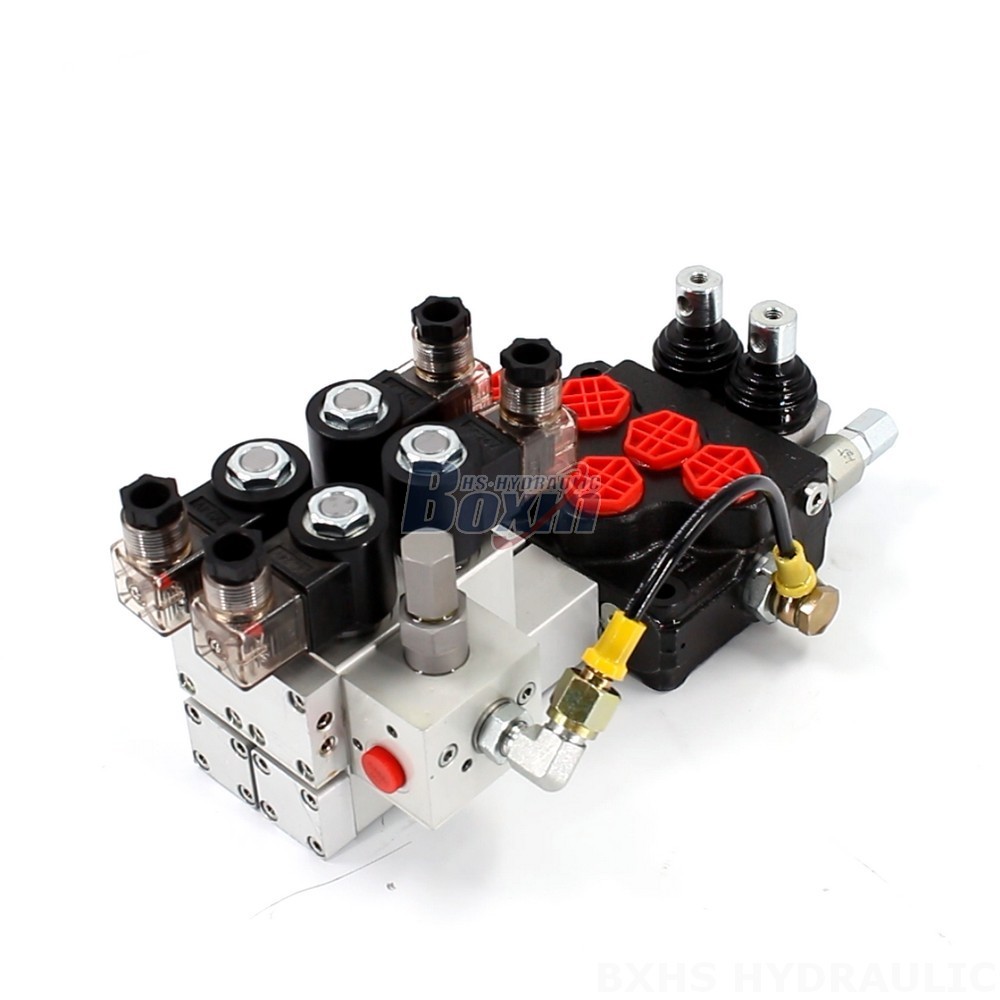

The SD5 Electro-hydraulic Monoblock Directional Valve is a robust 2-spool solution engineered for diverse industrial and mobile applications. Featuring precise electro-hydraulic control, it handles flows up to 45 L/min and pressures up to 315 bar, making it suitable for material handling, construction, agriculture, and industrial vehicles.
| Série SD5 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Porta de Saída | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a leading manufacturer of hydraulic products for the global market, we present the SD5 Electro-hydraulic 2 Spool Monoblock Directional Valve. This advanced hydraulic control valve is designed for precision and durability, offering a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure of 315 bar (4600 psi). Its monoblock structure ensures a compact design while providing reliable performance across an operating viscosity range of 12 - 400 mm²/s and ambient temperatures from -20°C to +80°C.
The SD5 Series valve is a versatile component for various demanding environments, including Material Handling, Construction and Earth Moving, Agriculture, and Industrial Vehicles. It is particularly well-suited for applicable models such as TELEHANDLER, FORKLIFT, MINI-EXCAVATOR, SKID STEER LOADER, WHEEL LOADER, BACKHOE LOADER, TRACTOR AND FRONT-END LOADER, HARVESTER, AERIAL PLATFORM, and DUMPER.
We offer comprehensive services including manufacturing, OEM, ODM, custom hydraulic solutions, and wholesale supply directly from our factory. We are actively seeking strategic partnerships with distributors, wholesalers, agents, and traders worldwide. As a direct factory supplier, we ensure quality control and competitive pricing for all your hydraulic system needs. Partner with us for reliable hydraulic valve components and exceptional factory direct service.
