SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

Método de Controle:Manual

Carrétel:7 Carreteis

Fluxo Nominal:45 L/min (11,8 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G3/8

Porta de Saída:G3/8

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série SD5 Válvula Direcional Monobloco

Tamanho da embalagem:23*36*13

Peso bruto:15.30 kg

Disponibilidade: Em estoque

1021 Visualizações estão procurando por este produto

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler

SD5 Manual Directional Valve: Manufacturer, Supplier, and Wholesaler drawing image

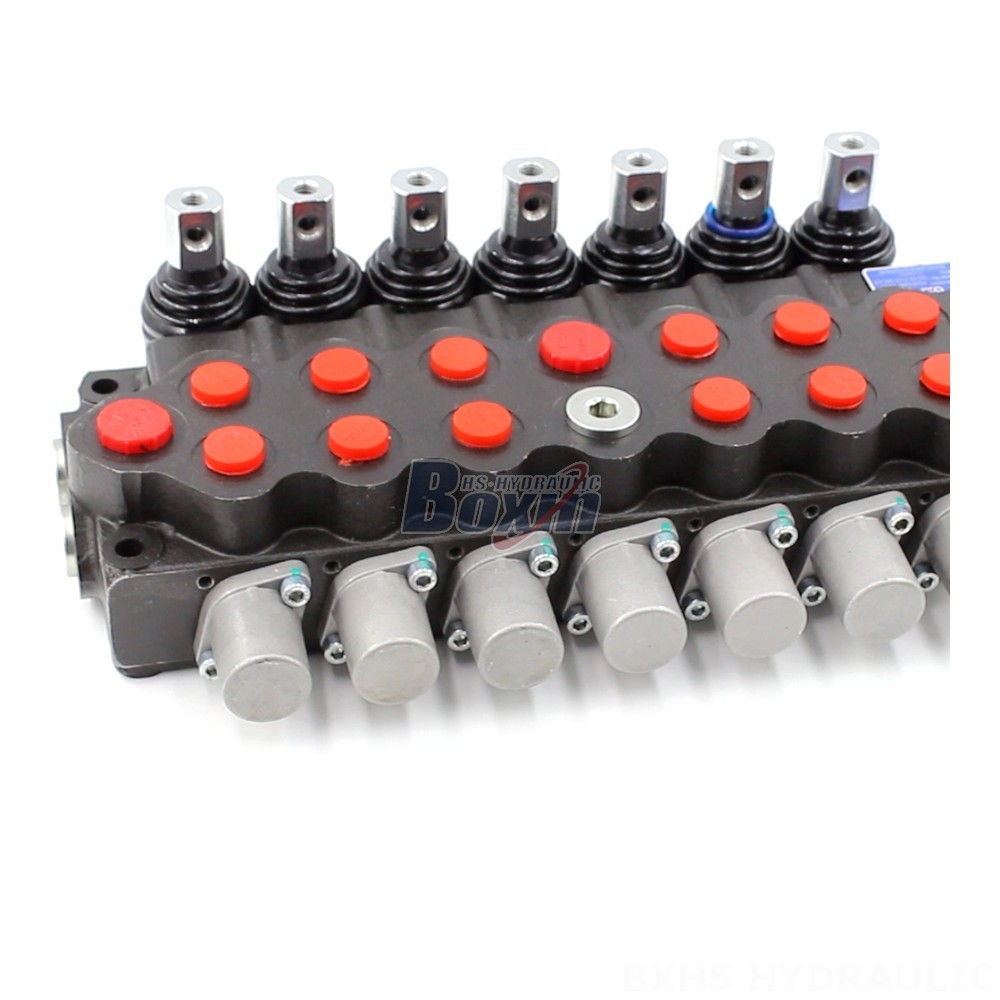

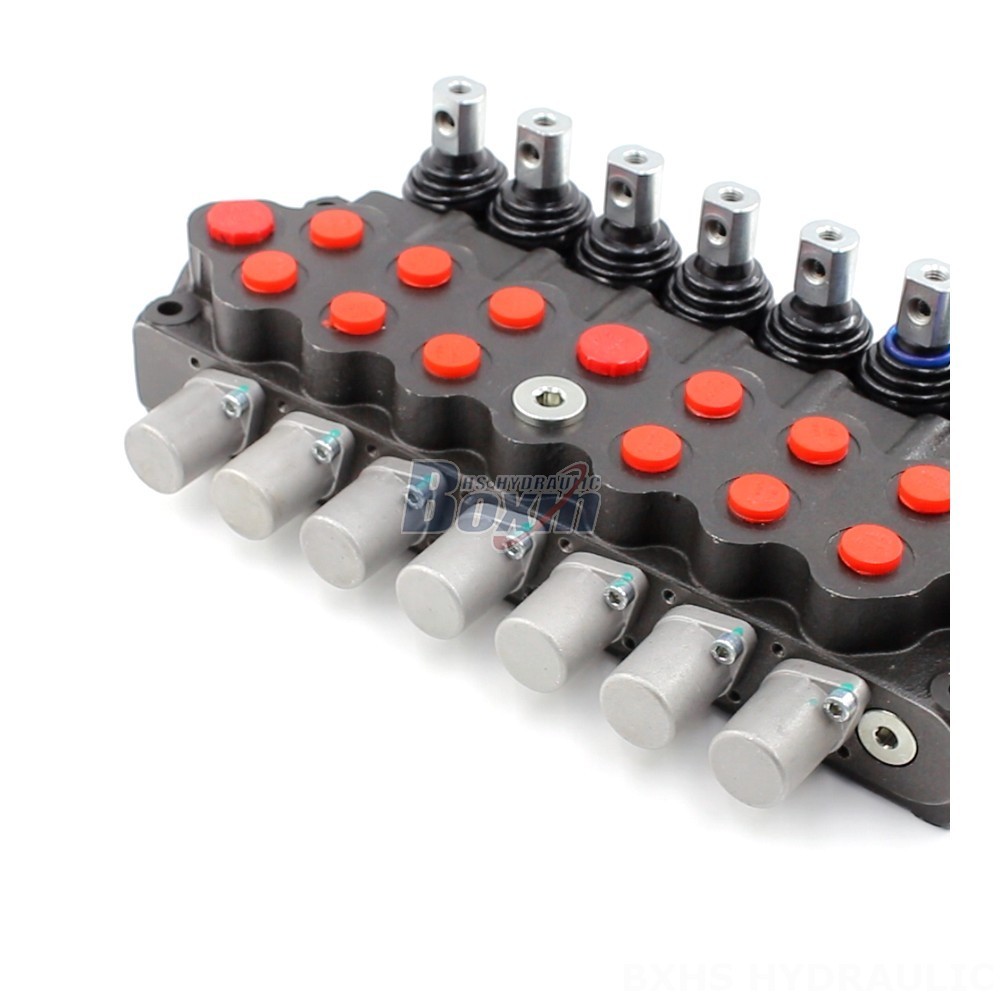

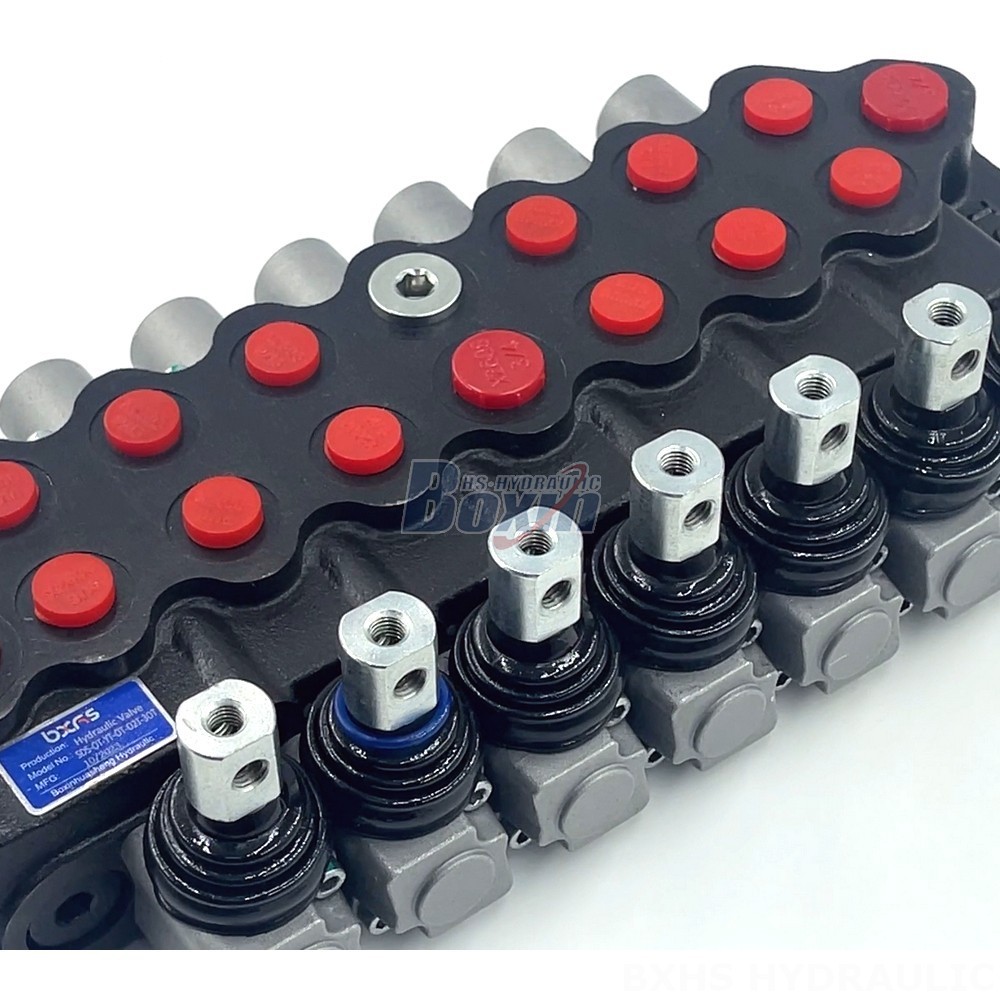

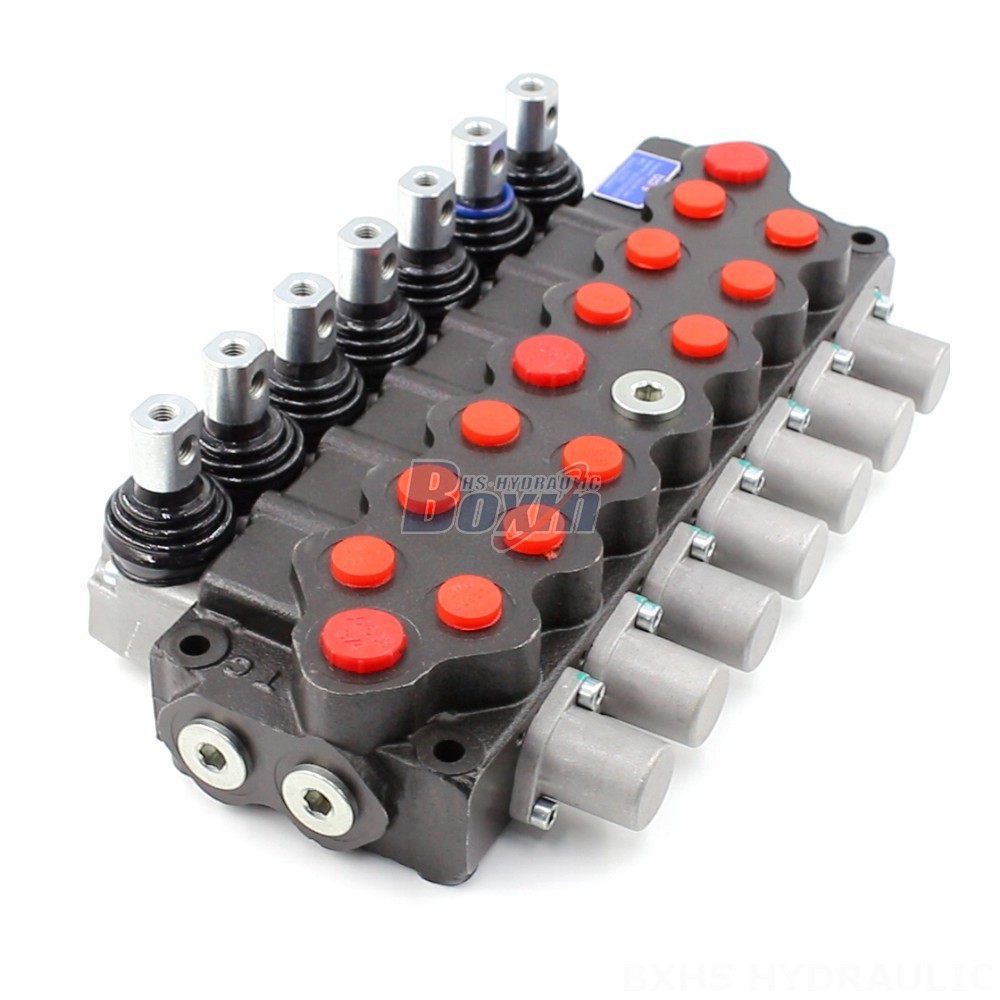

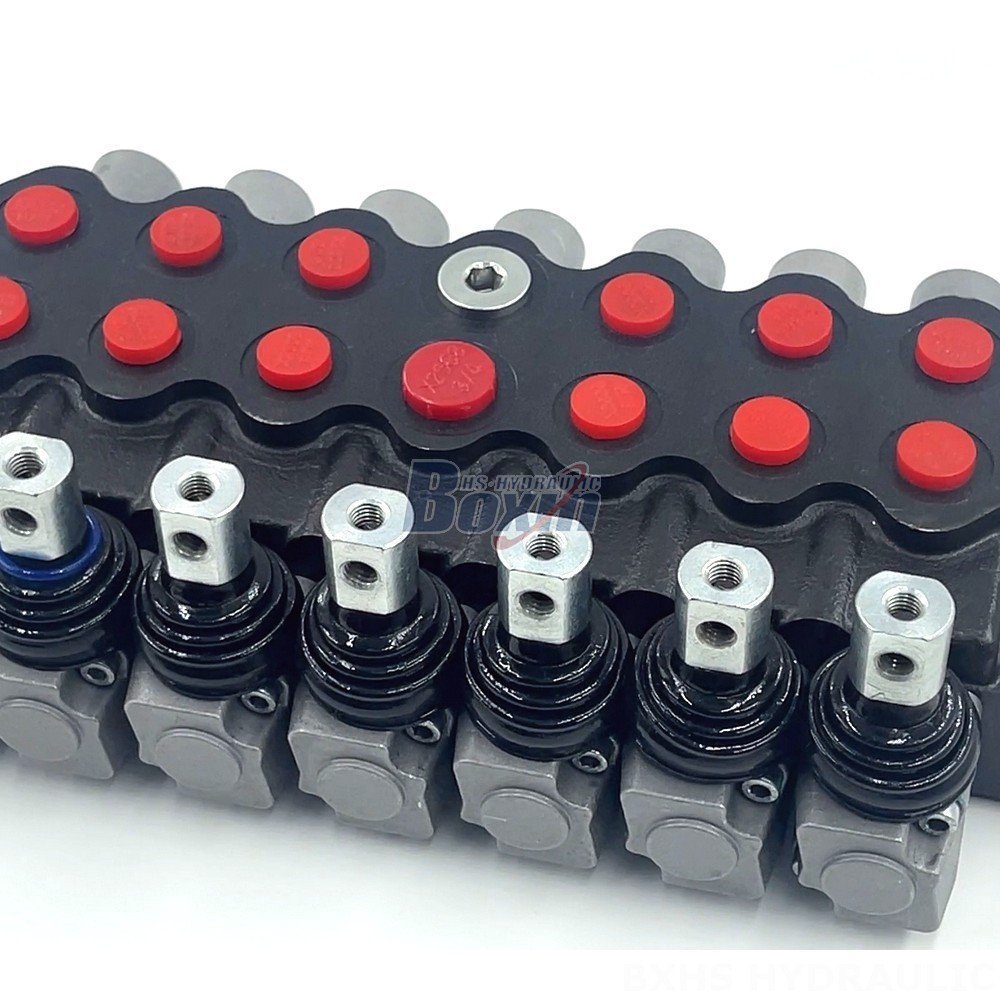

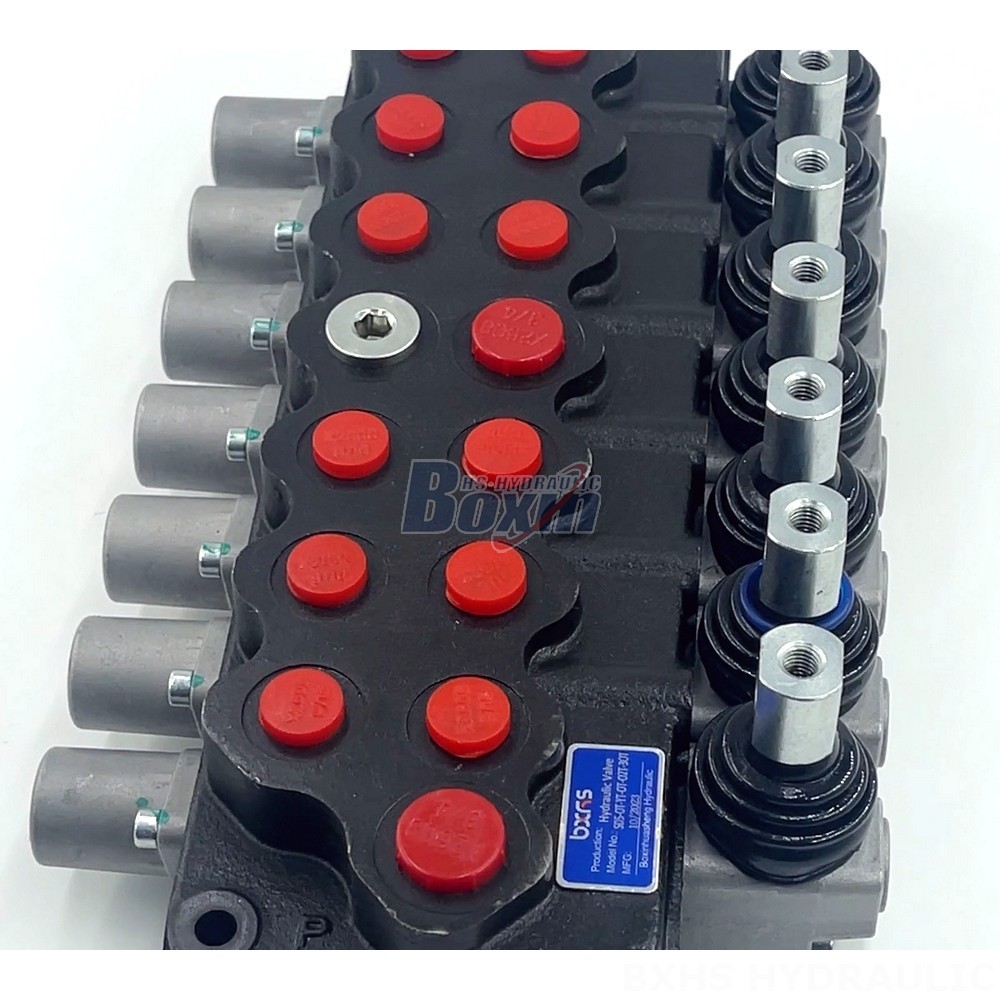

The SD5 Series Hydraulic Valve is a 7-section manual directional valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This robust monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of equipment.

Série SD5 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +60 °C (-40 °F a +140 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 305 bar (4400 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Porta de Saída G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Tamanho da Porta G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The Hig Tech SD5 Manual Directional Valve is a high-performance hydraulic valve engineered for demanding applications. Its 7-section design provides precise control over hydraulic circuits, while the monoblock structure ensures durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for powering telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. The valve operates smoothly across a wide viscosity range and can withstand temperatures from -40°C to +60°C. Its manual control system offers easy and intuitive operation, making it a versatile choice for a variety of hydraulic applications.
