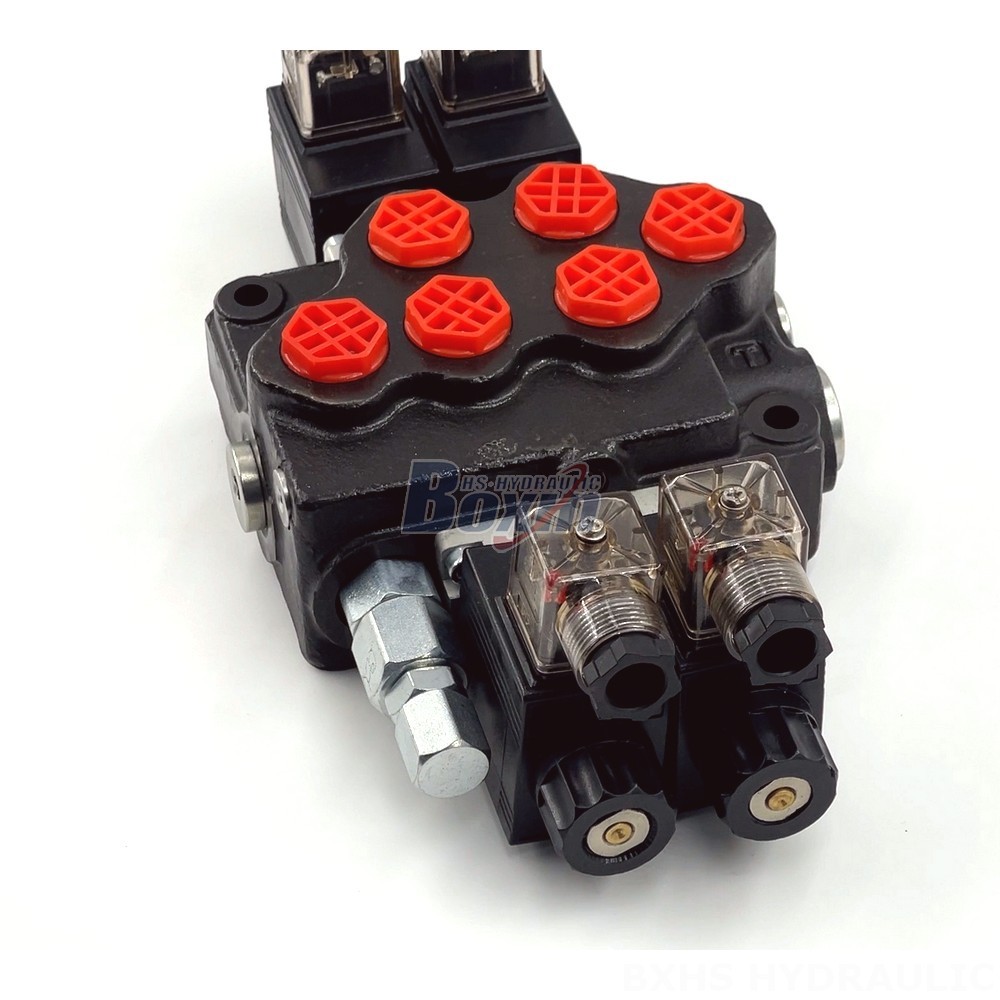

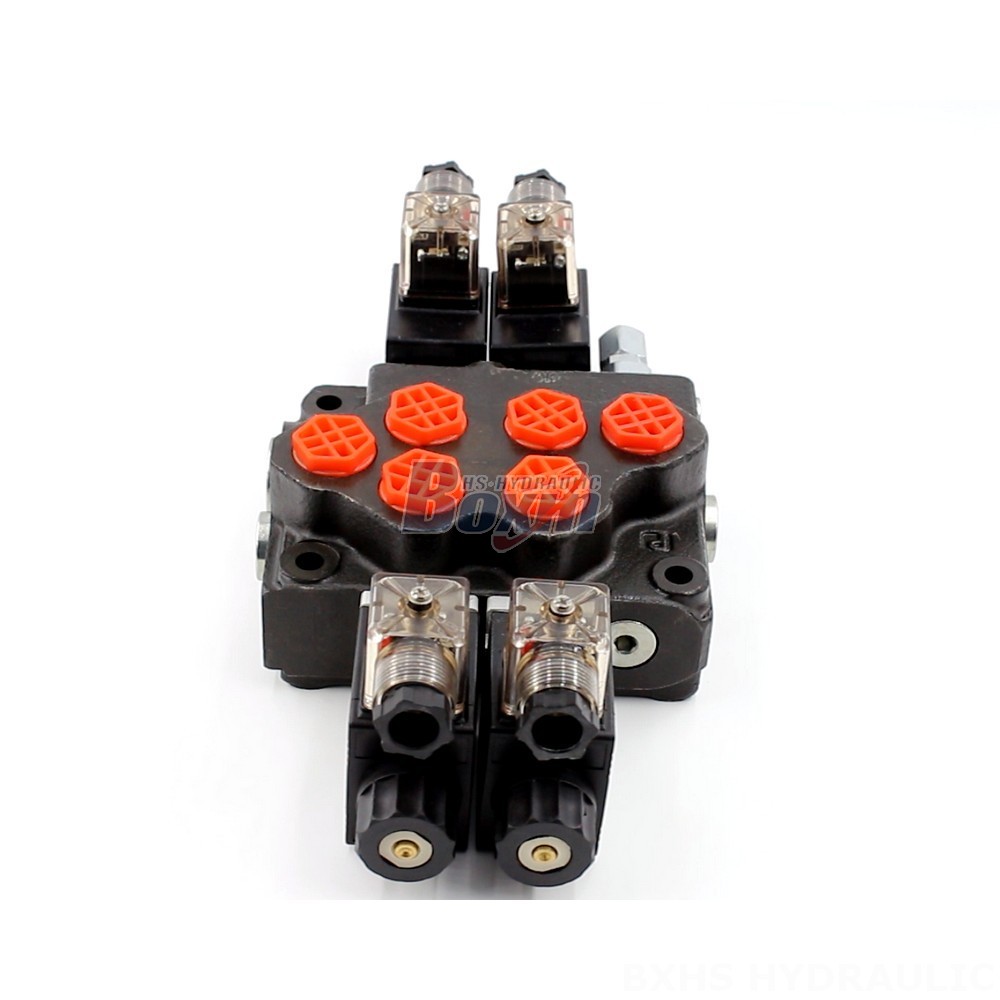

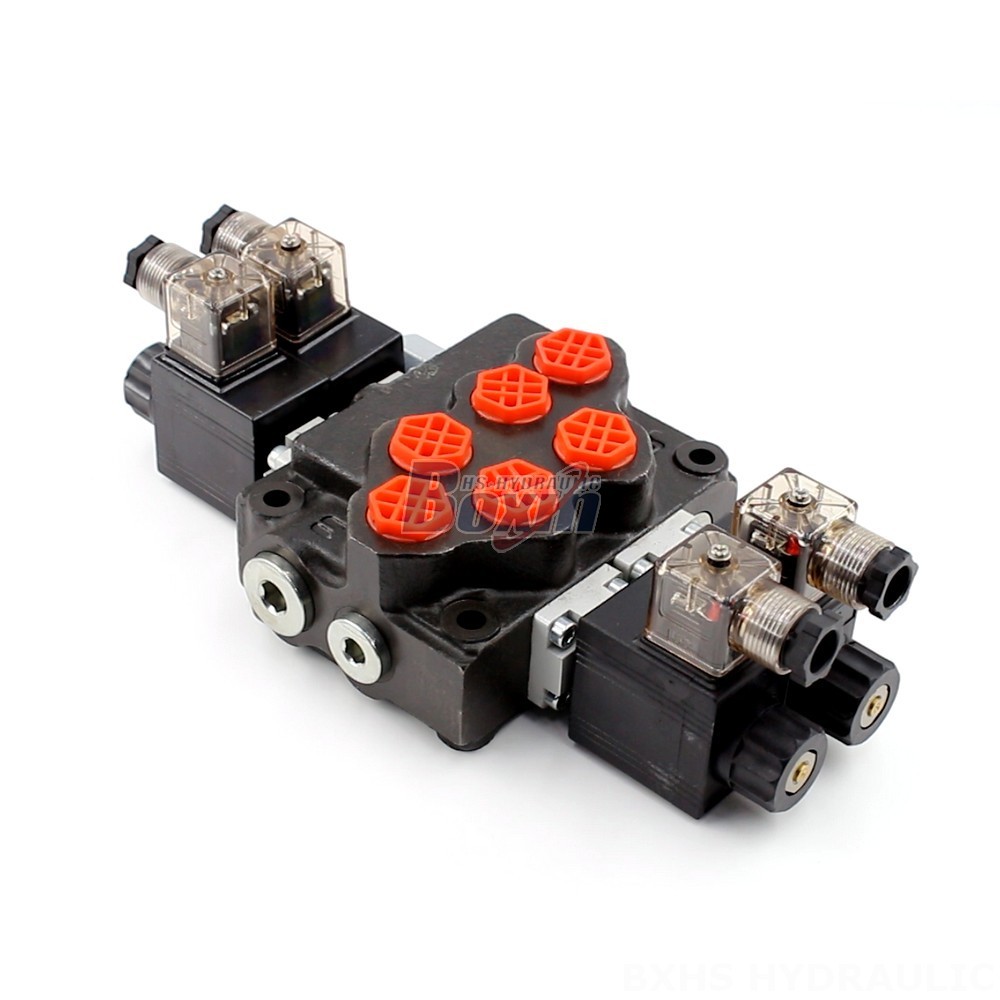

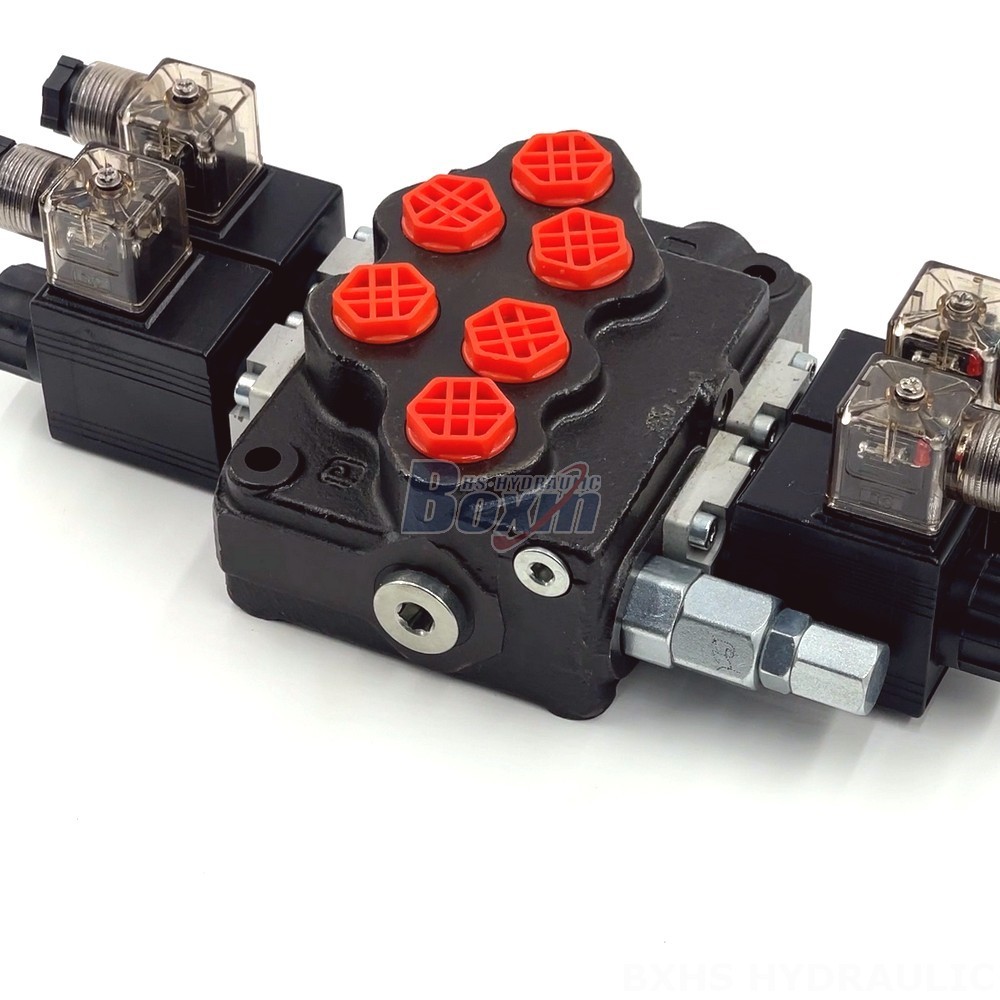

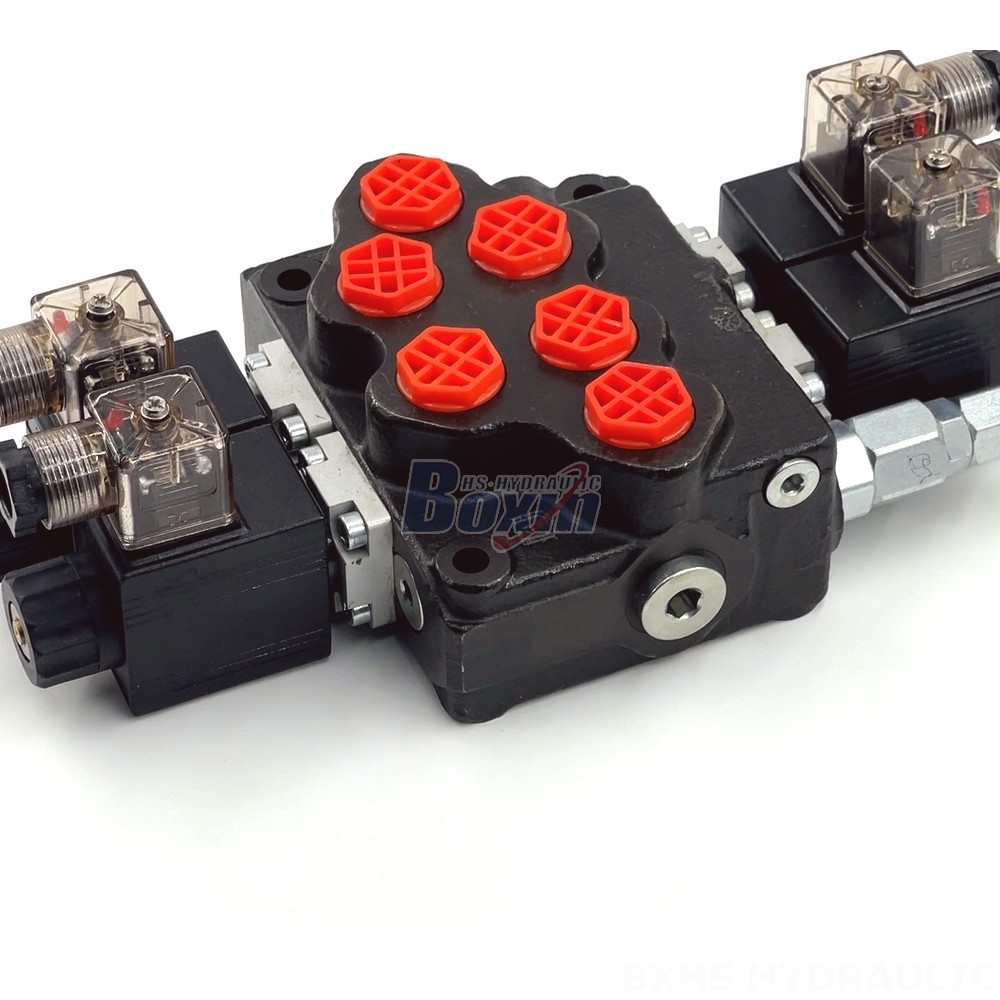

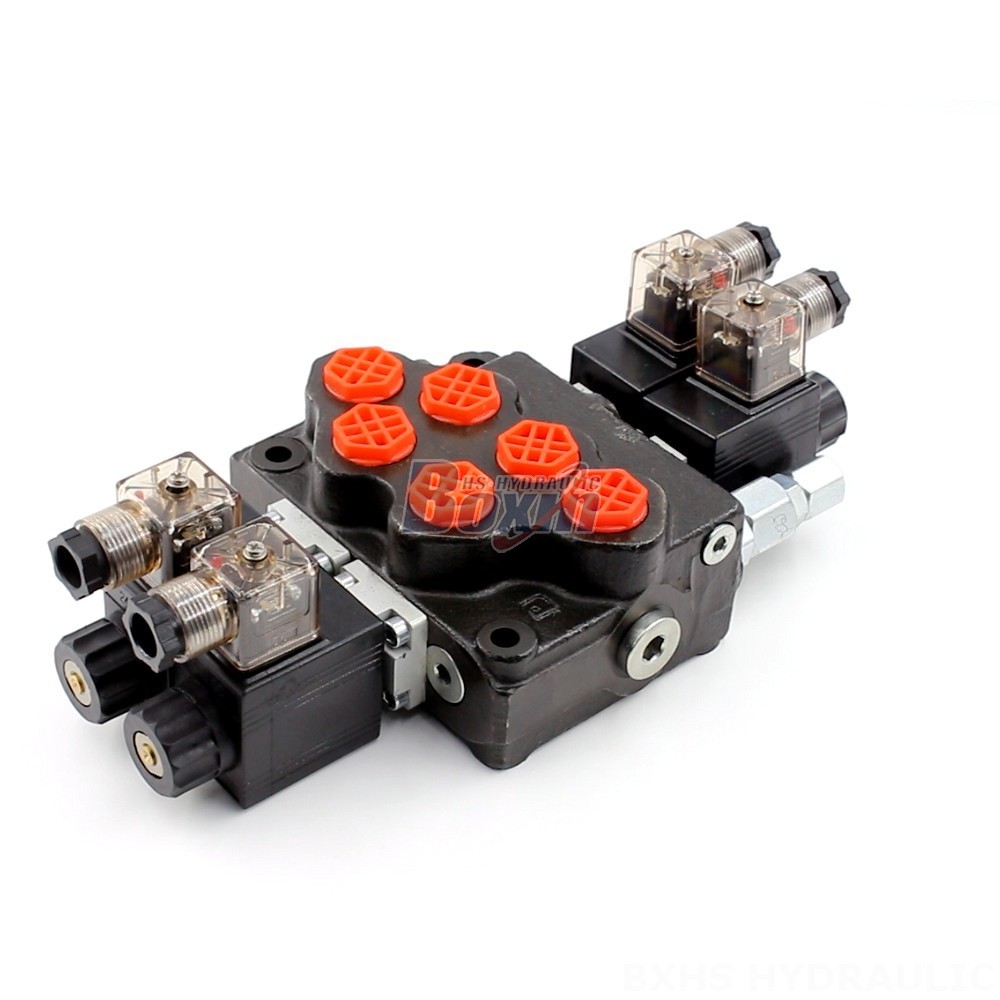

The SD5 Series Solenoid Hydraulic Direction Valve is a high-performance, reliable valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a 2-section design with a rated flow of 40 L/min and a maximum pressure of 305 bar. It's built to withstand demanding environments and is customizable to meet your specific needs.
| Série SD5 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Porta de Saída | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Solenoid Hydraulic Direction Valve is a robust and versatile solution for controlling fluid flow in hydraulic systems. Its monoblock construction provides strength and durability, while its 2-section design allows for precise control of multiple hydraulic functions. The valve is rated for a flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of applications. With a wide operating temperature range and a compact size, this valve is an ideal choice for various mobile and industrial equipment. Our factory-direct and customizable options allow you to tailor the valve to meet your exact specifications. The SD5 Series is perfect for applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steers, and wheel loaders.
