Production & Delivery
15-30 Days Production Lead Time
969 Visualizações estão procurando por este produto

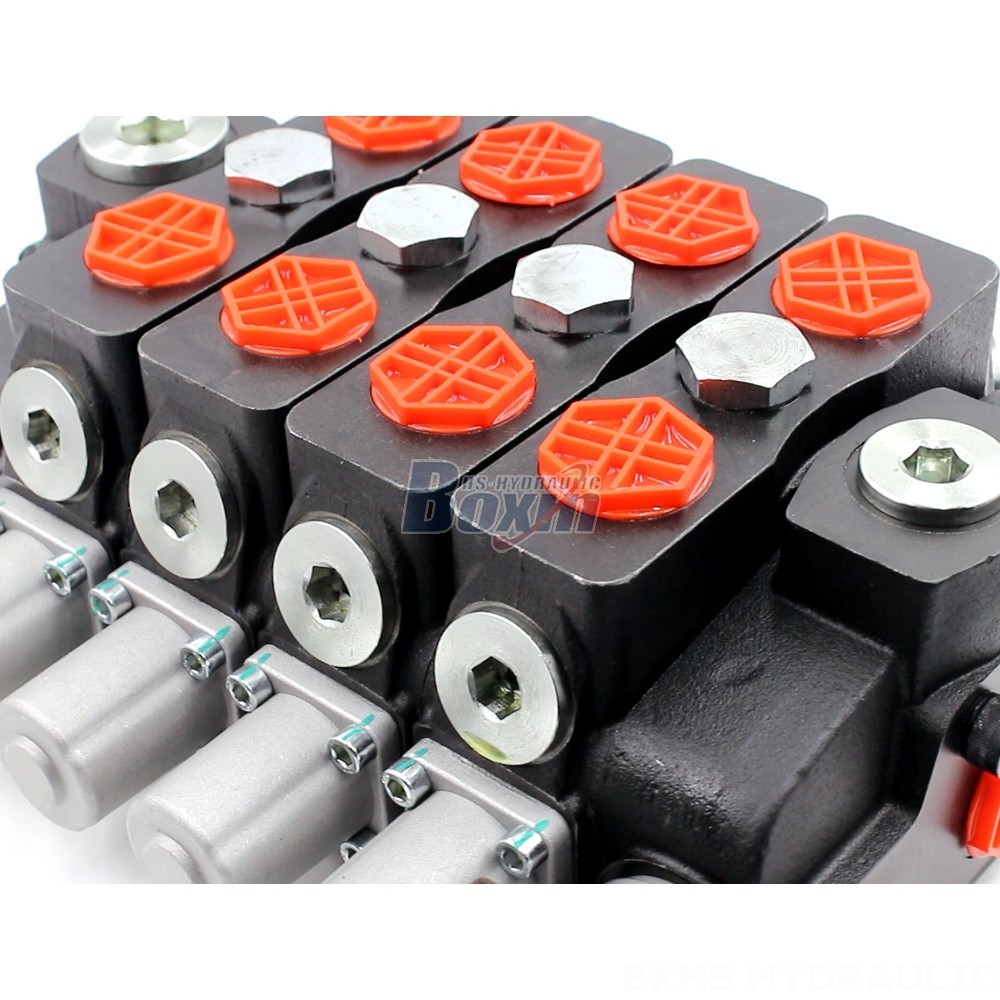

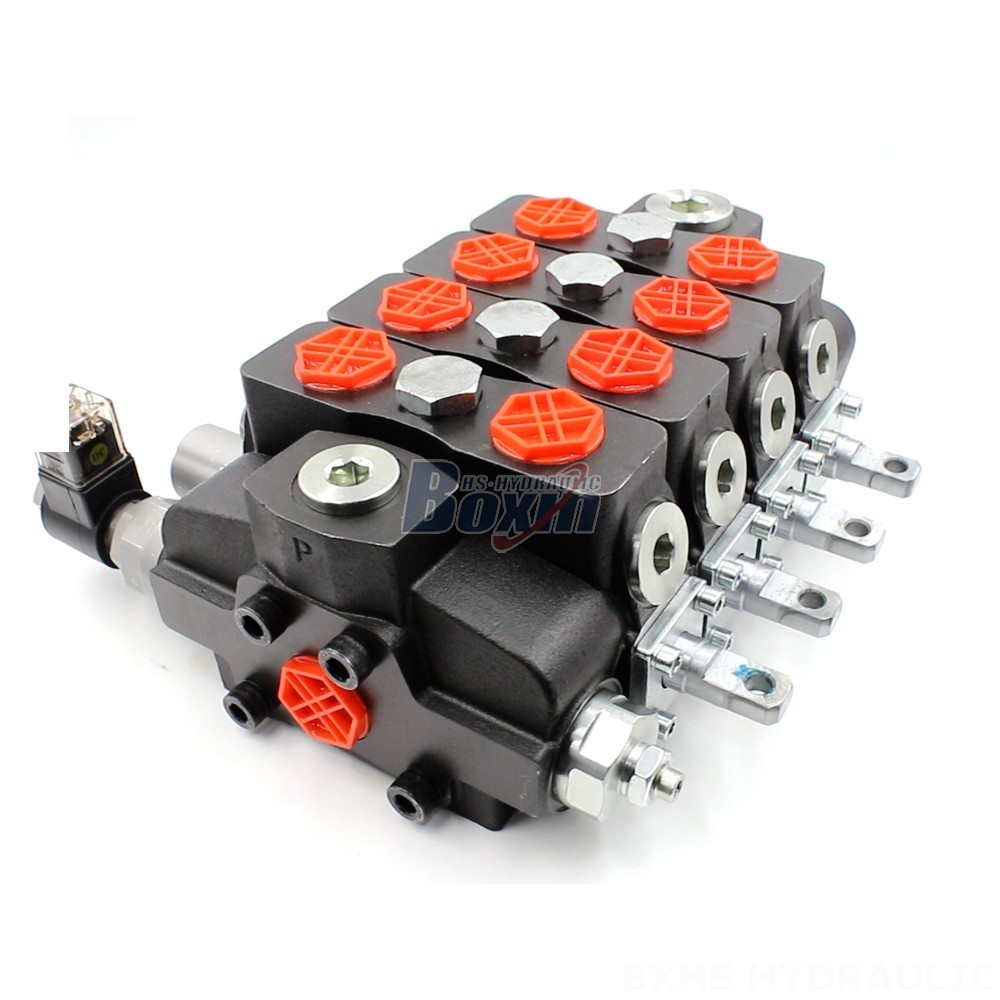

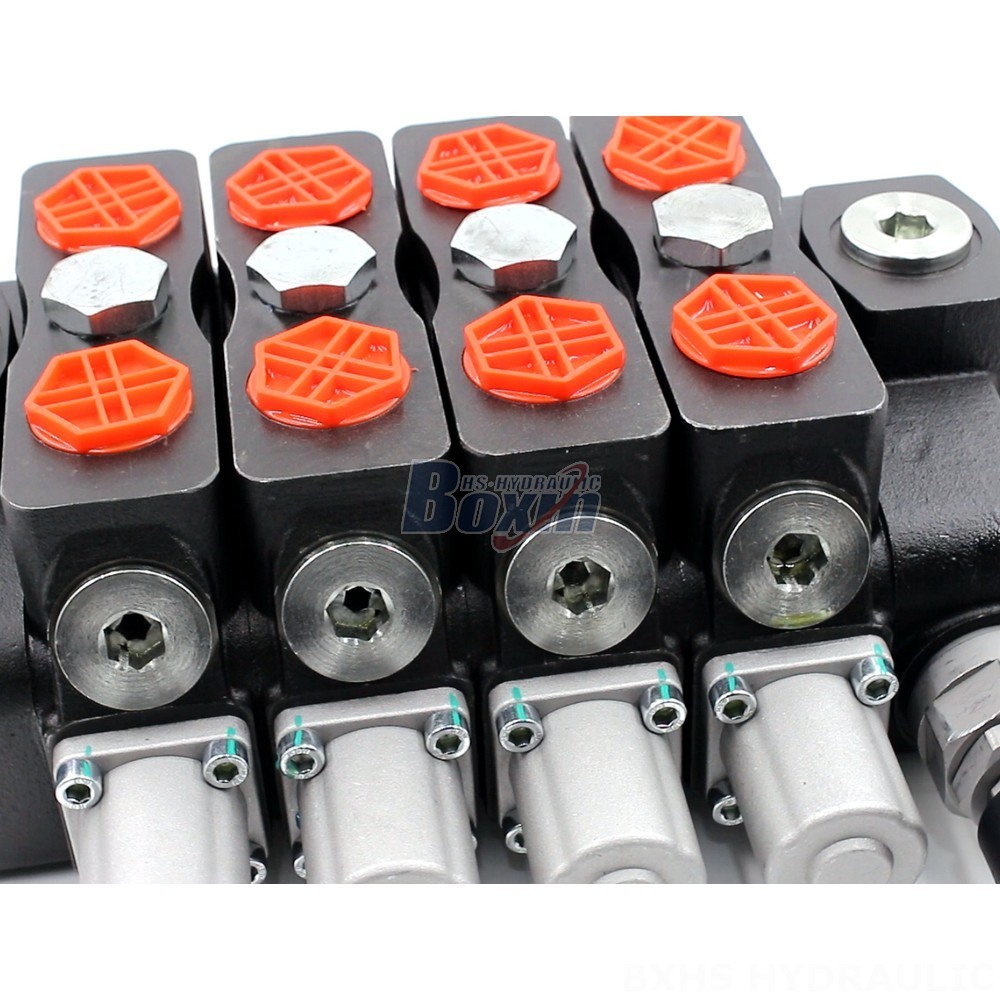

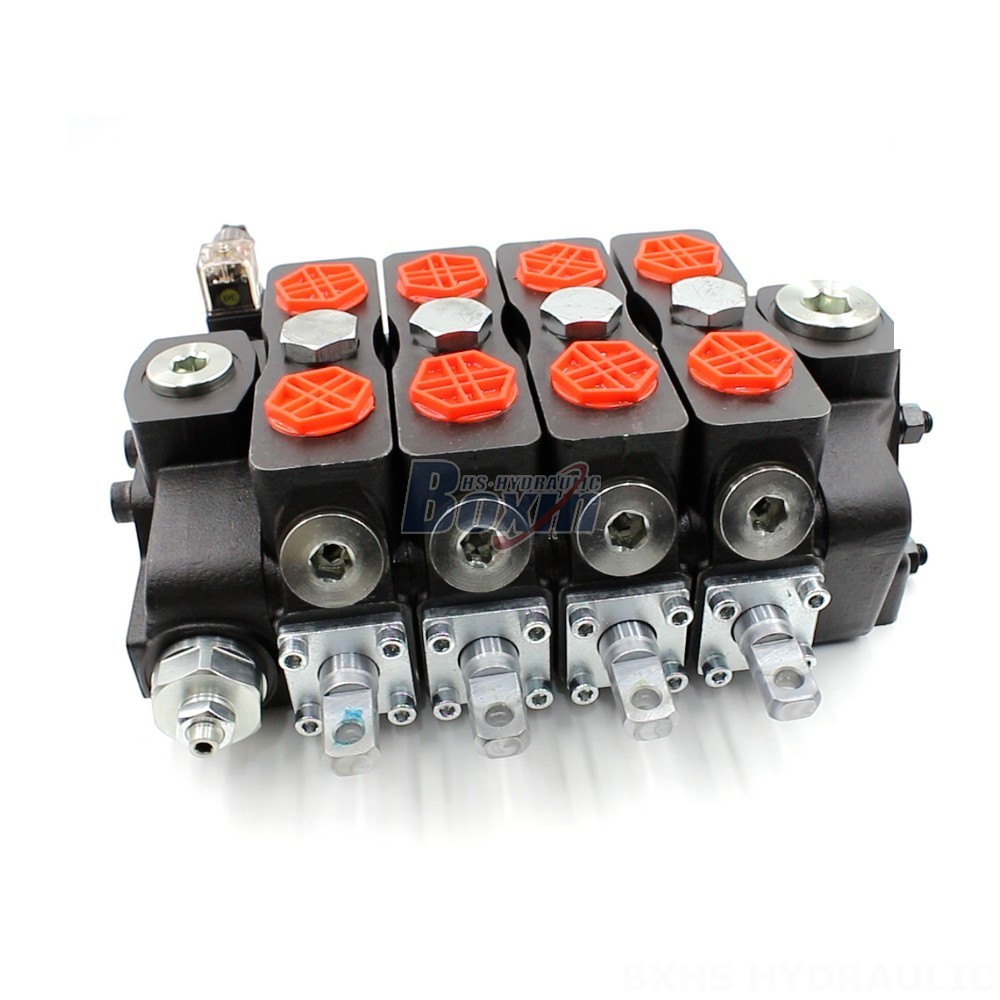

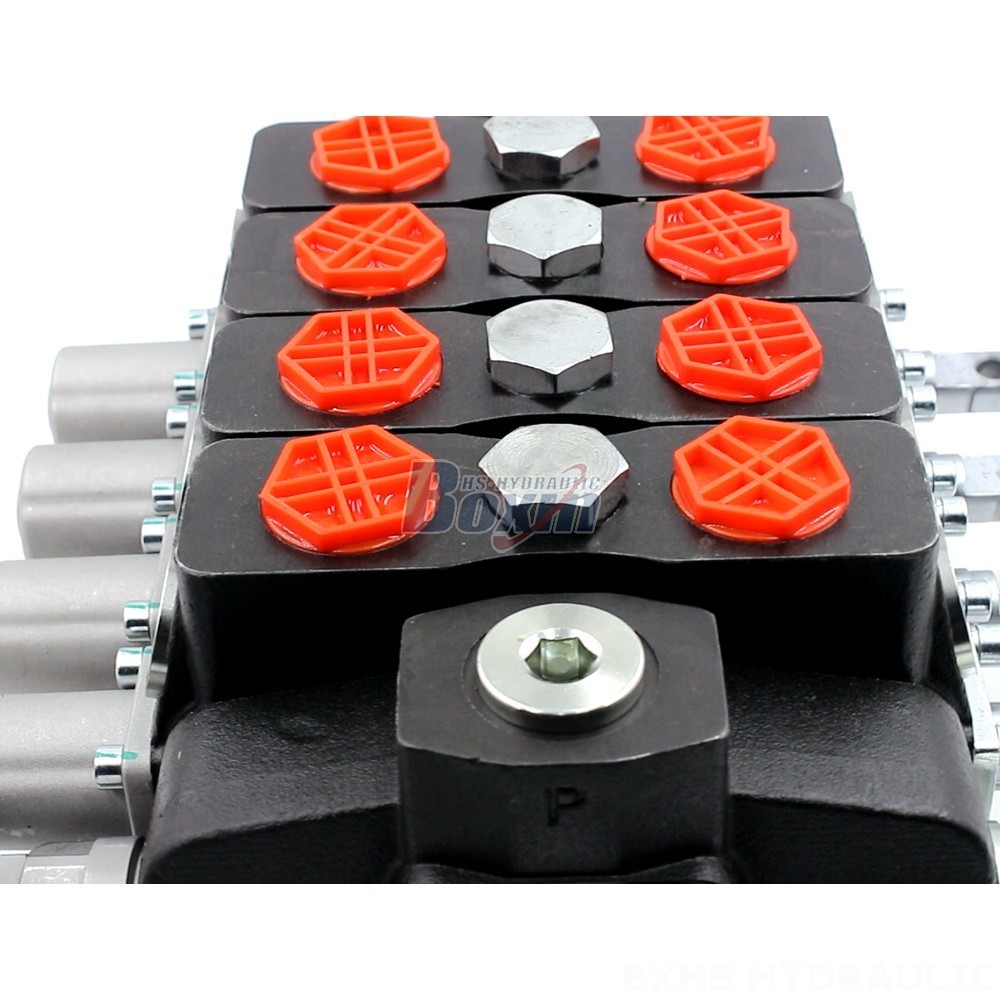

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for a wide range of industrial applications. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is suitable for demanding hydraulic systems in various industries, including material handling, construction, agriculture, and industrial vehicles.
| Série SD8 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 90 L/min (23,8 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, SAE 10 |
| Porta de Saída | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamanho da Porta | G1/2, SAE 10 |
The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve features a sectional design that allows for easy customization and maintenance. It is equipped with four spools, providing precise control over the flow of hydraulic fluid. The valve has an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt), making it compatible with a wide range of hydraulic fluids. Its compact design and modular construction ensure easy installation and integration into existing hydraulic systems. Applications for the SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
