The SD8 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications. It features a compact and lightweight design, making it ideal for use in space-constrained applications. The valve is also highly efficient and reliable, making it a cost-effective solution for demanding applications.
| Série SD8 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 90 L/min (23,8 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, SAE 10 |
| Porta de Saída | G1/2, G3/4, SAE 10, 3/4 NPT |
| Tamanho da Porta | G1/2, SAE 10 |

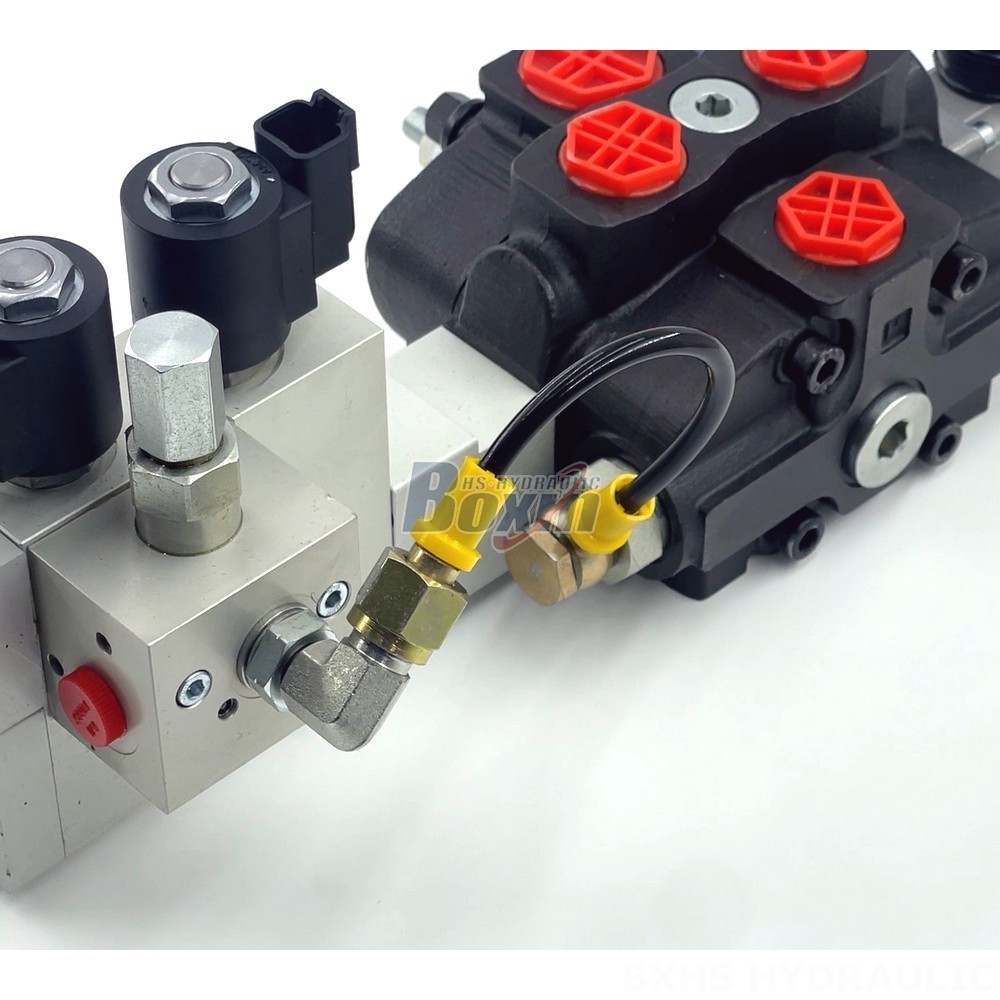

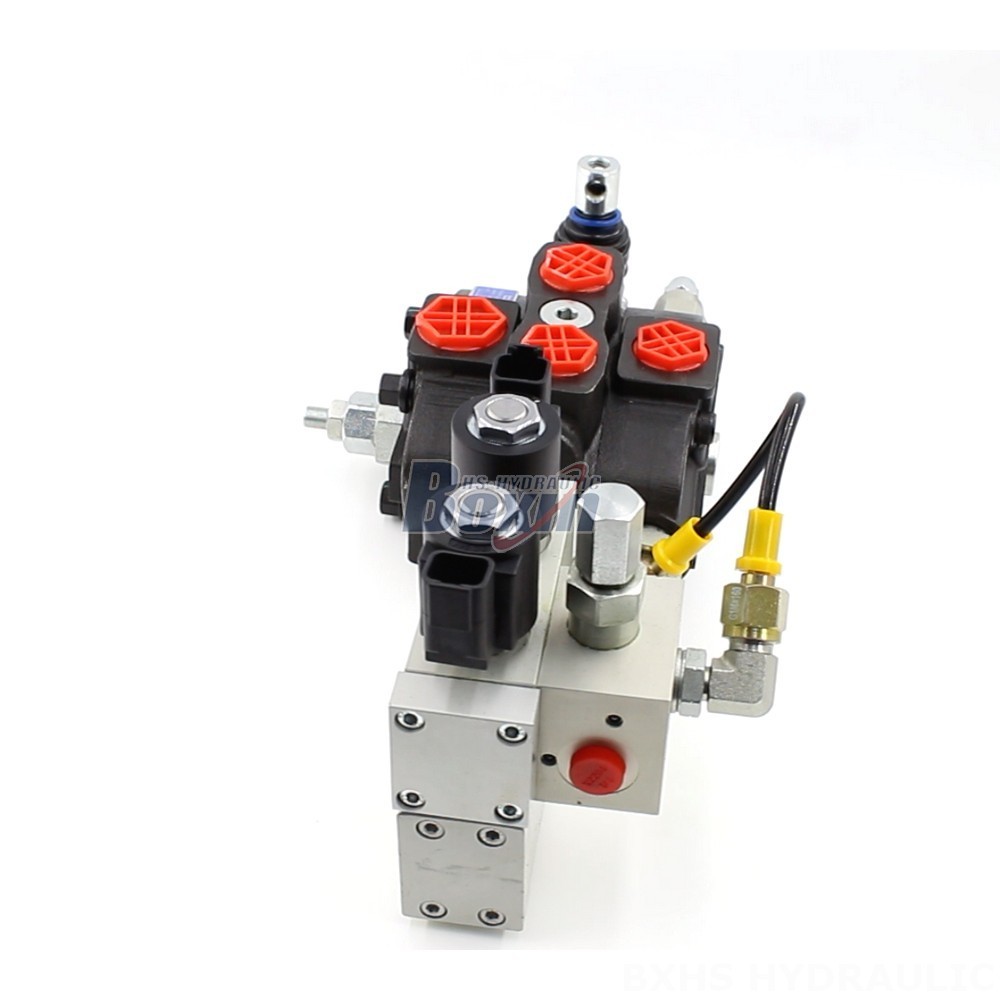

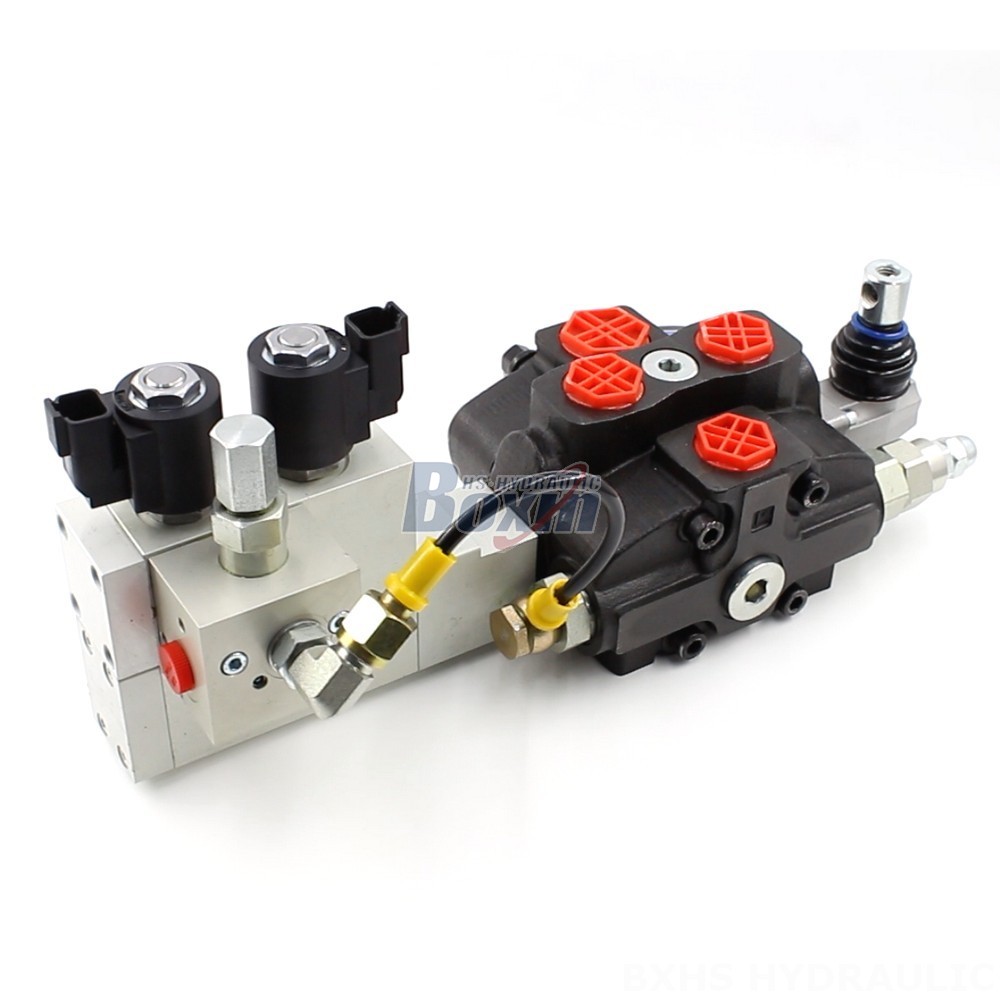

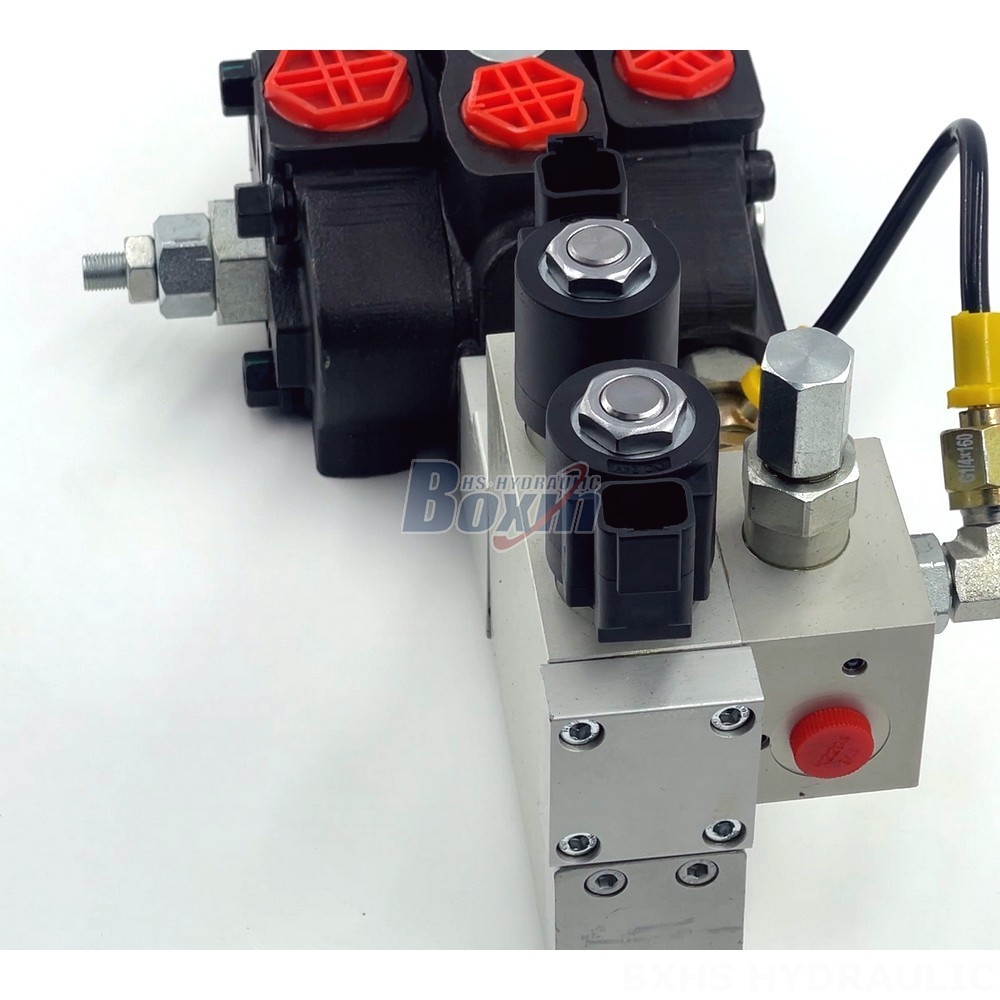

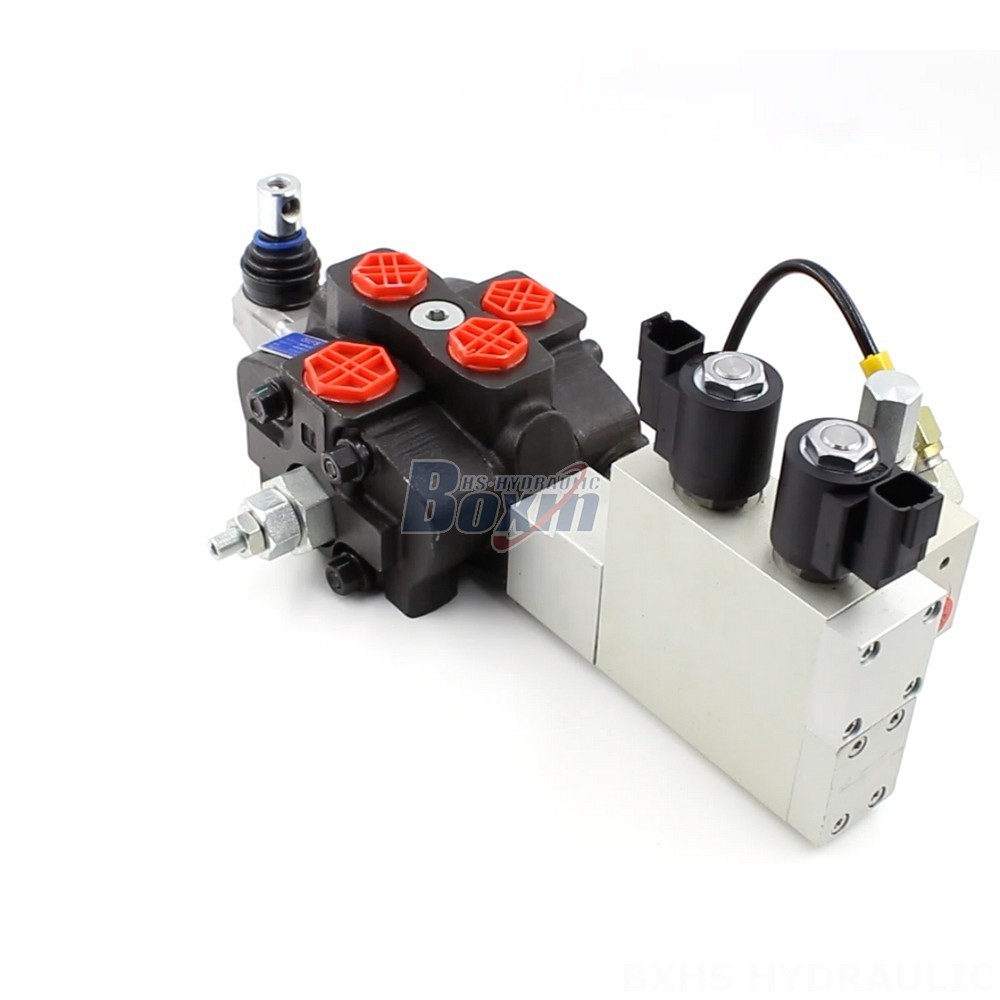

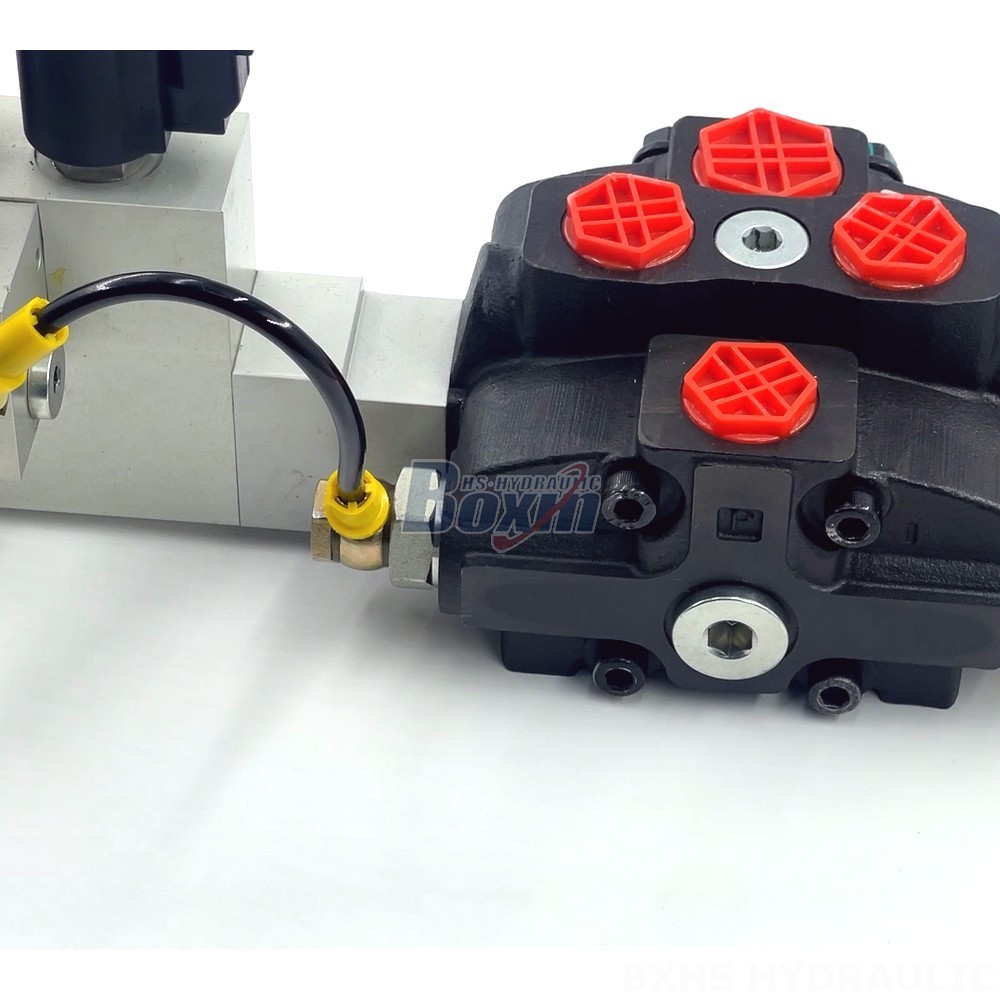

**SD8 Electro-hydraulic Directional Control Valve**
The SD8 Electro-hydraulic Directional Control Valve is a 1-section, electro-hydraulically controlled valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is a sectional valve, which means that it can be easily customized to meet the specific requirements of an application. The valve is available with a variety of spool options, including single-acting, double-acting, and float. It is also available with a variety of porting options, including NPT, SAE, and BSPP.
The SD8 Electro-hydraulic Directional Control Valve is a versatile and reliable valve that is suitable for use in a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Key Features**
* Compact and lightweight design
* High efficiency and reliability
* Easy to customize to meet the specific requirements of an application
* Available with a variety of spool and porting options
