SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

Método de Controle:Pneumático

Carrétel:2 Carreteis

Fluxo Nominal:90 L/min (23,8 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:SAE 10

Porta de Saída:SAE 10

Tamanho da Porta:SAE 10

Marca:BXHS

Tipo de produto:Válvula direcional seccional

Série de produtos:Série SD8 Válvula direcional seccional

Tamanho da embalagem:34*24*15.5

Peso bruto:12.50 kg

Disponibilidade: Em estoque

90 Visualizações estão procurando por este produto

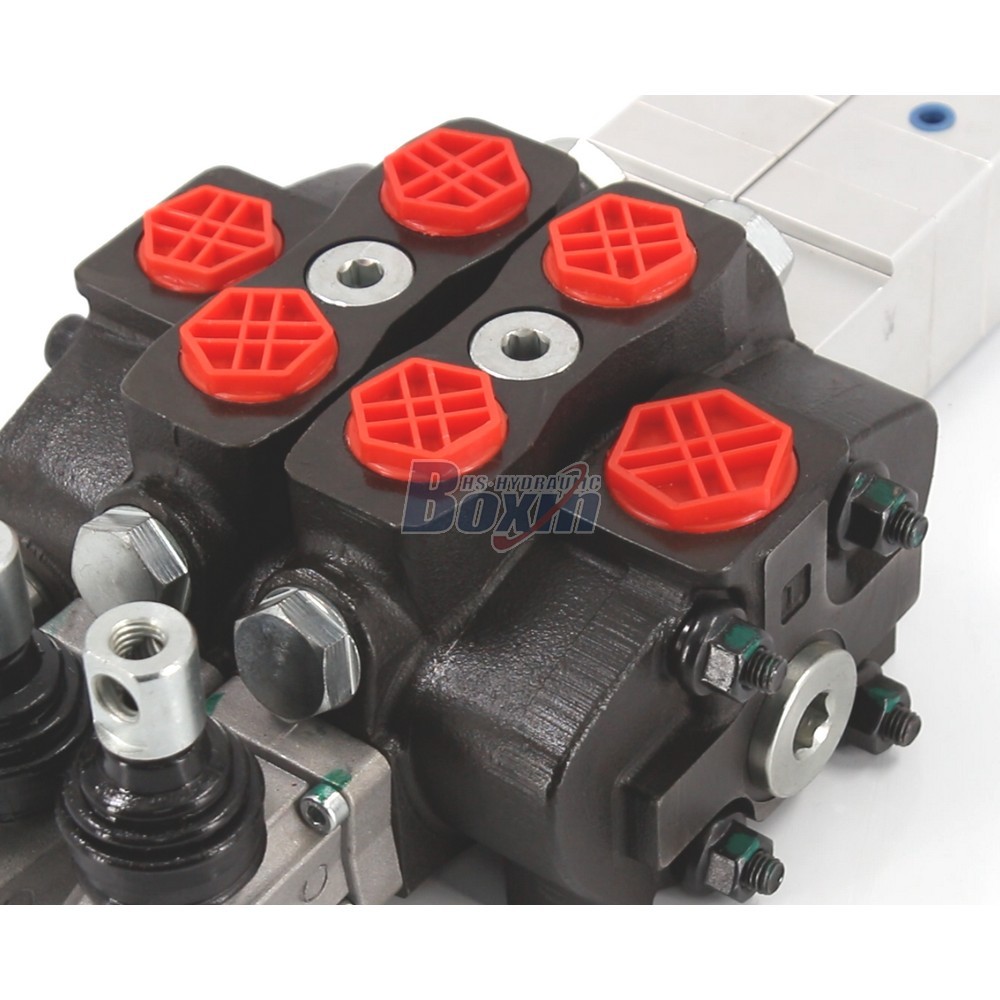

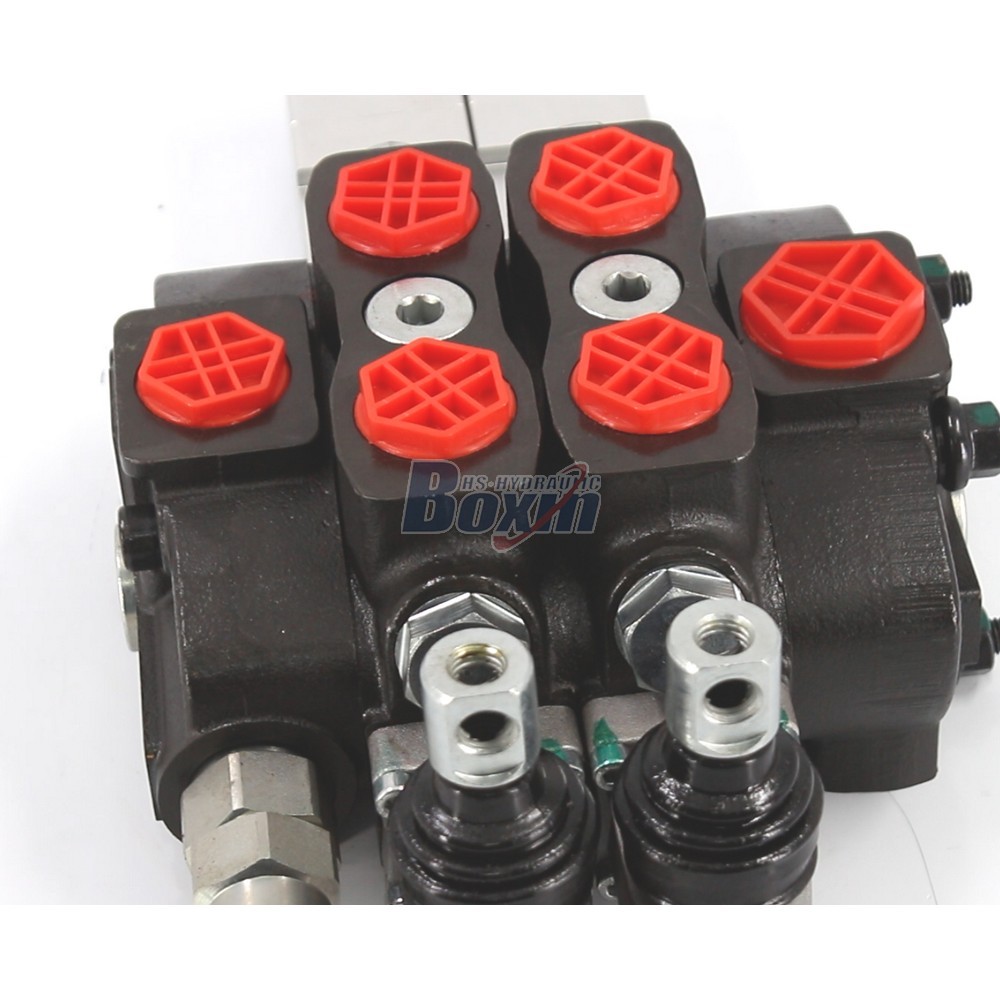

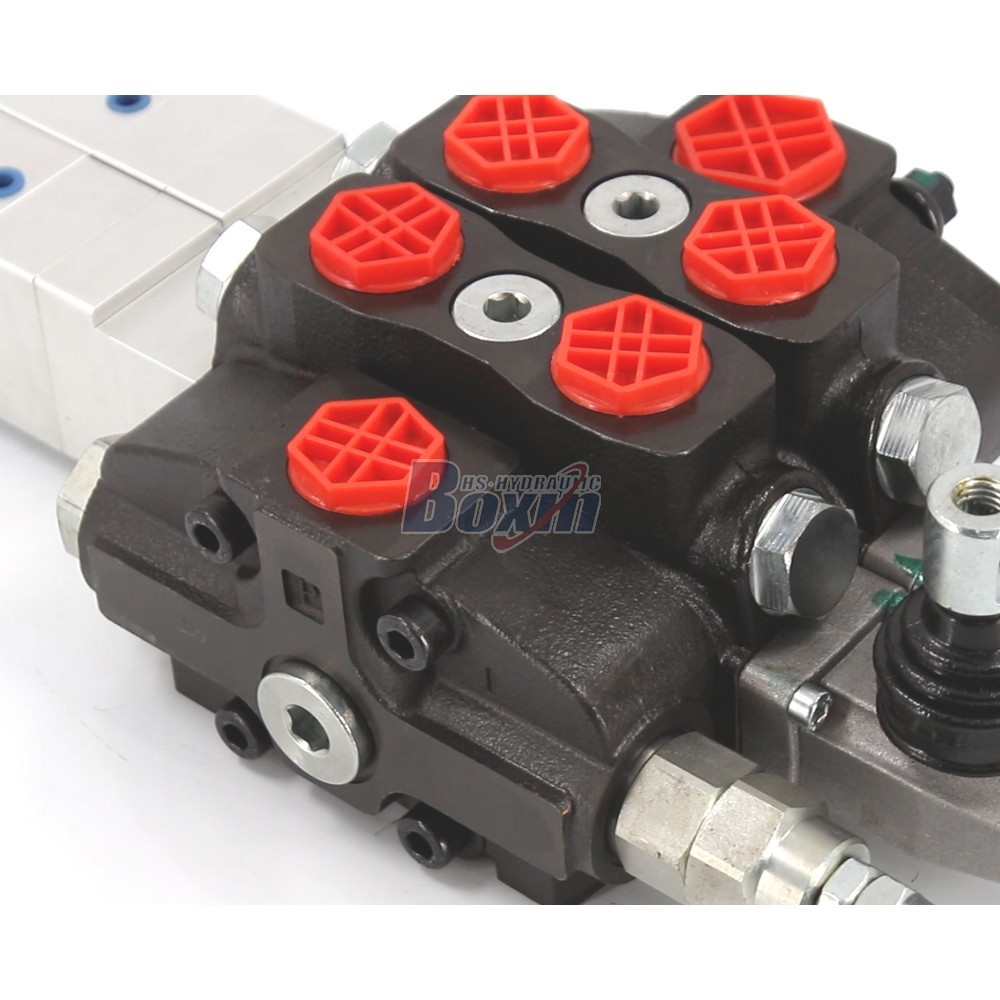

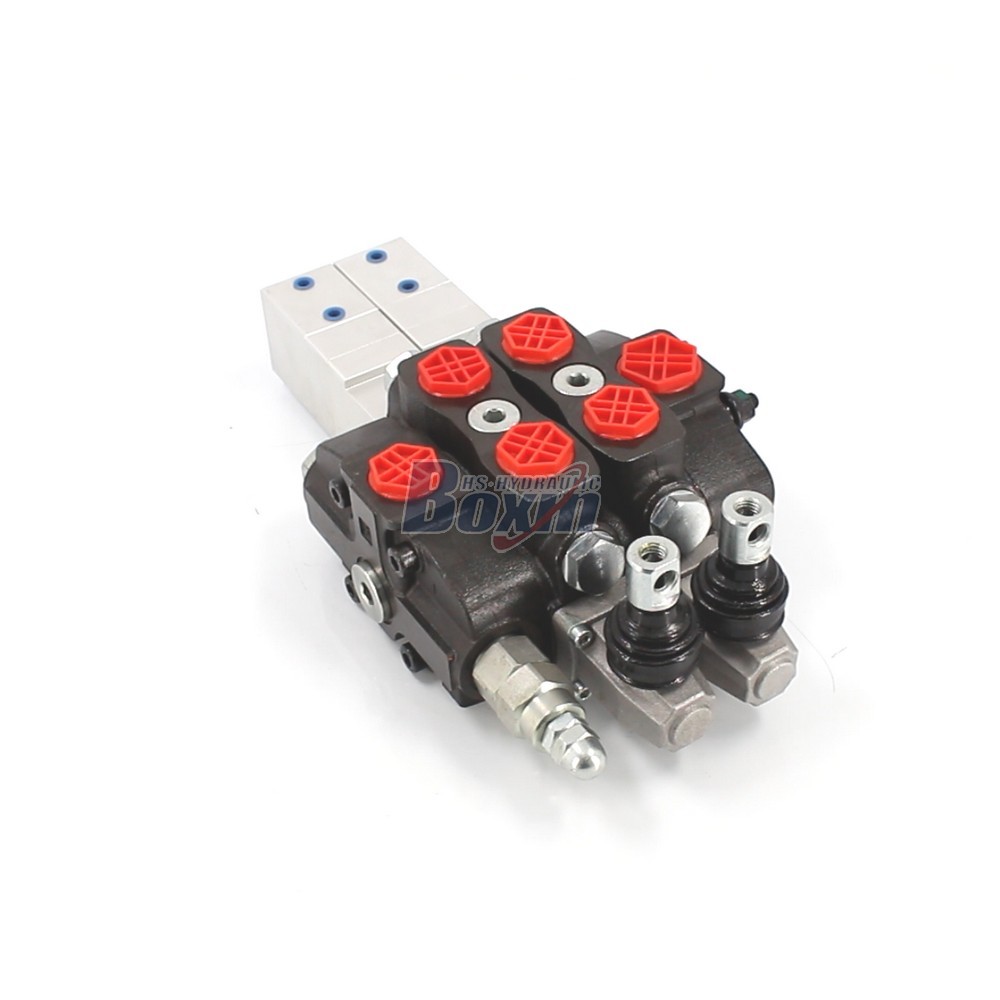

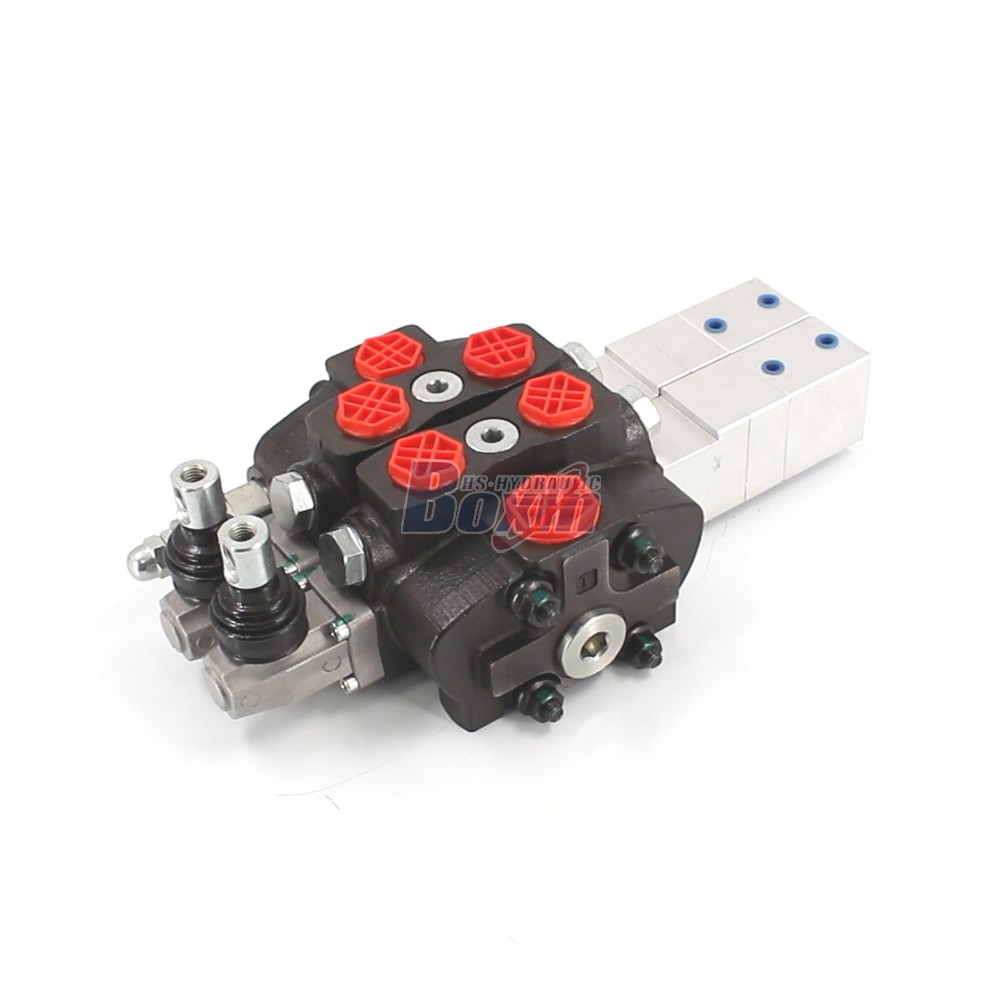

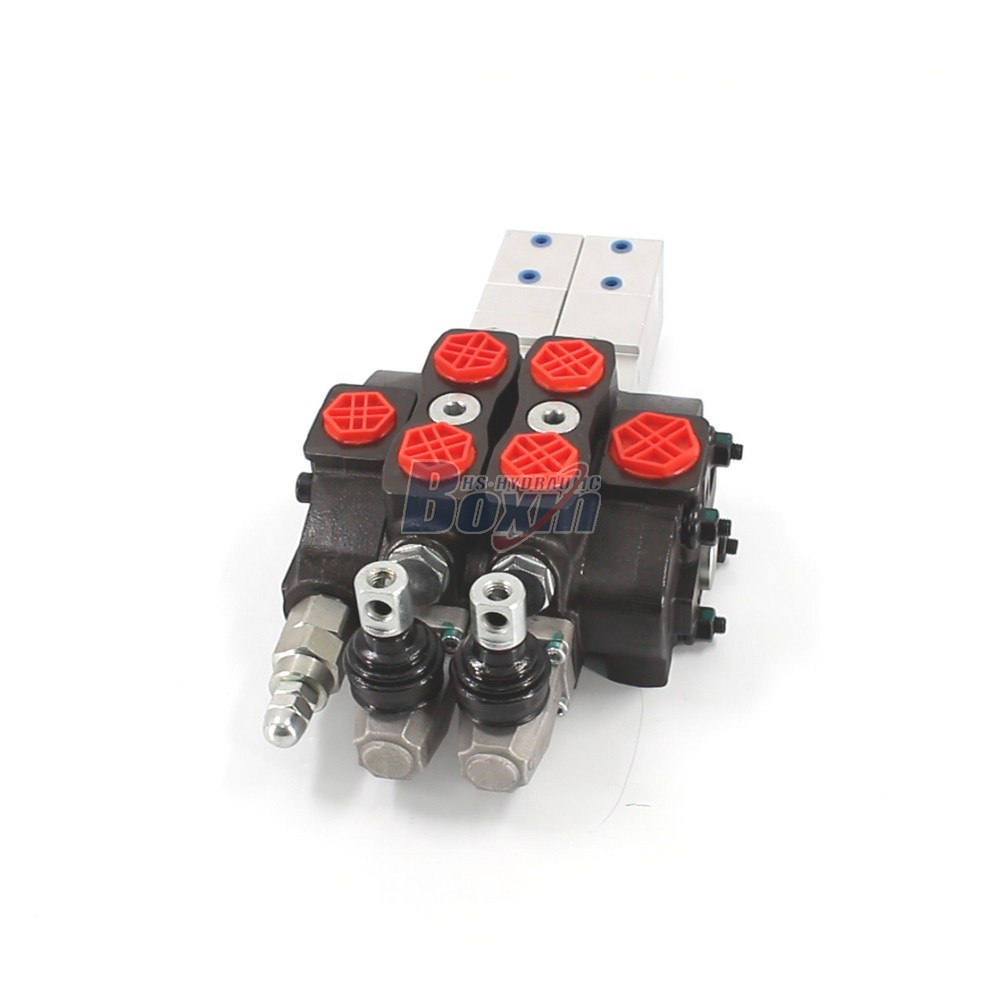

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery drawing image

The SD8 Series Pneumatic Control Valve is a high-performance 2-spool sectional valve designed for heavy-duty machinery. With a rated flow of 80 L/min and a maximum pressure of 350 bar, it provides precise pneumatic control for applications in construction, agriculture, and material handling.

Série SD8 Válvula direcional seccional Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula seccional
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções
Intervalo de viscosidade operacional 12 - 400 mm²/s (12 cSt a 400 cSt)
Fluxo Nominal 90 L/min (23,8 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, SAE 10
Porta de Saída G1/2, G3/4, SAE 10, 3/4 NPT
Tamanho da Porta G1/2, SAE 10

As a leading large-scale manufacturer of hydraulic products, we offer the SD8 Series Pneumatic Control Valve, a robust 2-spool sectional type solution engineered for global markets. This valve features a rated flow of 80 L/min (21.2 US gpm) and can withstand pressures up to 350 bar (5100 psi), ensuring reliable performance in demanding environments like construction sites and agricultural fields. It is widely compatible with forklifts, mini-excavators, skid steer loaders, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding to meet specific technical requirements. Our factory offers direct wholesale supply with competitive pricing for bulk orders. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Contact us for factory-direct sourcing and professional hydraulic solutions tailored to your machinery needs.
