Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Método de Controle:Manual

Carrétel:4 Carreteis

Fluxo Nominal:90 L/min (23,8 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G1/2

Porta de Saída:G3/4

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula direcional seccional

Série de produtos:Série SD8 Válvula direcional seccional

Tamanho da embalagem:34*34*15.5

Peso bruto:18.50 kg

Disponibilidade: Em estoque

76 Visualizações estão procurando por este produto

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

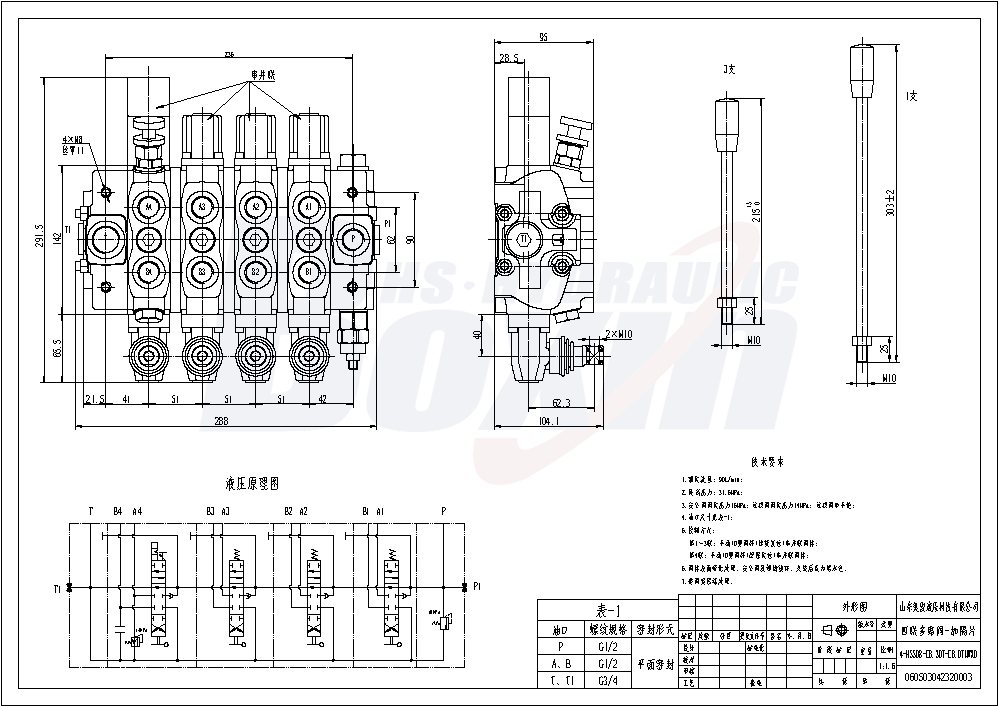

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation drawing image

The SD8-OTAMW is a high-performance 4-spool manual sectional directional control valve designed for demanding mobile applications. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve offers precise manual control for various machinery including excavators, loaders, and agricultural equipment.

Série SD8 Válvula direcional seccional Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula seccional
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções
Intervalo de viscosidade operacional 12 - 400 mm²/s (12 cSt a 400 cSt)
Fluxo Nominal 90 L/min (23,8 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, SAE 10
Porta de Saída G1/2, G3/4, SAE 10, 3/4 NPT
Tamanho da Porta G1/2, SAE 10

As a leading manufacturer of hydraulic components, we provide the SD8-OTAMW 4-spool sectional directional control valve for the global market. This manual valve is engineered for heavy-duty performance in material handling, construction, and agriculture, supporting machinery like skid steer loaders, telehandlers, and forklifts. With a flow rate of 80 L/min (21.2 US gpm) and G1/2 inlet/outlet ports, it ensures reliability under high-pressure conditions up to 315 bar. We specialize in factory supply, wholesale, and professional OEM/ODM services, offering customized solutions and private labeling to meet specific technical requirements. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and traders. Our factory provides competitive wholesale pricing and consistent quality for international trade, ensuring your fleet or retail business benefits from robust hydraulic power and precise spool operation.
