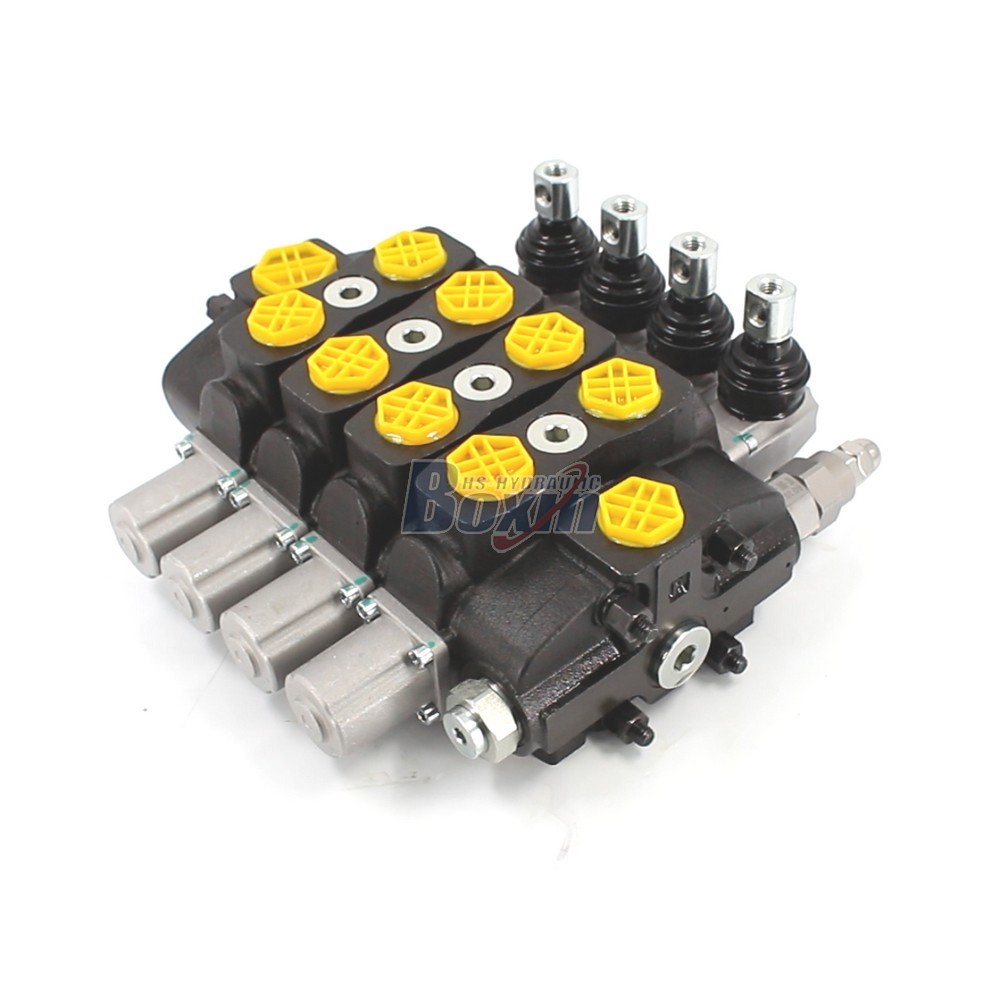

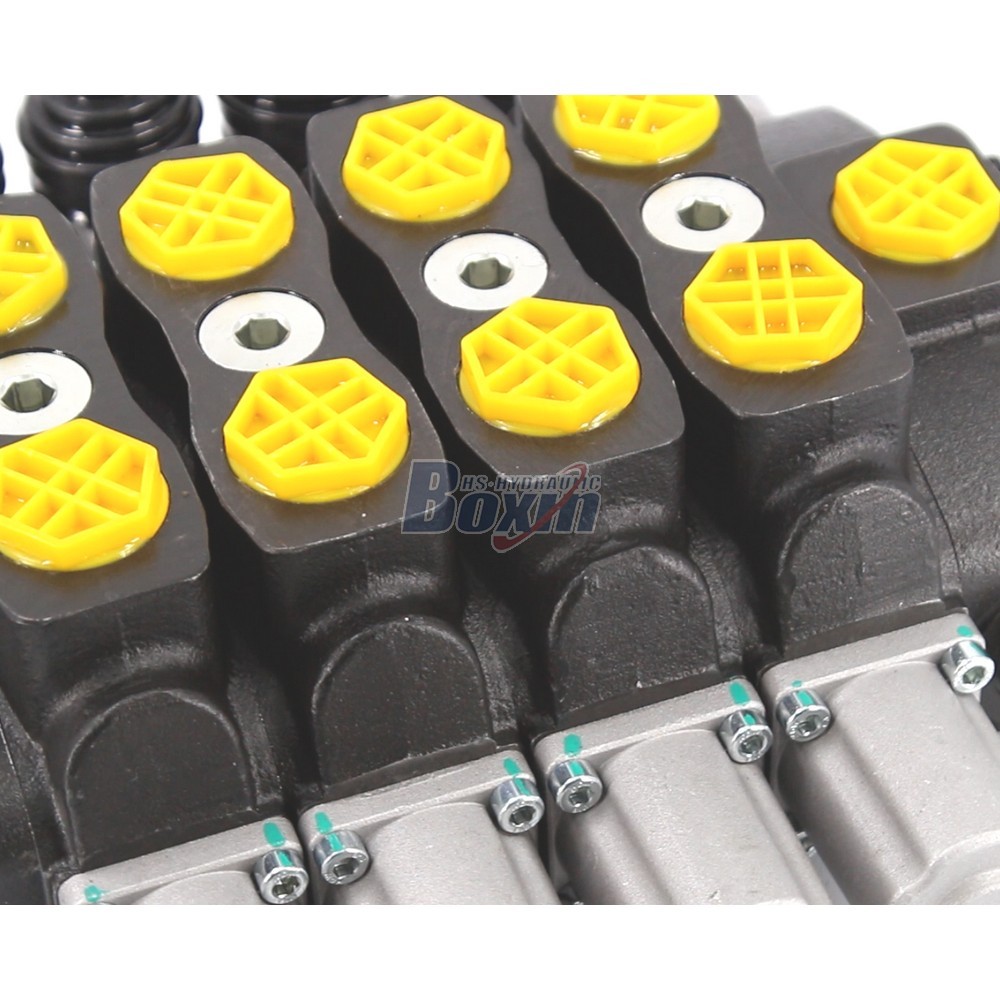

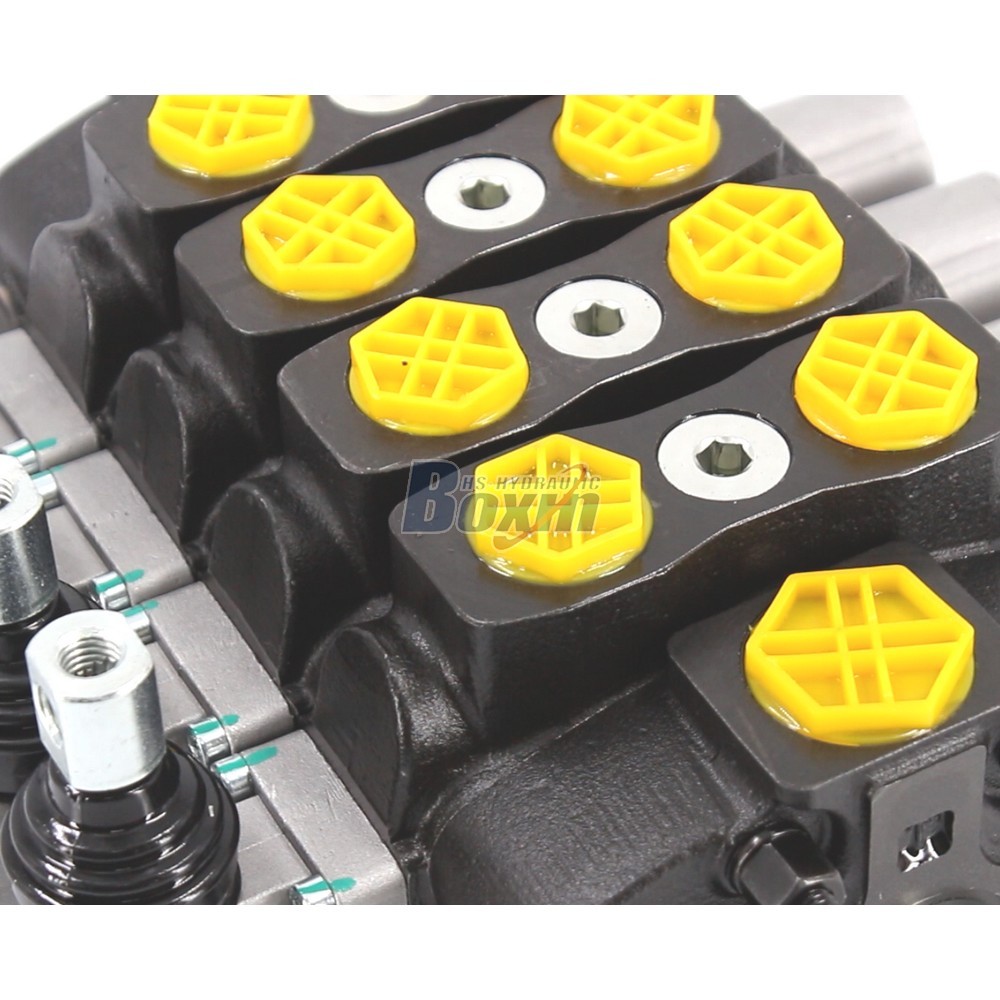

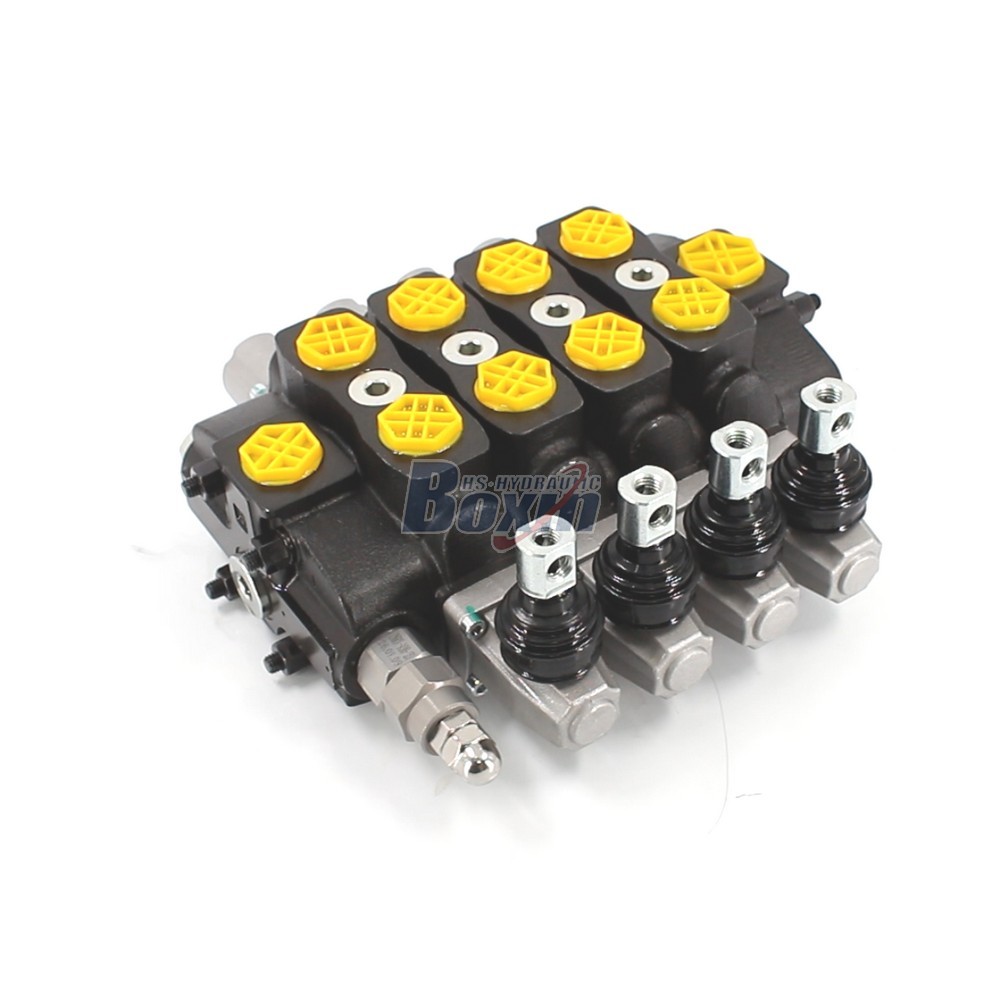

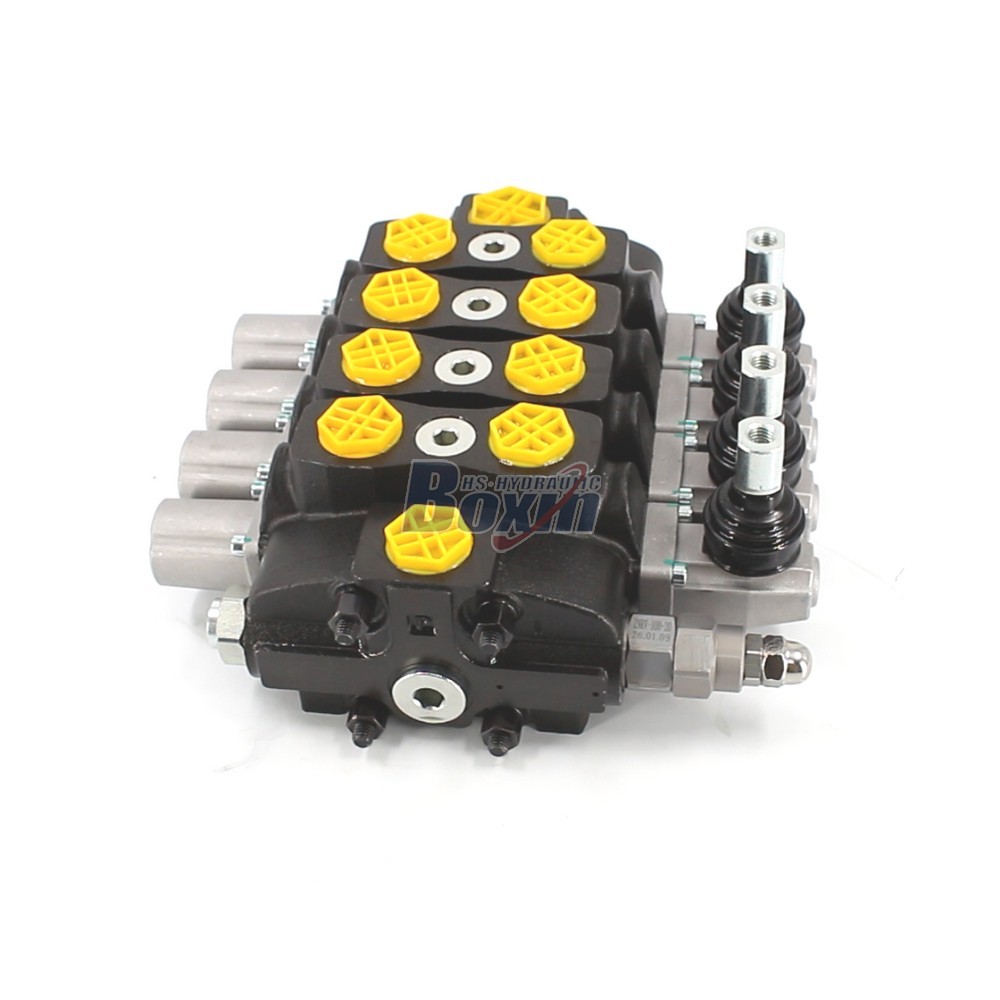

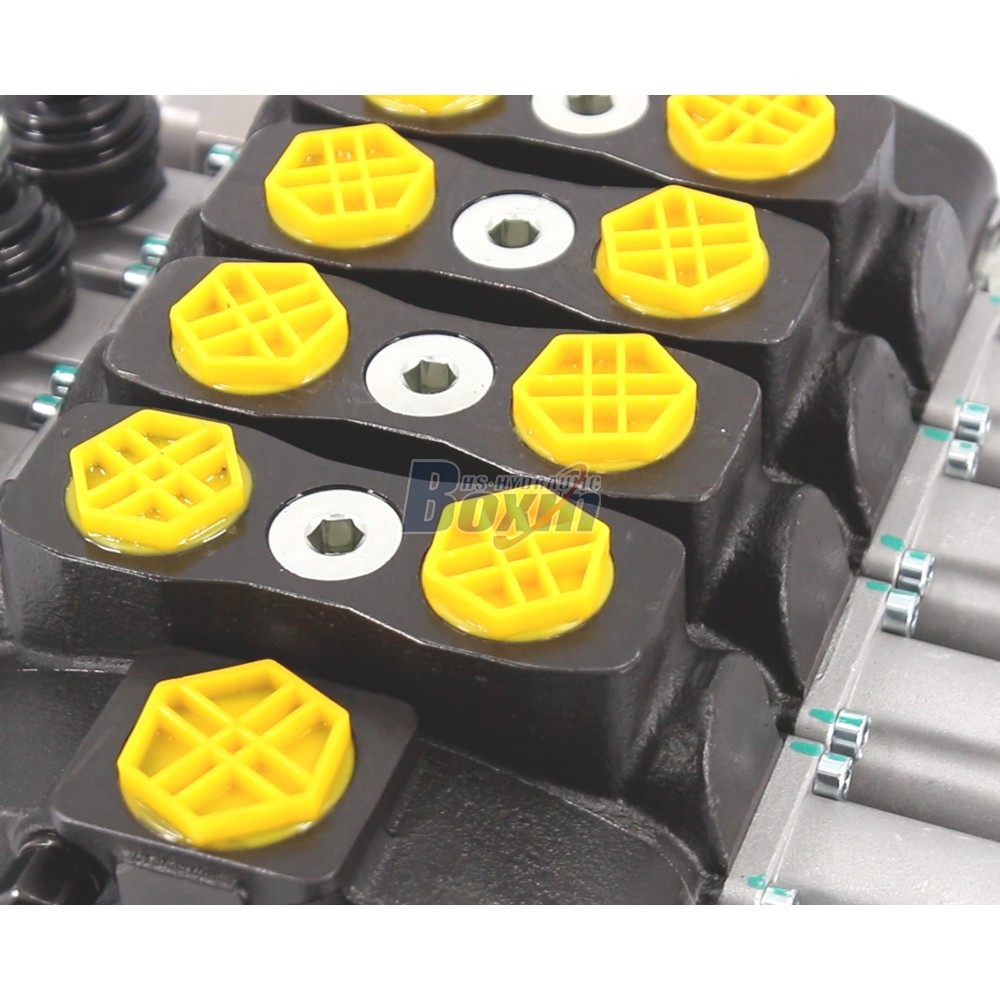

Sectional Type SD8 Manual 4 Spool Directional Valve

Método de Controle:Manual

Carrétel:4 Carreteis

Fluxo Nominal:90 L/min (23,8 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G1/2

Porta de Saída:G3/4

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula direcional seccional

Série de produtos:Série SD8 Válvula direcional seccional

Tamanho da embalagem:32*36*16

Peso bruto:18.00 kg

Disponibilidade: Em estoque

108 Visualizações estão procurando por este produto

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve drawing image

The SD8 Series 4-spool manual sectional directional valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 315 bar. This versatile valve offers precise manual control for a wide range of mobile and industrial applications, including construction, agriculture, and material handling equipment.

Série SD8 Válvula direcional seccional Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula seccional
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções
Intervalo de viscosidade operacional 12 - 400 mm²/s (12 cSt a 400 cSt)
Fluxo Nominal 90 L/min (23,8 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, SAE 10
Porta de Saída G1/2, G3/4, SAE 10, 3/4 NPT
Tamanho da Porta G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we offer the SD8 Series Sectional Type Manual 4 Spool Directional Valve, engineered for demanding environments. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 315 bar (4600 psi), making it ideal for machinery such as forklifts, skid steer loaders, mini-excavators, and tractors. The sectional design provides flexible configuration, while G1/2 inlet and G3/4 outlet ports ensure standard connectivity. We specialize in factory-direct supply, providing extensive OEM, ODM, and custom branding (Private Label) services to meet specific technical requirements. Our facility is equipped for large-scale production, supporting wholesale orders with competitive pricing. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need a reliable supplier for forestry wood splitters or complex aerial platforms, our factory provides the expertise and manufacturing capacity to support your business growth.
