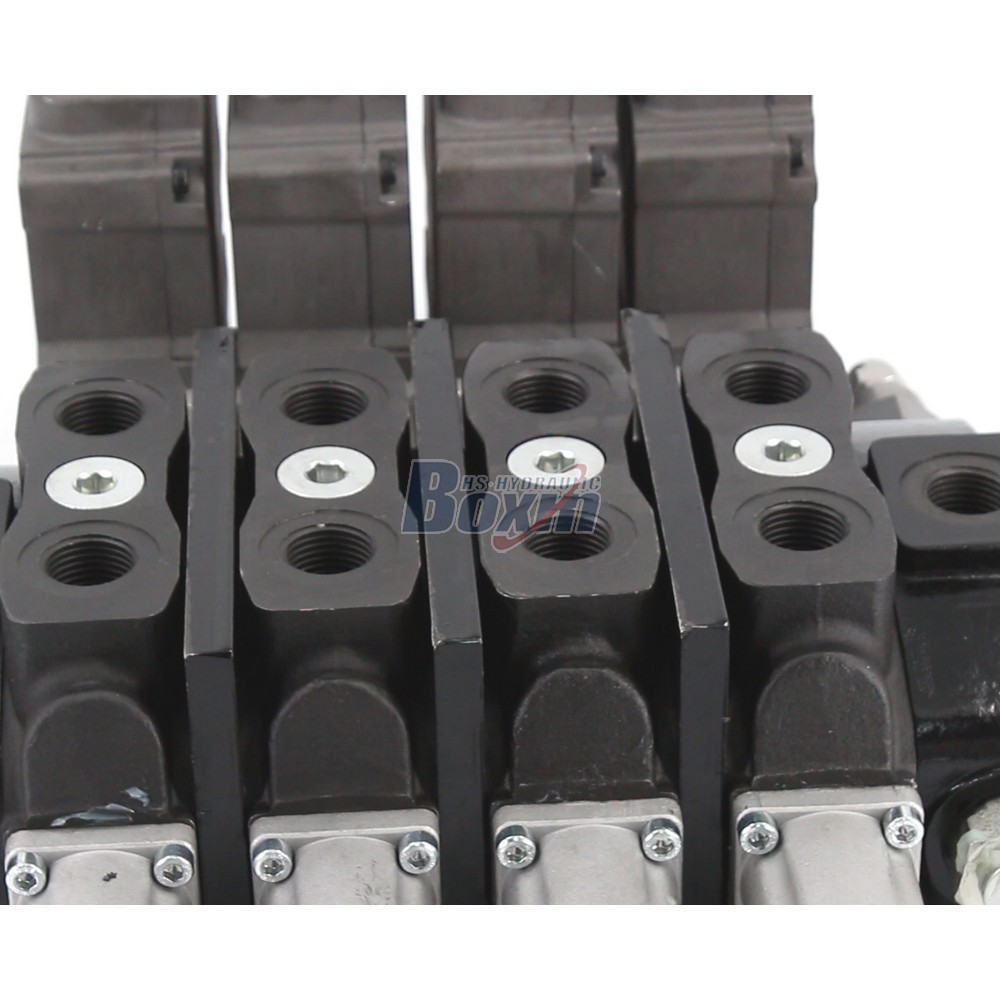

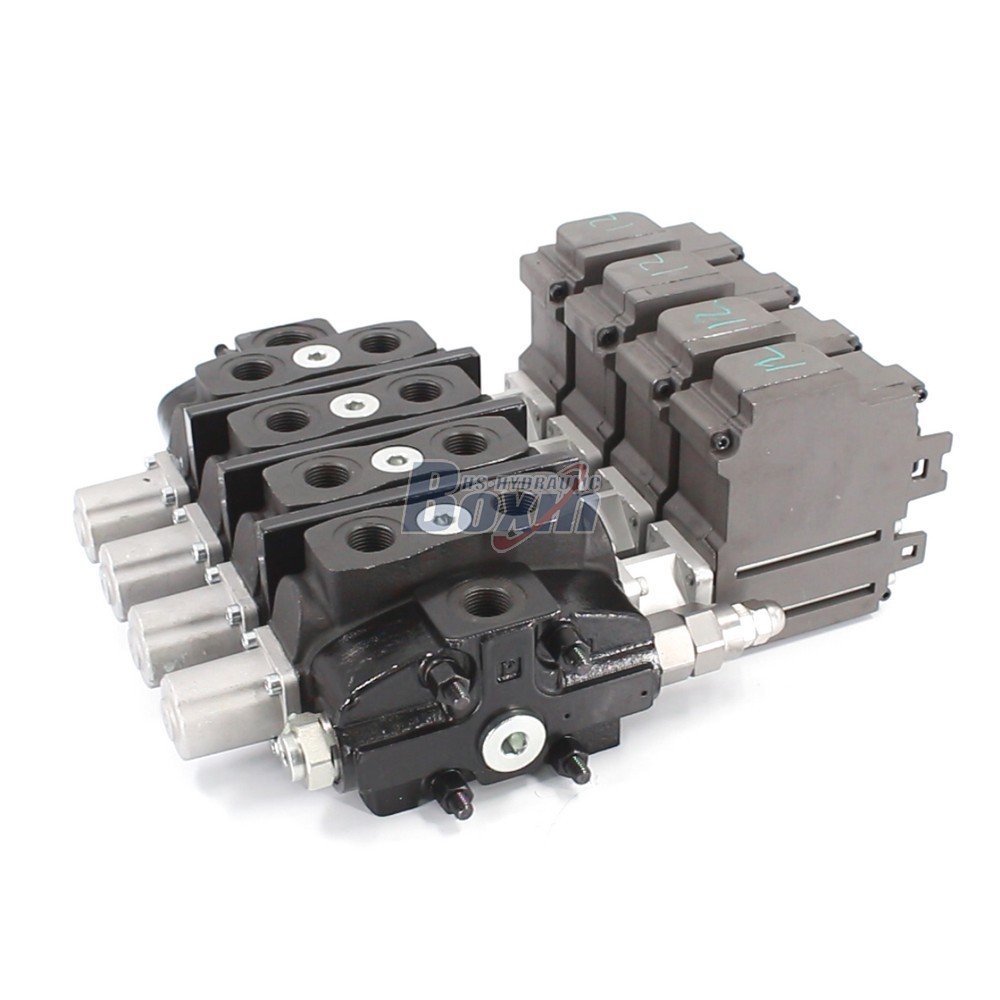

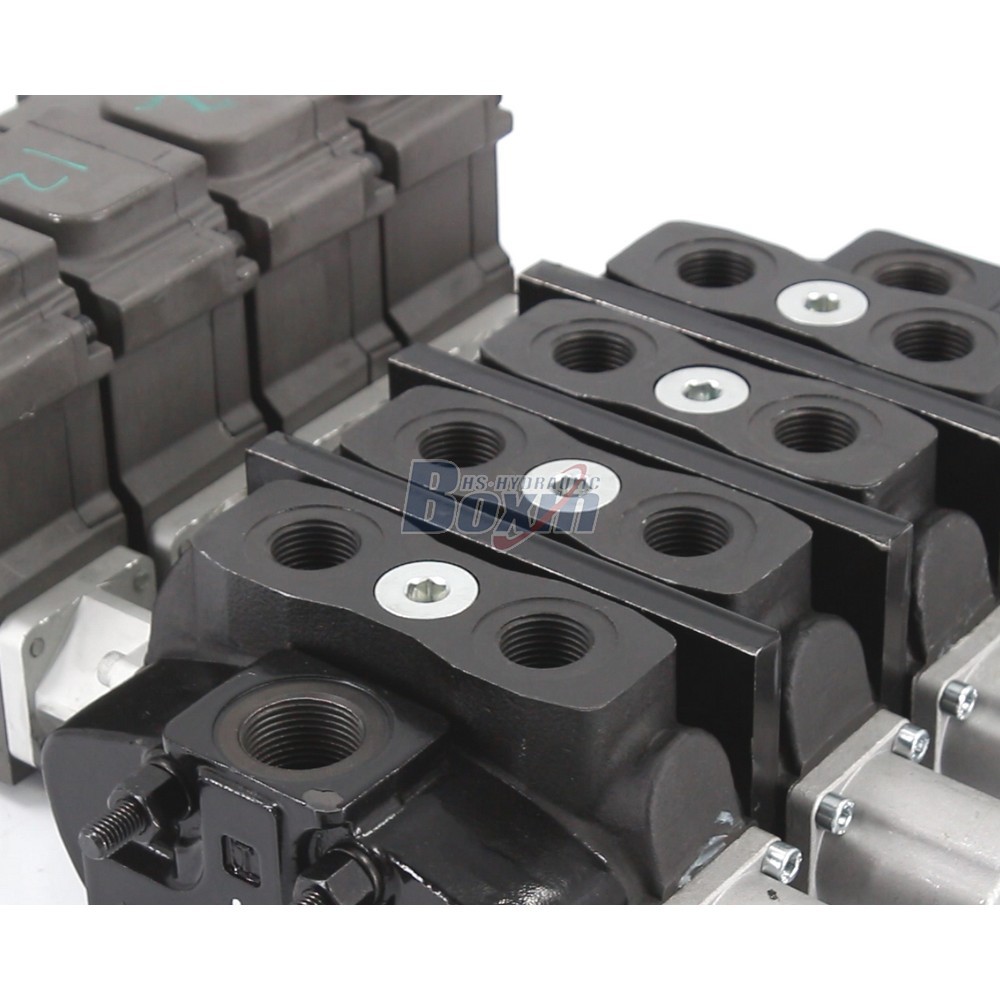

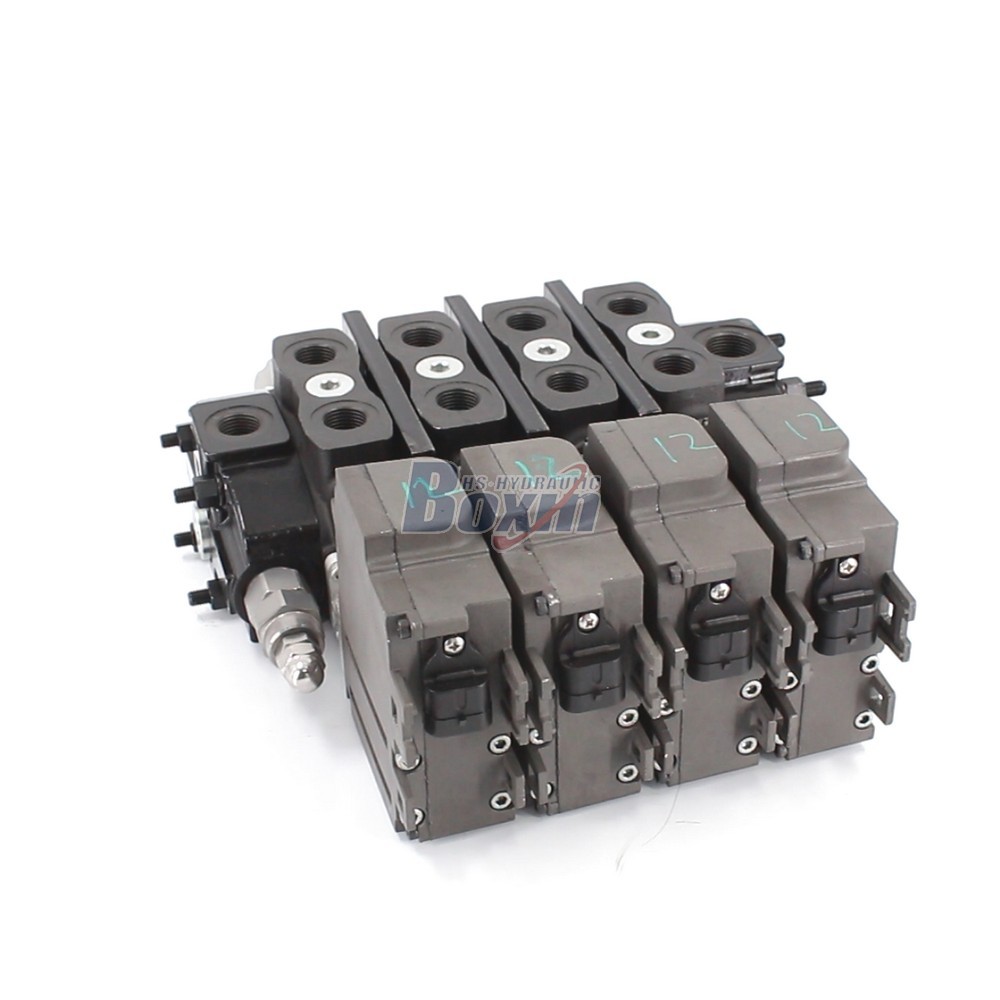

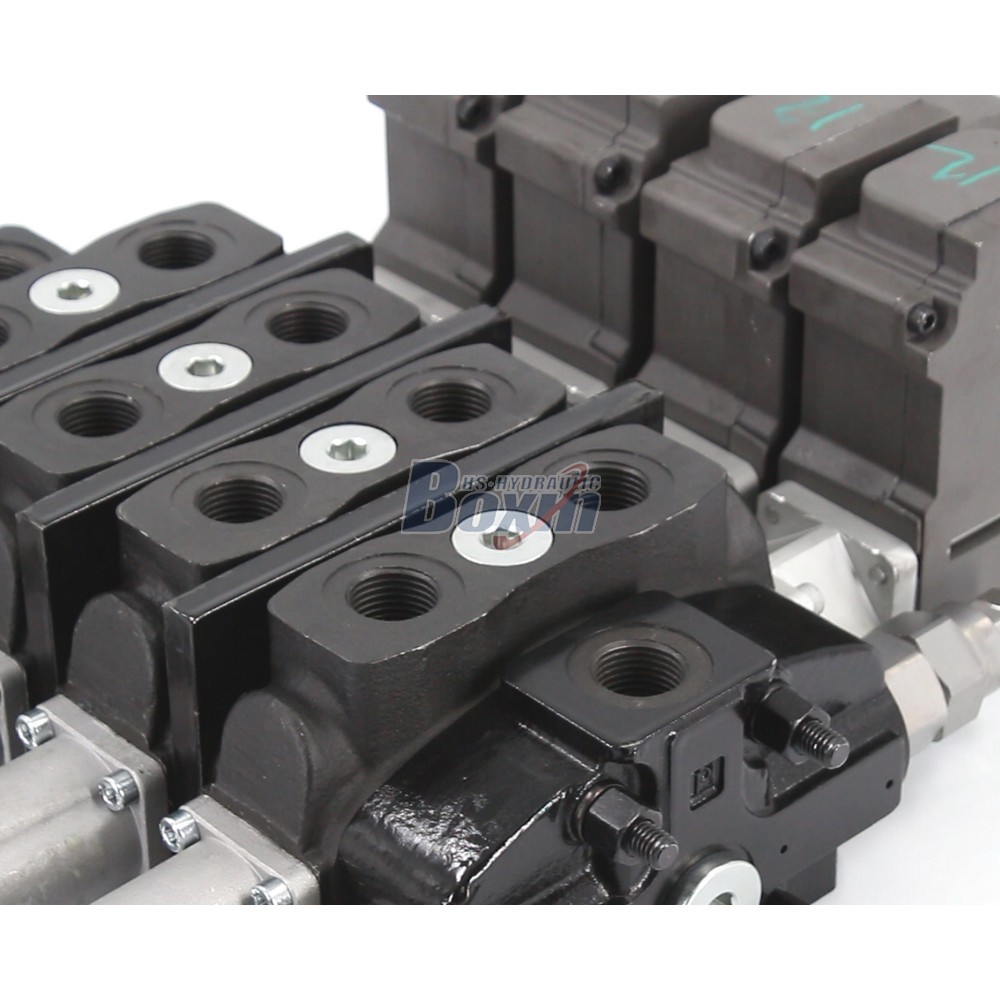

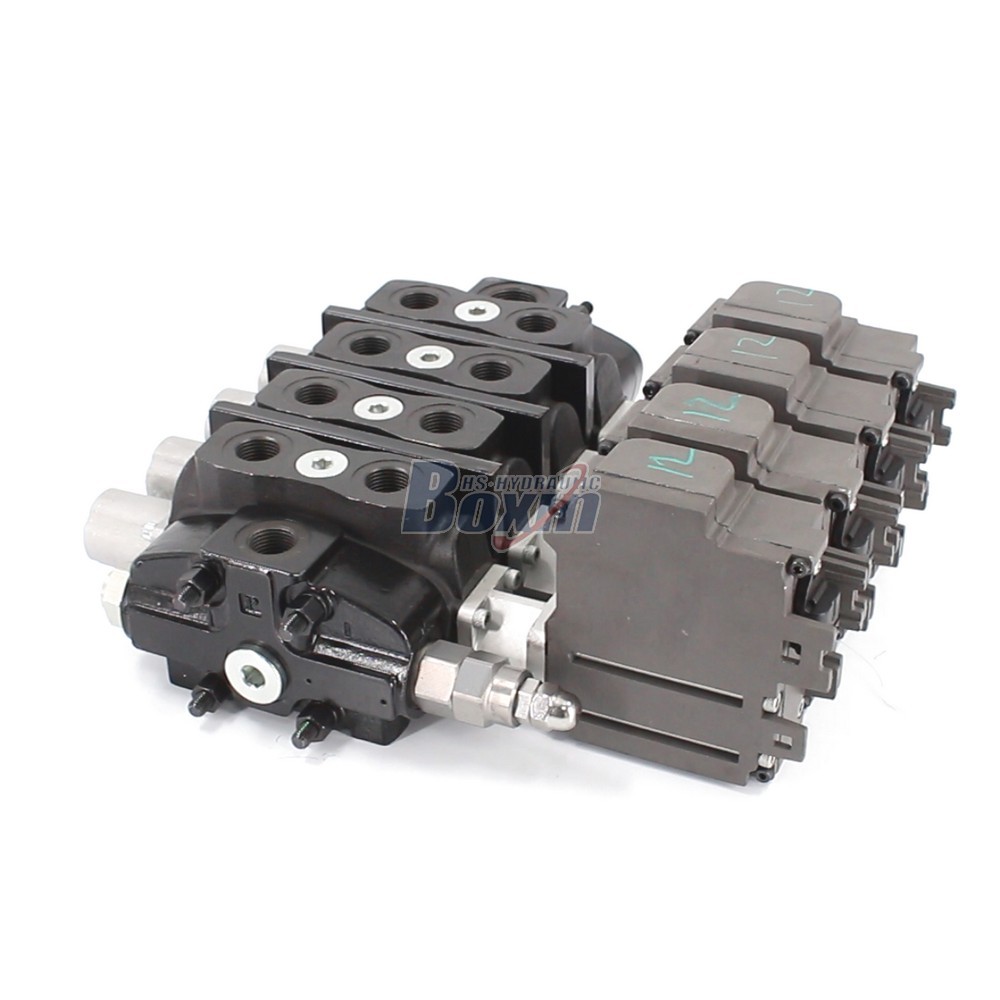

This SD8 Series Sectional Directional Valve features a 4-spool electric motor control design, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| Série SD8 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Motor elétrico |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 90 L/min (23,8 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M22×1.5, SAE 10 |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Tamanho da Porta | G1/2, M22×1.5, SAE 10 |
**1. High-Flow Sectional Directional Valve Specifications**
- Engineered for demanding applications with a rated flow of 90 L/min (23.8 US gpm) and a maximum working pressure of 315 bar (4600 psi).
- Features M22×1.5 inlet and M27×2.0 outlet ports, ensuring seamless integration into high-pressure hydraulic circuits for construction and industrial vehicles.
**2. Reliable Electric Hydraulic Valve Operation**
- Equipped with a precise electric motor control method for the 4-spool configuration, offering accurate and responsive directional control.
- Ideal for automation in material handling equipment like aerial platforms and wood splitters, reducing manual effort while enhancing operational safety.
**3. Versatile 4 Spool Directional Control Valve Applications**
- Specifically designed to fit mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
- The modular SD8 series structure allows for easy expansion or replacement, providing a cost-effective solution for maintaining diverse fleets of earth-moving machinery.
**4. Factory Direct Sales Quality Assurance**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification and CE compliance, our Wholesale China Factory ensures consistent quality with 25+ patents and SGS verified standards.
**5. OEM/ODM Available Customization Services**
- Leverage our 35+ senior engineers for tailored solutions, including custom castings, appearance modifications, and laser logo marking for your Private Label.
- As a leading Wholesale Hot Sale supplier since 2001, we offer robust packaging and global logistics support, making us the preferred partner for distributors seeking stable supply chains.
