Seeking Global Distributorship for P40-U78 Monoblock Valve

Método de Controle:Manual

Carrétel:3 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:SAE 10

Porta de Saída:SAE 10

Tamanho da Porta:SAE 10

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*21*13

Peso bruto:6.60 kg

Disponibilidade: Em estoque

1081 Visualizações estão procurando por este produto

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve

Seeking Global Distributorship for P40-U78 Monoblock Valve drawing image

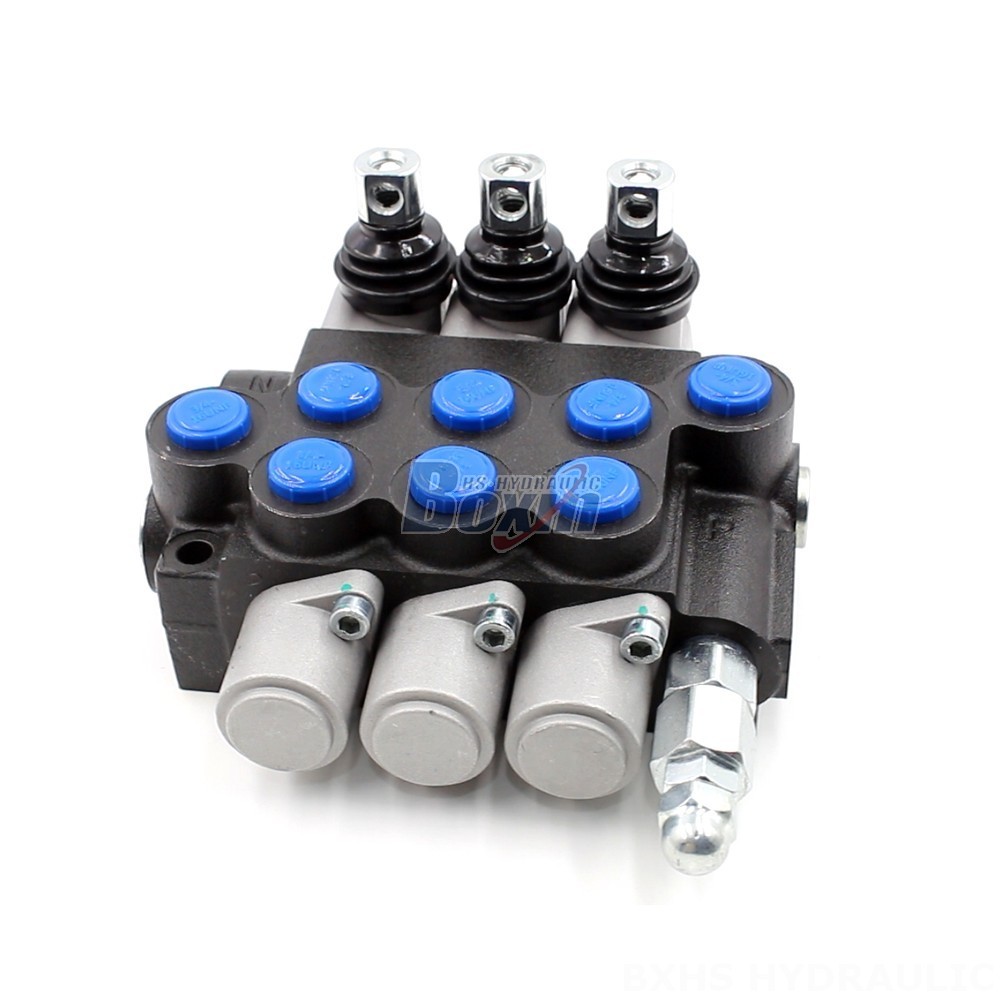

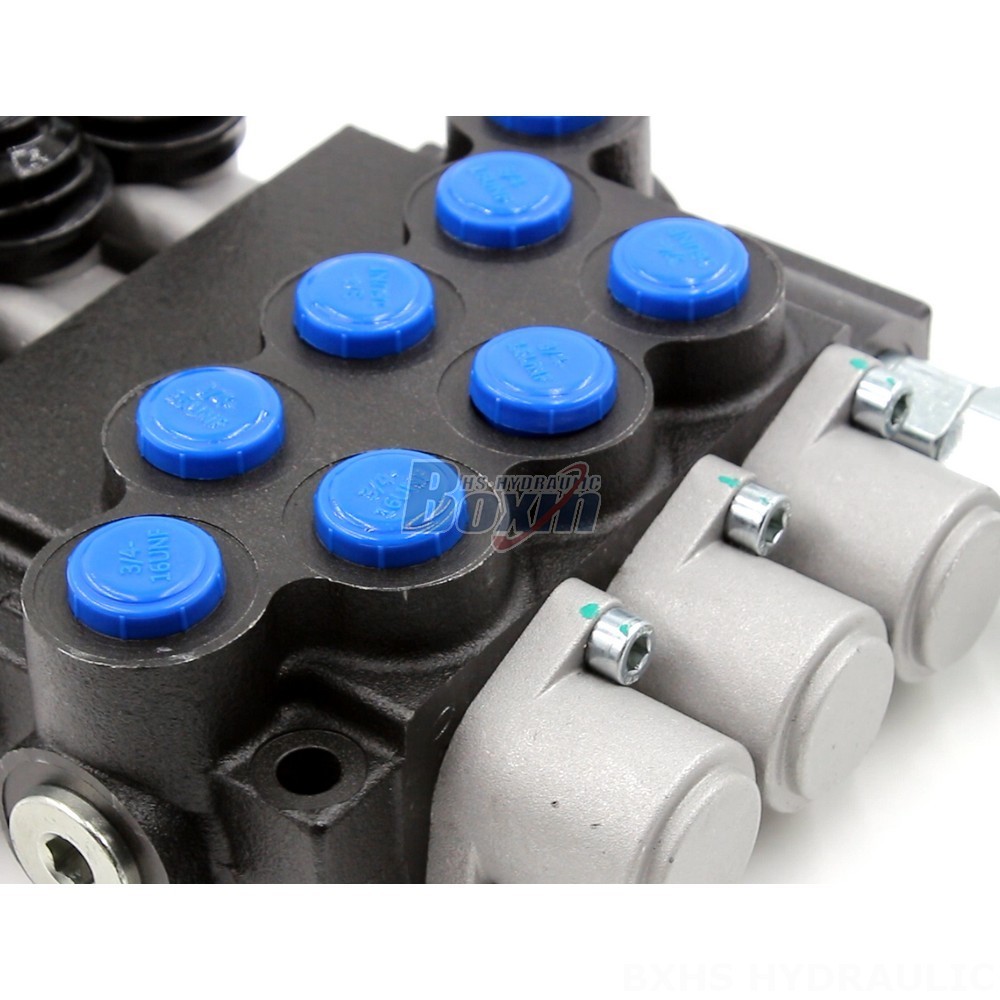

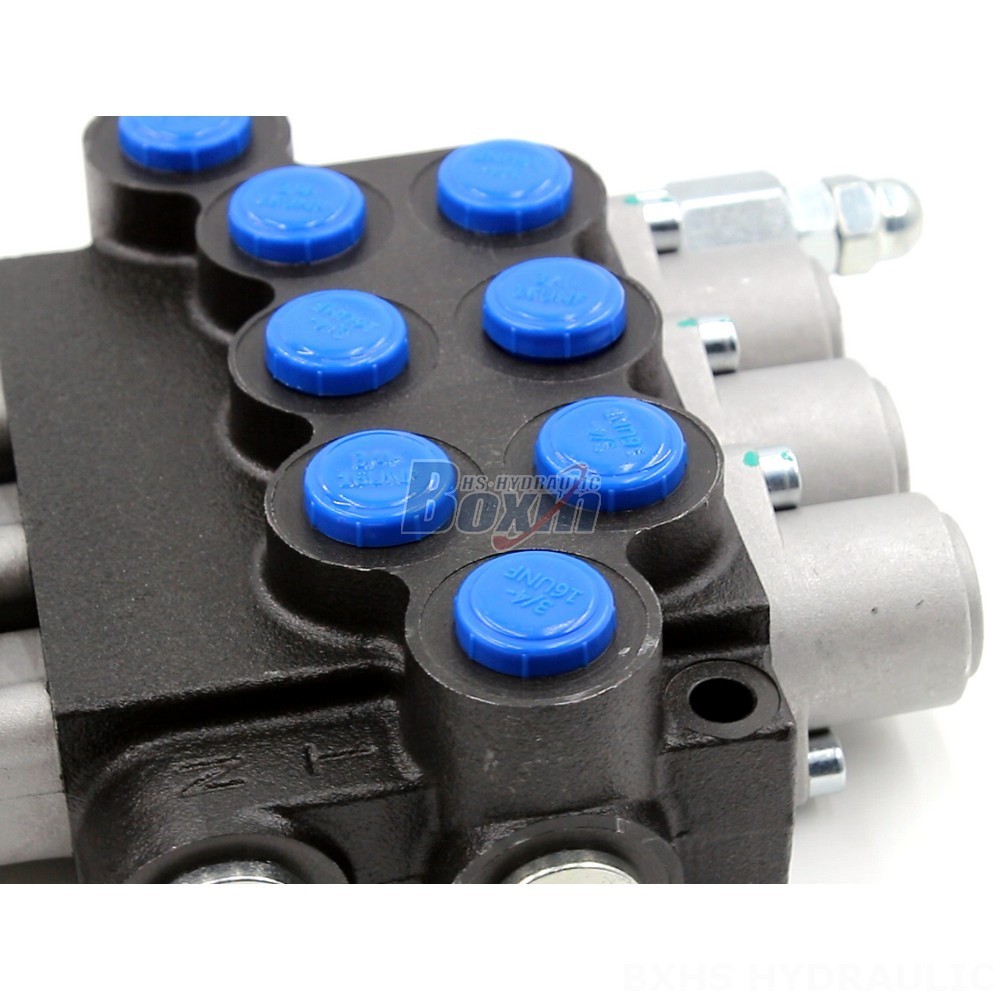

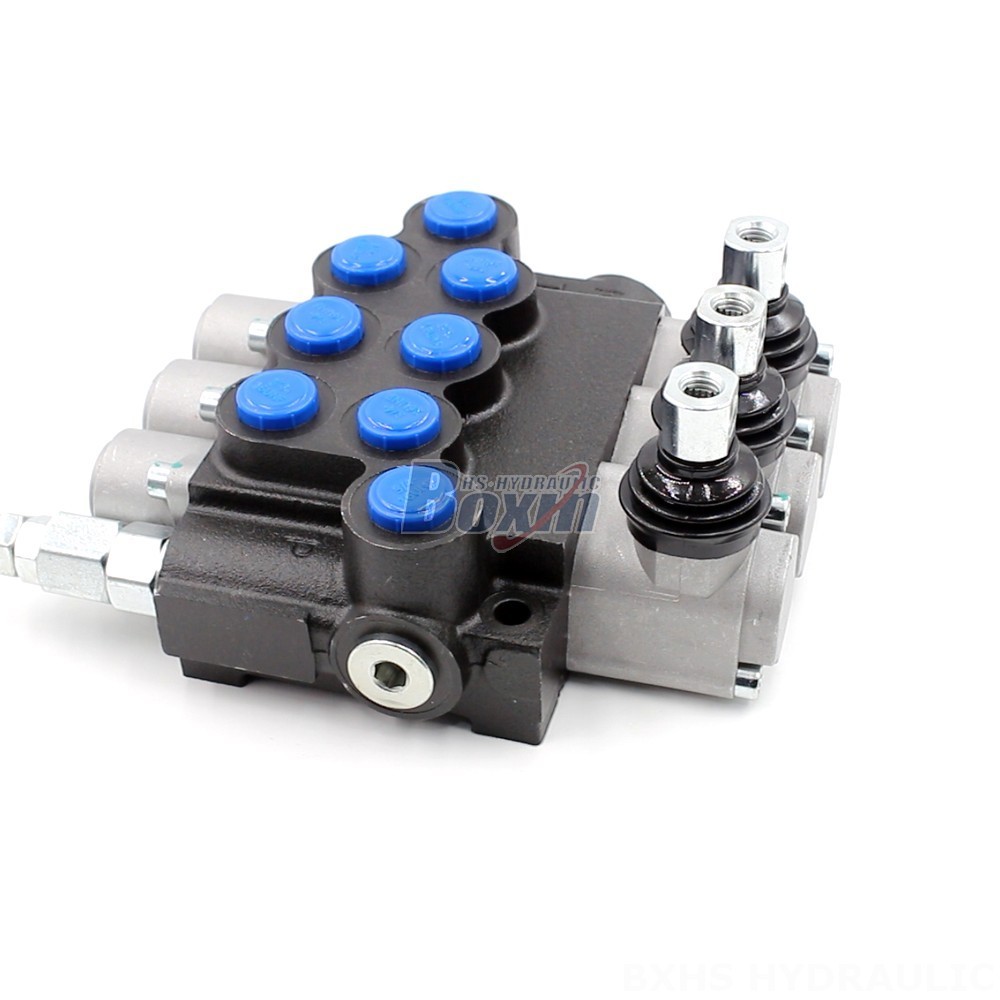

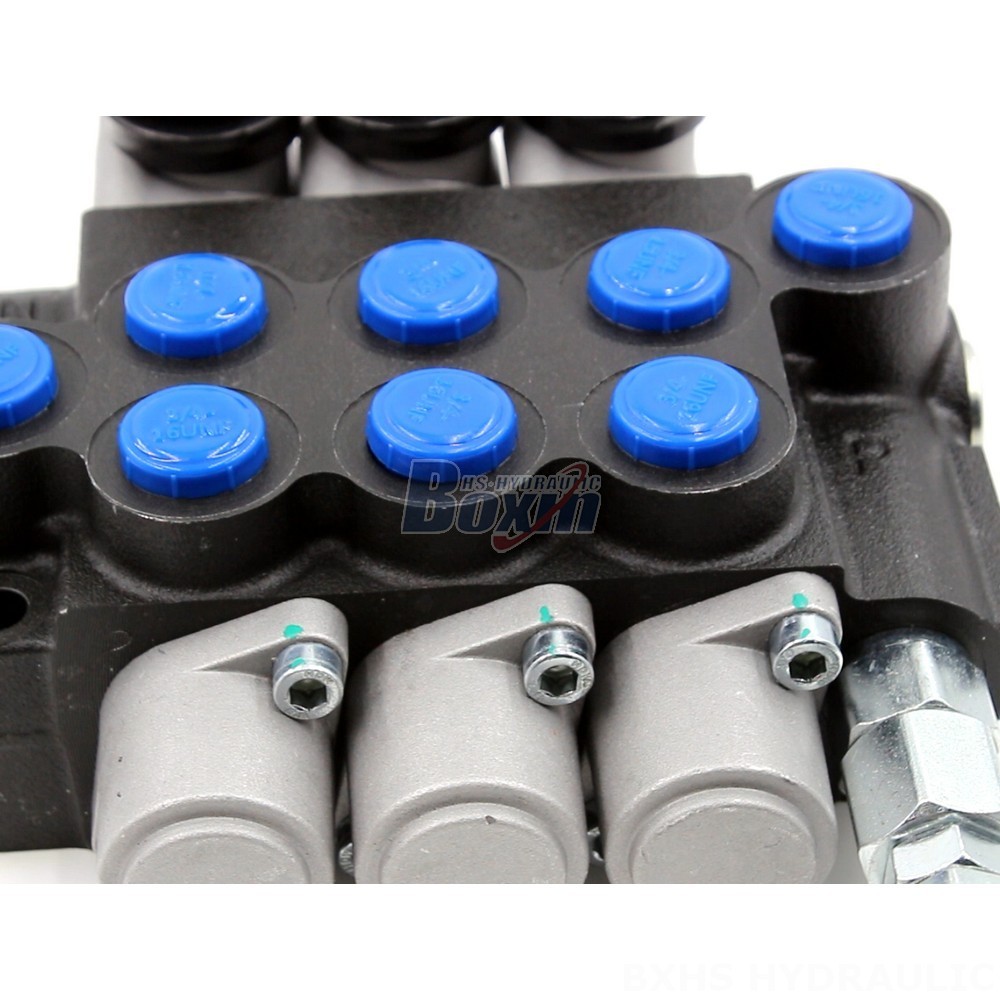

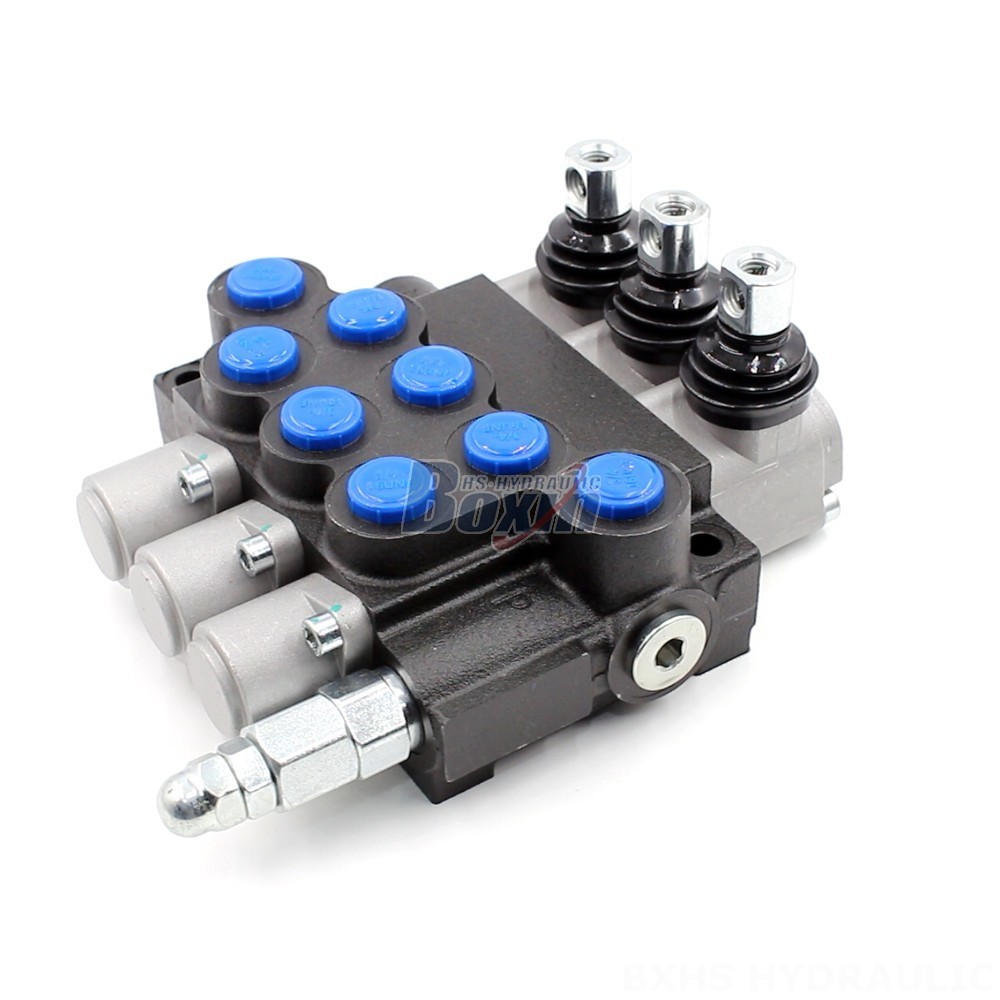

The P40-U78 Monoblock Valve is a high-performance, remote-controlled hydraulic control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a compact design, 3 sections, and a 40 L/min flow rate, this valve is built to withstand high pressures (up to 250 bar) and challenging environments.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series hydraulic control valve boasts a robust monoblock construction, offering superior durability and reliability. The valve's remote control capability provides for convenient operation, while its 3-section design ensures versatility in controlling hydraulic systems. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is well-suited for various heavy-duty applications. It is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. The P40-U78 Monoblock Valve operates within a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring optimal performance across a variety of operating conditions.
