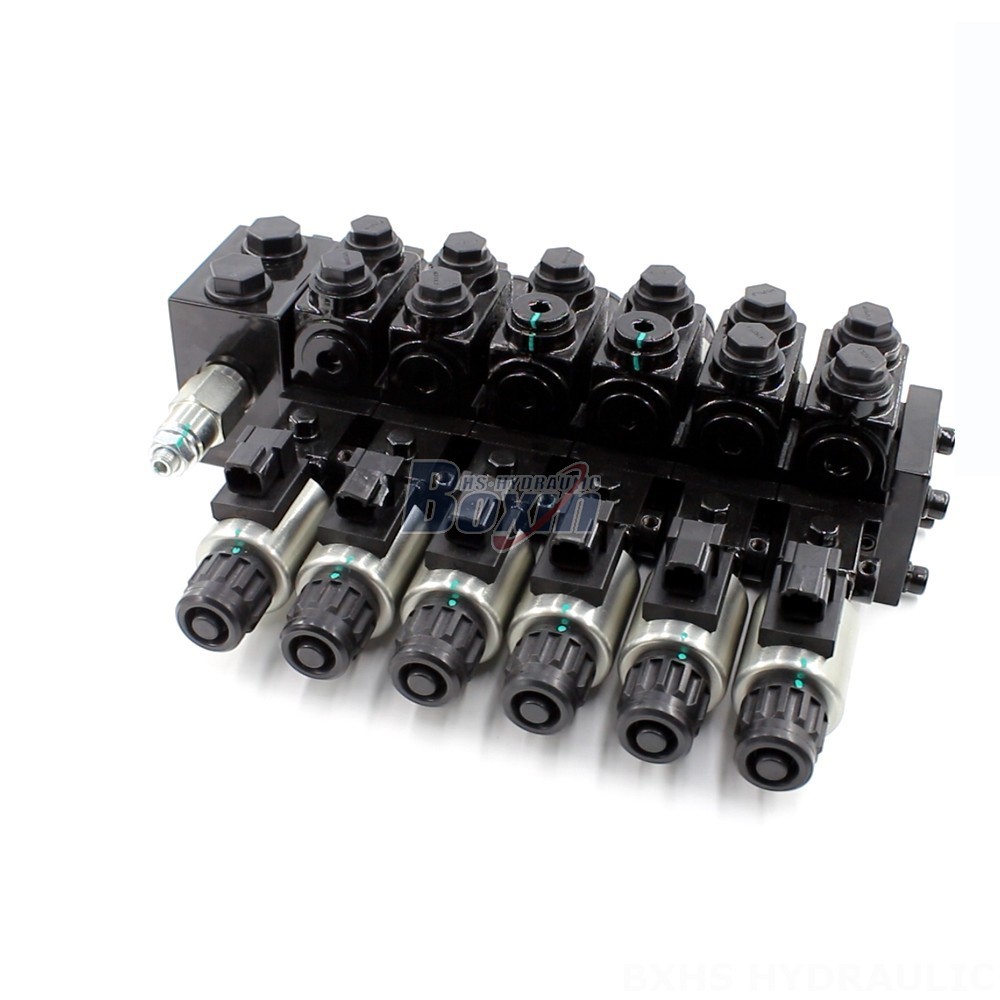

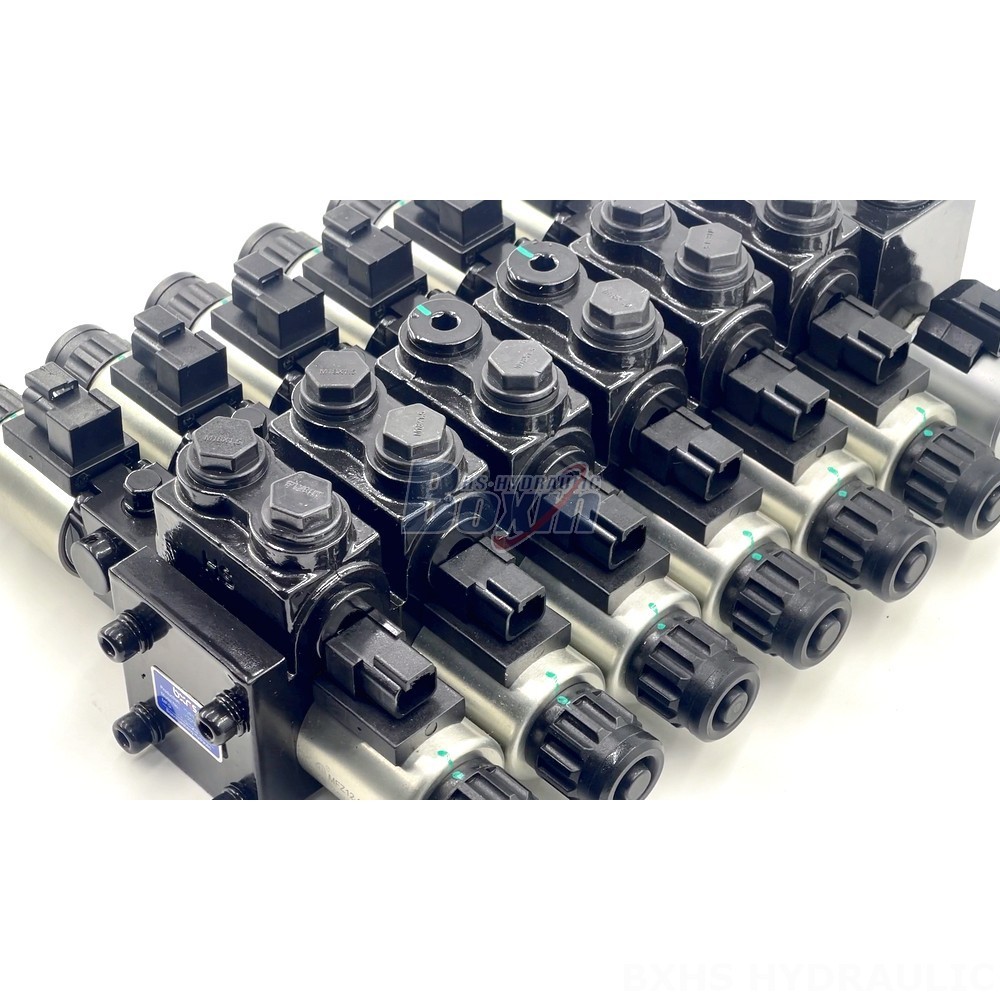

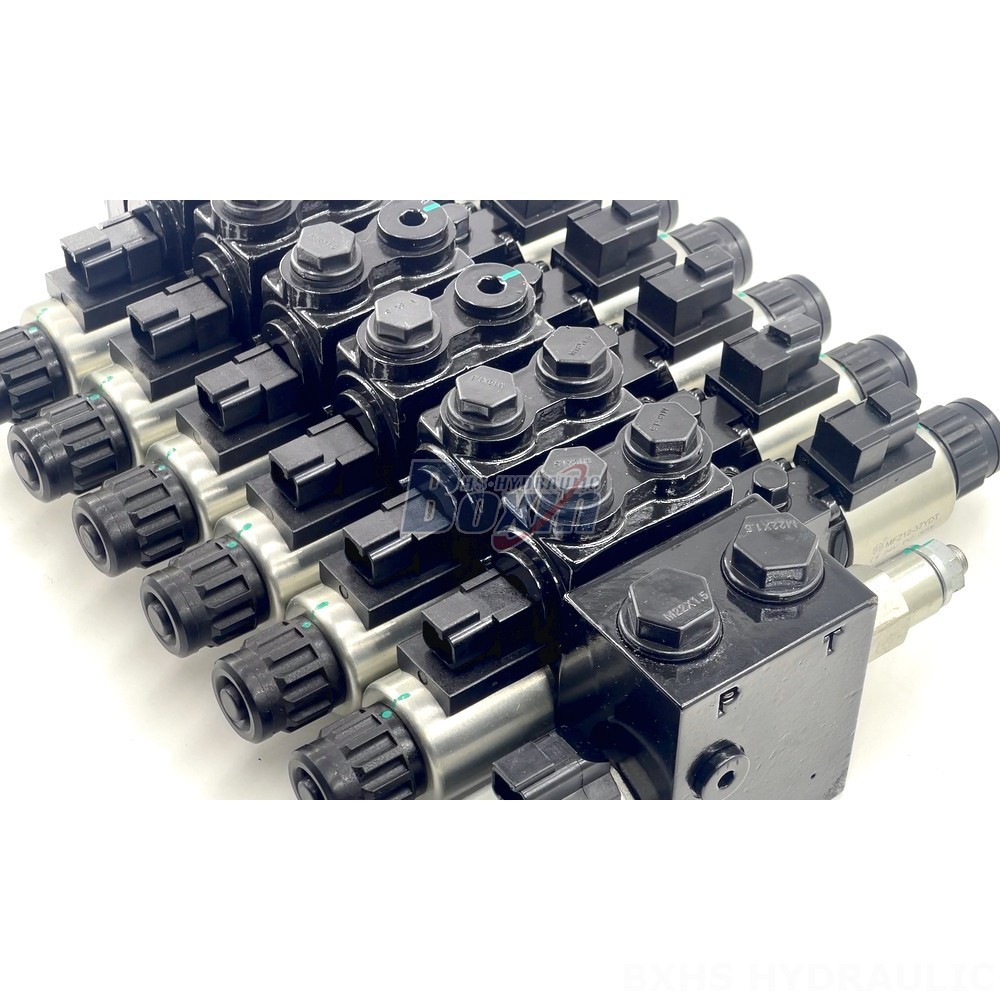

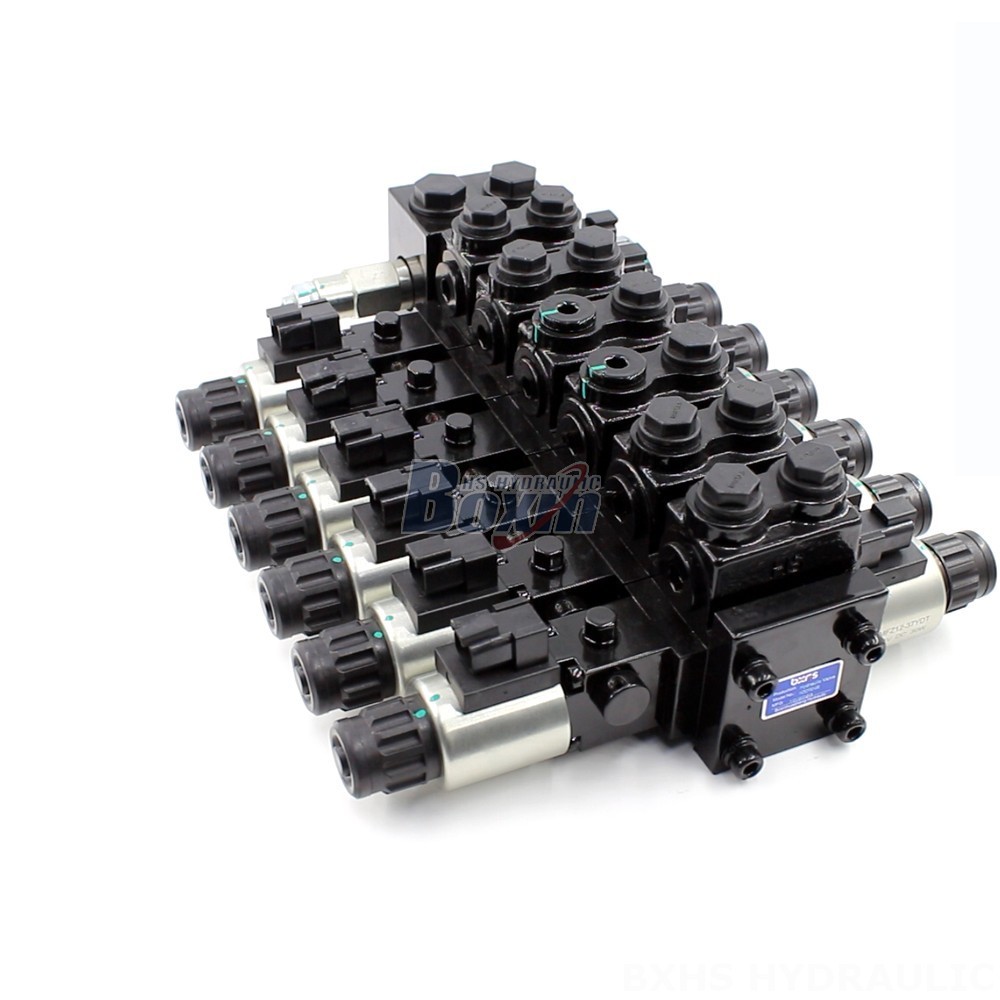

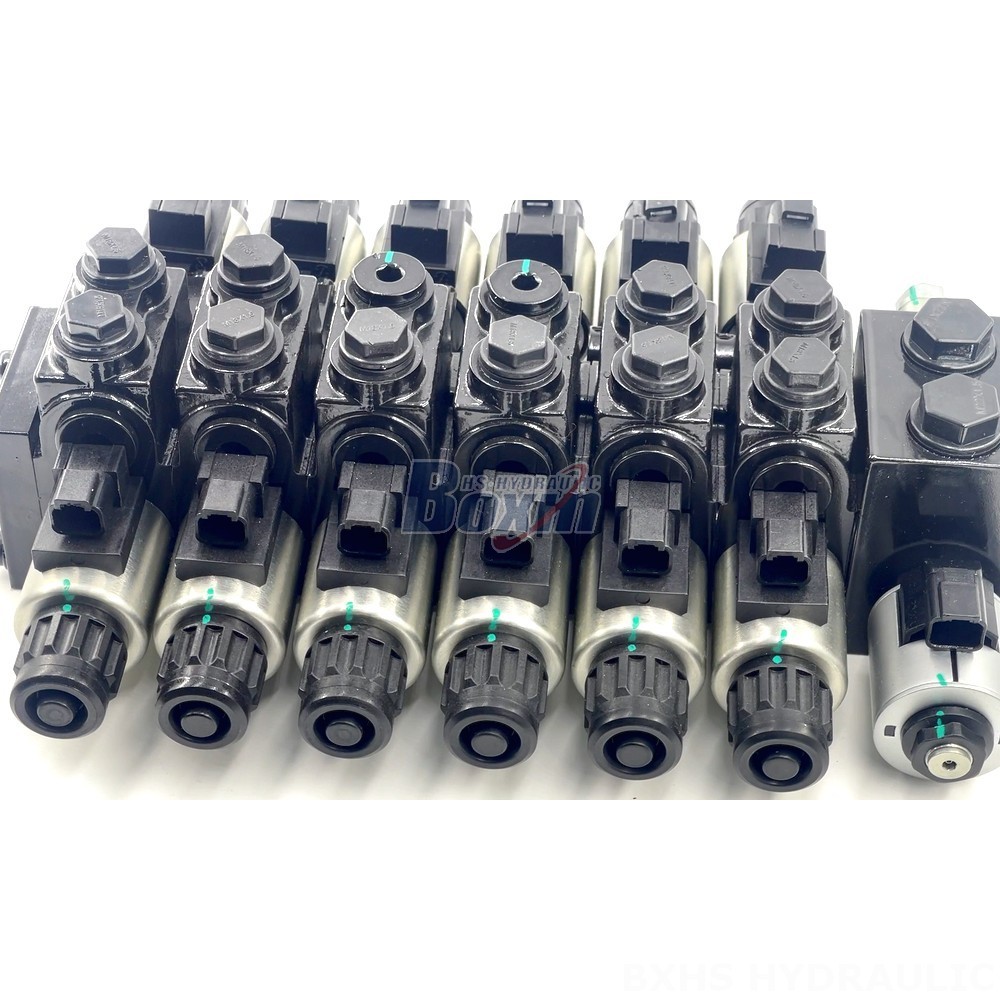

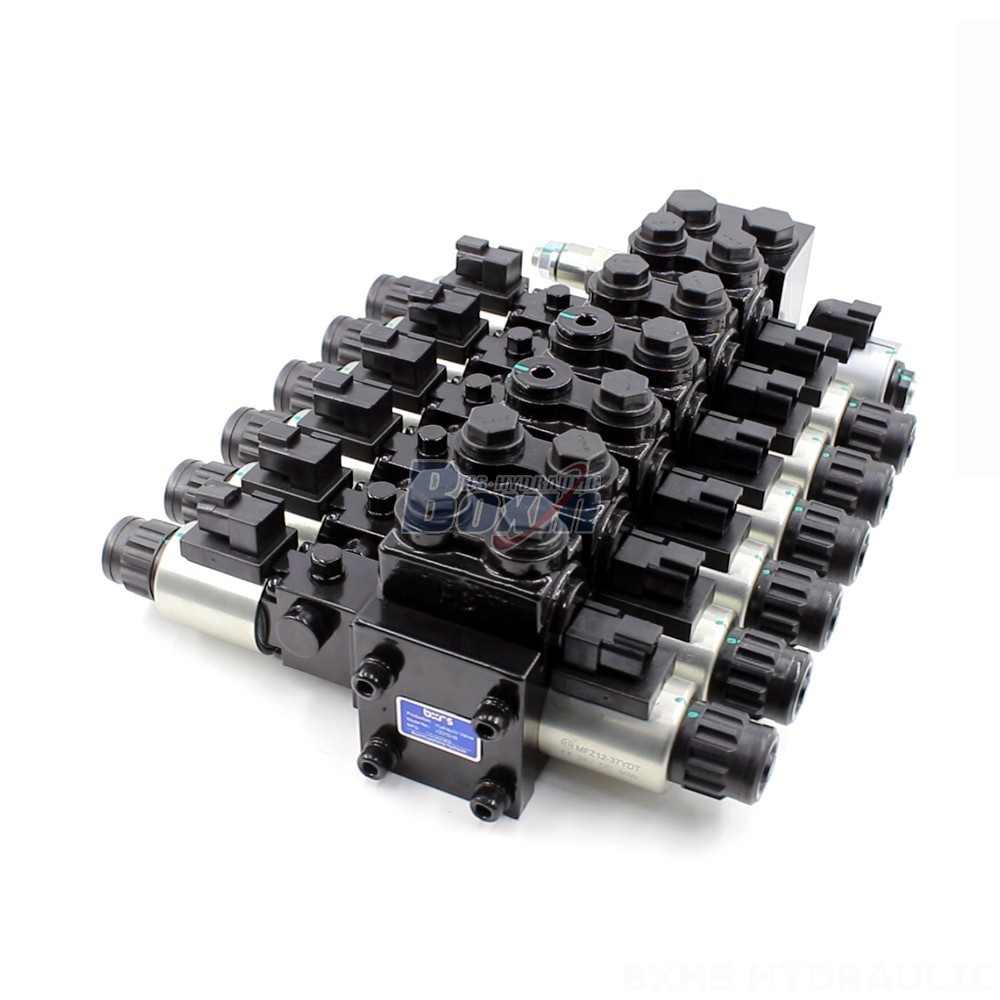

The HDCF50 Series Float Center Directional Control Valve is a high-performance, solenoid-controlled, sectional valve designed for use in a variety of mobile applications, including material handling, construction, agriculture, and industrial vehicles. This valve offers a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), making it suitable for demanding applications.
| Série HDCF50 Válvula de controle solenóide Parâmetros | |
|---|---|
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Método de Controle | Solenoide |
| Tamanho da Porta | M22×1.5, SAE 8 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de temperatura ambiente | -20°C a +80°C (-4°F a +176°F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Porta de Saída | M18×1.5, M22×1.5, SAE 8 |
| Pressão Máxima | 160 bar (2300 psi) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Tipo de estrutura | Válvula seccional |
| Porta de Entrada | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Float Center Directional Control Valve is a 6-section, solenoid-controlled, sectional valve designed for use in a variety of mobile applications. This valve offers a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), making it suitable for demanding applications. It features a 6-spool design with a float center function, providing precise control of hydraulic circuits. The valve is available in 12V and 24V versions. It is built for durability and reliability, operating in ambient temperatures ranging from -20°C to +80°C (-4°F to +176°F). The HDCF50 Series is ideal for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders. We offer this valve in various configurations to meet your specific needs, including custom designs and OEM solutions. We also provide wholesale pricing and support for distributors, wholesalers, and dealers.
