Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Método de Controle:Solenoide

Carrétel:3 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40-DKL Válvula Direcional Monobloco

Tamanho da embalagem:31*21*17

Peso bruto:9.00 kg

Disponibilidade: Em estoque

1082 Visualizações estão procurando por este produto

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable

Solenoid Directional Valve | P40-DKL | Factory Direct & Customizable drawing image

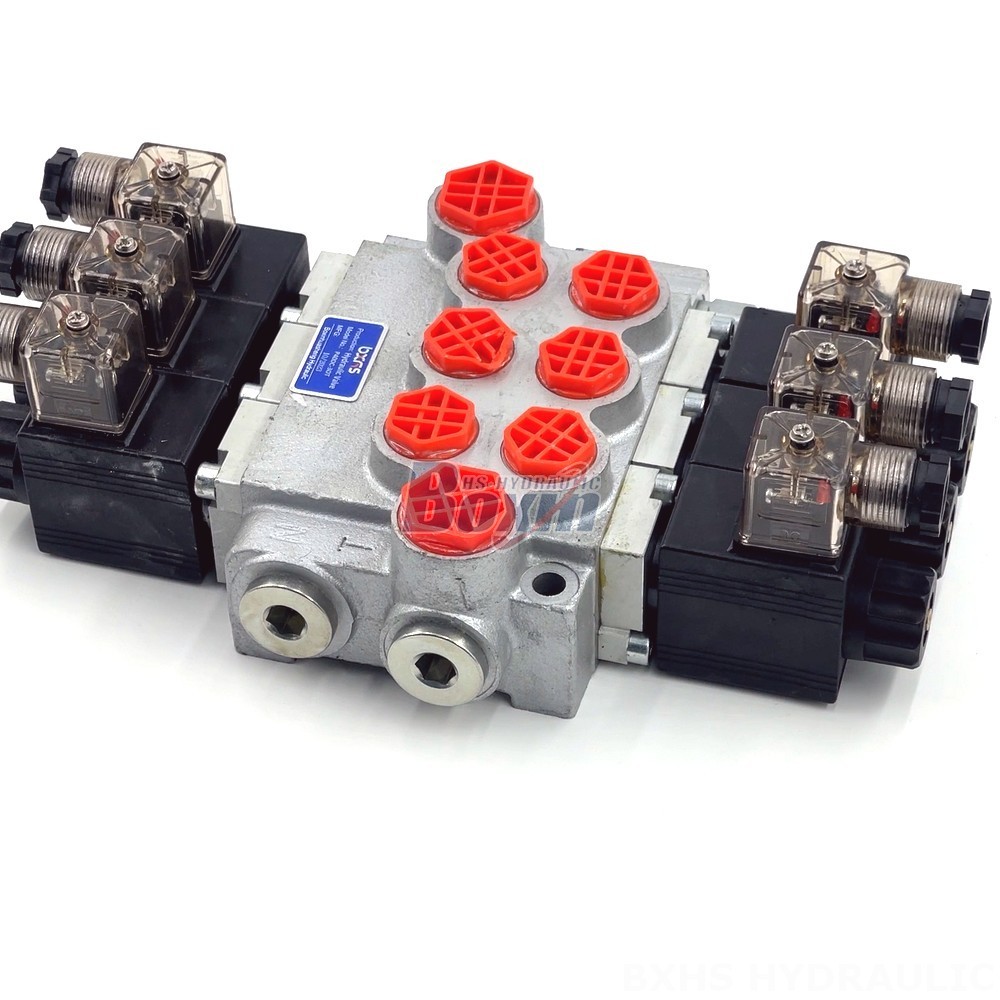

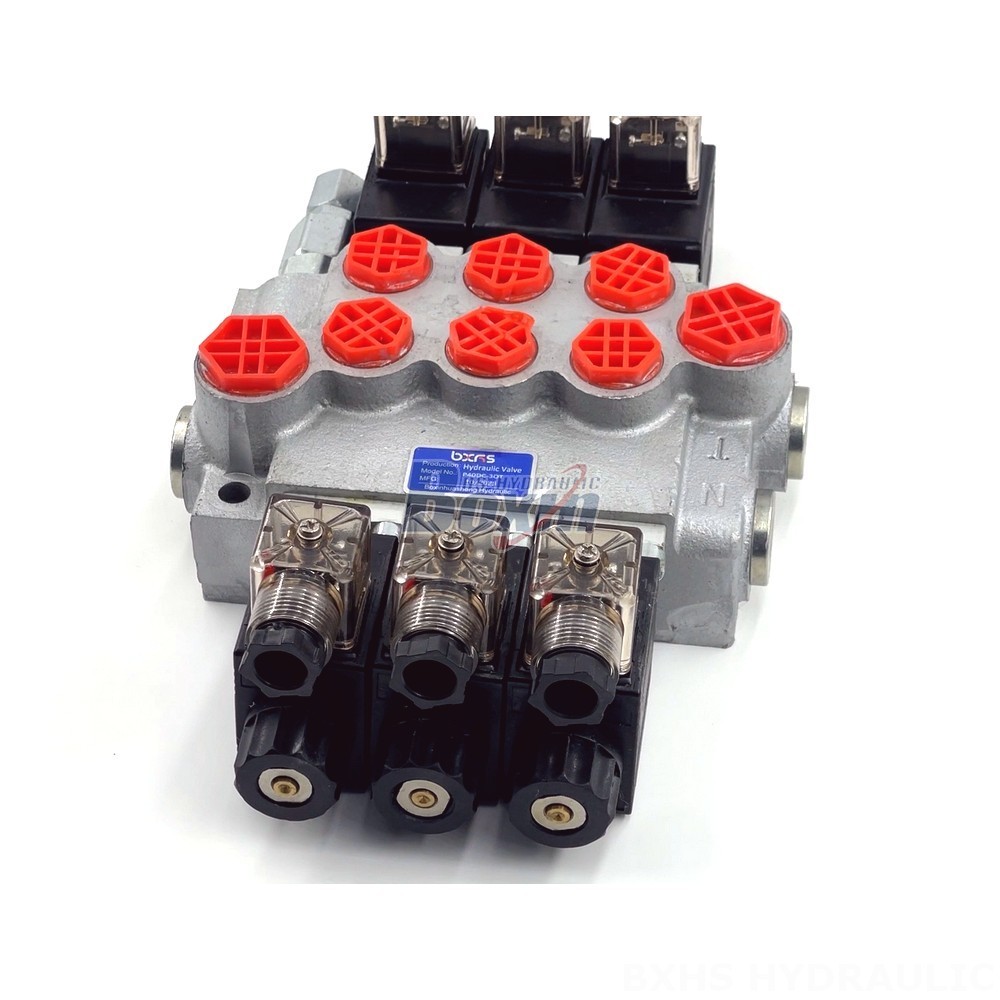

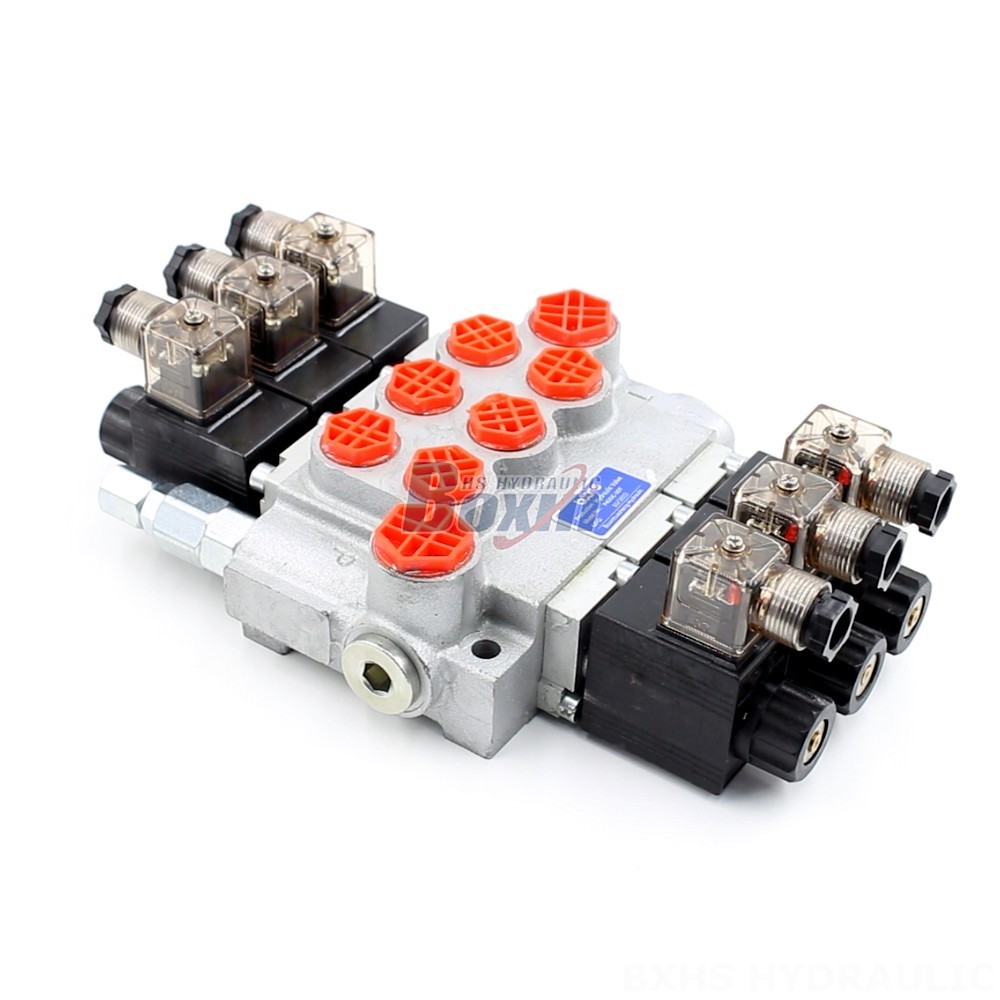

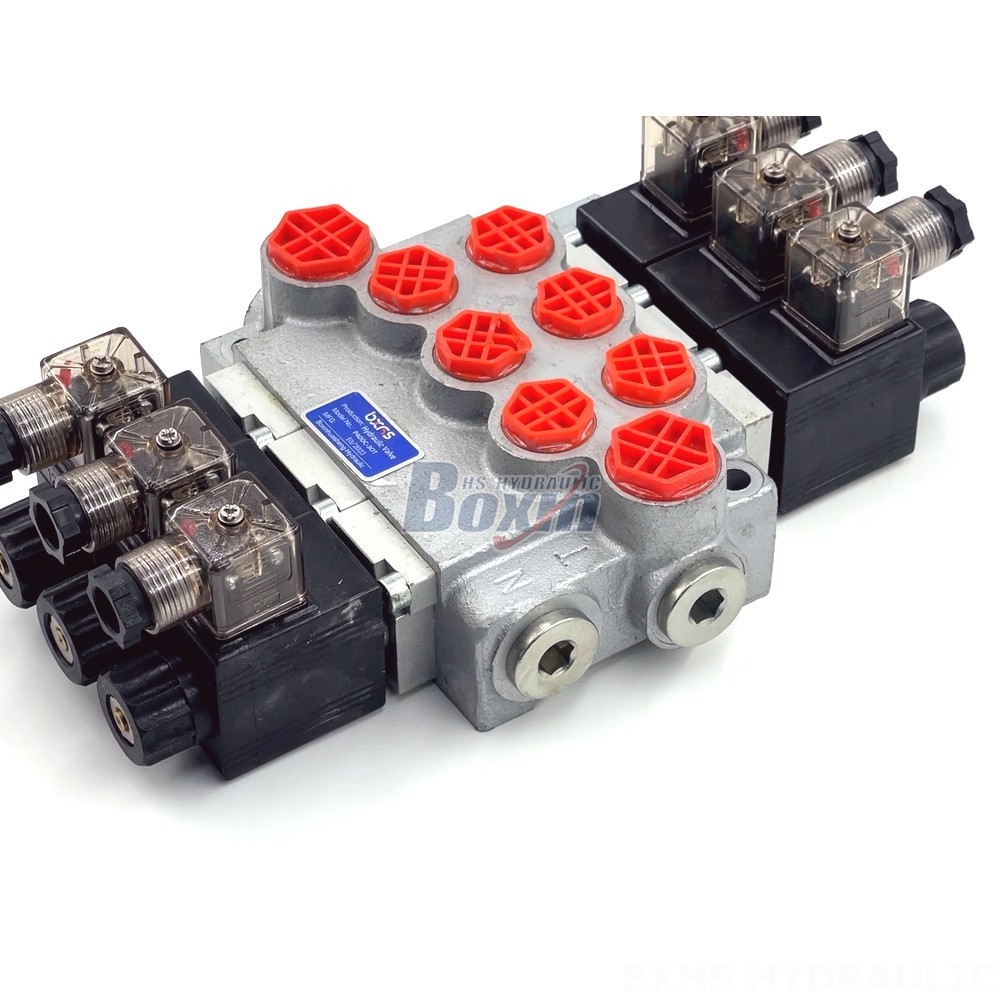

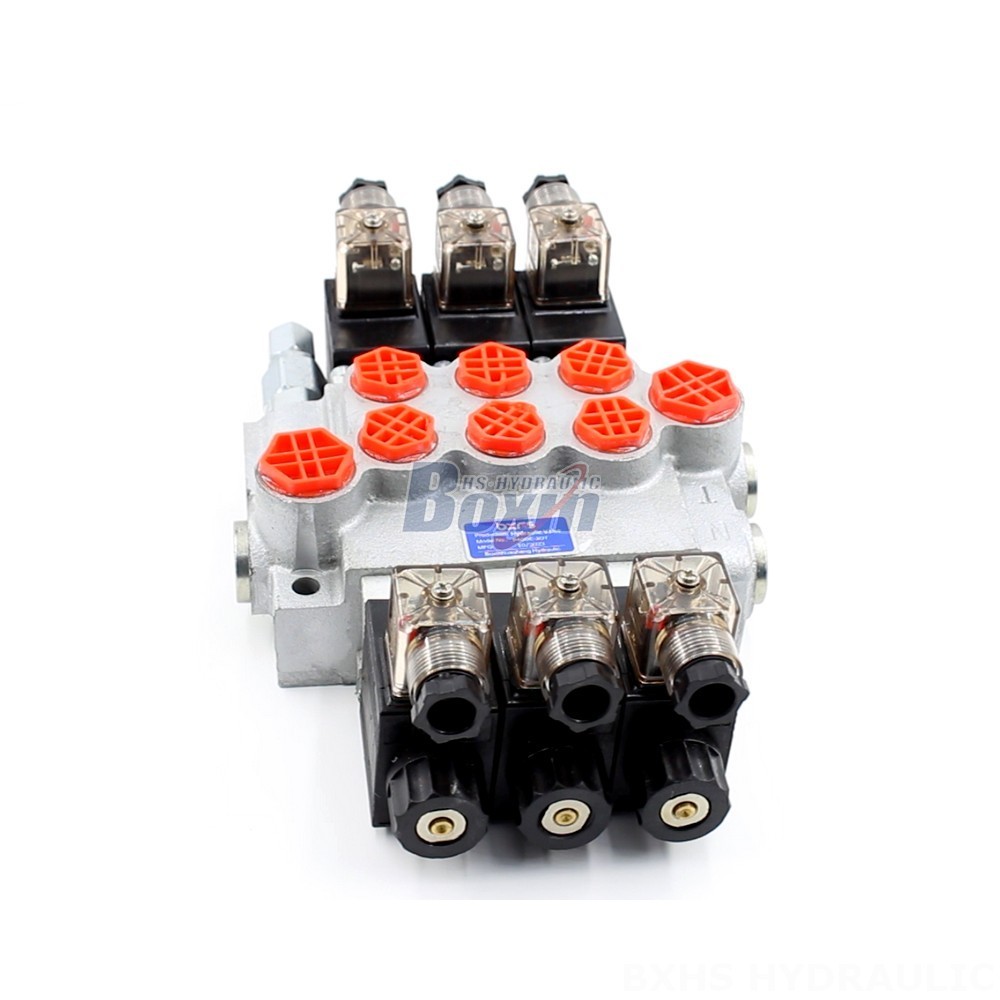

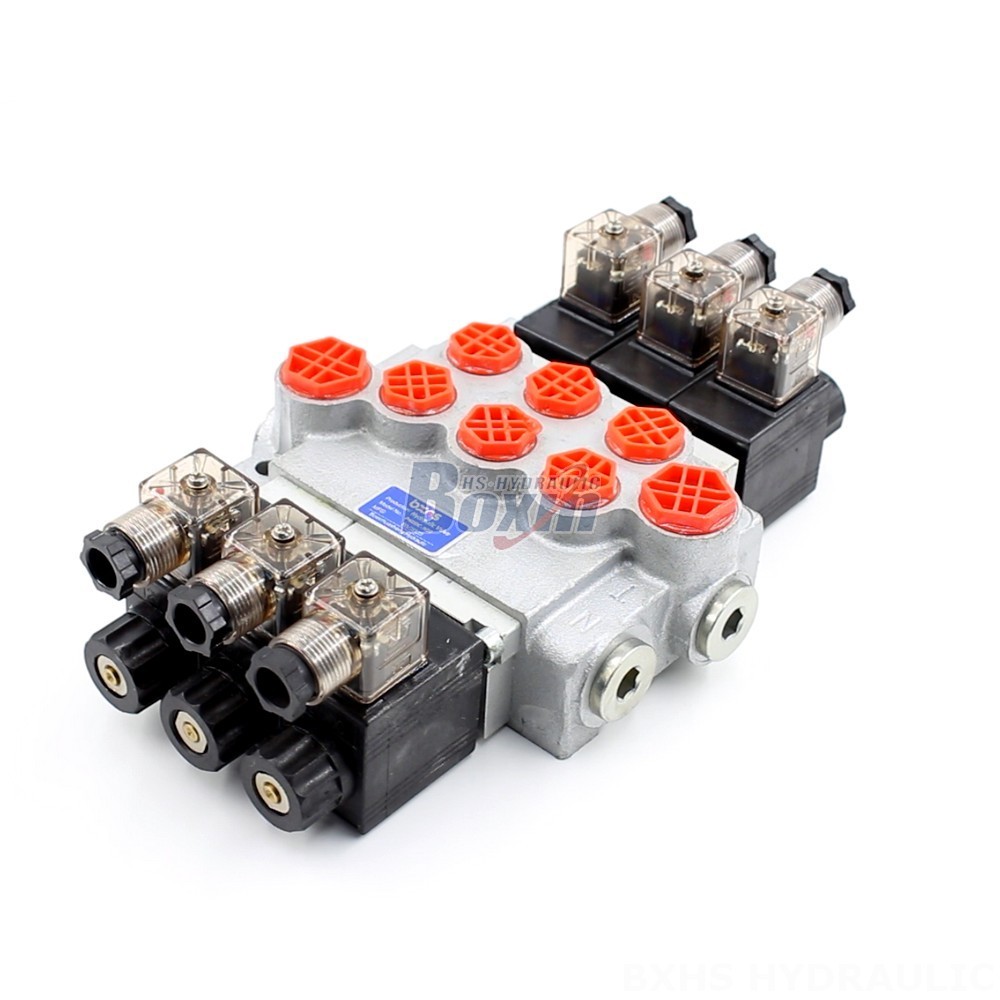

The P40-DKL hydraulic directional valve is a high-performance, solenoid-controlled valve designed for a variety of applications, including material handling, construction, and agriculture. This 3-section, monoblock valve features a 40 L/min flow rate and a 250 bar pressure rating. Available in customizable configurations, the P40-DKL is a versatile and reliable solution for your hydraulic needs.

Série P40-DKL Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Tipo de estrutura Válvula monobloco
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)

The P40-DKL is a robust and reliable hydraulic directional valve ideal for a wide range of applications. This solenoid-controlled valve features a 3-section, monoblock design for efficiency and durability. Its 40 L/min flow rate and 250 bar pressure rating make it suitable for demanding tasks in material handling, construction, agriculture, and other industrial sectors. The P40-DKL is compatible with various equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- and mini- excavators, skid steer loaders, and compact wheel loaders. This versatile valve can be customized to meet your specific needs, ensuring optimal performance for your hydraulic systems. We offer factory-direct pricing and customizable options to meet your unique requirements. Contact us today to discuss your hydraulic valve needs and explore the possibilities of the P40-DKL.
