Produção e Entrega
Prazo de produção de 15 a 30 dias

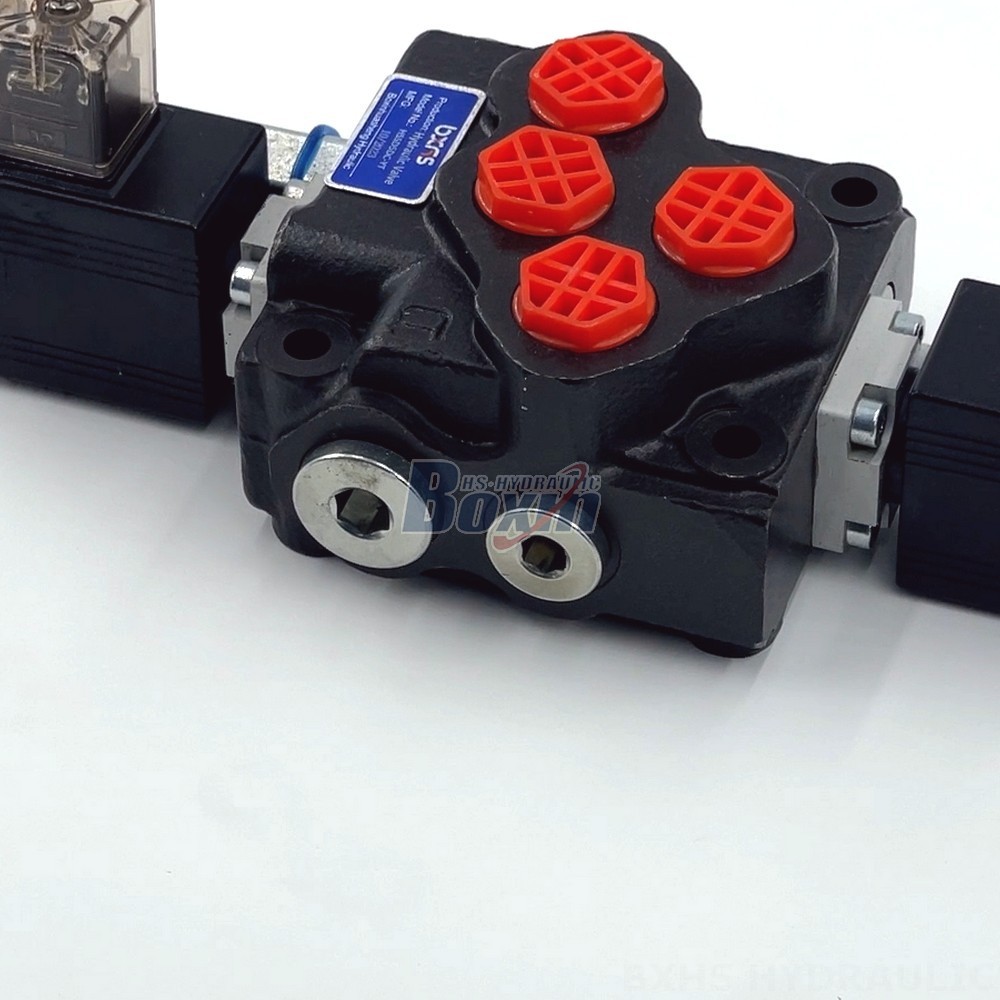

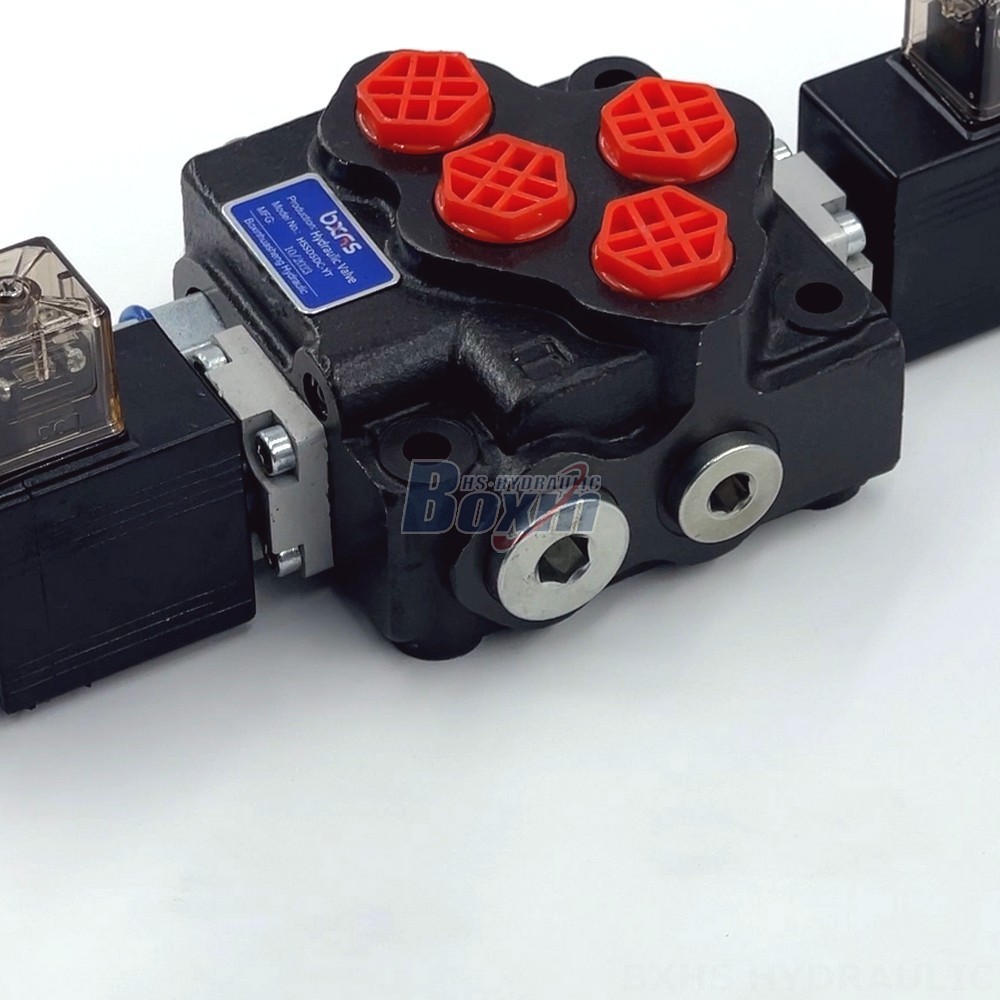

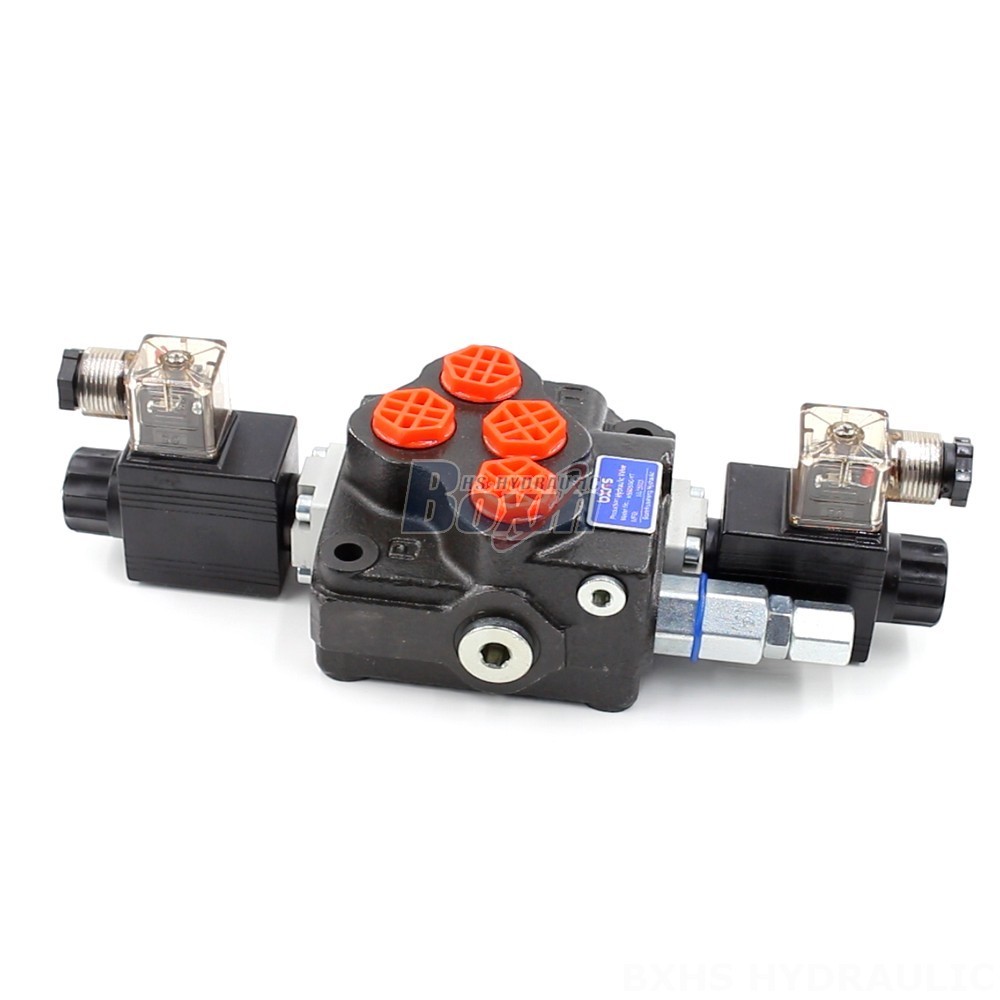

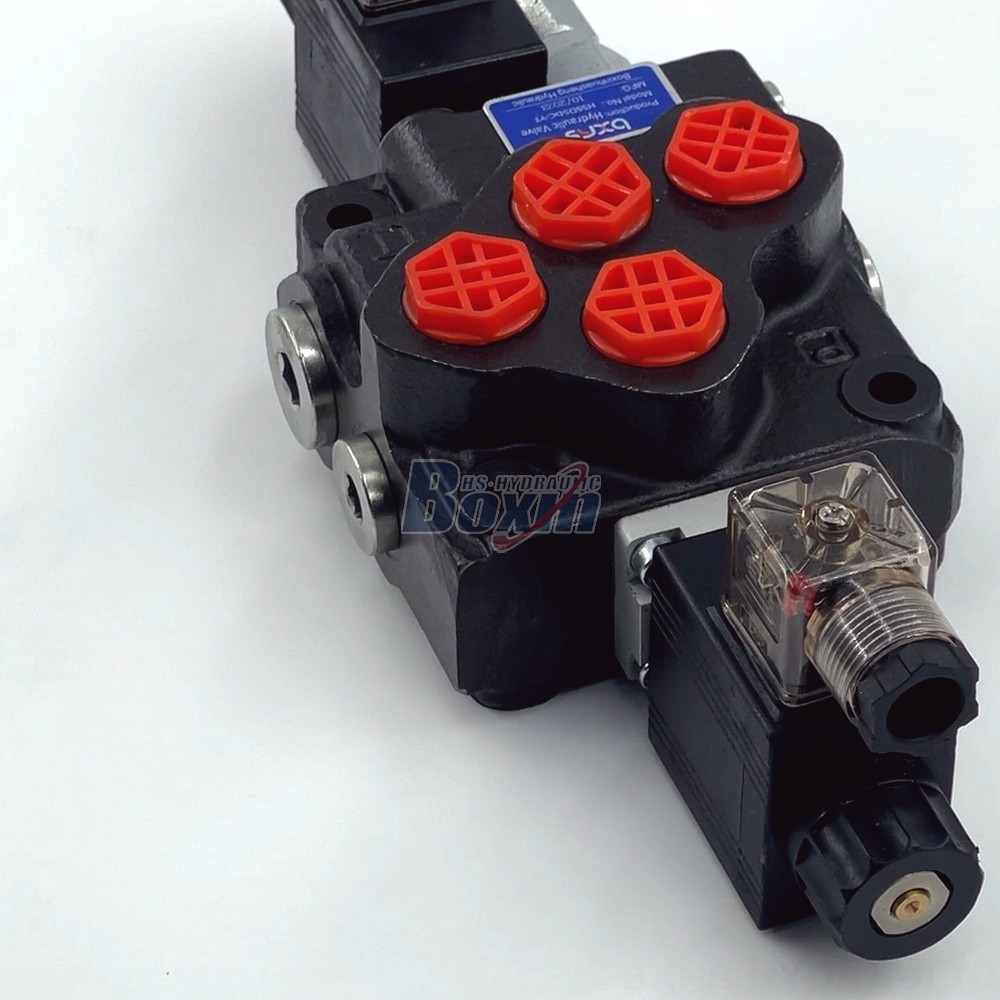

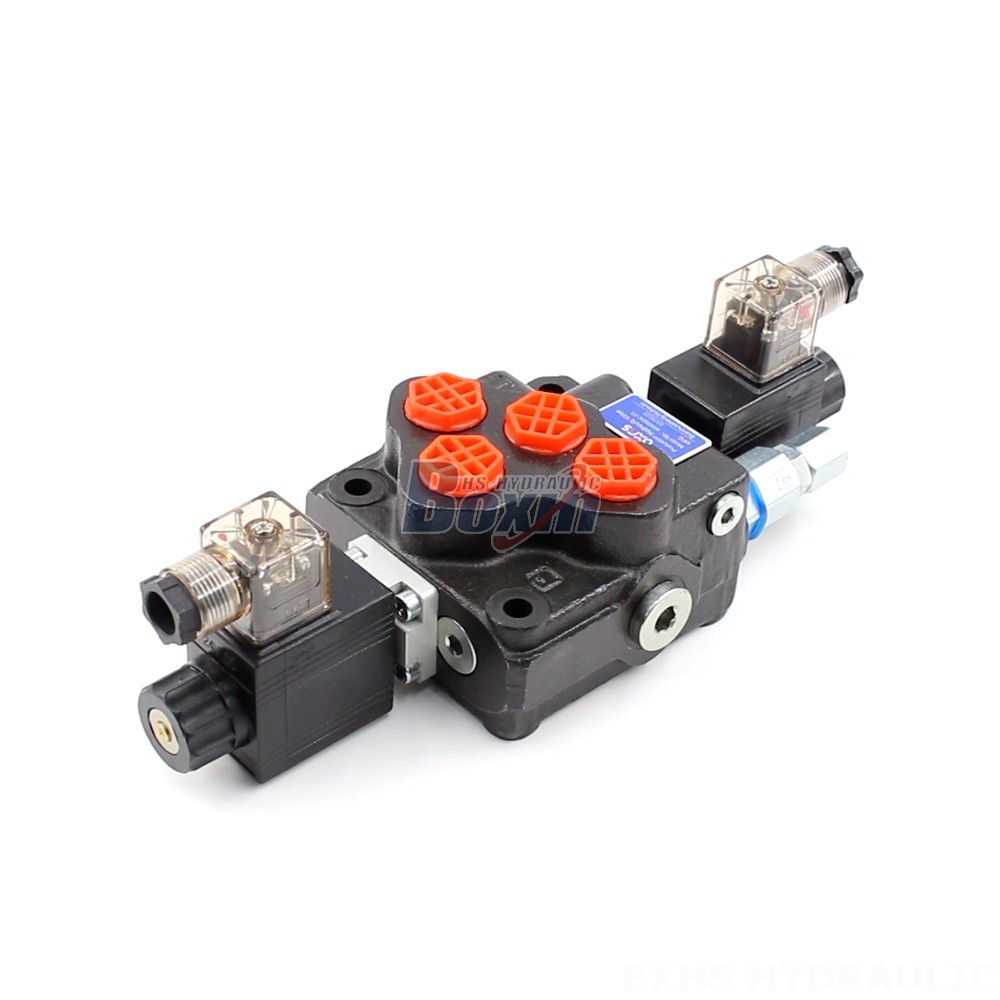

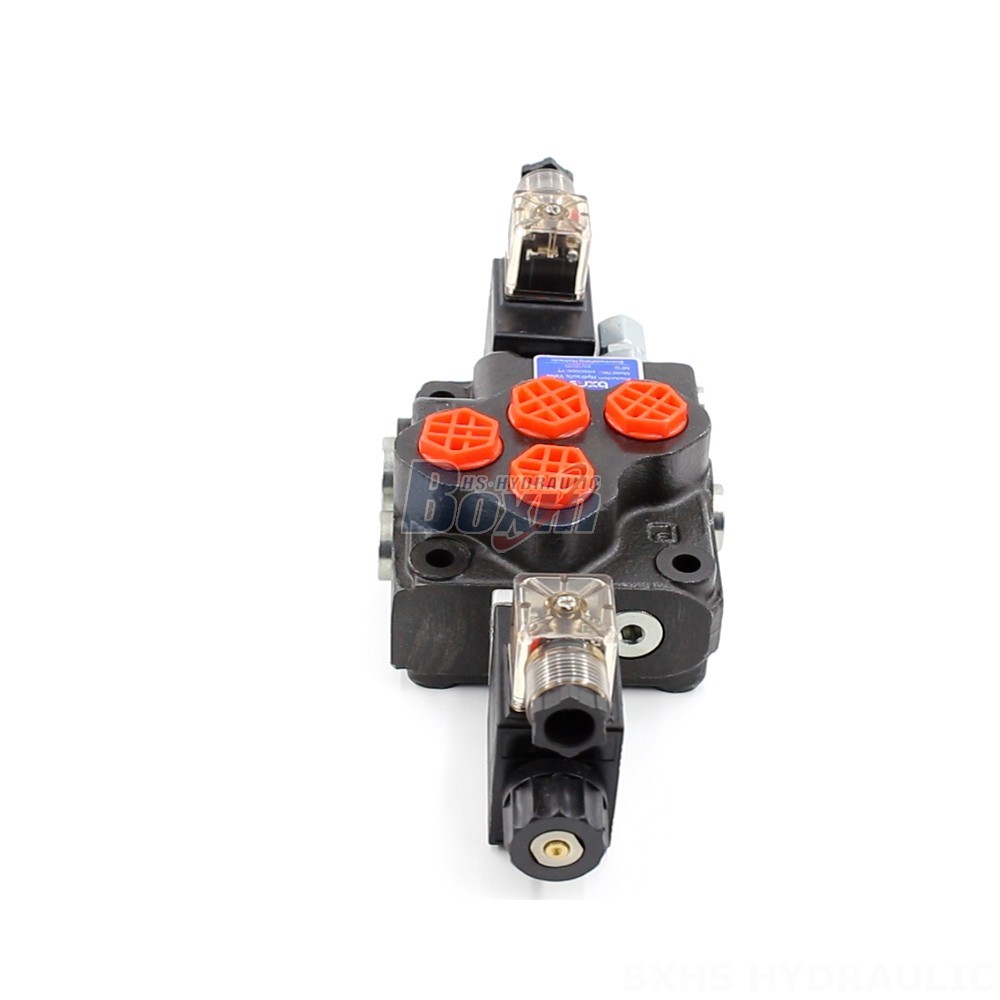

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.
| Série SD5 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Porta de Saída | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.
