Source Directly & Save: SD25 Valves from the Factory Producer

Método de Controle:Manual

Carrétel:1 Carretel

Fluxo Nominal:240 L/min (63,4 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G1

Porta de Saída:G1-1/4

Tamanho da Porta:G1

Marca:BXHS

Tipo de produto:Válvula direcional seccional

Série de produtos:Série SD25 Válvula direcional seccional

Tamanho da embalagem:30*45*20

Peso bruto:28.50 kg

Disponibilidade: Em estoque

1158 Visualizações estão procurando por este produto

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer drawing image

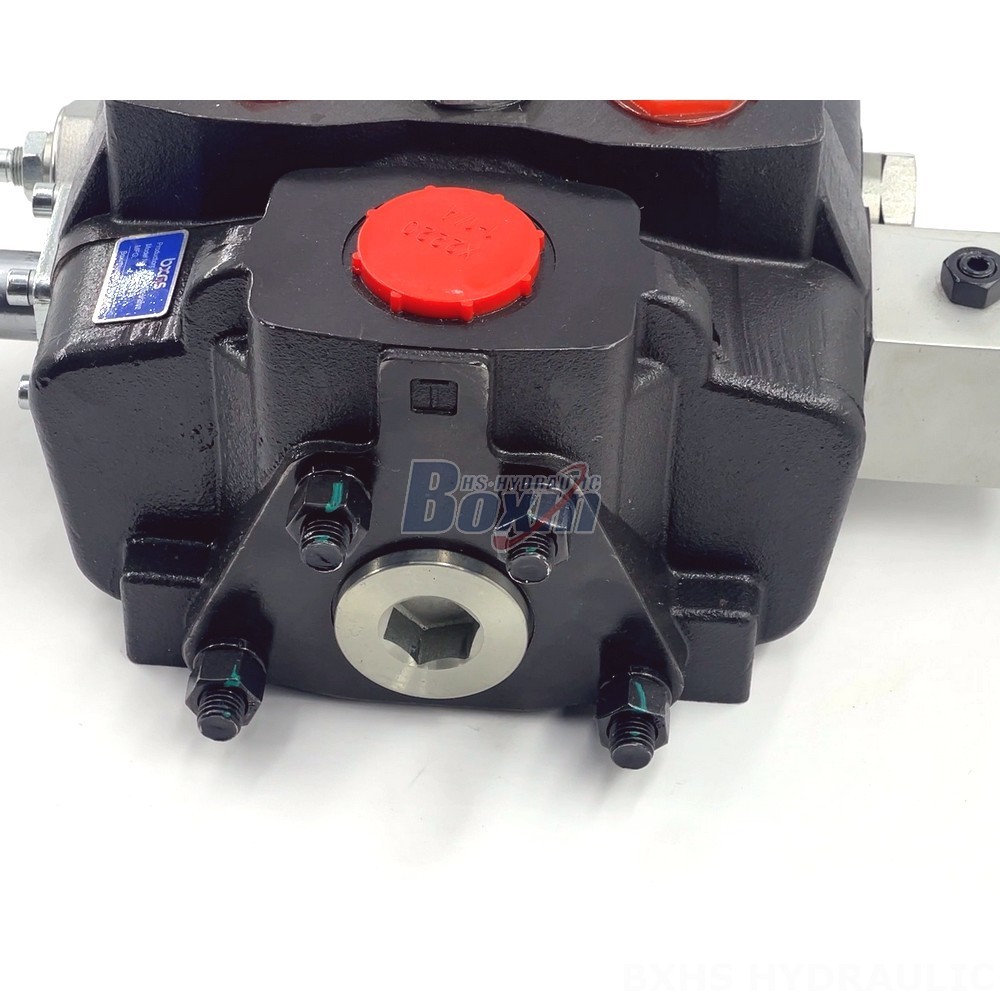

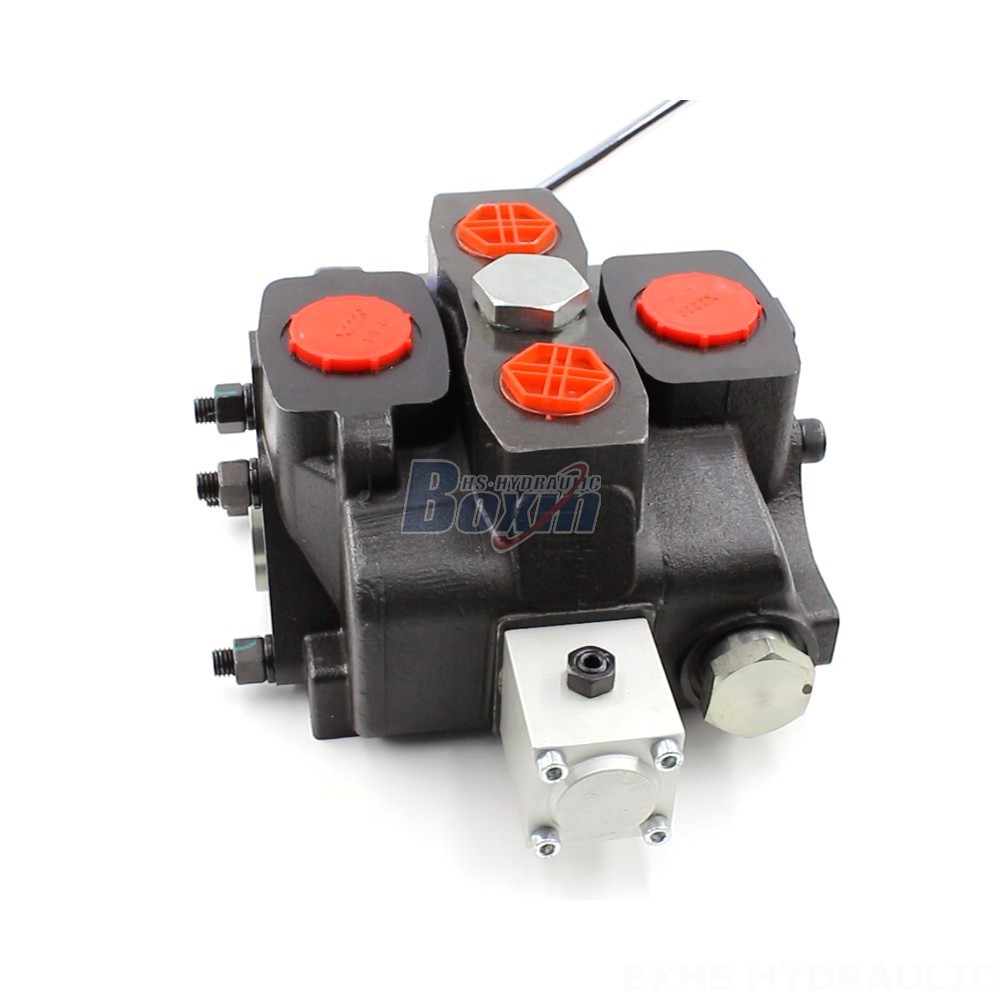

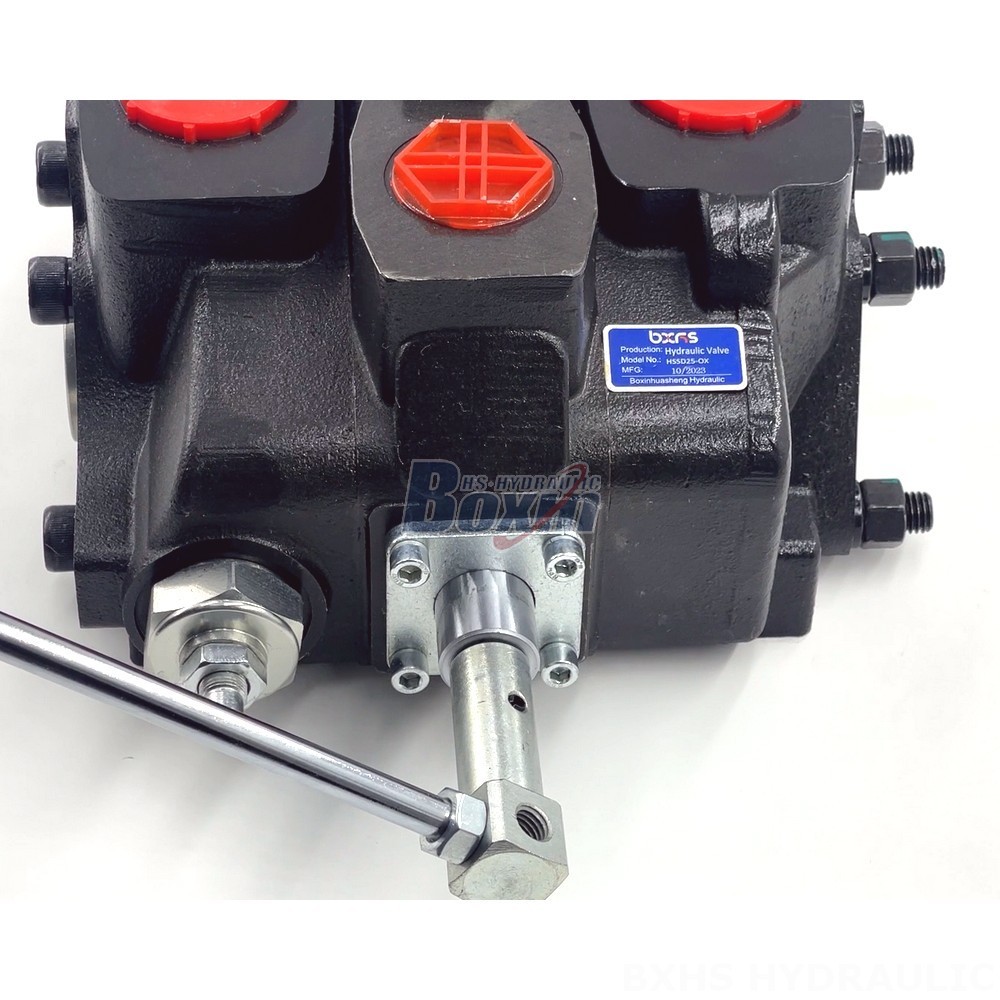

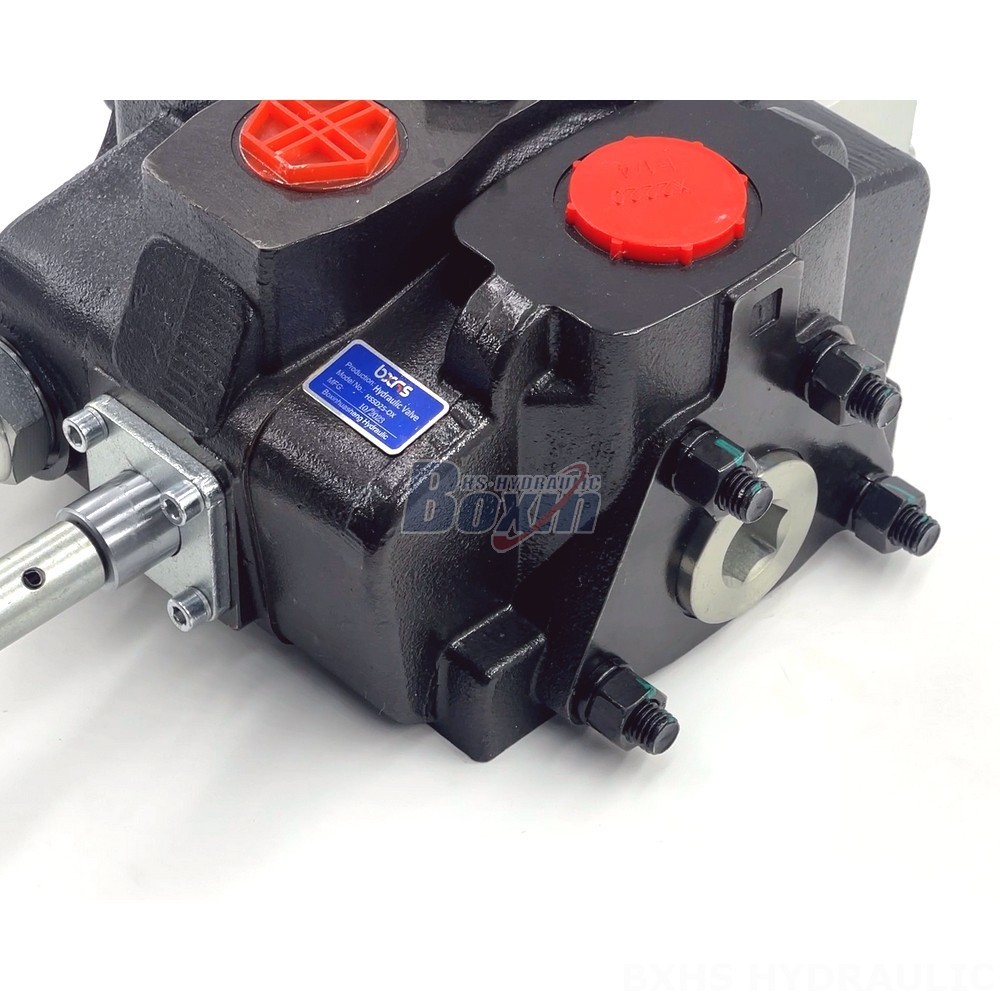

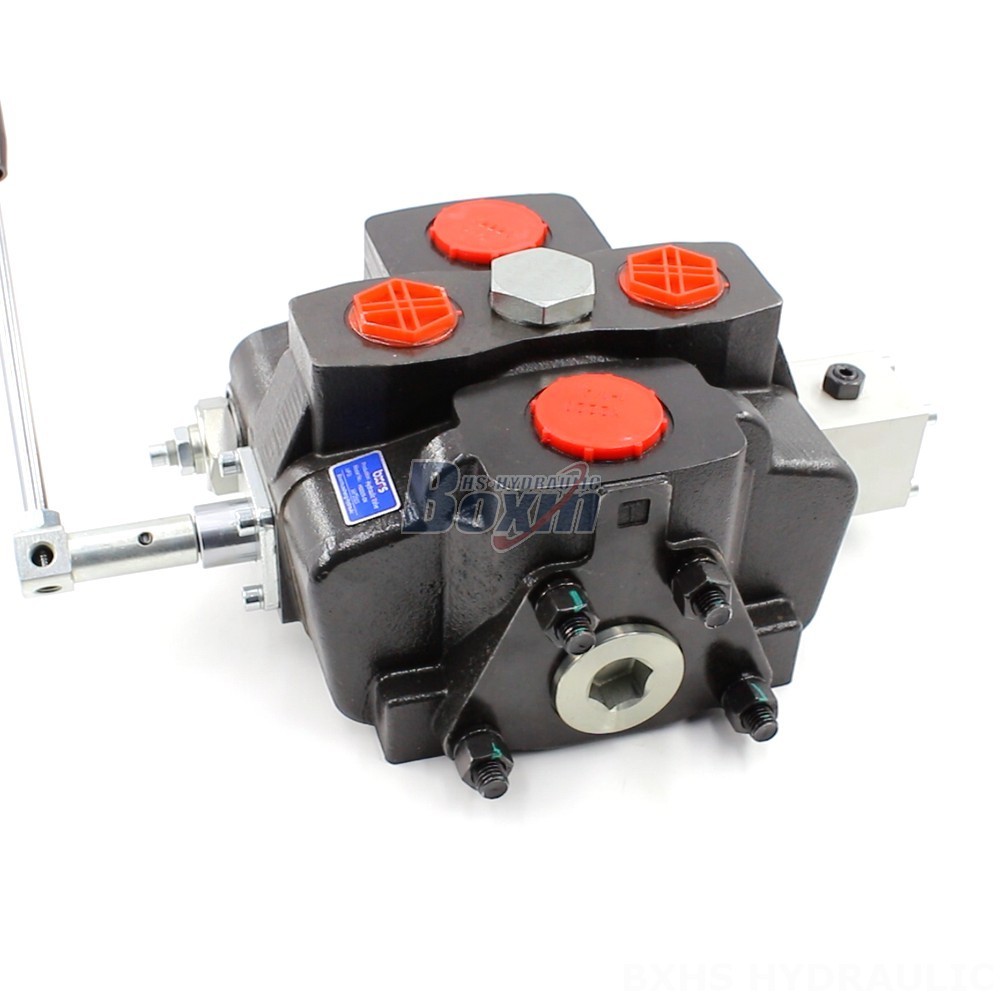

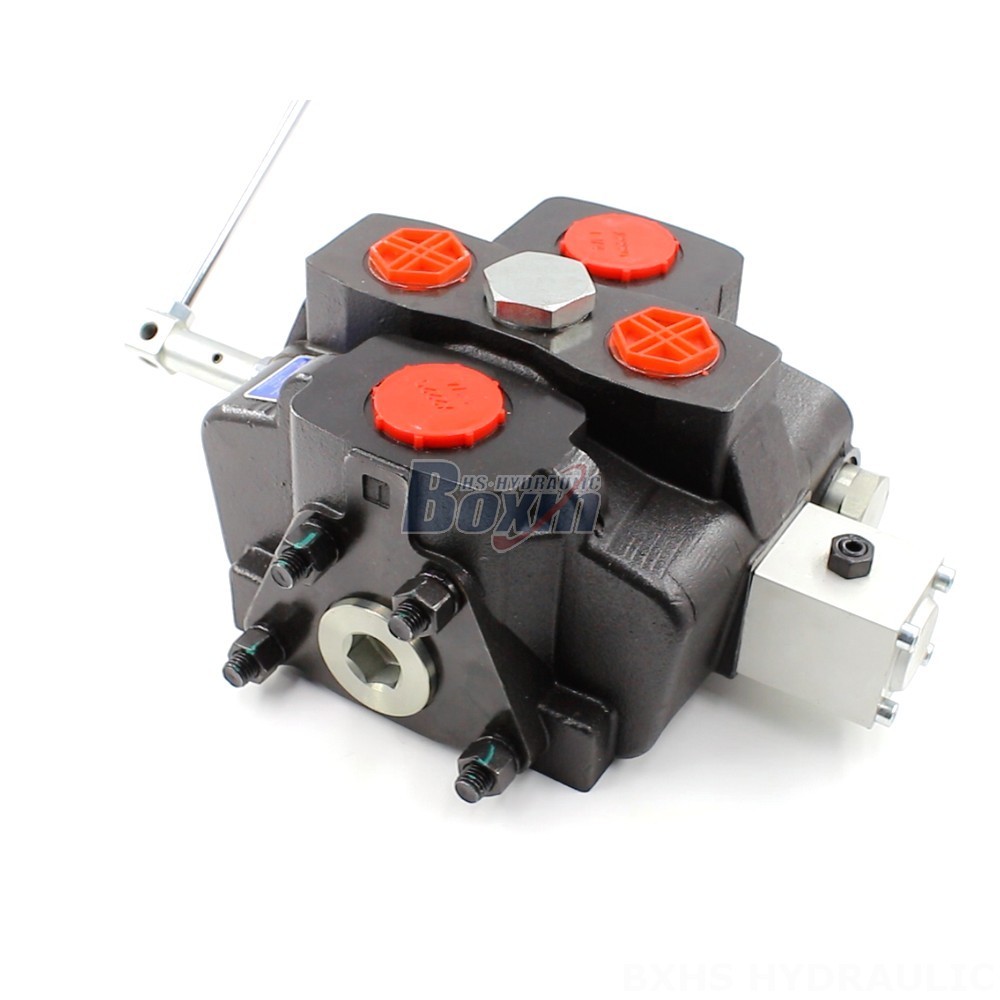

Our SD25 series two spool hydraulic control valve is a high-performance, reliable option for various applications, including construction equipment, material handling, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 240 L/min (63.4 US gpm) and a max pressure of 315 bar (4600 psi). Designed for durability and efficiency, it is suitable for demanding environments.

Série SD25 Válvula direcional seccional Parâmetros
Método de Controle Manual, Eletrohidráulico, Hidráulico
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula seccional
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções
Intervalo de viscosidade operacional 12 - 400 mm²/s (12 cSt a 400 cSt)
Fluxo Nominal 240 L/min (63,4 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1, SAE 16
Porta de Saída G1-1/4, SAE 16
Tamanho da Porta G1, G1-1/4, SAE 12

The SD25 series two spool hydraulic control valve is a reliable and efficient solution for various applications. Manufactured directly from our factory, we offer wholesale pricing and direct supply, ensuring competitive pricing and high-quality products. This monoblock valve features manual control, a rated flow of 240 L/min (63.4 US gpm), and a maximum pressure of 315 bar (4600 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Choose our SD25 series two spool hydraulic control valve for reliable performance and cost-effectiveness, directly from the factory.
