Produção e Entrega
Prazo de produção de 15 a 30 dias

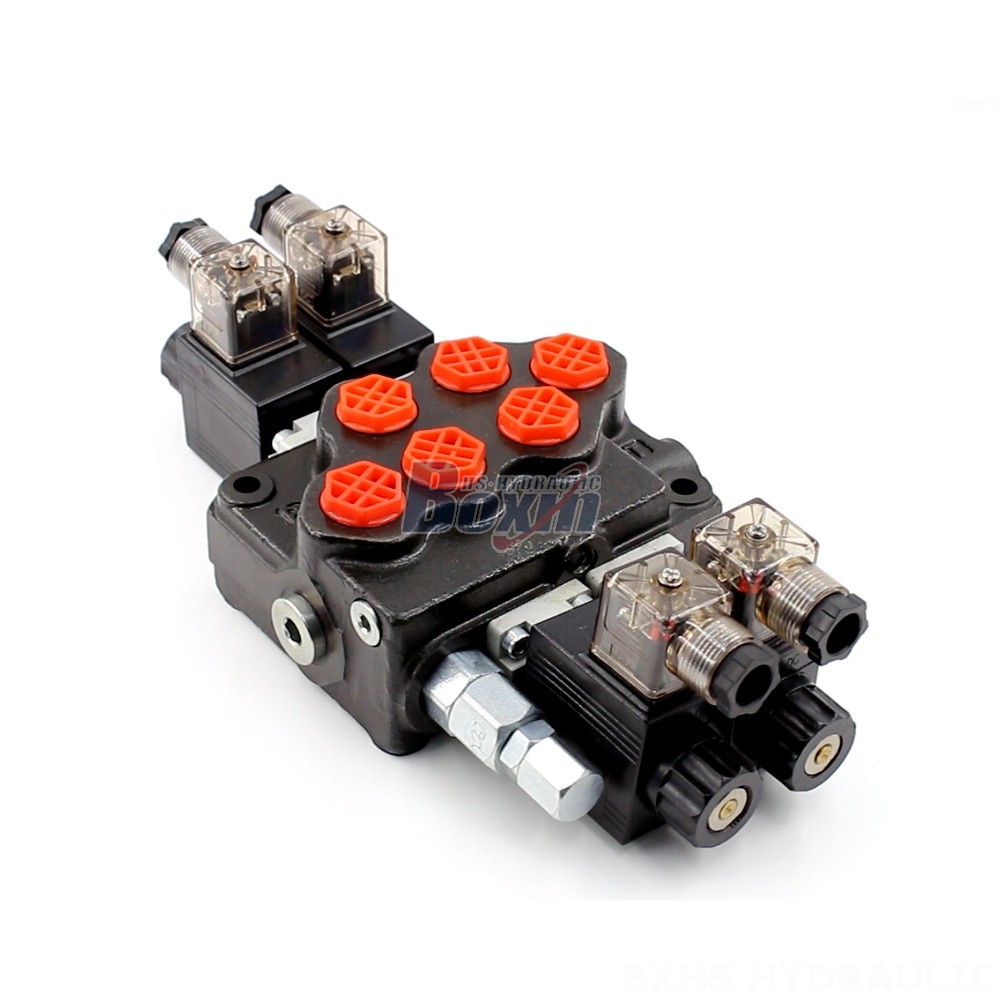

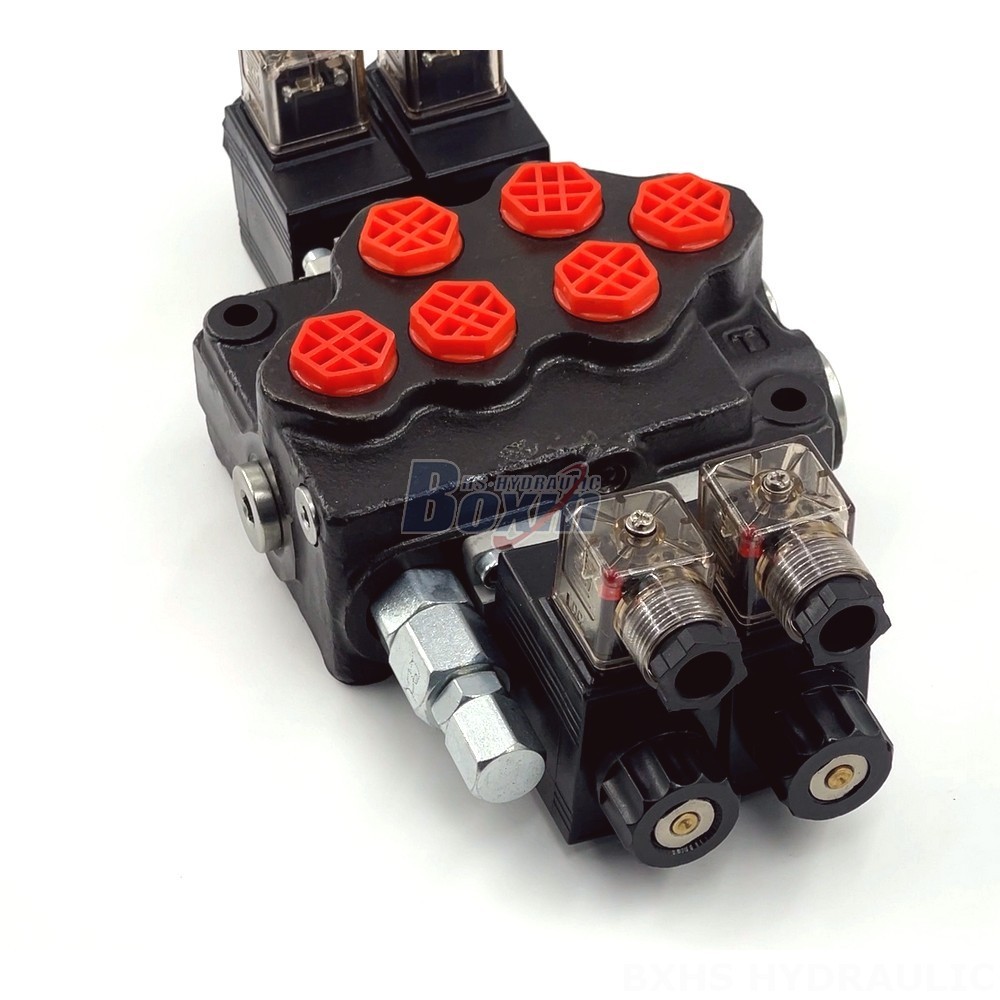

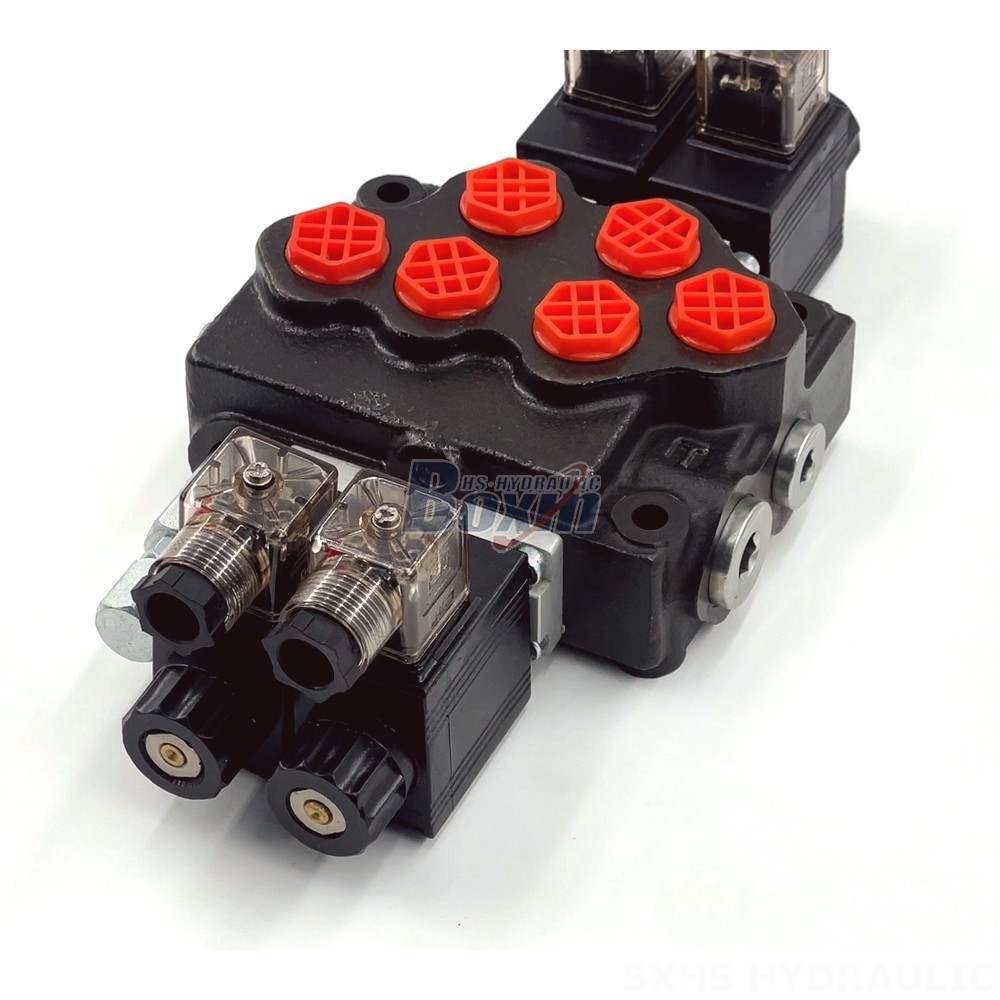

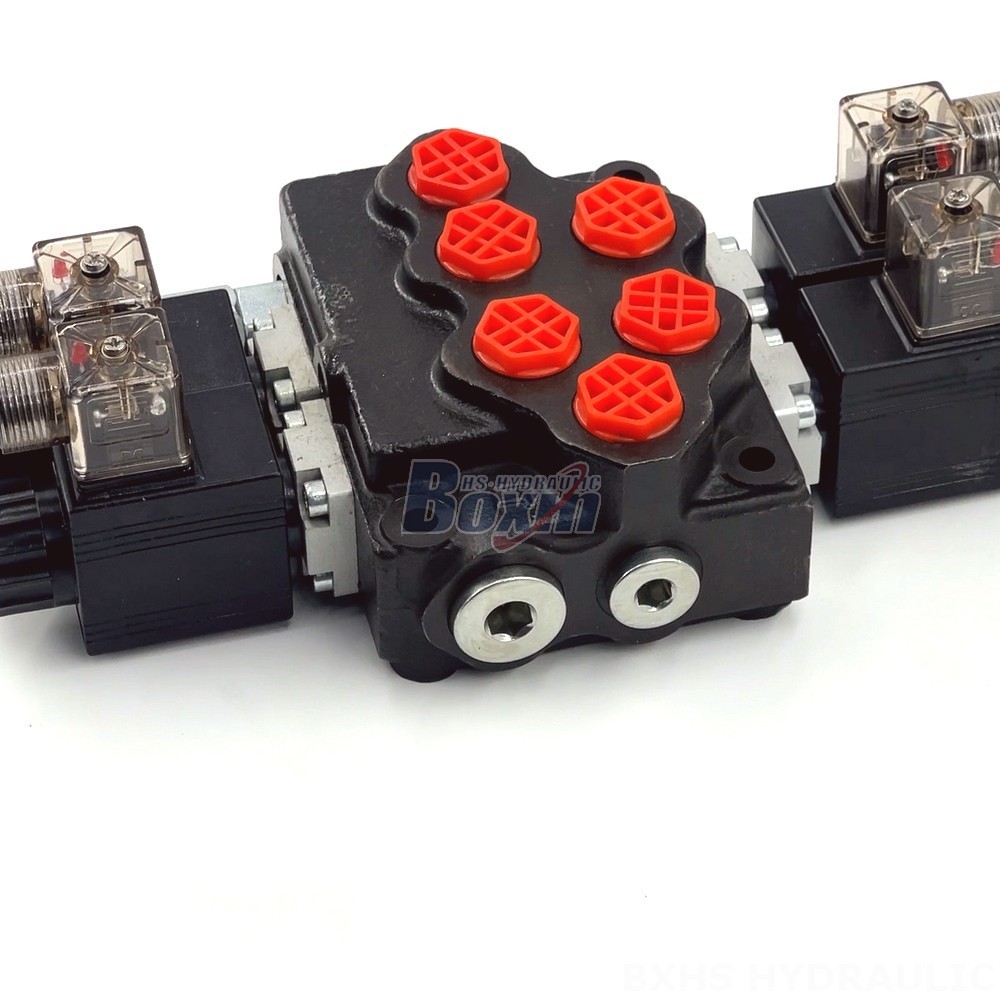

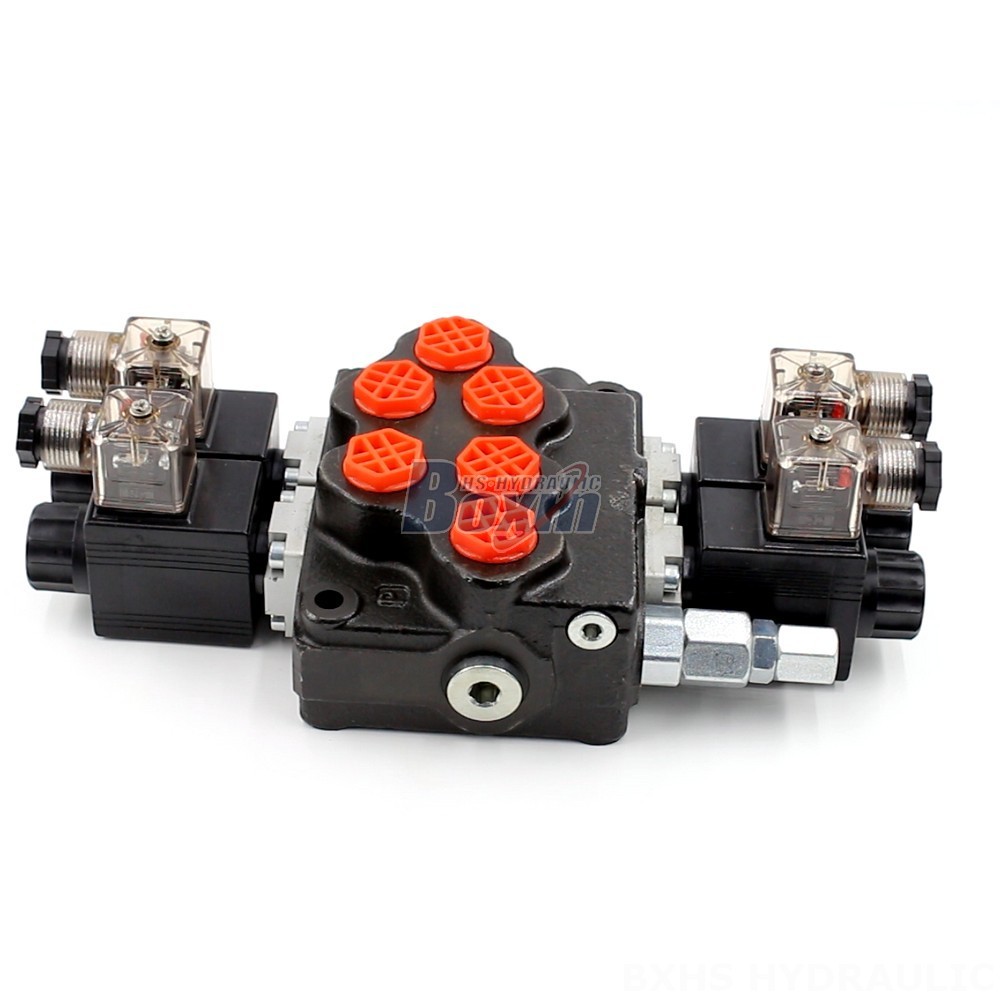

The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.
| Série SD5 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Porta de Saída | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
