Source Your P120 Directional Control Valves from a Trusted Manufacturer

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:120 L/min (31.7 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1

Porta de Saída:G1

Tamanho da Porta:G1

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P120 Válvula Direcional Monobloco

Tamanho da embalagem:30*39*17

Peso bruto:19.00 kg

Disponibilidade: Em estoque

1120 Visualizações estão procurando por este produto

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

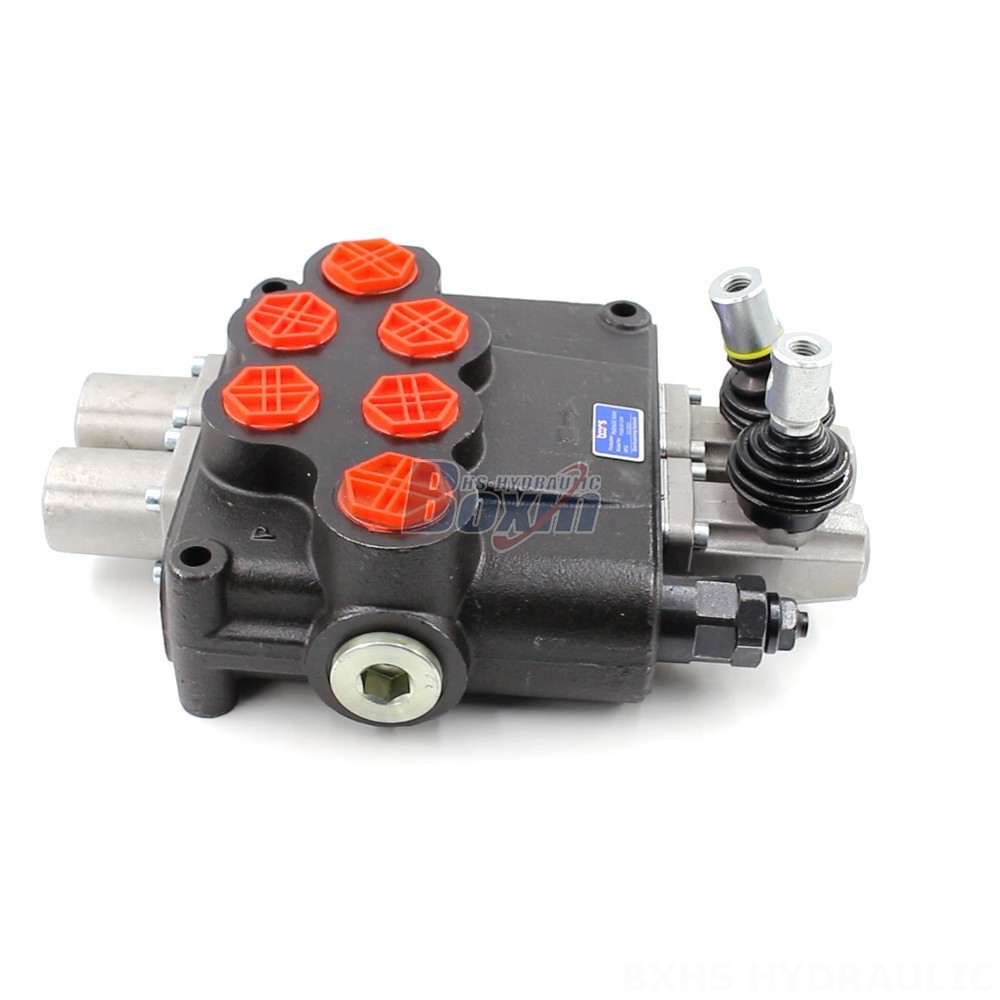

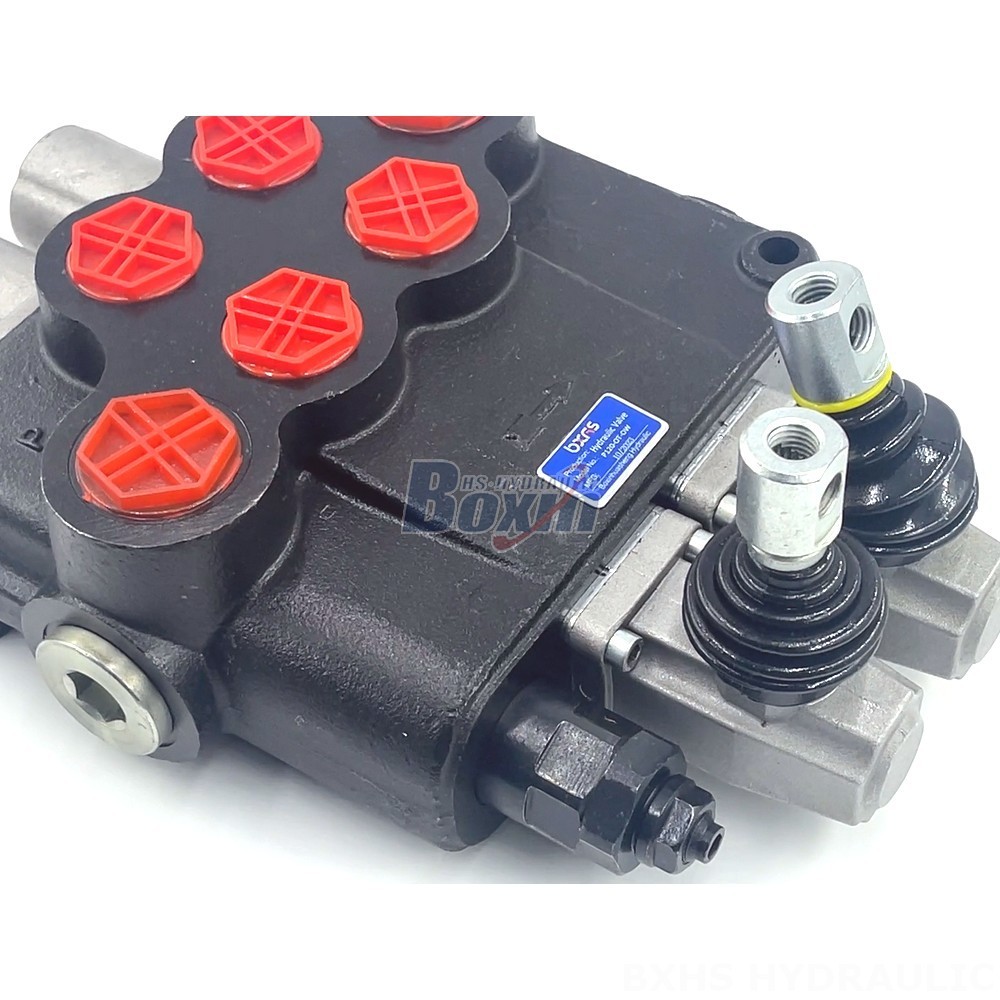

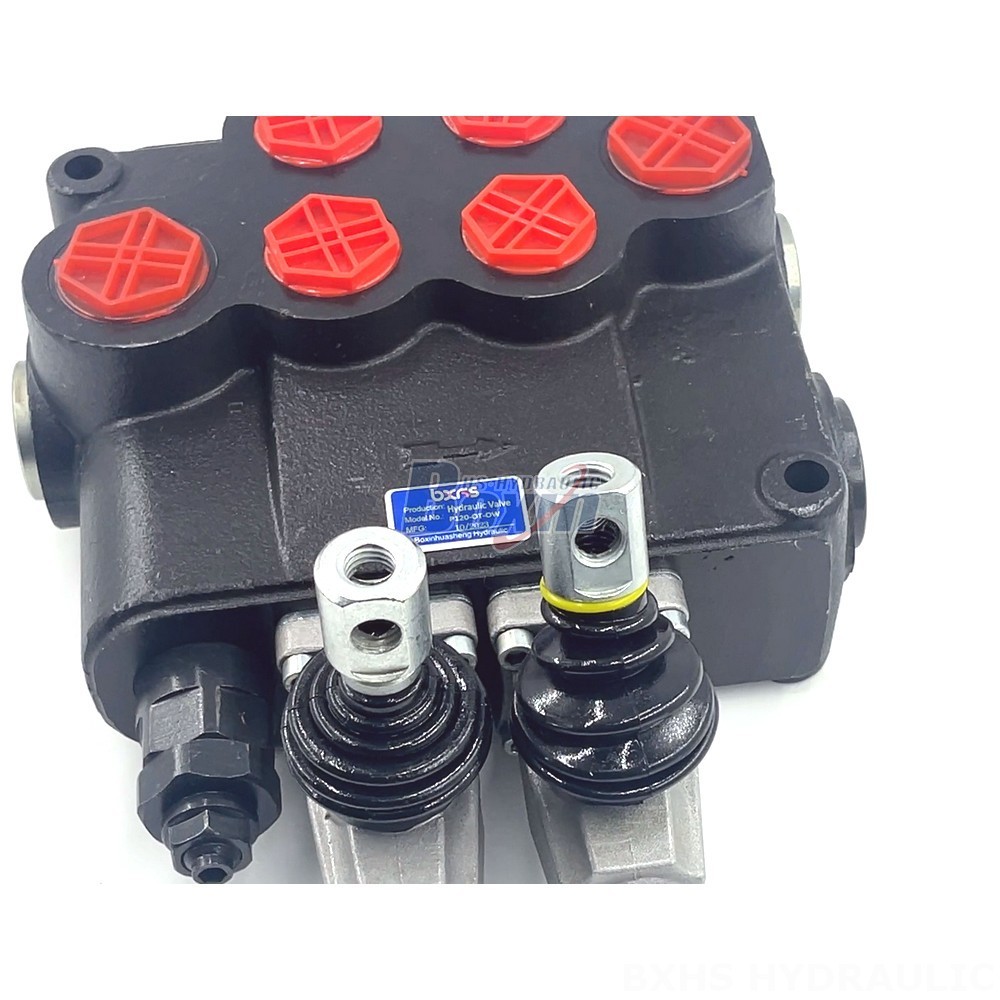

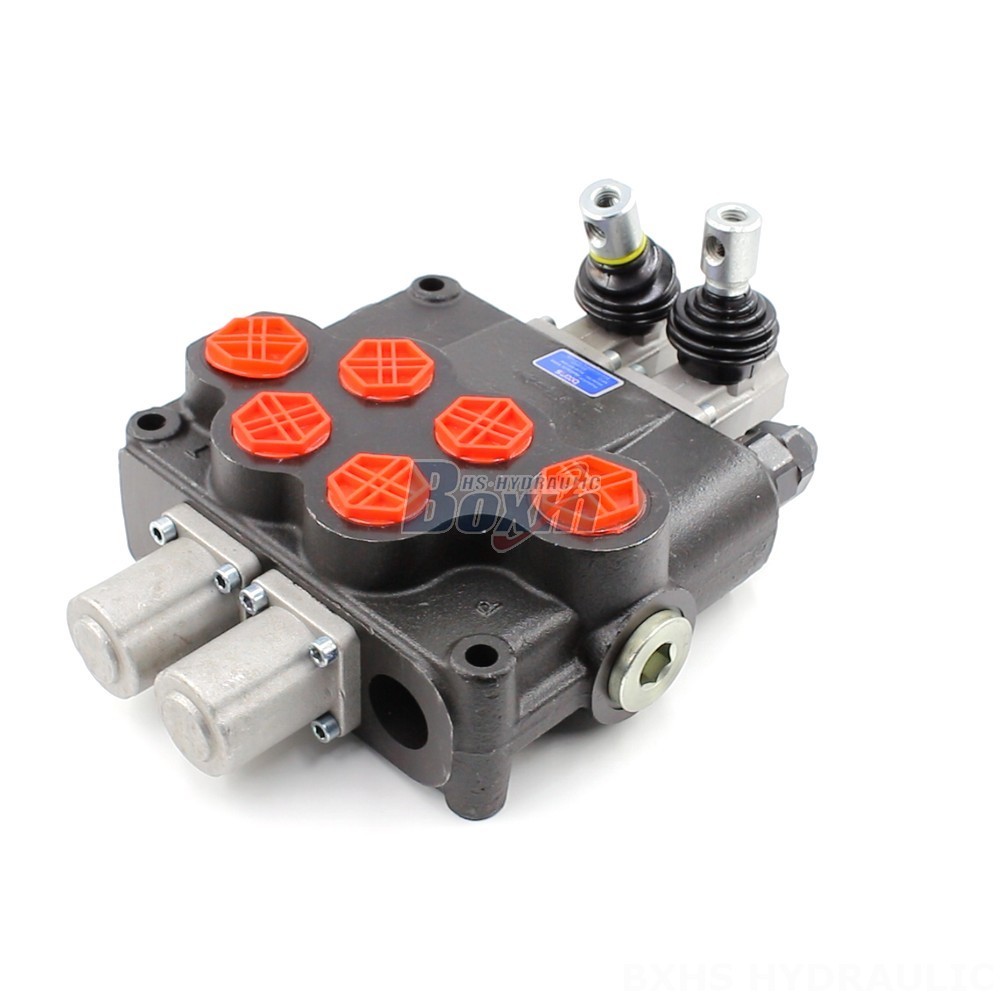

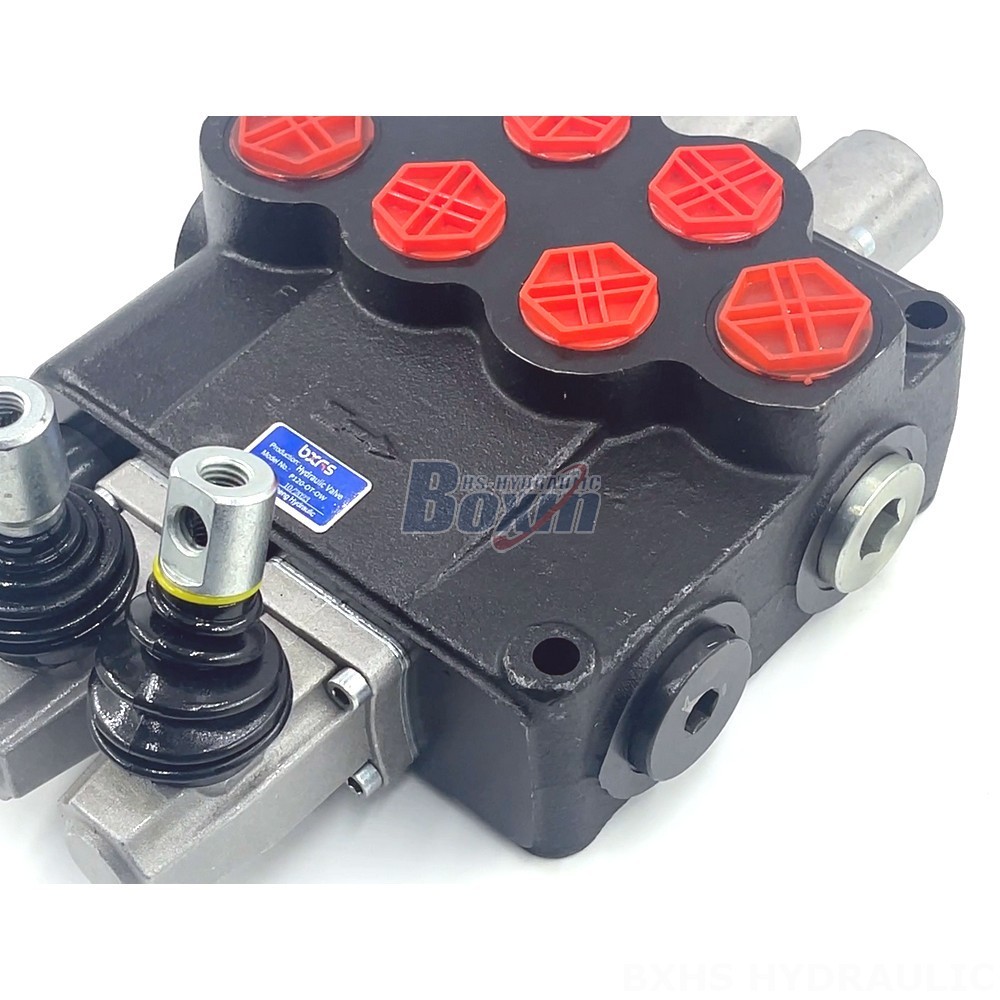

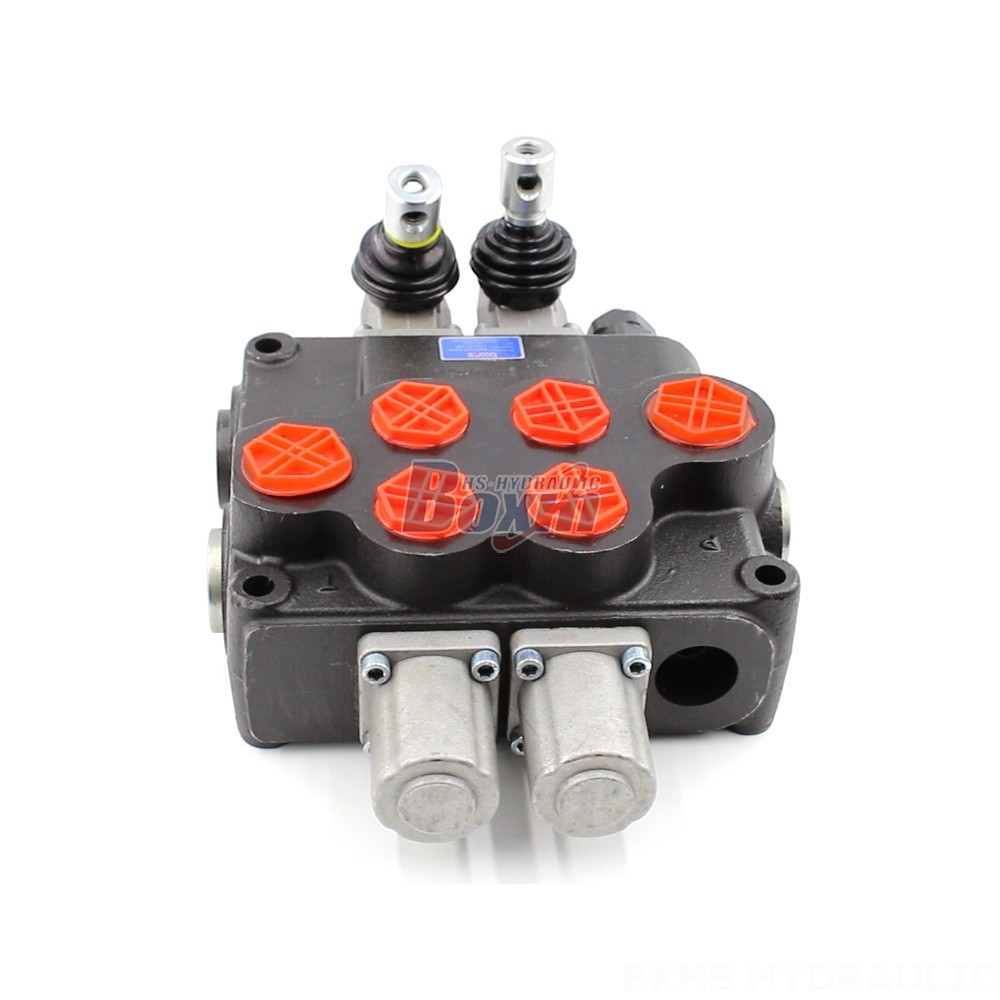

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

Série P120 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis
Fluxo Nominal 120 L/min (31.7 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Porta de Saída G1, SAE 16, 1 NPT, M36×2
Tamanho da Porta G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Secção 1 secção, 2 secções, 3 secções, 4 secções
Tipo de estrutura Válvula monobloco
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
