Source ZT20 Directional Control Valves from a Trusted Manufacturer

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:90 L/min (23,8 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G3/4

Porta de Saída:G3/4

Tamanho da Porta:G3/4

Marca:BXHS

Tipo de produto:Válvula de Controle Hidráulico

Série de produtos:Série ZT20 Válvula de Controle Hidráulico

Tamanho da embalagem:23*18*11

Peso bruto:7.91 kg

Disponibilidade: Em estoque

1157 Visualizações estão procurando por este produto

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

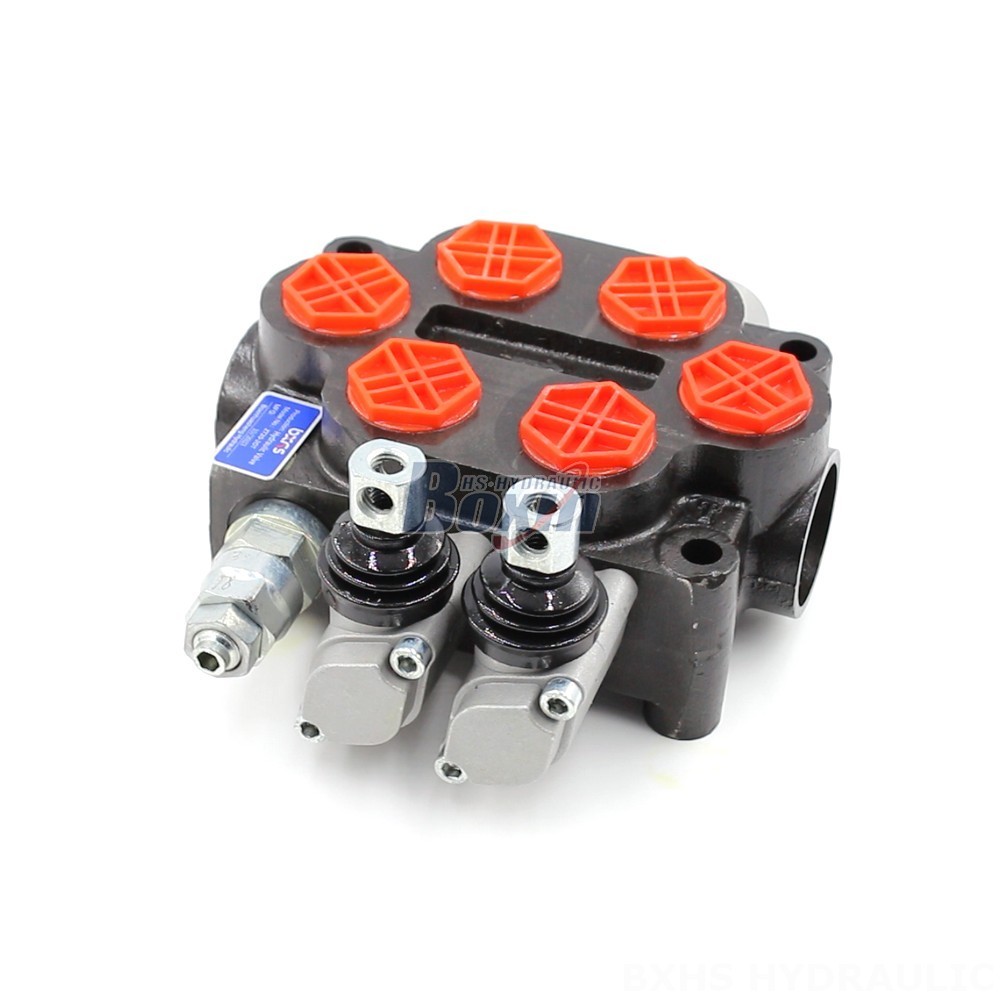

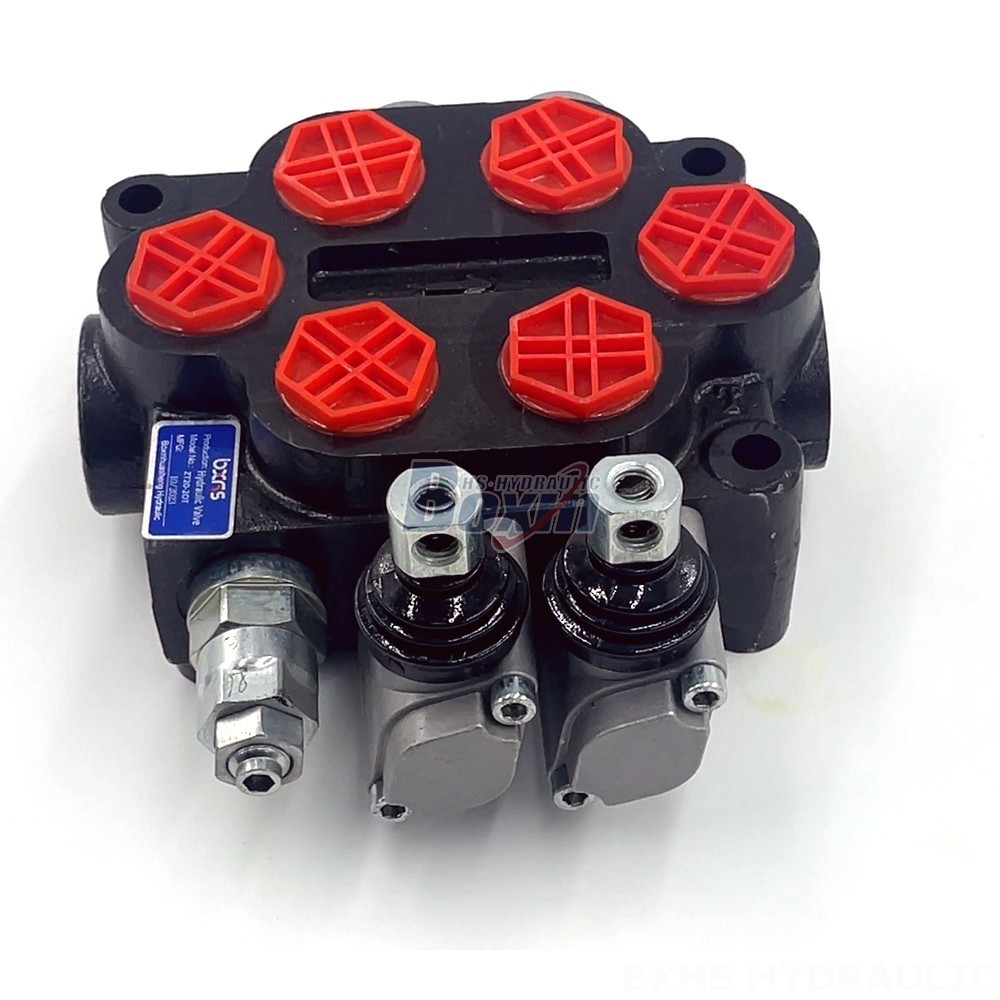

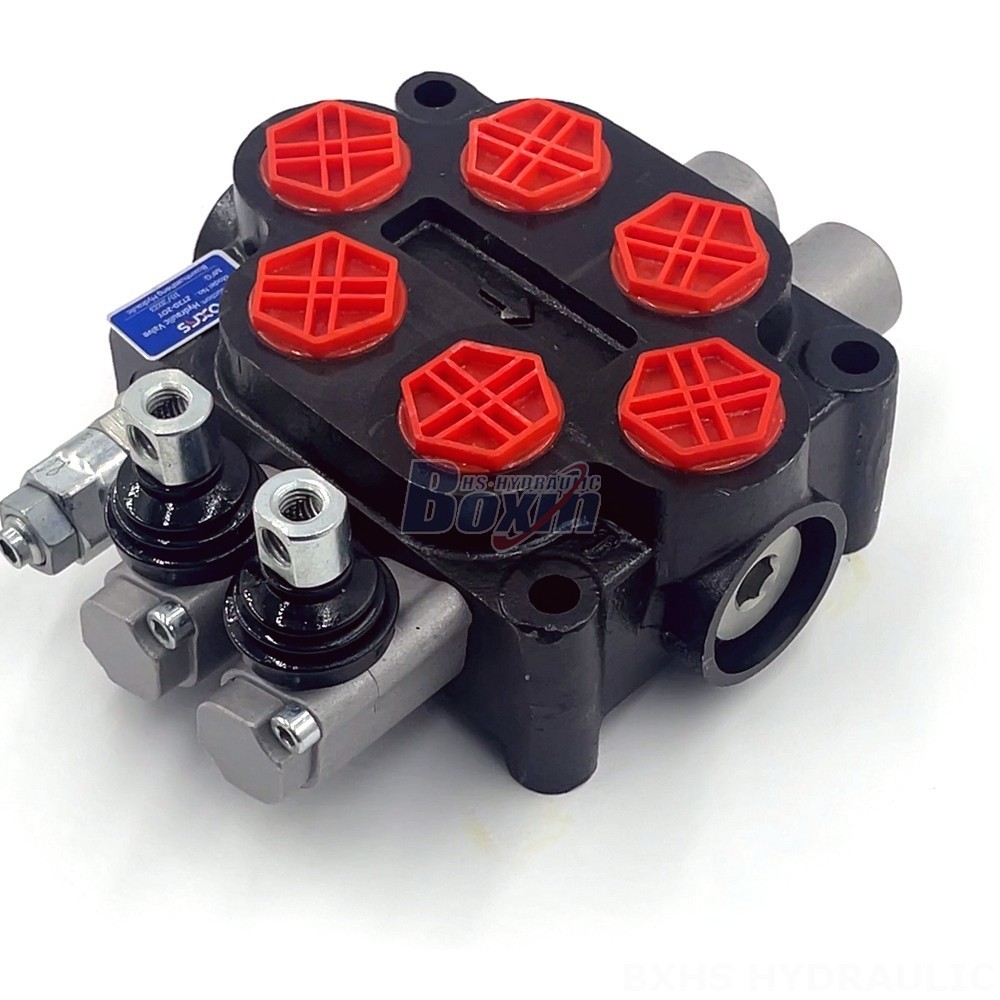

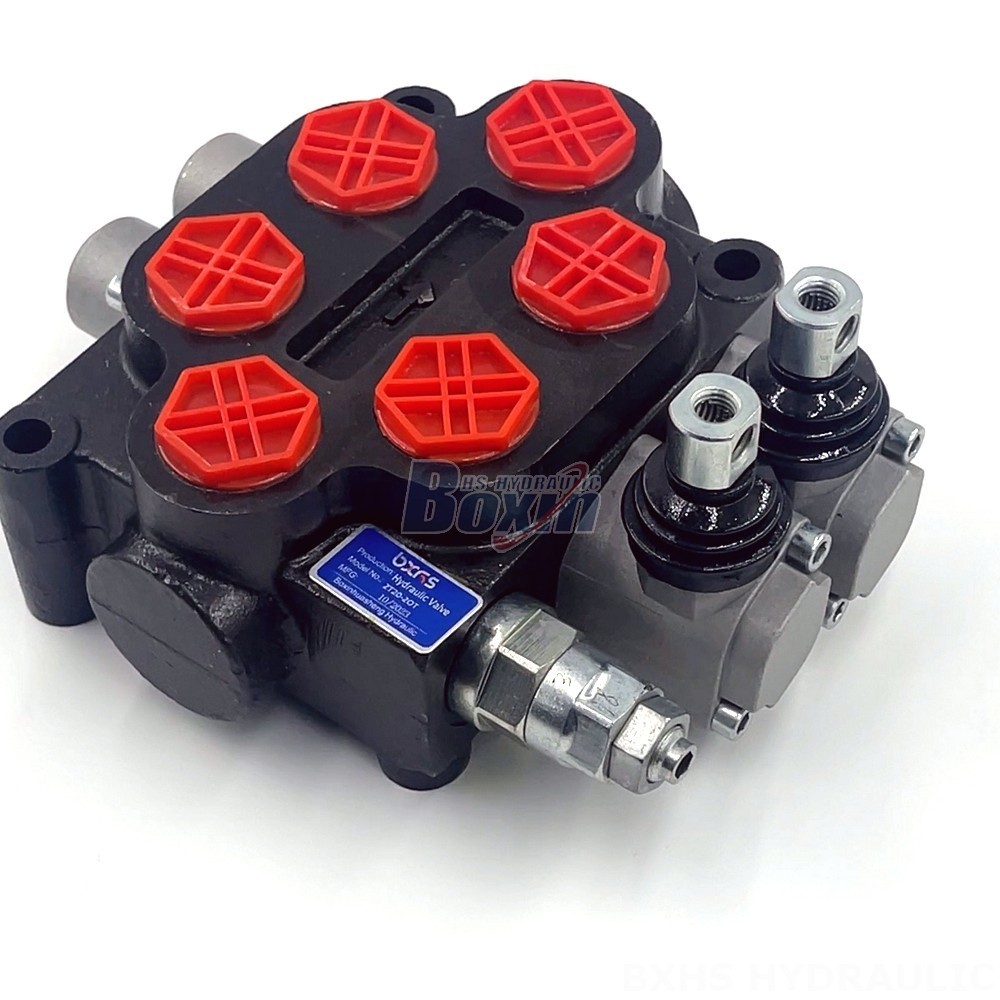

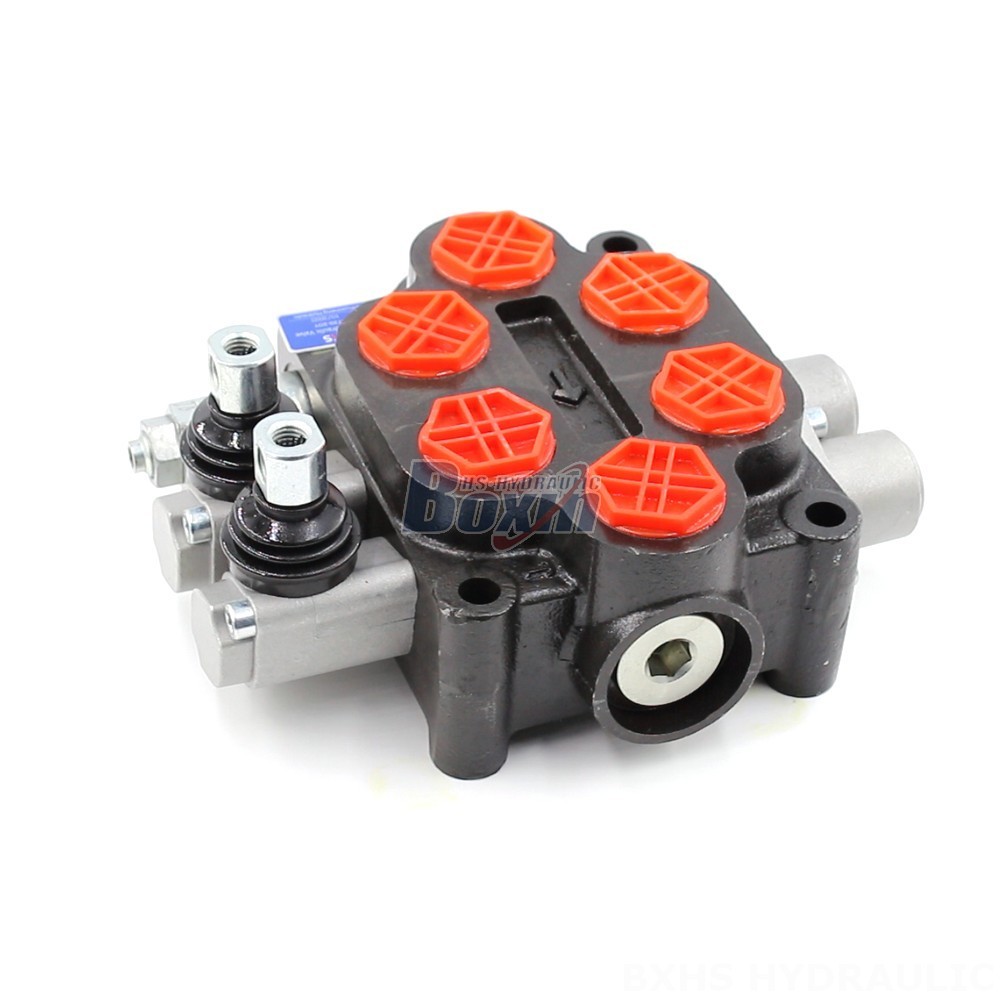

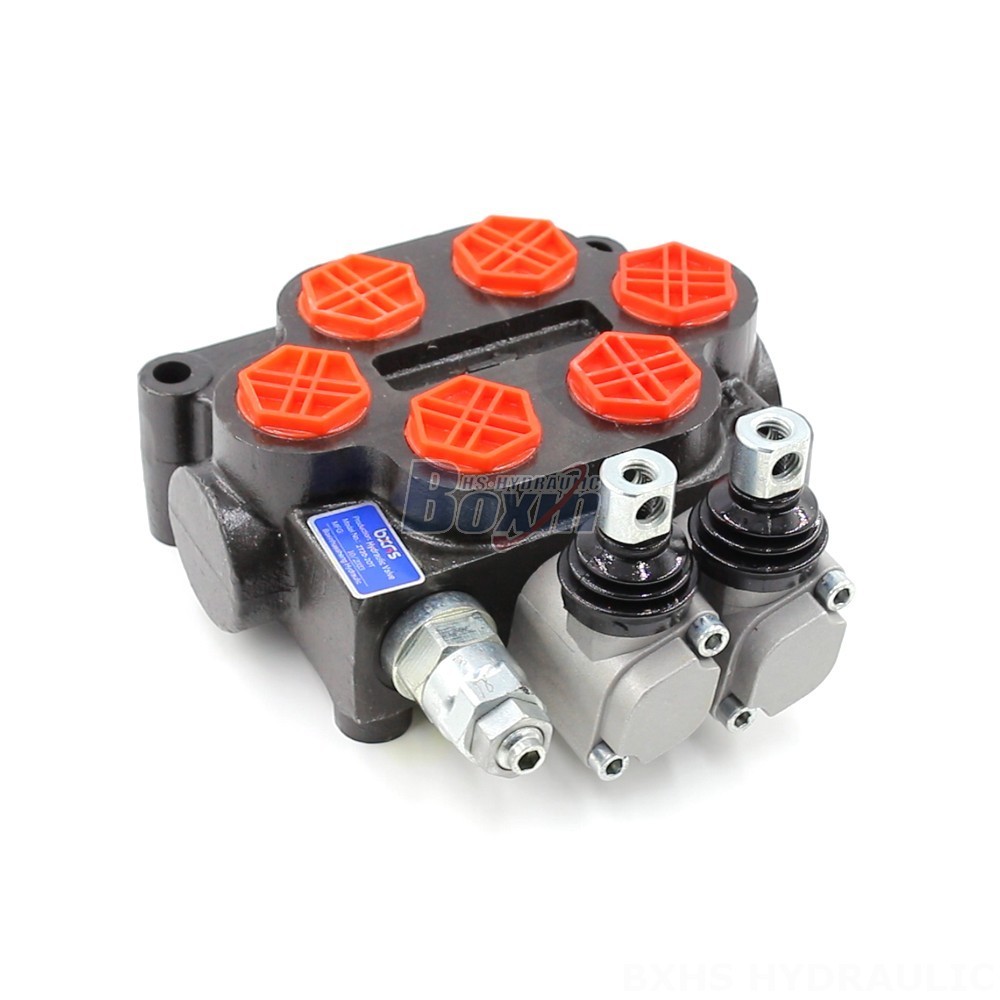

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

Série ZT20 Válvula de Controle Hidráulico Parâmetros
Método de Controle Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis
Fluxo Nominal 100 L/min (26,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Porta de Saída G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Tamanho da Porta G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções
Tipo de estrutura Válvula monobloco
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
