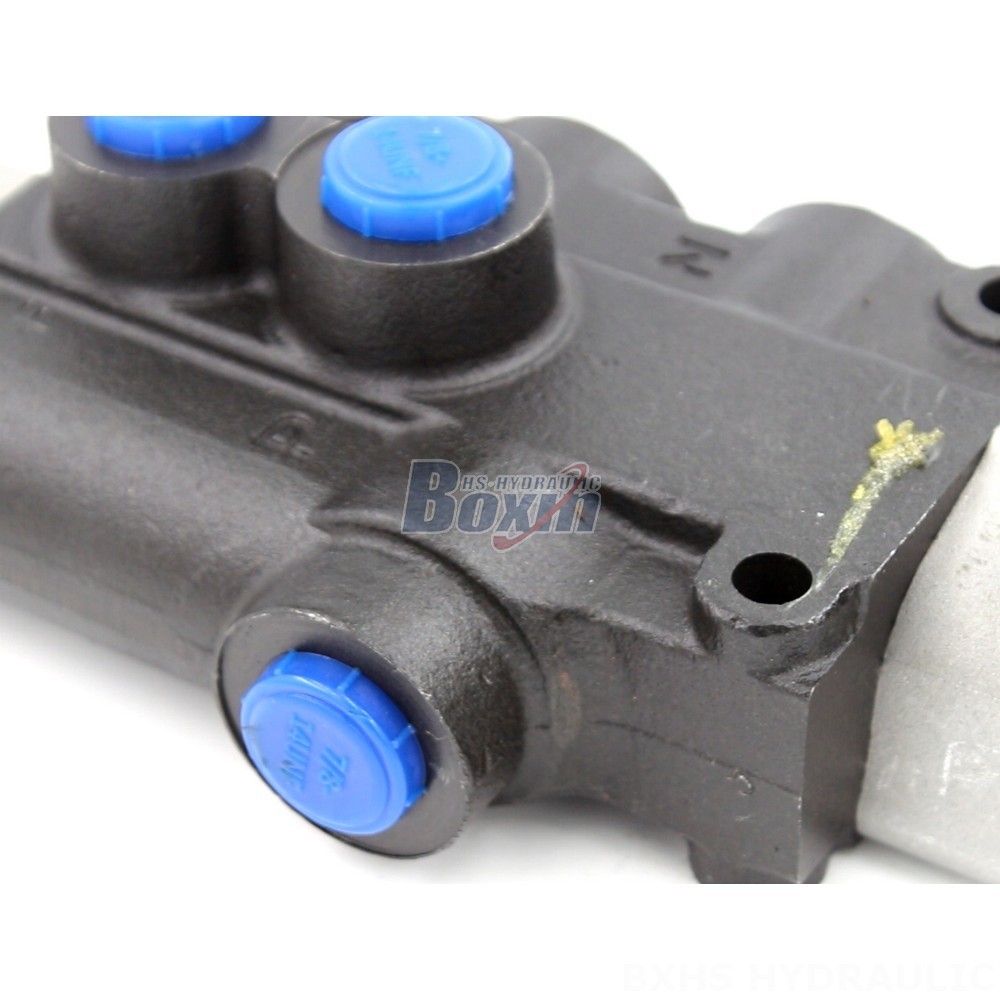

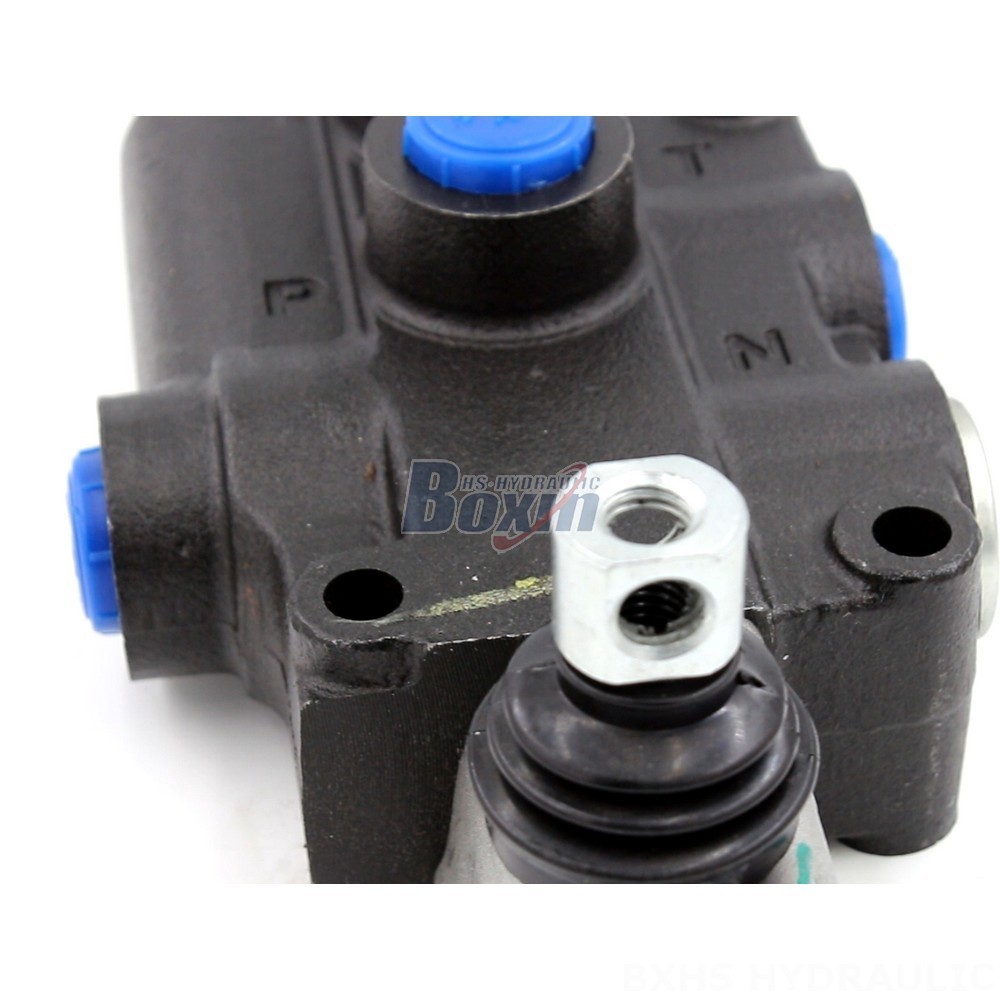

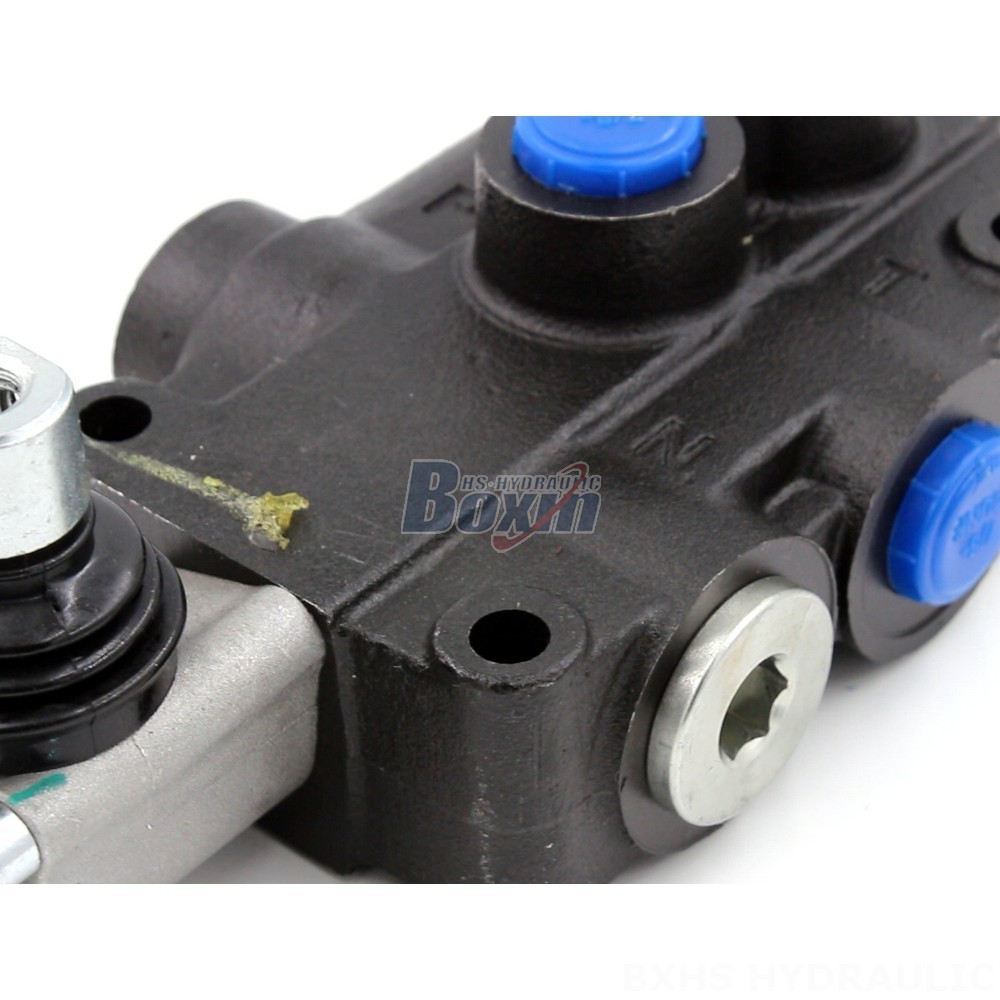

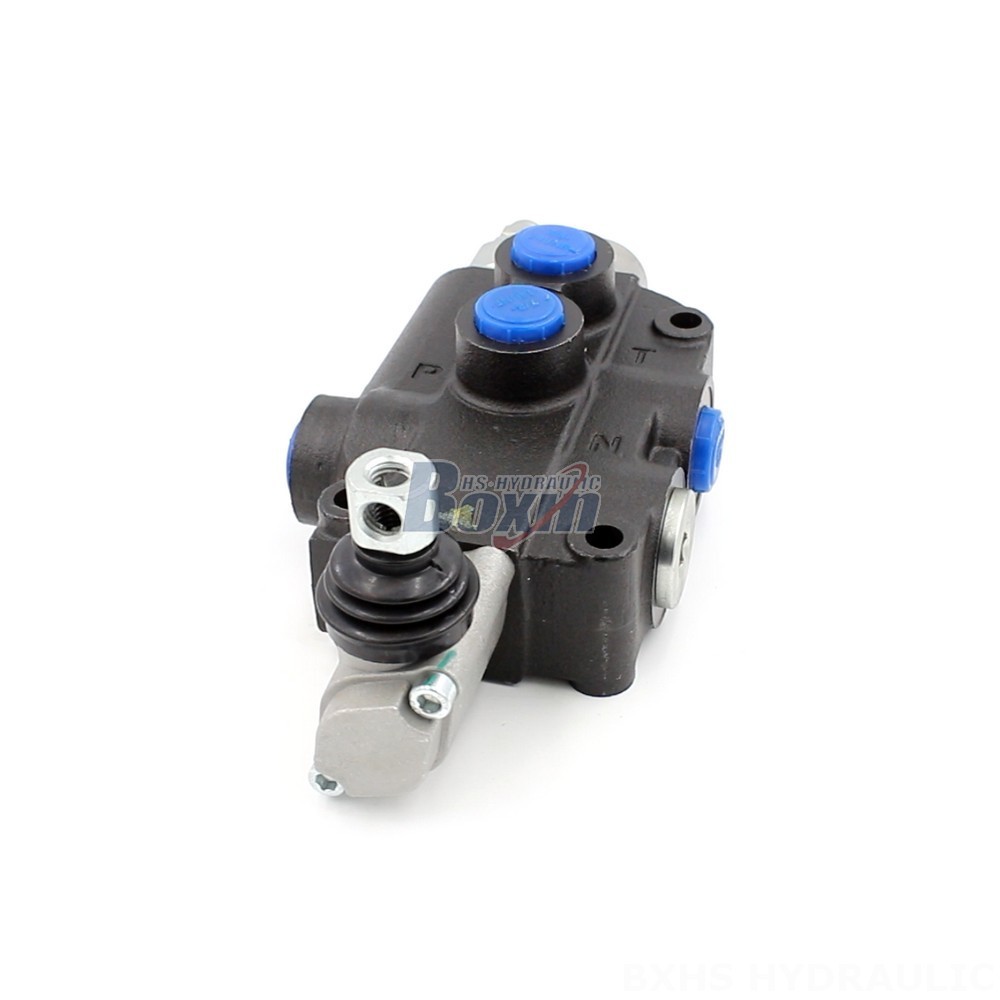

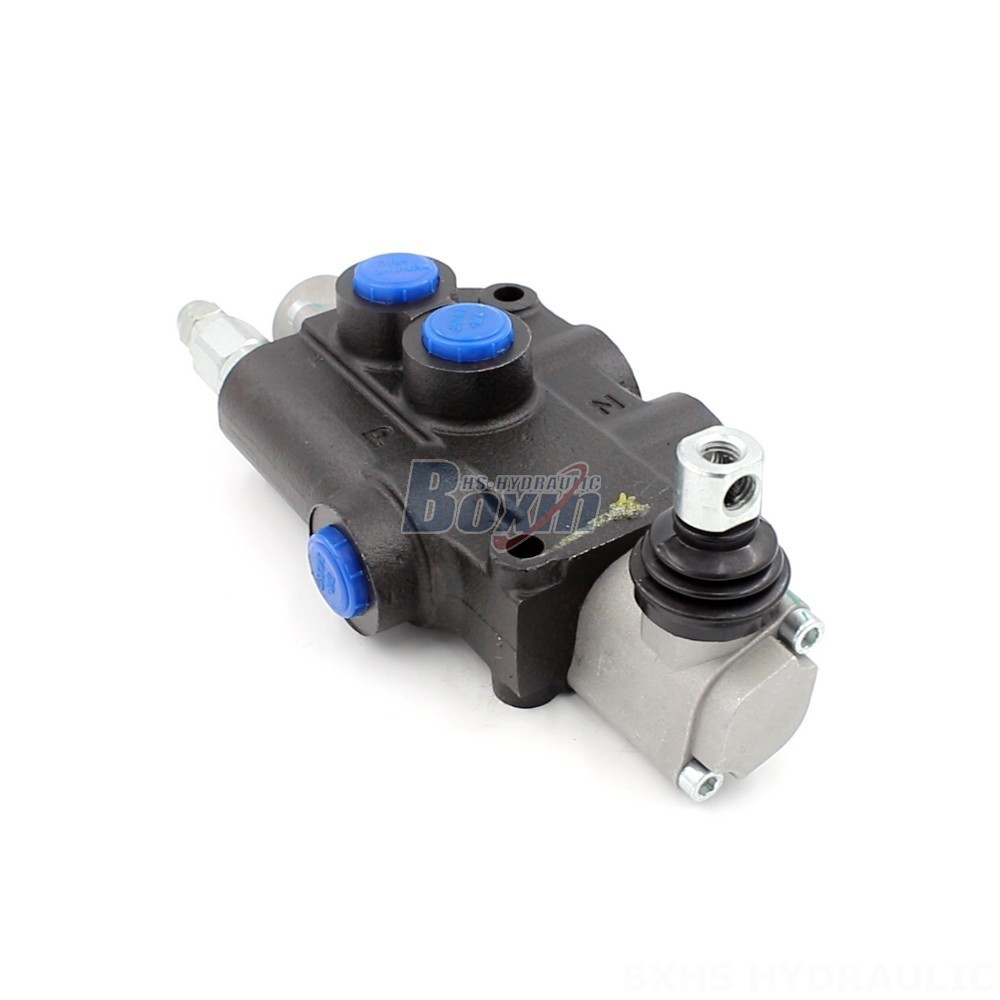

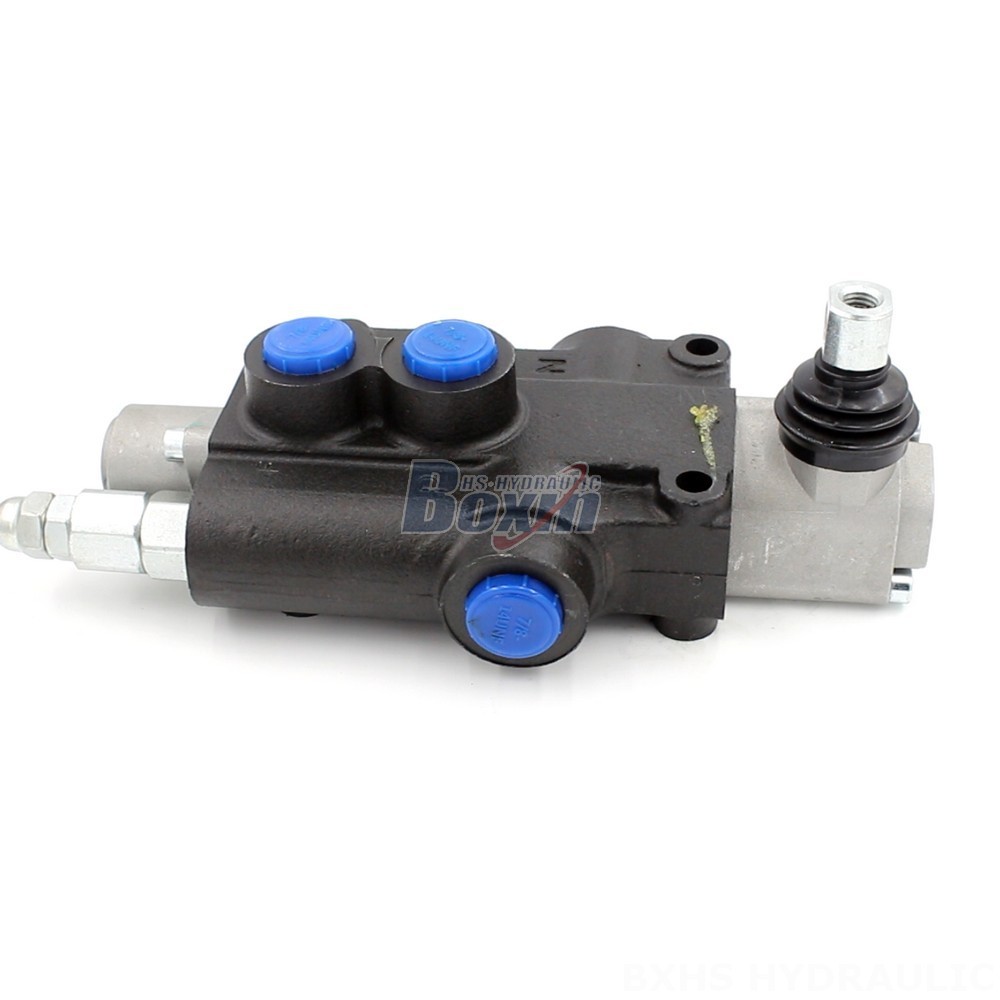

The P80-U78-1OT Series Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise flow control and reliable operation in challenging hydraulic systems.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- **Manual Control:** Allows for direct and intuitive operation of the valve.
- **1 Section Design:** Simplifies system integration and reduces potential leak points.
- **Monoblock Construction:** Provides structural rigidity and durability, ensuring long-term performance.
- **High Flow Capacity:** Handles high flow rates with minimal pressure drop, optimizing system efficiency.
- **Wide Operating Pressure Range:** Suitable for various hydraulic applications, from low to high-pressure systems.
- **Optimal Viscosity Range:** Operates effectively with a wide range of hydraulic fluids, ensuring compatibility with different system requirements.
- **Versatile Applications:** Ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Benefits:**
- Enhanced system control and precision
- Improved efficiency and reduced energy consumption
- Increased durability and reliability in demanding operating conditions
- Ease of installation and maintenance
