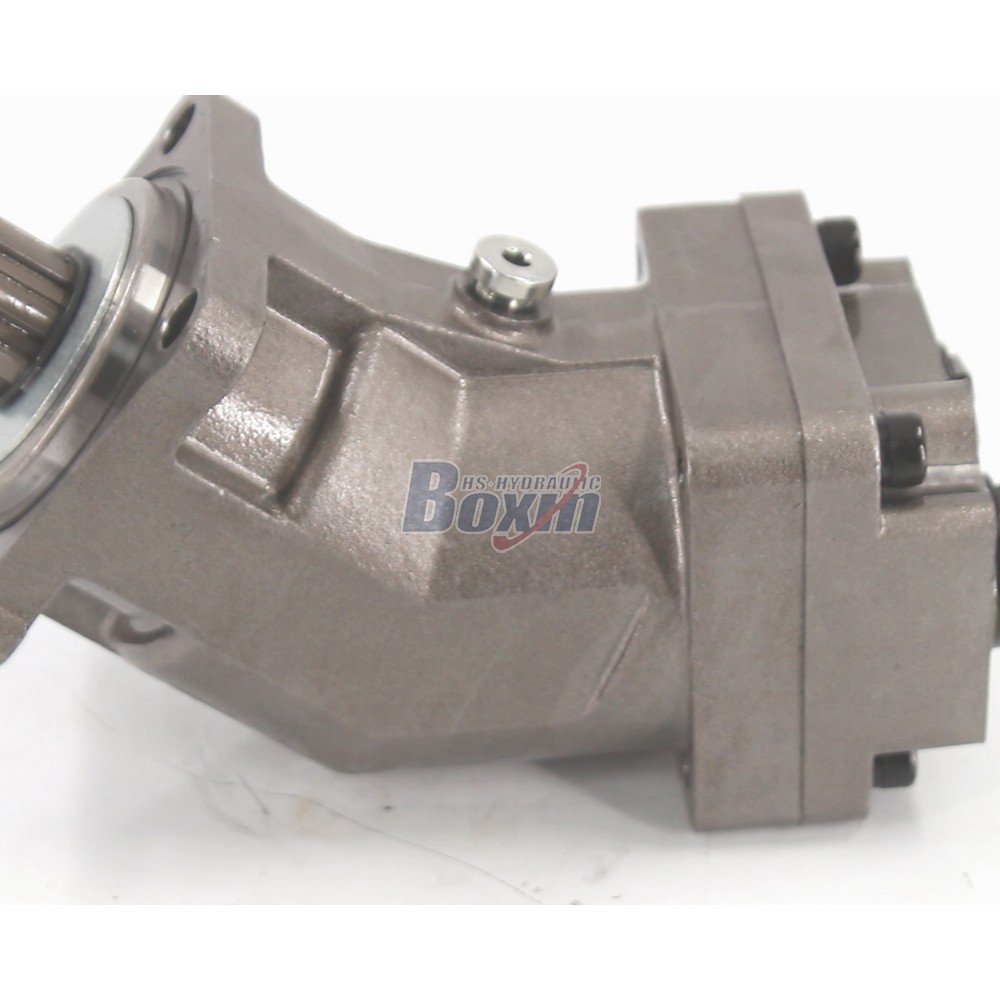

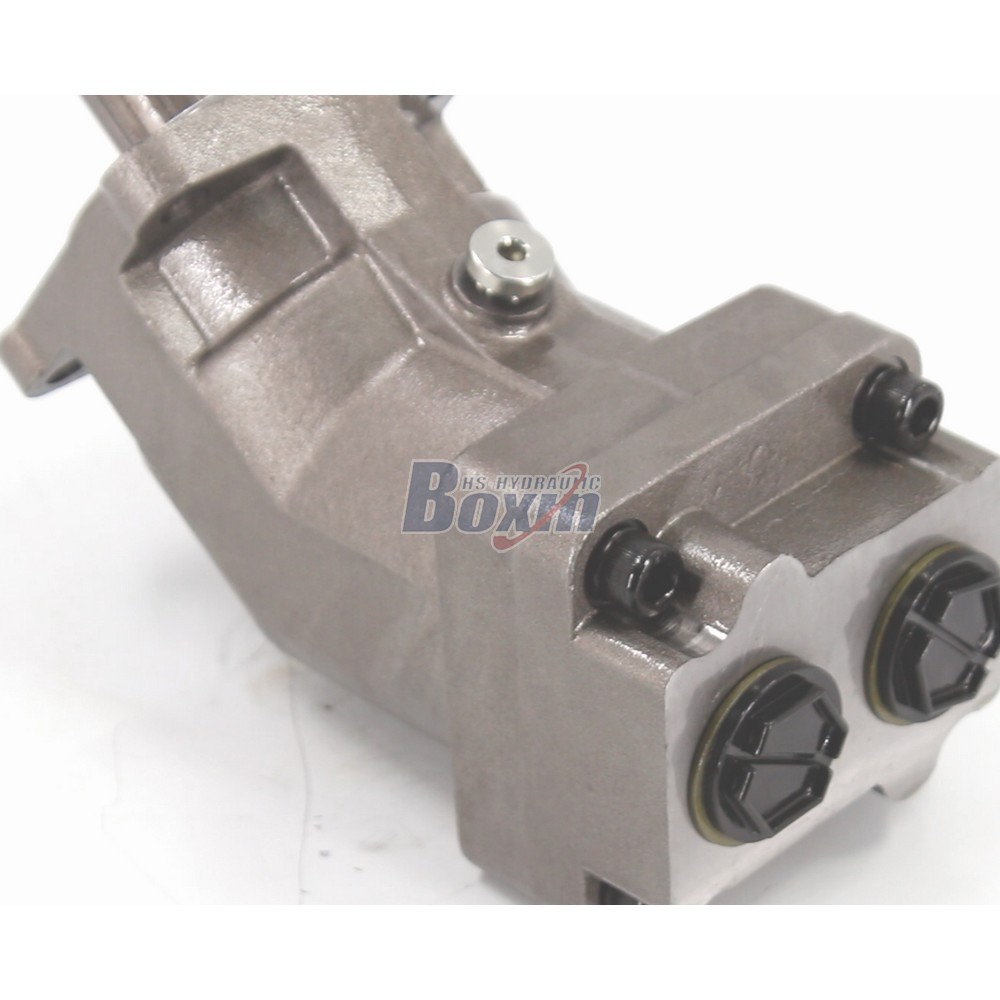

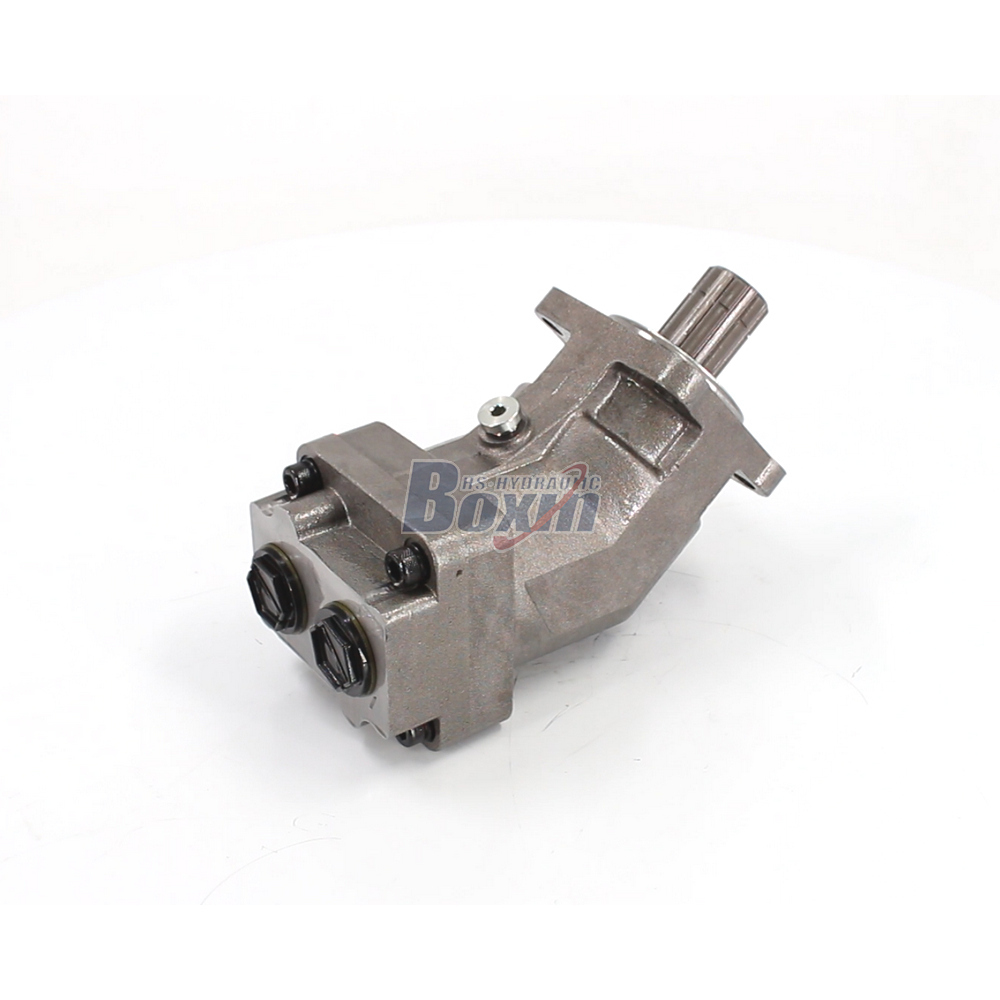

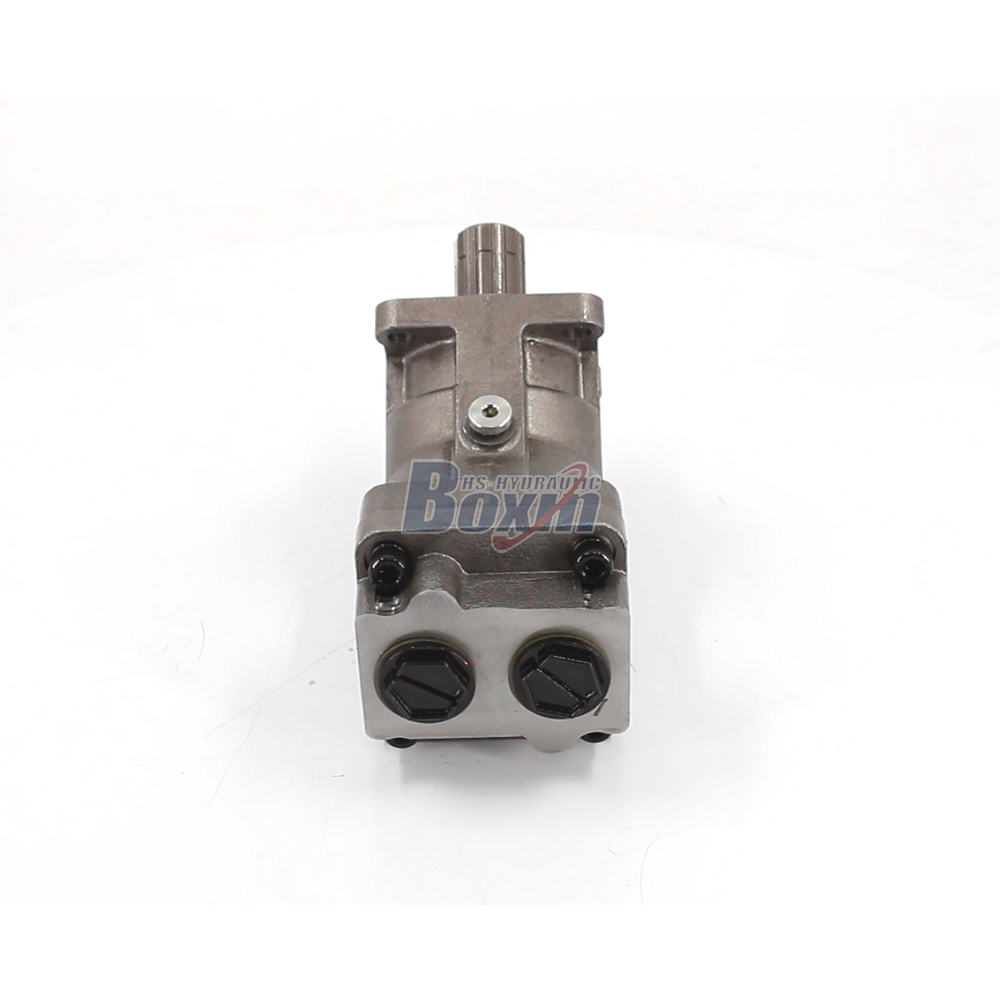

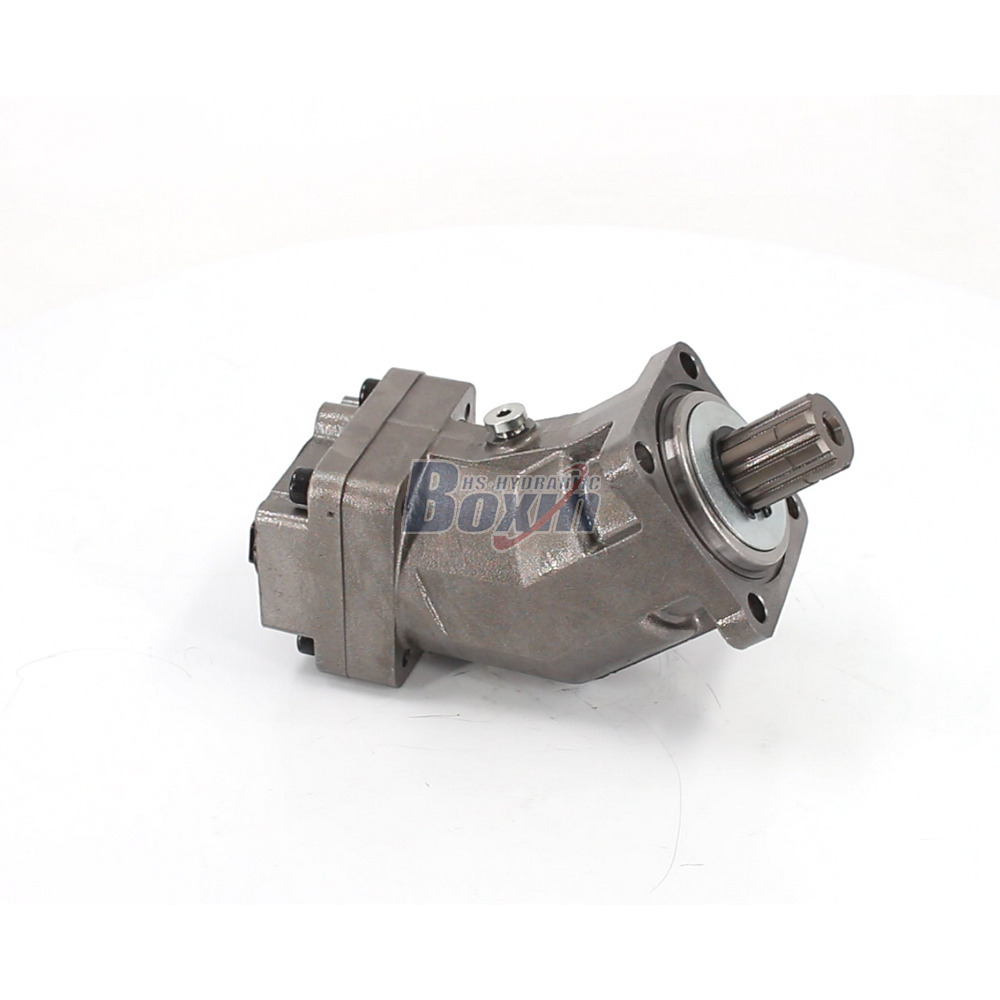

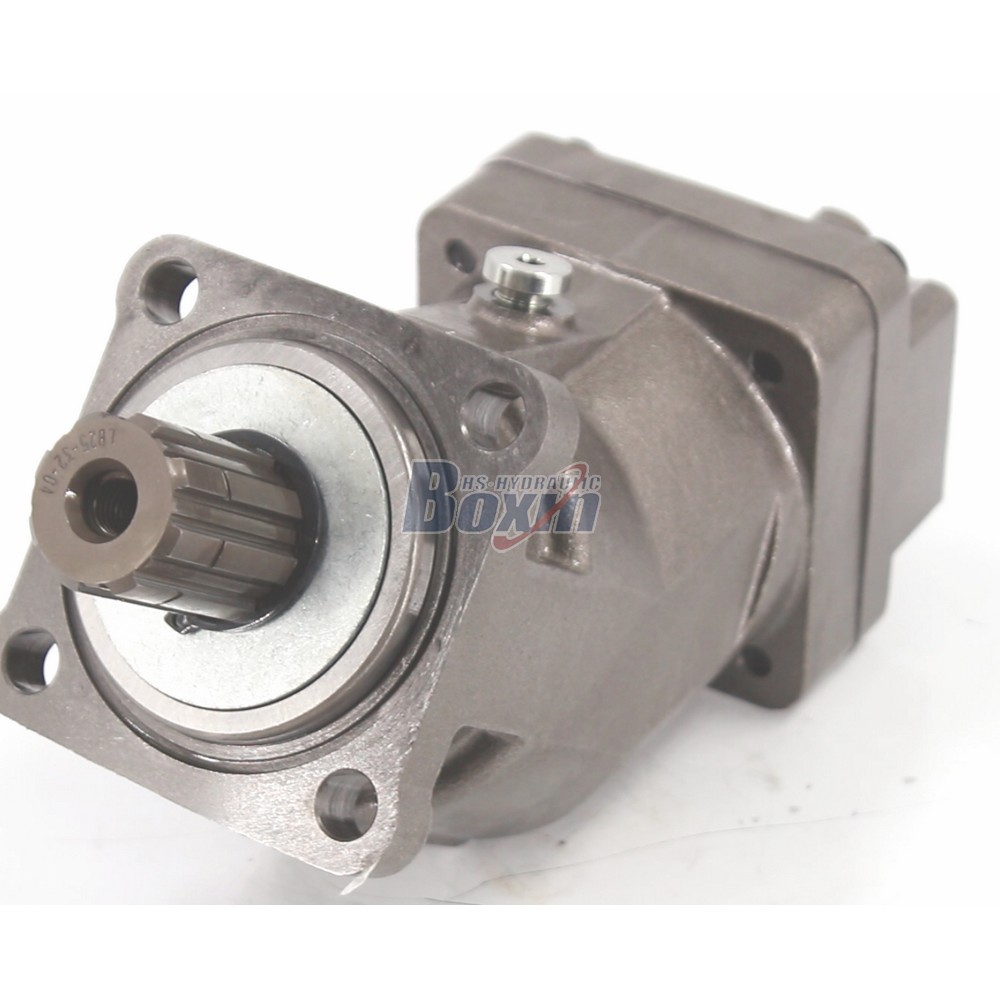

XPi-32L 32cc/rev Hydraulic Piston Pump delivers 38 MPa rated pressure for mini-excavators and loaders. Backed by a 25-year IATF 16949 certified manufacturer with 1.5M annual capacity, this left-rotation unit ensures reliable performance for construction and agricultural machinery.
| Série XPI Bomba de pistão hidráulica Parâmetros | |
|---|---|
| Deslocamento | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Pressão Nominal | 38 MPa (5511 psi) |
| Pressão Máxima | 42 MPa (6091 psi) |
| Velocidade Nominal | 1600 r/min |
| Velocidade Máxima | 1900 r/min |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Ferro Fundido |
| Estrutura | Swashplate |
| Versão da flange | Orifícios de montagem ISO-4 |
| Tipo de veio | H: Chaveta retangular |
**1. High-Efficiency Hydraulic Piston Pump Specs**
- Delivers 32 cc/rev displacement with 38 MPa (5511 psi) rated pressure and 42 MPa max pressure.
- Optimized for 1600 r/min rated speed, ensuring stable flow for demanding hydraulic systems.
**2. OEM Hydraulic Pump Customization Services**
- Supported by 35+ senior engineers for tailored OEM/ODM solutions including logo laser marking.
- Flexible customization for appearance and castings to match your private label requirements.
**3. Durable 32cc Hydraulic Pump Construction**
- Manufactured in 68,000 sqm facilities using 260+ vertical machining centers for tight tolerances.
- Features left (counter-clockwise) rotation design specifically engineered for compact machinery.
**4. Certified Variable Displacement Pump Quality**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing before shipment.
- Holds IATF 16949, CE, and SGS certifications with 25+ patents ensuring global compliance.
**5. Reliable Factory Direct Sales Supply Chain**
- Source directly from a professional manufacturer with 1.5 million pieces annual production capacity.
- Secure rust-proof packaging and heavy-duty wooden crates guarantee safe worldwide delivery.
