The P40-G12-G38-4OT Manual Monoblock Directional Valve is a high-performance hydraulic component designed to control the flow of fluid in hydraulic systems. Manufactured directly by our factory, this valve offers exceptional value and reliability for various applications across industries.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

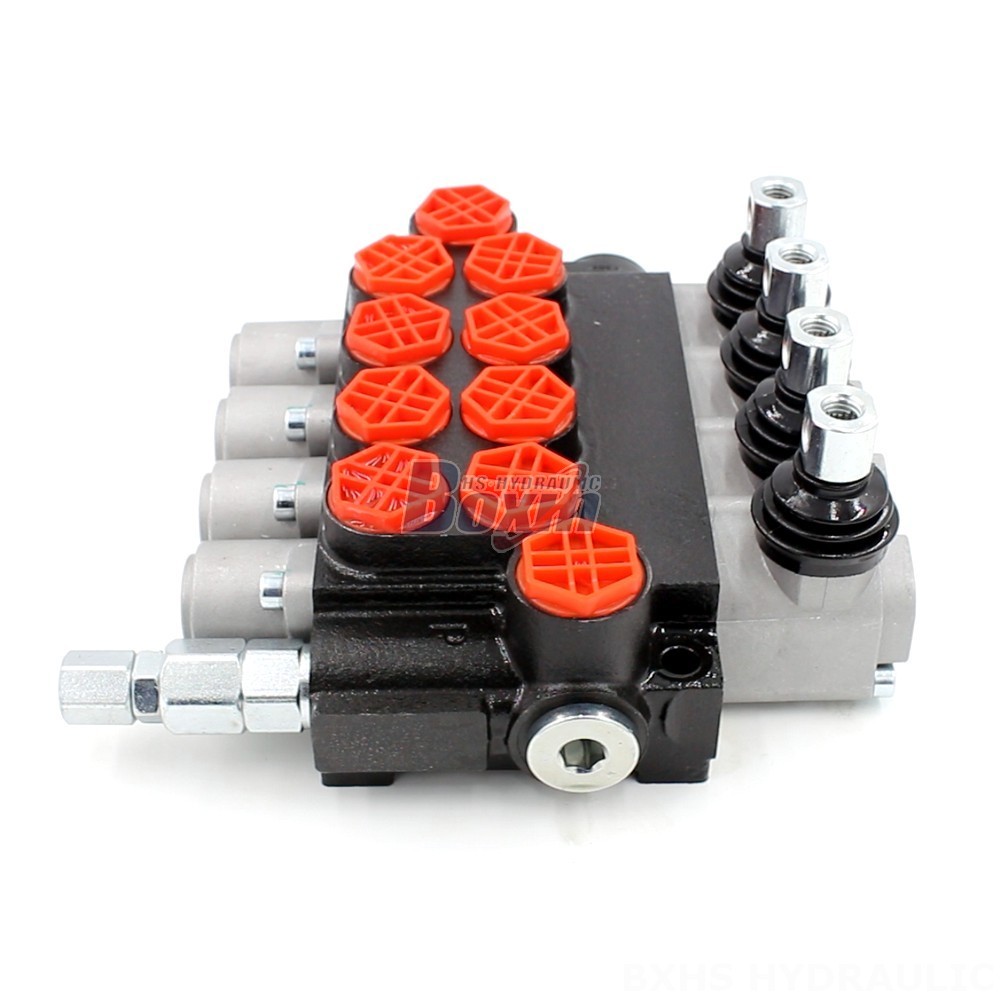

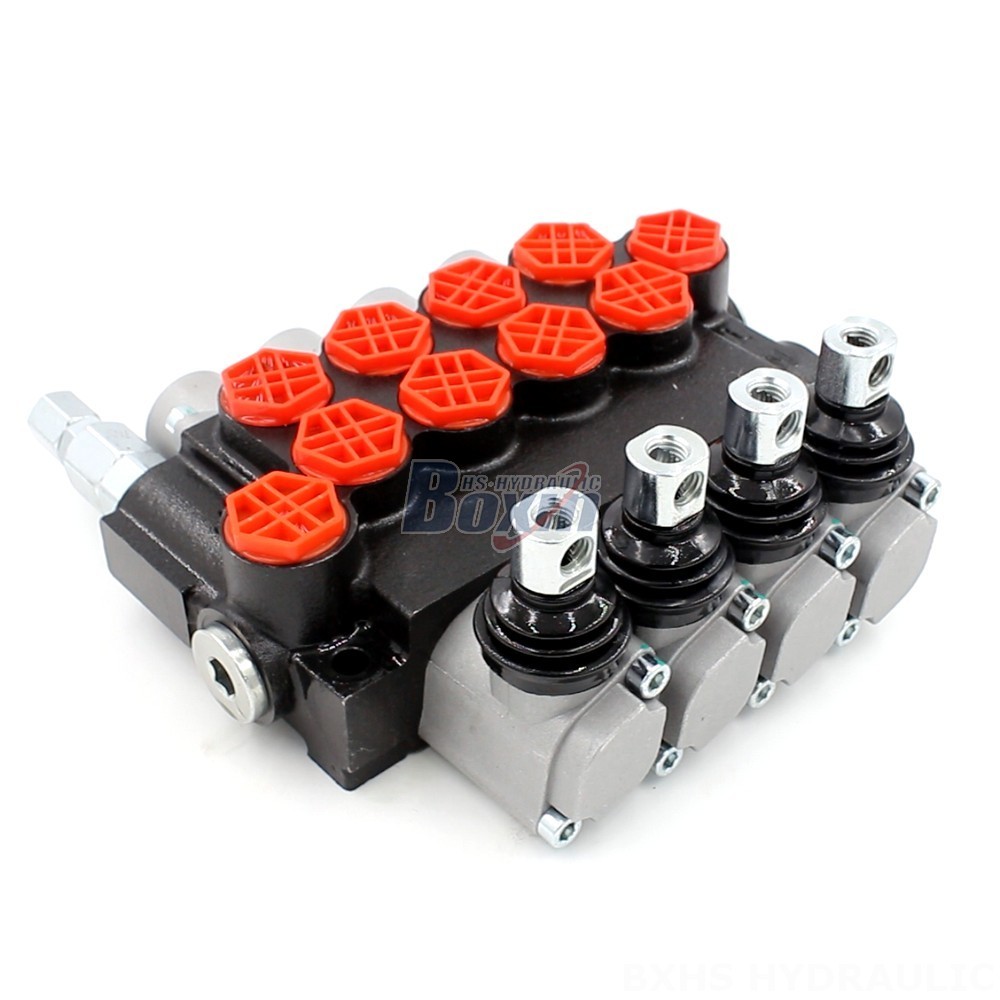

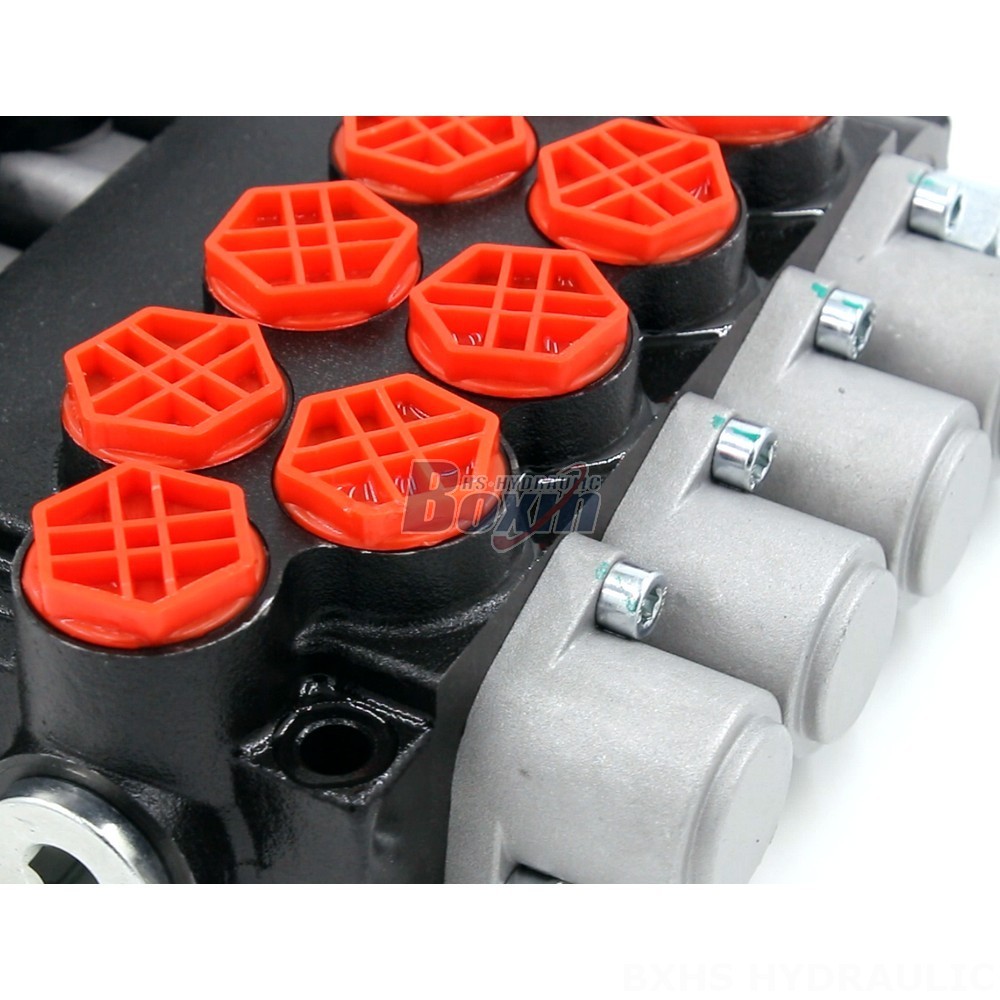

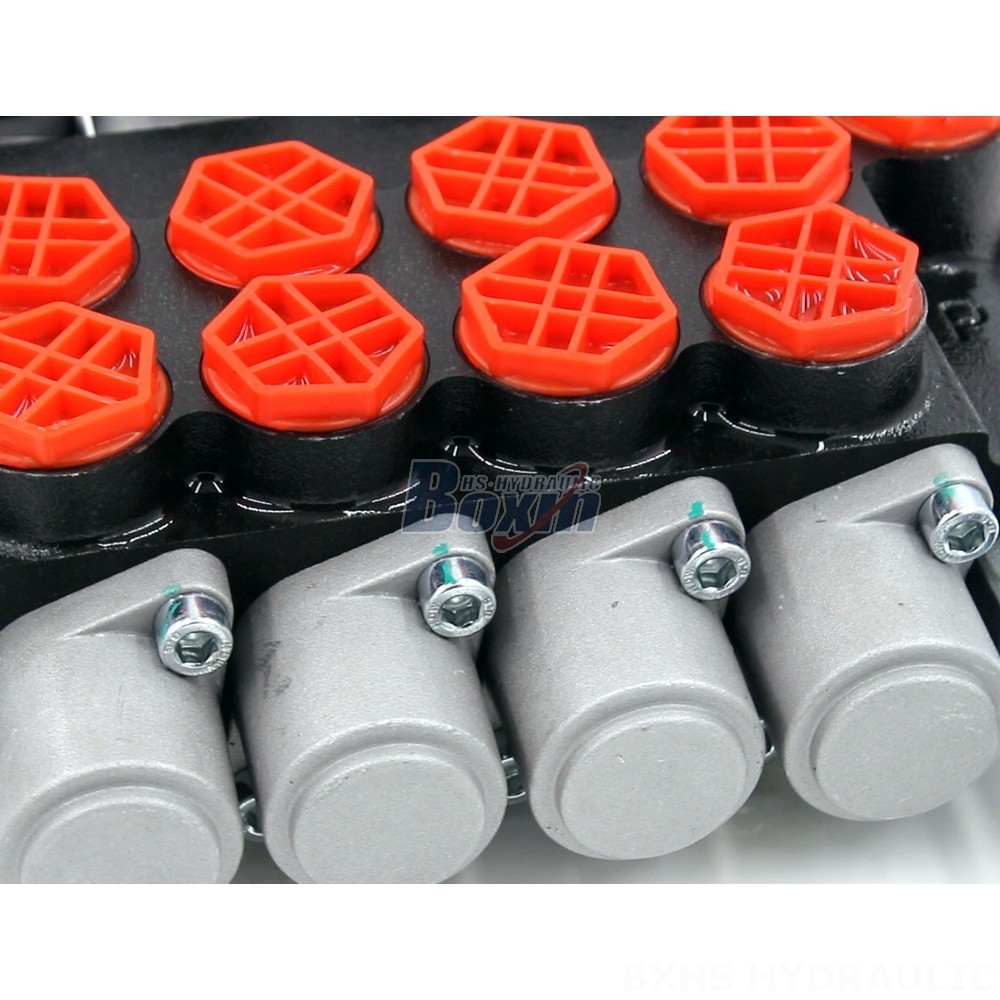

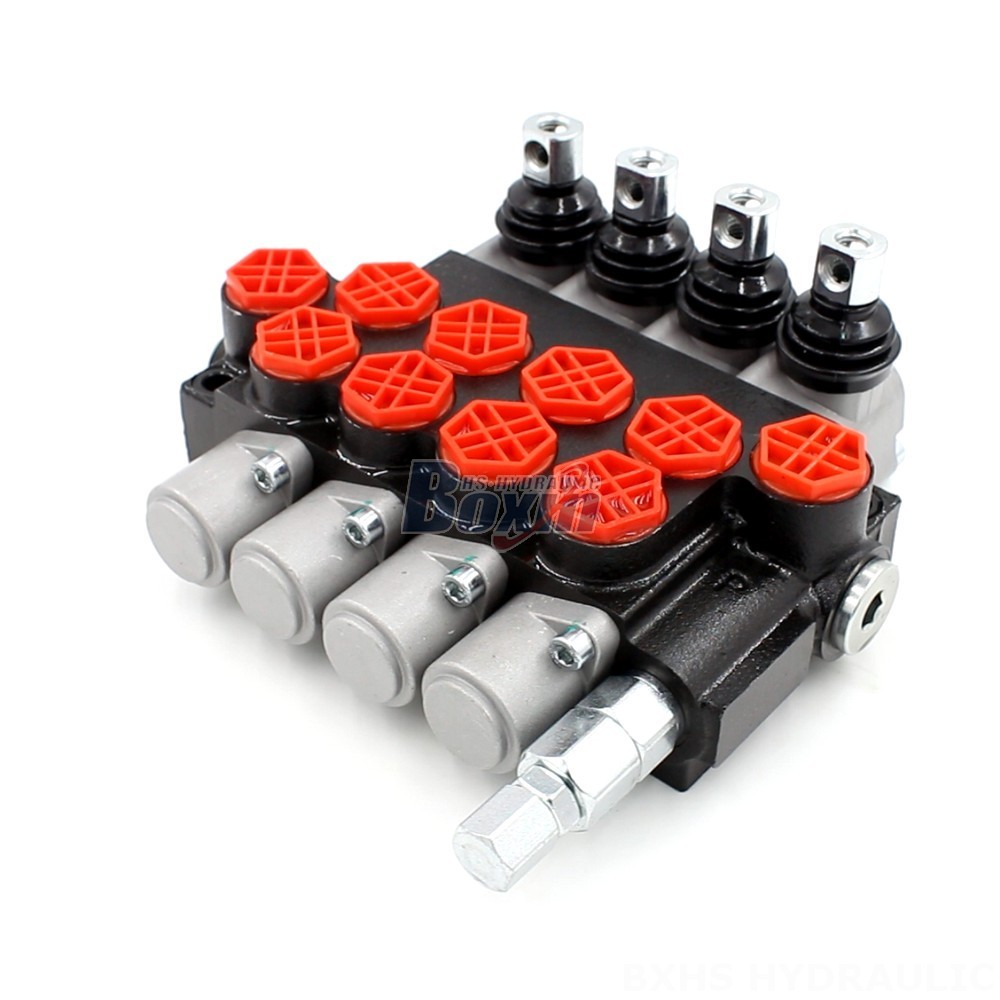

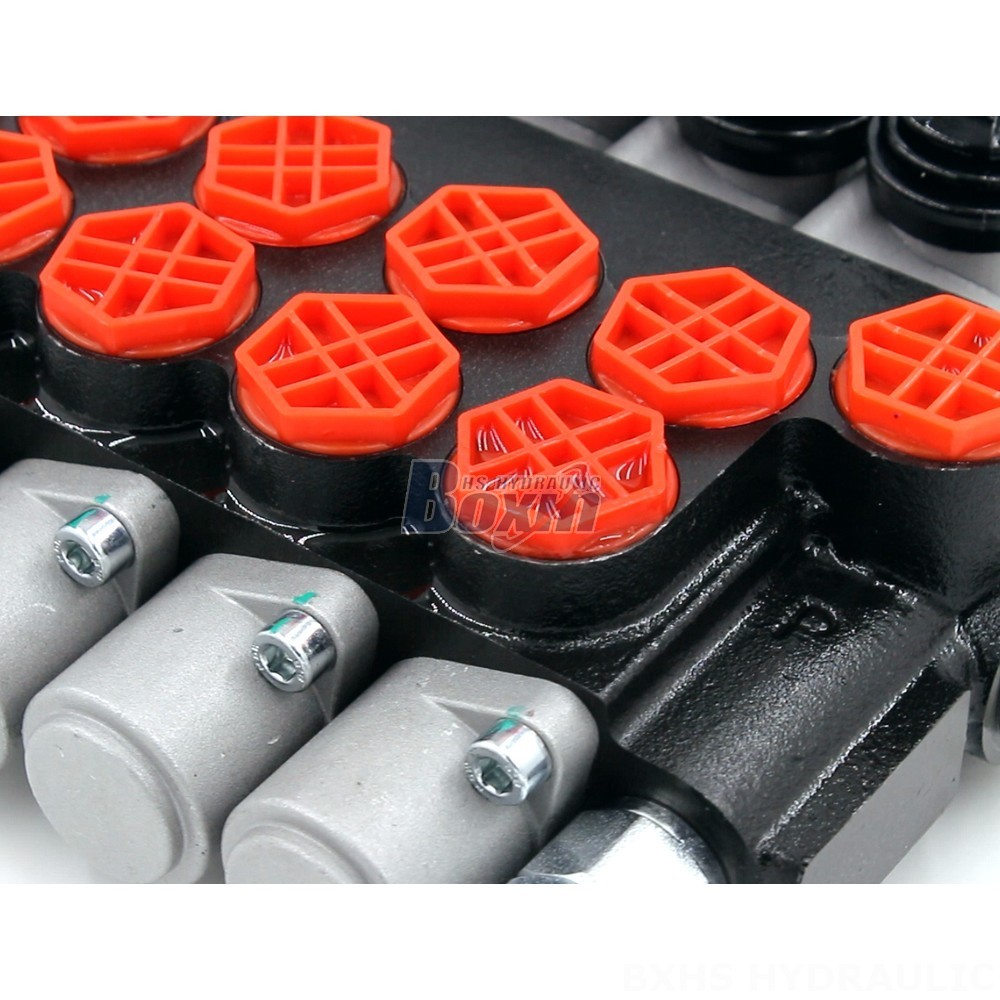

**P40-G12-G38-4OT Manual Monoblock Directional Valve**
**Factory-Direct Supply for Value and Reliability**
As a leading manufacturer of hydraulic products, we offer factory-direct supply of the P40-G12-G38-4OT Manual Monoblock Directional Valve, ensuring competitive pricing and quality control from the source.
**Product Specifications**
- Control Method: Manual
- Section: 4 Section
- Structure Type: Monoblock Valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 4 Spool
- Series: P40 Series
**Versatile Applications**
The P40-G12-G38-4OT Manual Monoblock Directional Valve finds applications in various industries, including:
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Quality Assurance**
Our P40 Series valves are ISO and CE certified, guaranteeing adherence to international quality standards. We prioritize customer satisfaction and provide comprehensive after-sales support to ensure optimal performance and longevity of our products.
