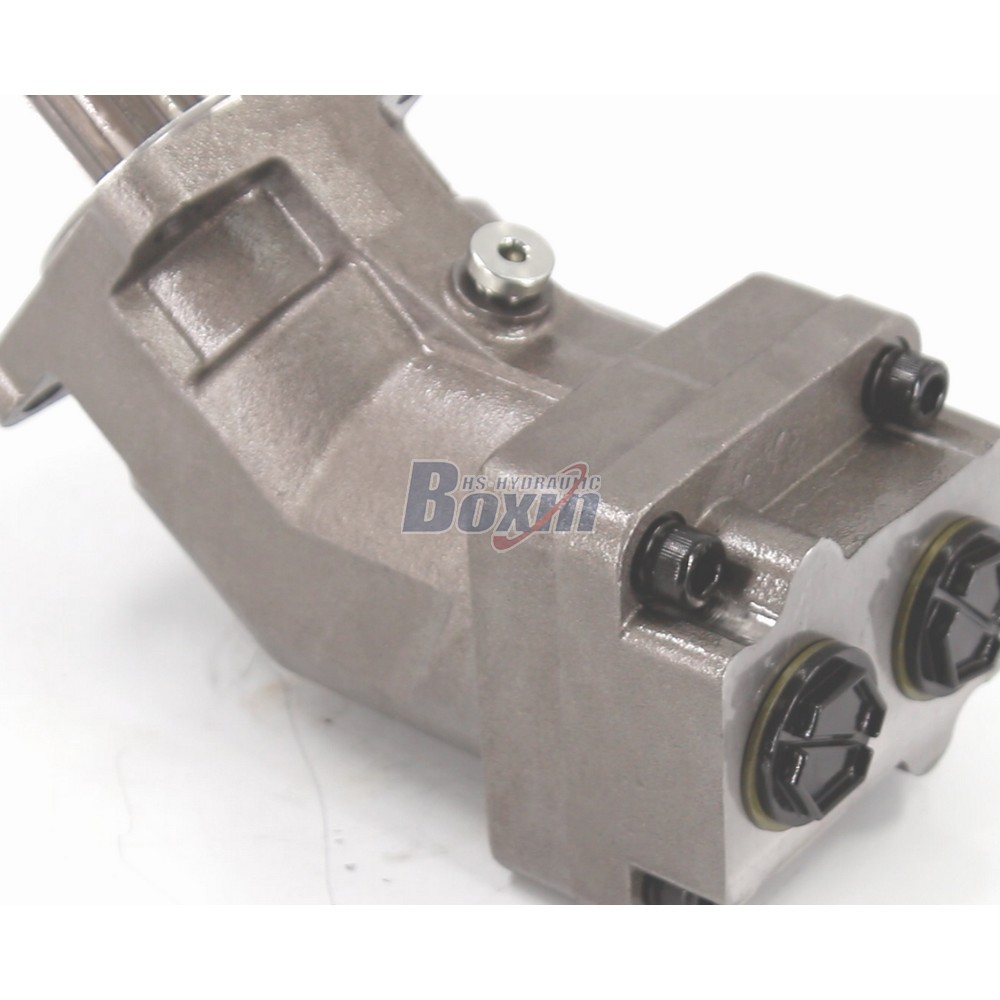

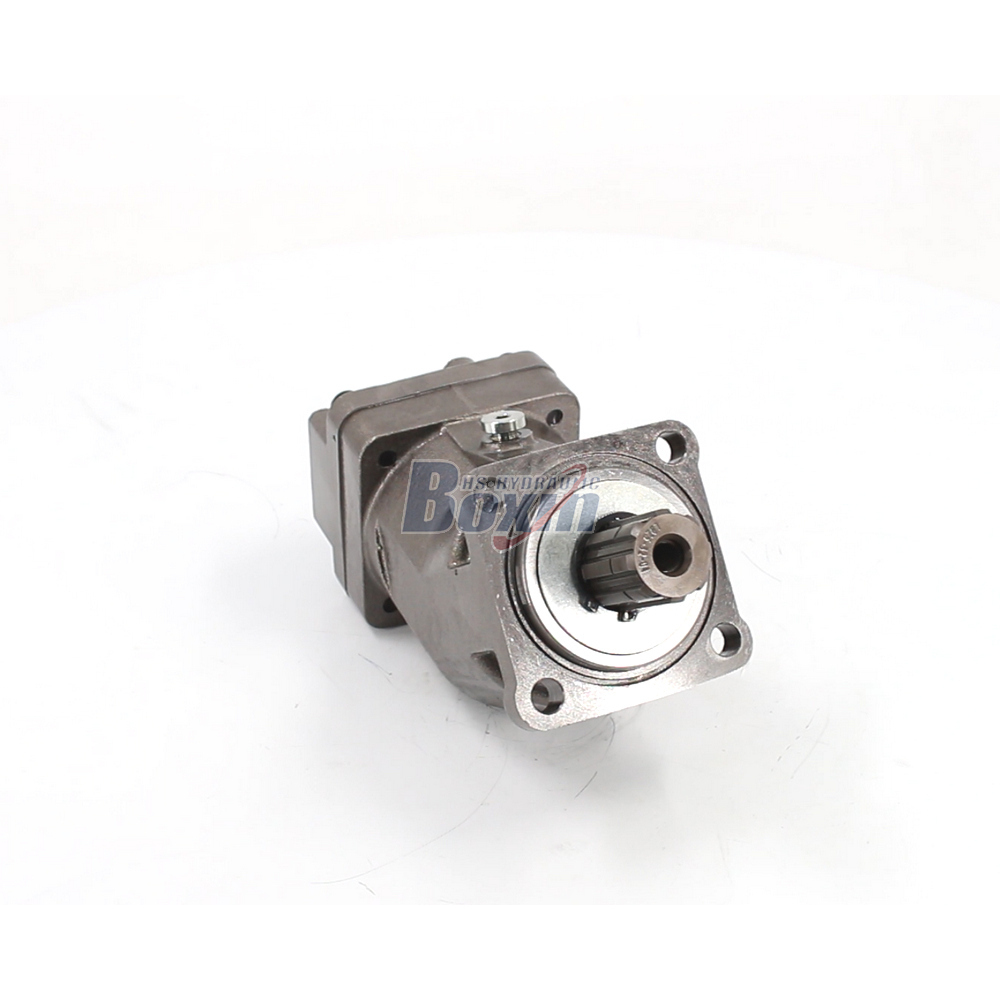

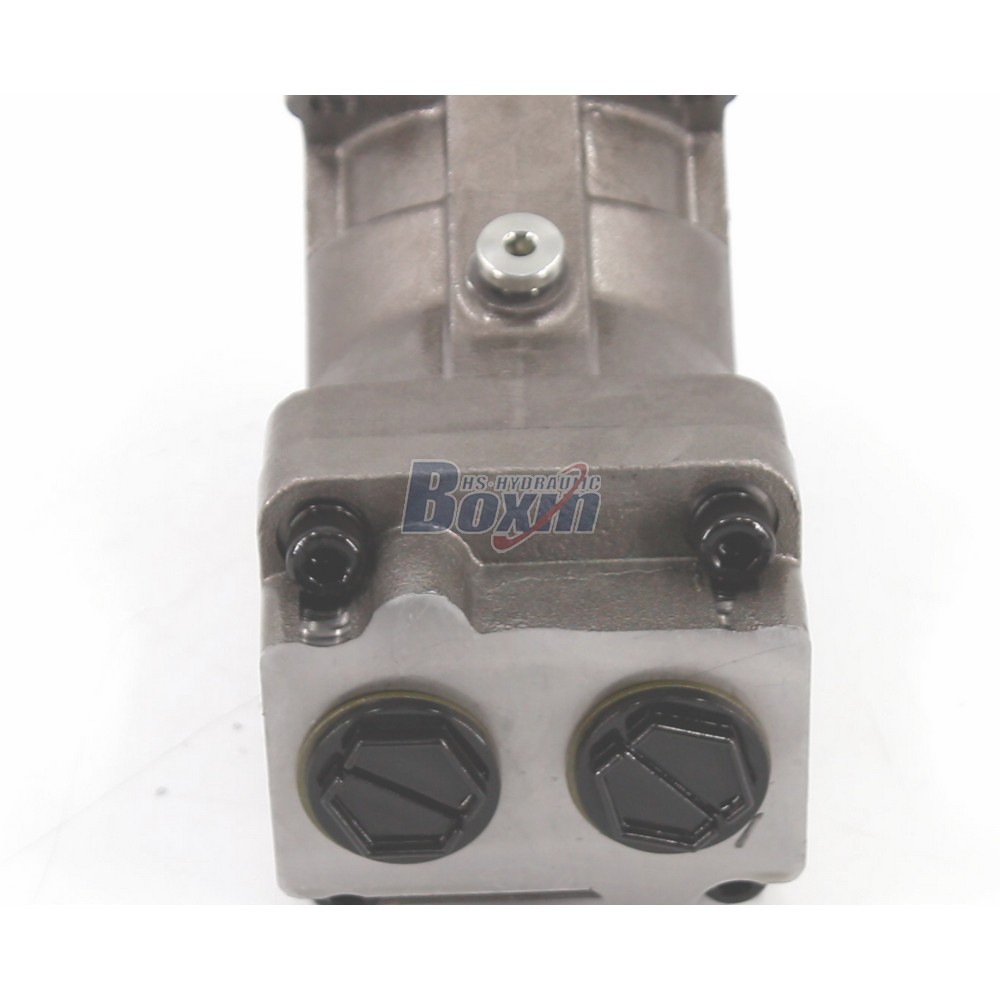

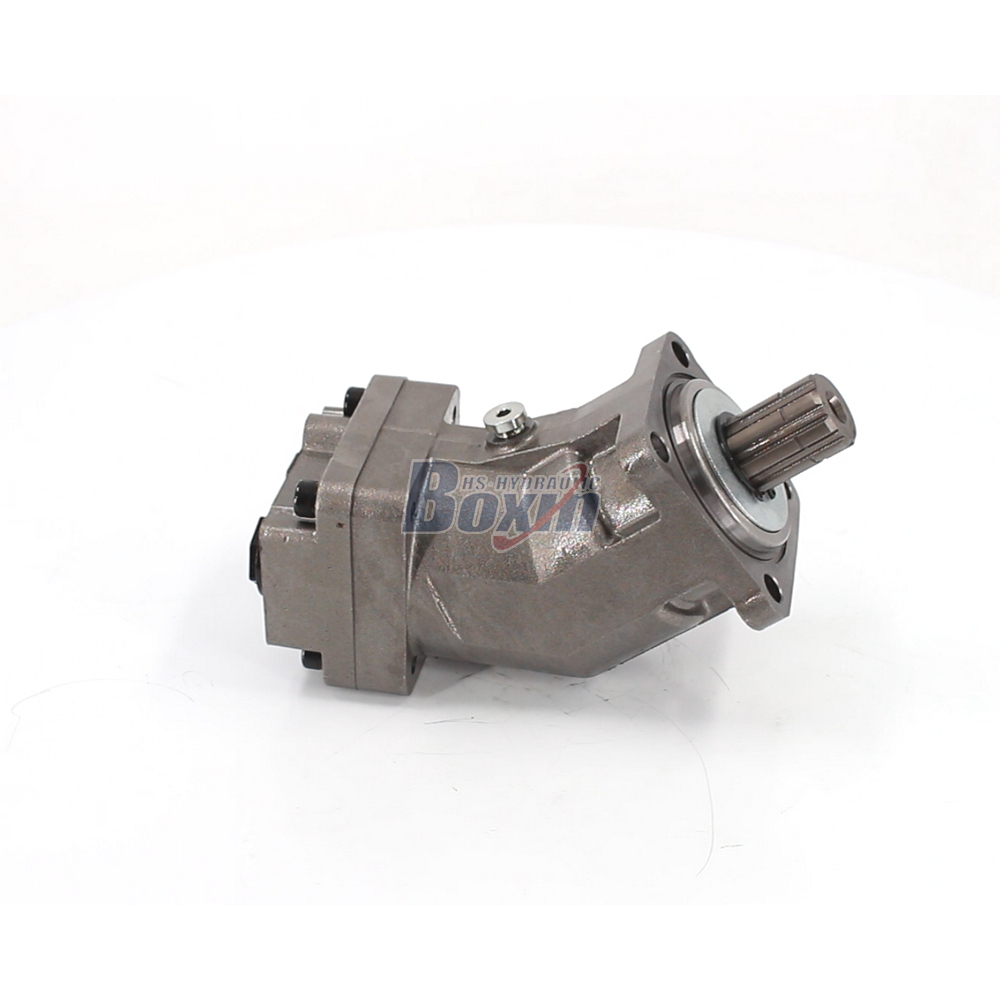

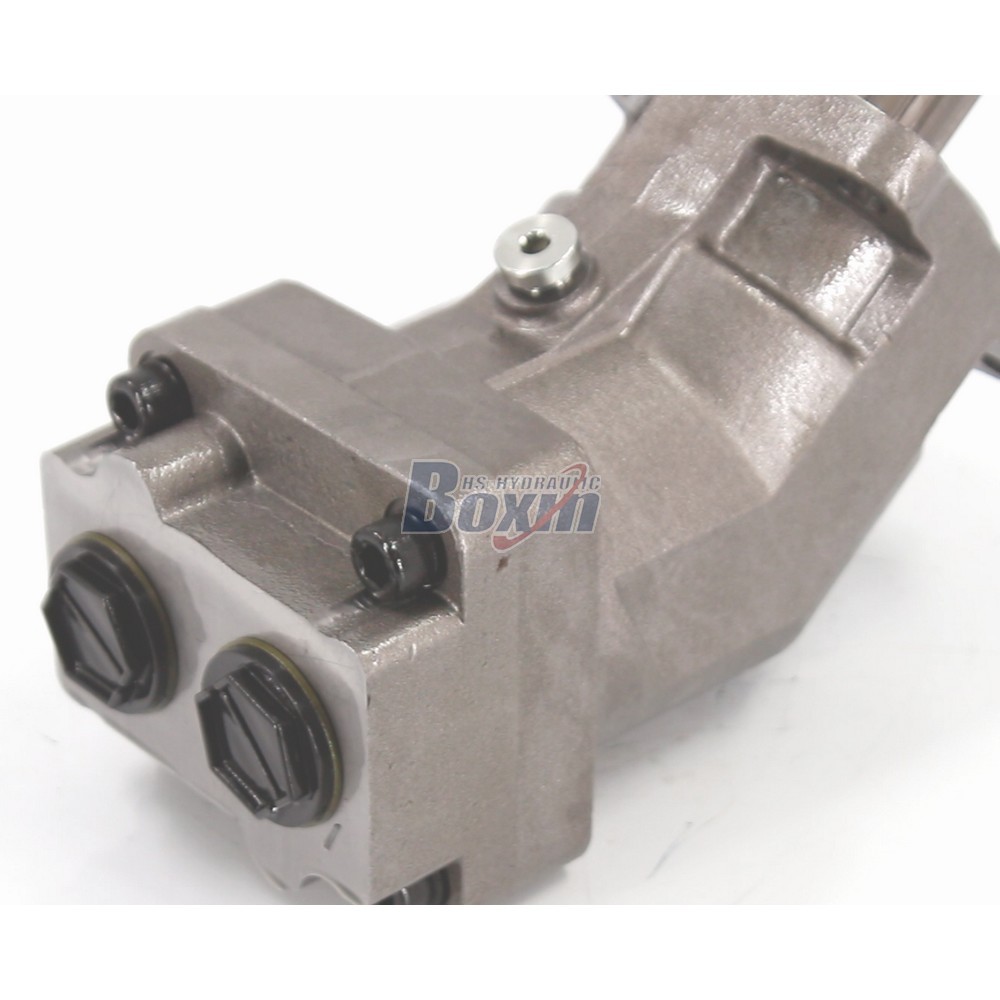

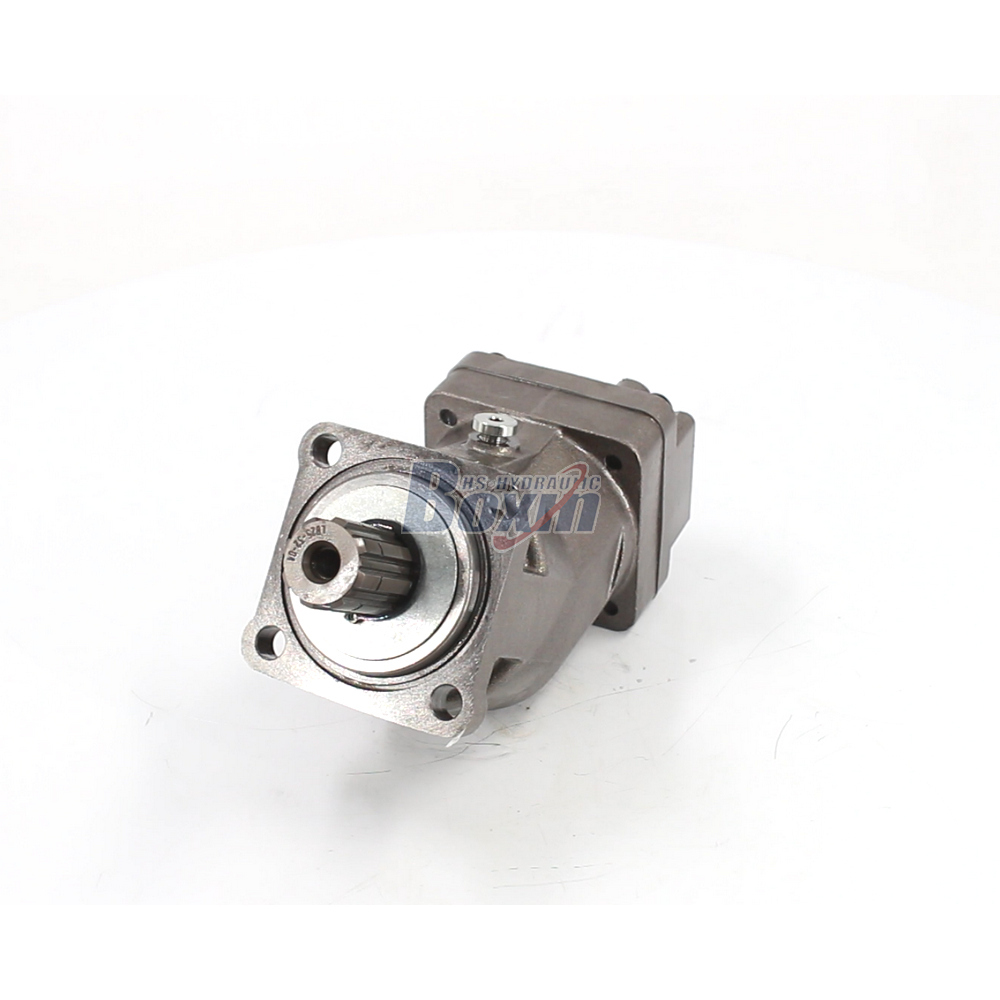

Wholesale XPi-32L 32 cc/rev Hydraulic Piston Pump from Certified Factory

Deslocamento:32 cc/rev

Pressão Nominal:38 MPa (5511 psi)

Pressão Máxima:42 MPa (6091 psi)

Velocidade Máxima:1900 r/min

Rotação:L: Esquerdo (sentido anti-horário)

Marca:BXHS

Tipo de produto:Bomba de pistão hidráulica

Série de produtos:Série XPI Bomba de pistão hidráulica

Tamanho da embalagem:34*17*17

Peso bruto:13.00 kg

Disponibilidade: Em estoque

155 Visualizações estão procurando por este produto

Wholesale XPi-32L 32 cc/rev Hydraulic Piston Pump from Certified Factory

Wholesale XPi-32L 32 cc/rev Hydraulic Piston Pump from Certified Factory

Wholesale XPi-32L 32 cc/rev Hydraulic Piston Pump from Certified Factory drawing image

This XPi-32L Hydraulic Piston Pump features a 32 cc/rev displacement, rated pressure of 38 MPa (5511 psi), and max speed of 1900 r/min. Manufactured by a certified factory with 25+ years of experience, it is ideal for mini-excavators, skid steers, and agricultural vehicles. We offer OEM/ODM services and 100% tested quality assurance.

Série XPI Bomba de pistão hidráulica Parâmetros
Deslocamento 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev
Pressão Nominal 38 MPa (5511 psi)
Pressão Máxima 42 MPa (6091 psi)
Velocidade Nominal 1600 r/min
Velocidade Máxima 1900 r/min
Rotação L: Esquerdo (sentido anti-horário), R: Direito (sentido horário)
Material Ferro Fundido
Estrutura Swashplate
Versão da flange Orifícios de montagem ISO-4
Tipo de veio H: Chaveta retangular

**1. High-Efficiency Hydraulic Piston Pump Specifications**
- Delivers consistent flow with 32 cc/rev displacement, operating at a rated pressure of 38 MPa (5511 psi) and max pressure of 42 MPa (6091 psi).
- Optimized for left rotation (counter-clockwise) with a rated speed of 1600 r/min and max speed of 1900 r/min, ensuring stable power output for heavy-duty tasks.

**2. Certified Professional Manufacturer Quality Control**
- Produced in our 68,000㎡ facility with 260+ vertical machining centers; every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification, CE compliance, and SGS detection, guaranteeing reliability backed by 25+ autonomous patents and strict oil cleanliness standards.

**3. Versatile Application for Construction Machinery Hydraulic Pump Needs**
- Specifically engineered to fit Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, and Telehandlers, providing seamless integration for earth-moving and material handling.
- Also compatible with Agricultural Tractors, Forklifts, and Stone Crushers, offering a durable solution for diverse industrial vehicle hydraulic systems.

**4. Factory Direct Sales Customization & OEM Support**
- Leverage our 35+ senior engineers for tailored solutions, including custom casings, laser logo marking, and full OEM/ODM private label services.
- As a source factory with 1.5 million annual capacity, we provide flexible Wholesale China Factory pricing and direct support for branded distributors seeking unique market positioning.

**5. Reliable Exported Worldwide Logistics & Compatibility**
- Designed as a direct replacement for major international brands, ensuring easy retrofitting without system modifications for global maintenance markets.
- Secured with anti-rust treatment and heavy-duty wooden crate packaging, ensuring safe delivery for Wholesale Hot Sale orders to any destination worldwide.
