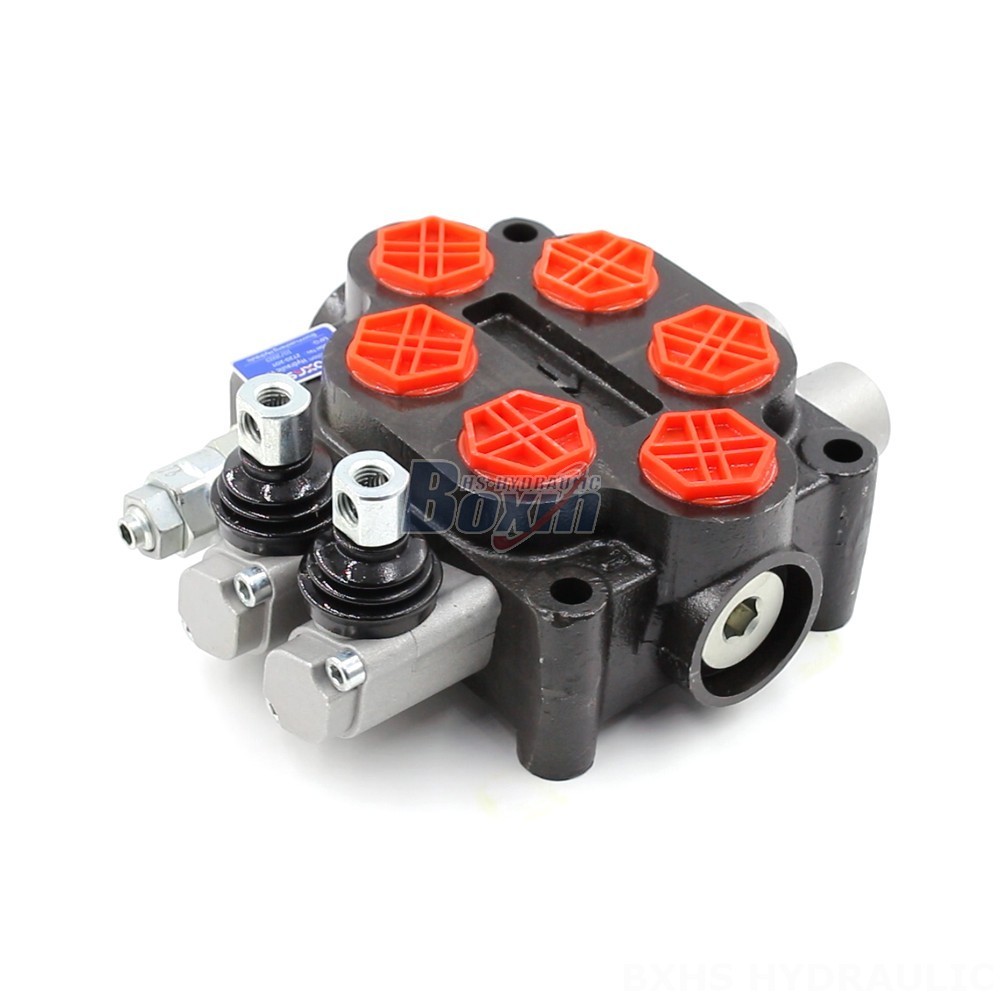

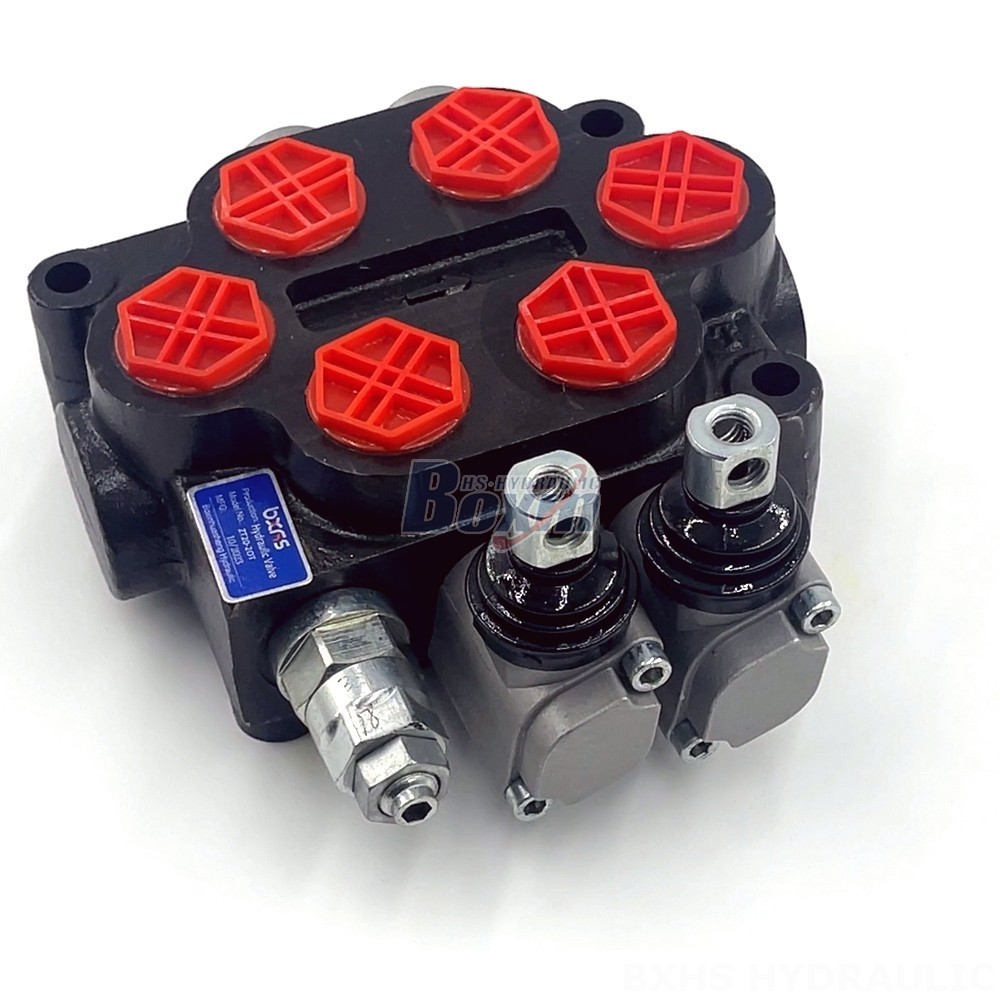

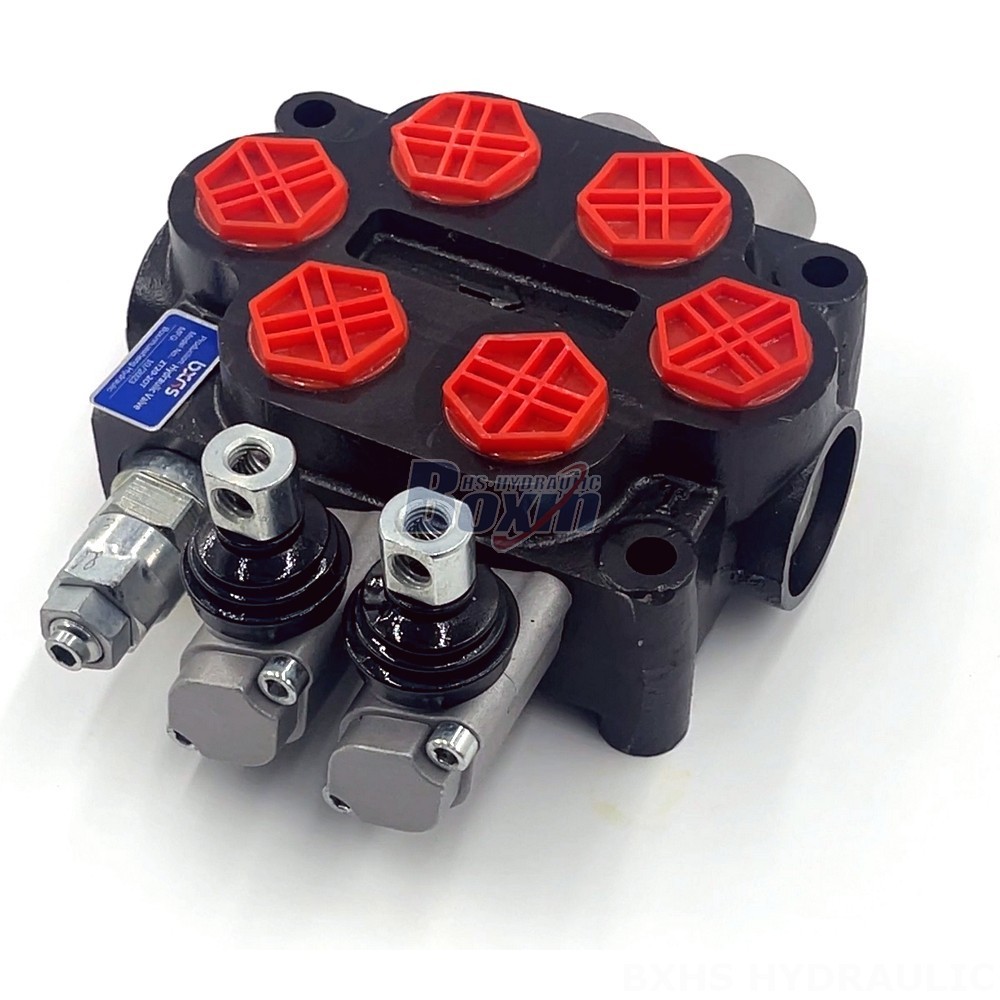

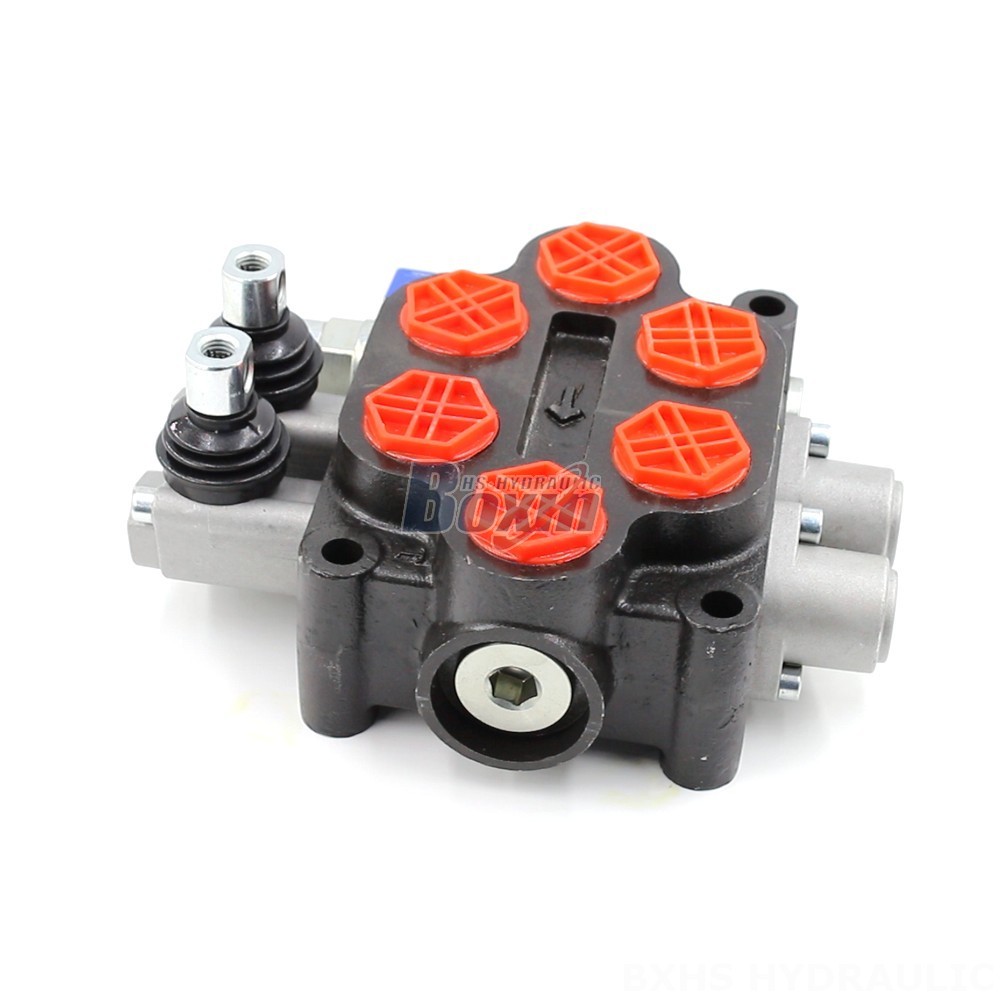

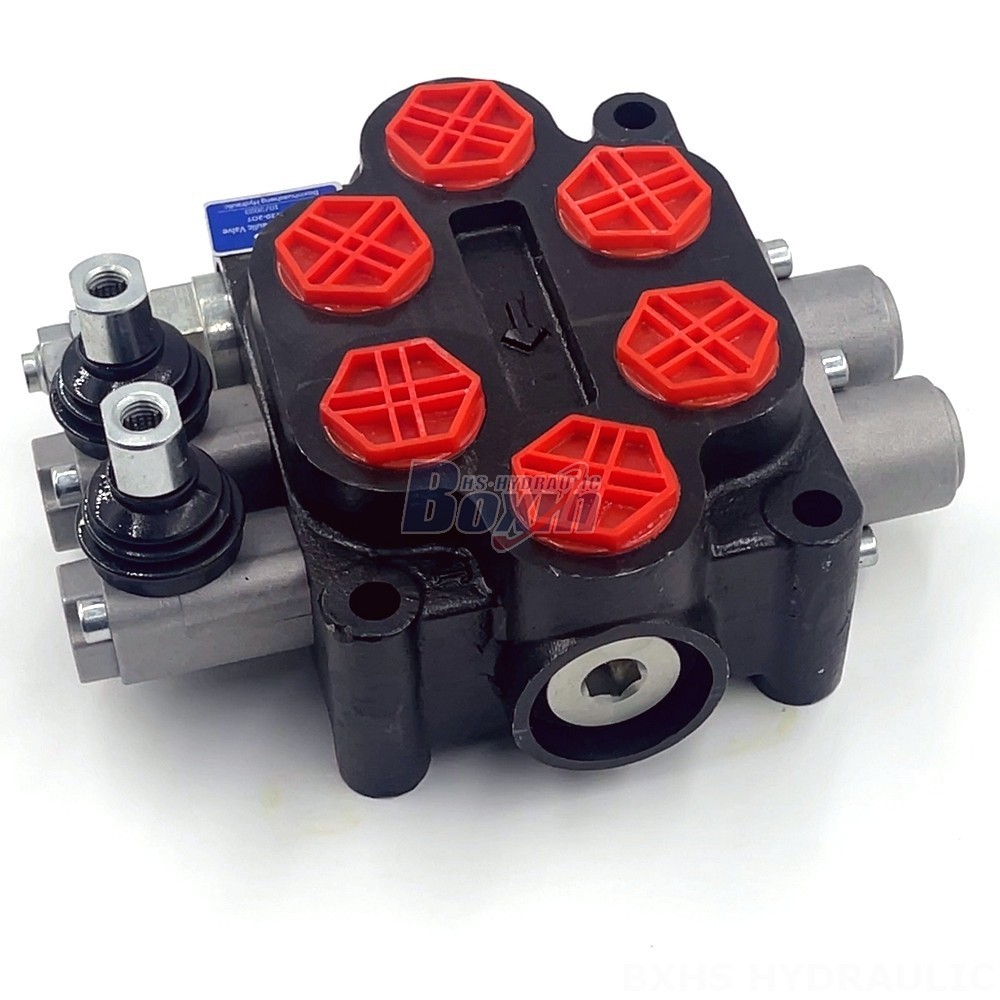

The ZT20 Series Hydraulic Control Valve with Joystick is a high-performance, reliable directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, it delivers a rated flow of 100 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations.
| Série ZT20 Válvula de Controle Hidráulico Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis |
| Fluxo Nominal | 100 L/min (26,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The ZT20 Series Hydraulic Control Valve with Joystick is a 2-section, manual control monoblock valve designed for reliable and efficient hydraulic operations. With a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it is capable of handling heavy loads in a variety of demanding applications. The valve features a 2-spool design and operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). Its robust construction ensures long-lasting performance even in extreme temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for a wide range of applications, the ZT20 Series valve is ideal for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
