Produção e Entrega
Prazo de produção de 15 a 30 dias
1222 Visualizações estão procurando por este produto

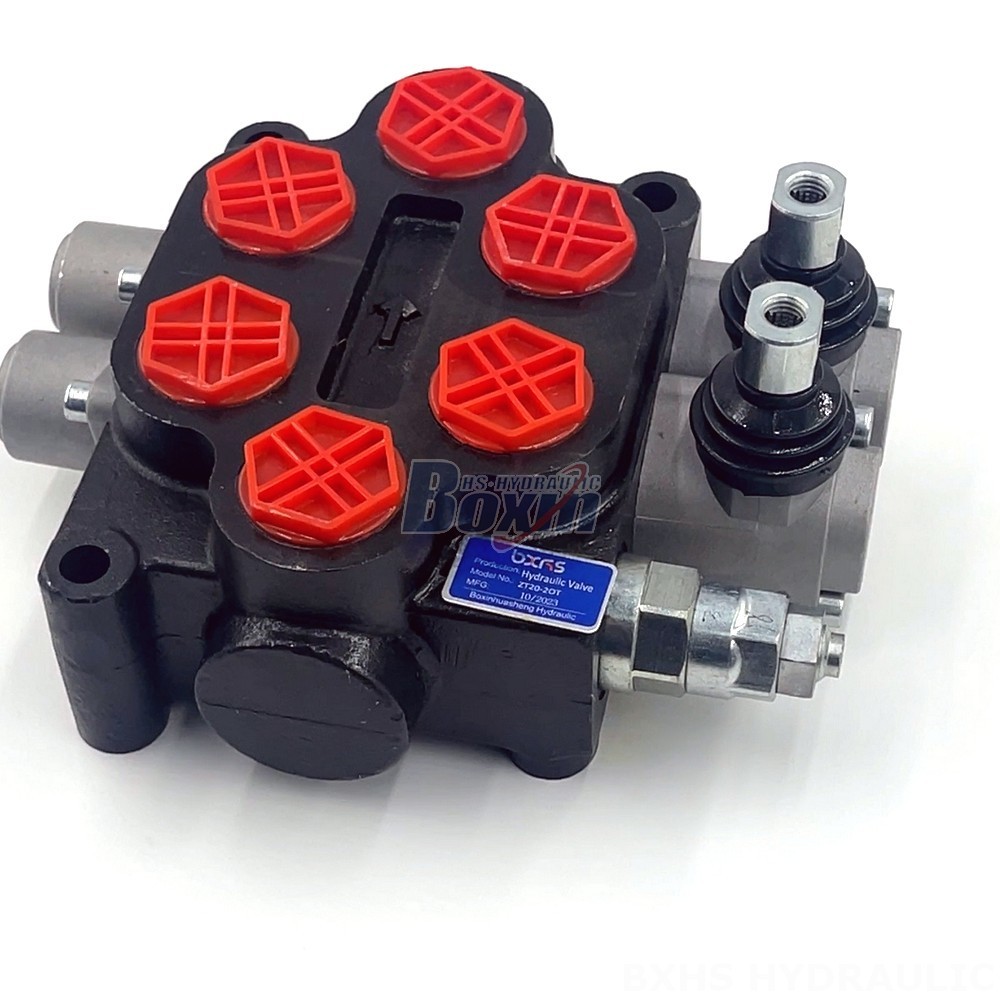

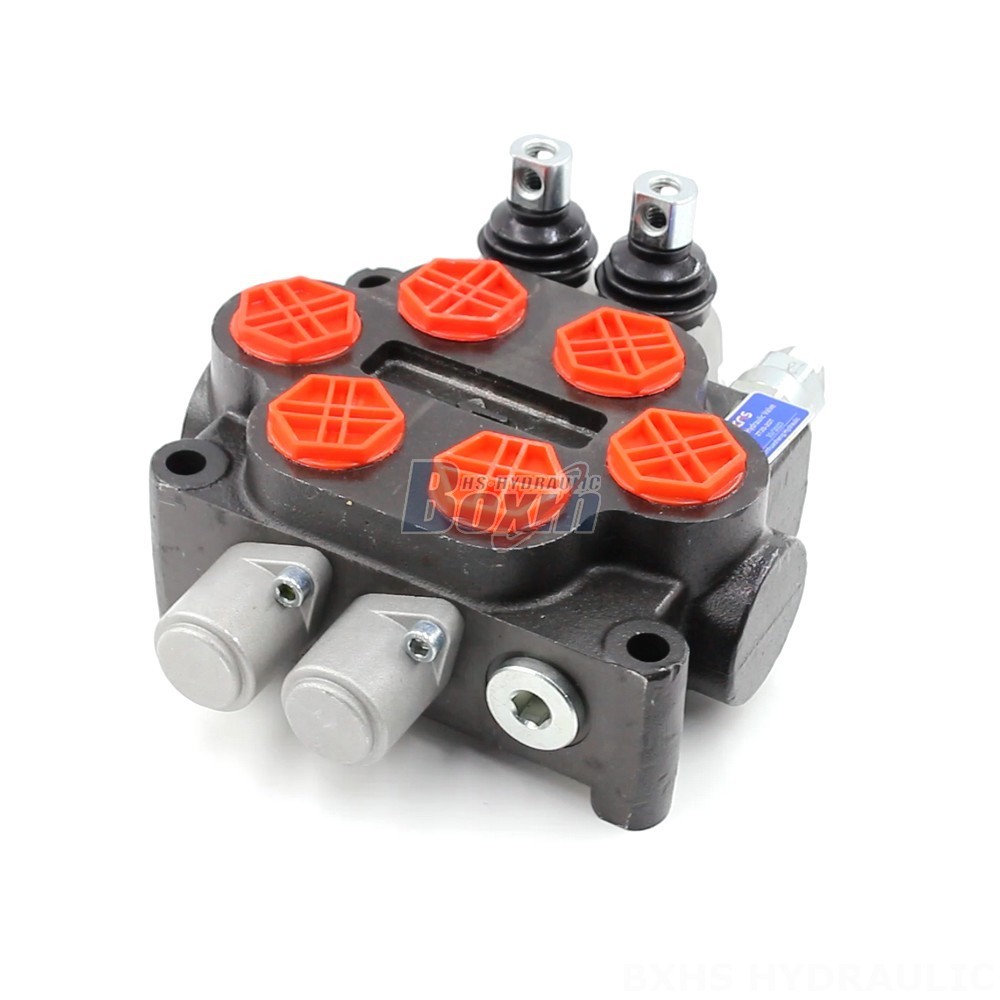

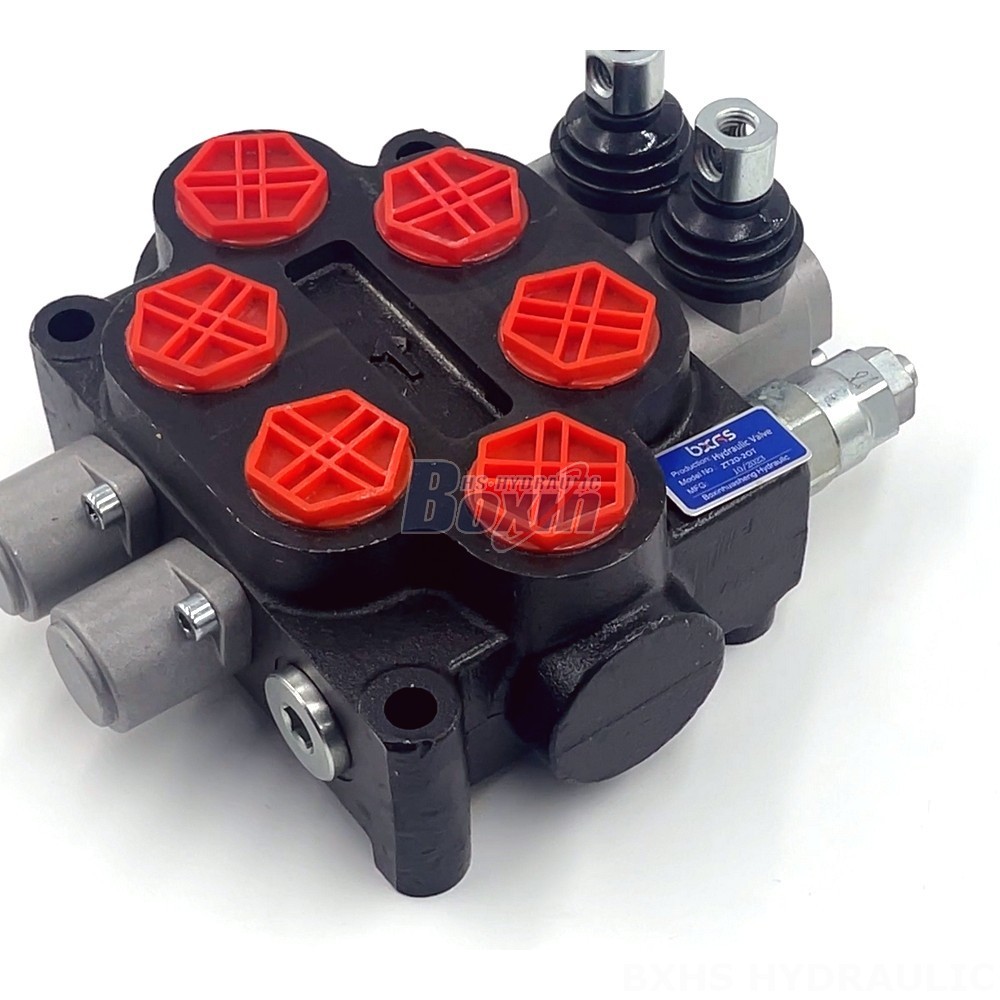

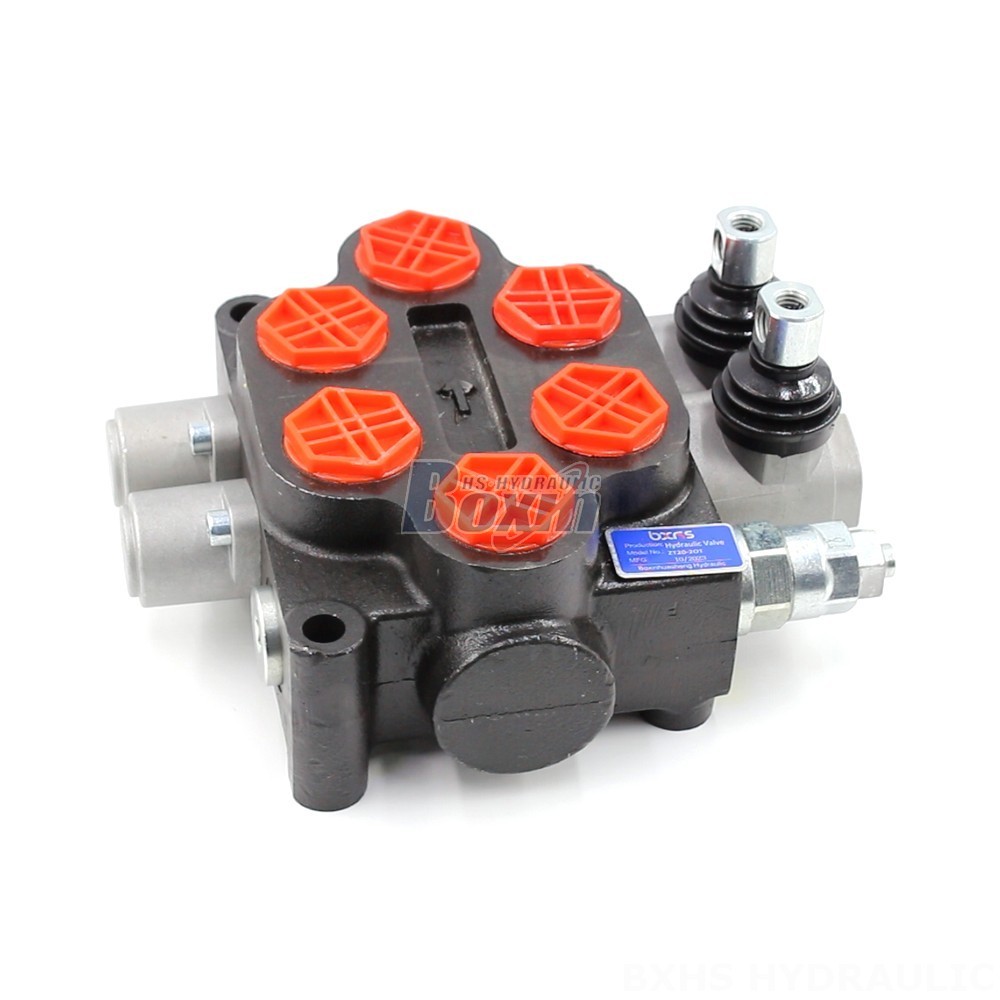

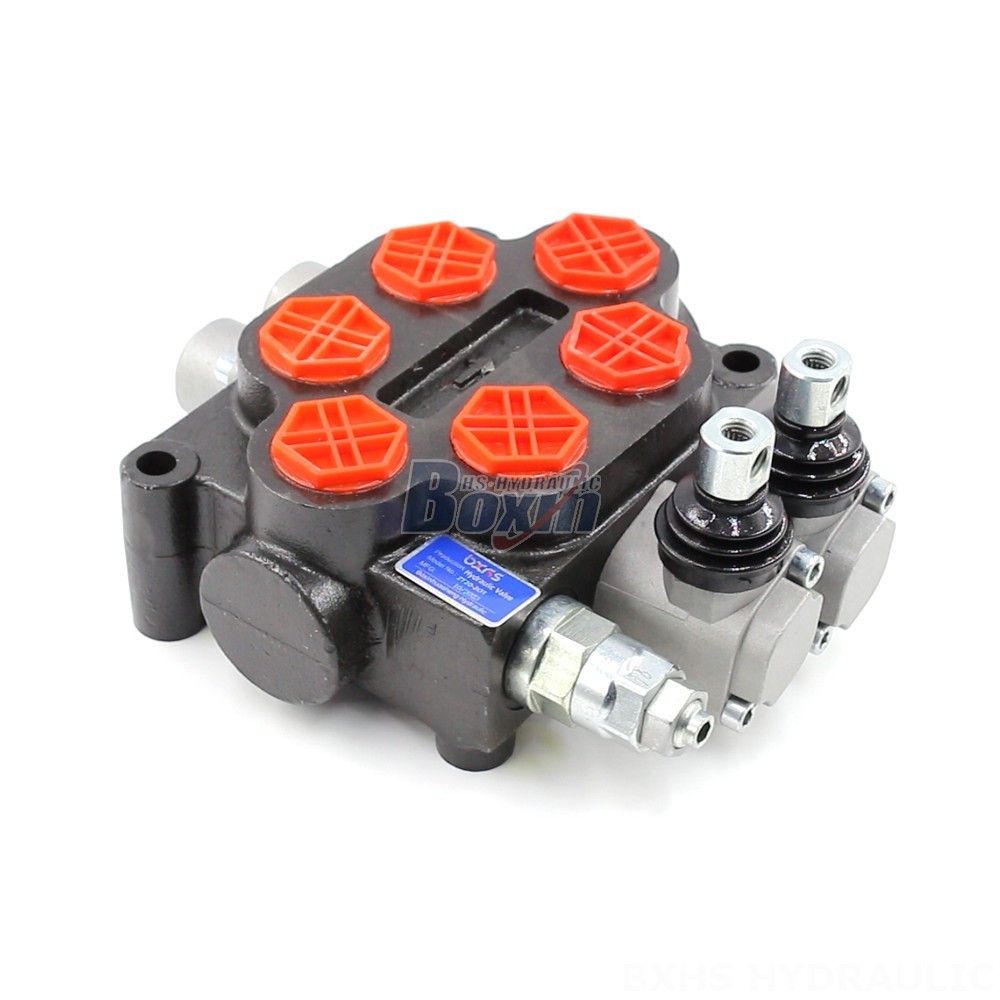

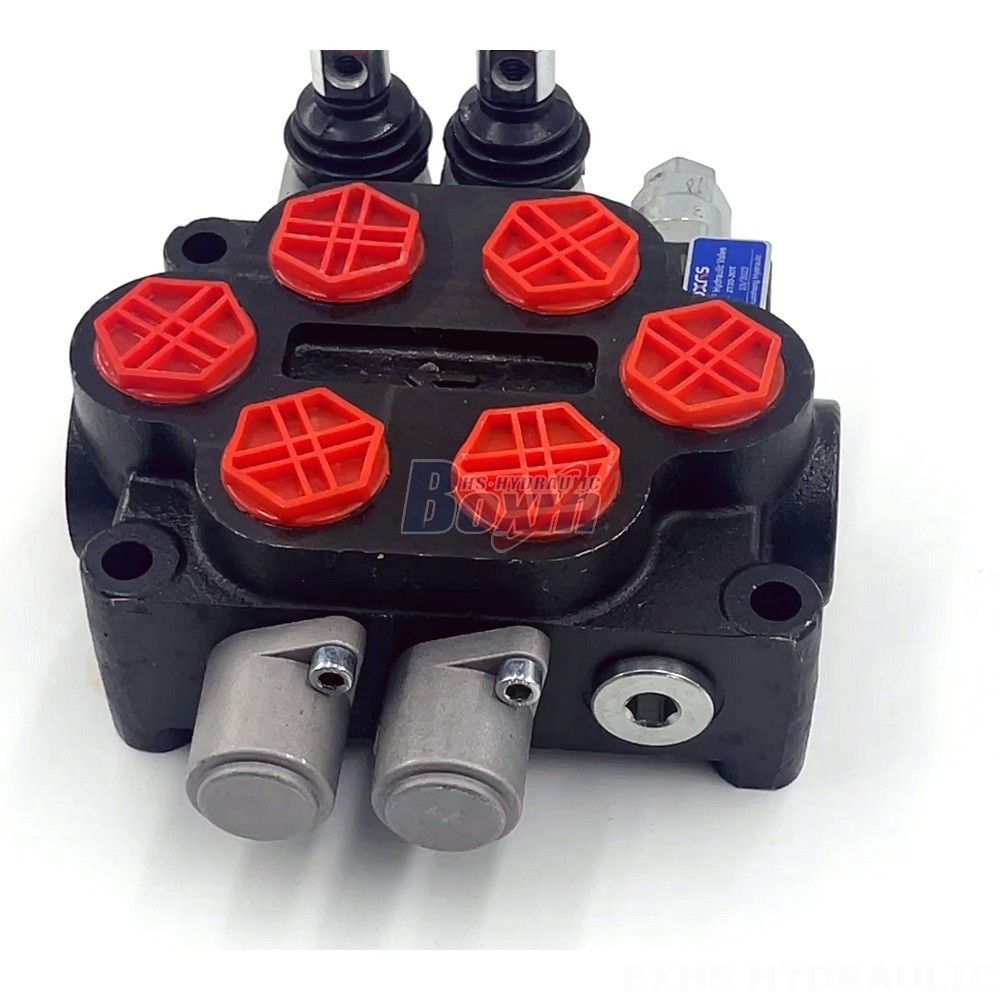

The ZT20 Series 4 Way Hydraulic Solenoid Valve is a manual, 2-spool monoblock directional valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This robust valve features a rated flow of 100 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery.
| Série ZT20 Válvula de Controle Hidráulico Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis |
| Fluxo Nominal | 100 L/min (26,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The ZT20 Series 4 Way Hydraulic Solenoid Valve is a versatile and reliable solution for controlling hydraulic systems in various applications. It features a manual control method, 2 sections, and a monoblock valve structure. The valve boasts a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 250 bar (3600 psi), ensuring efficient operation even under demanding conditions. The ZT20 Series is compatible with a wide range of operating viscosities (15 - 75 mm²/s) and ambient temperatures (-40°C to +80°C). Designed for robust performance, this valve is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. With its reliable performance and versatility, the ZT20 Series is an excellent choice for manufacturers and distributors seeking high-quality hydraulic valves for various applications.
