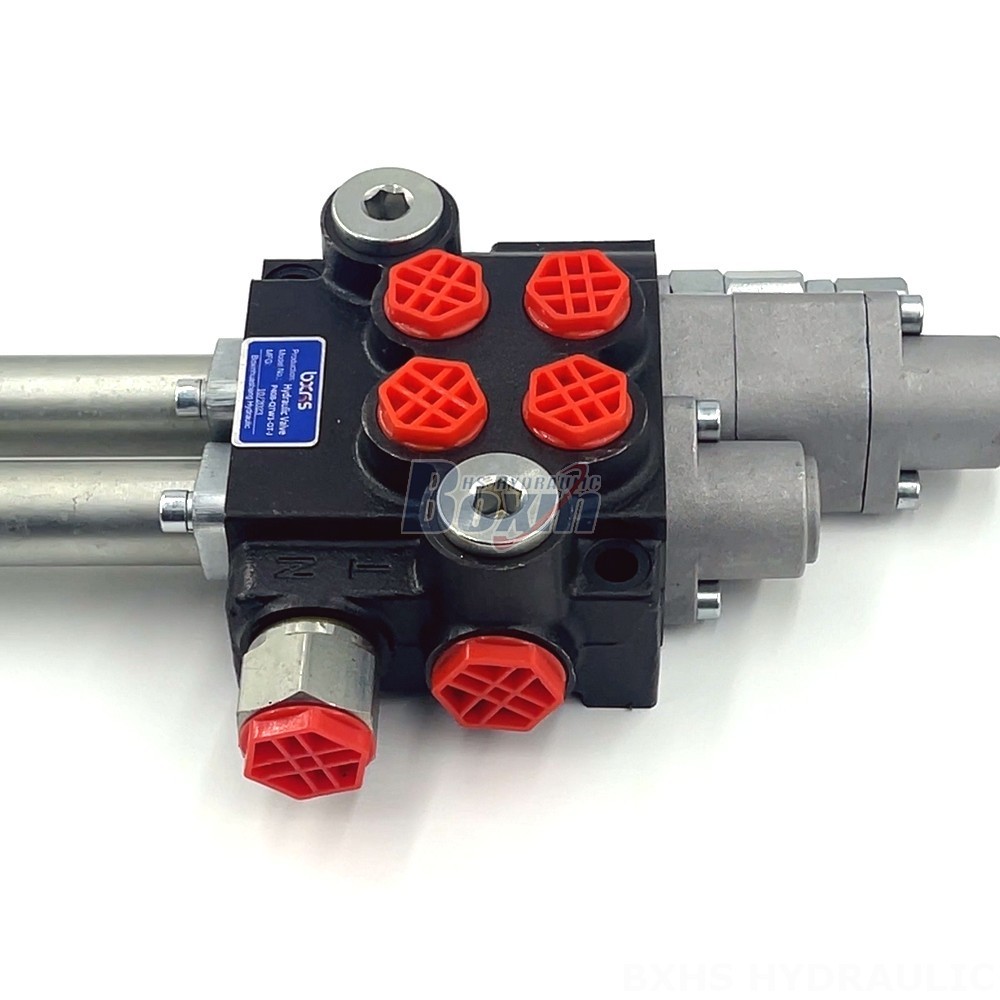

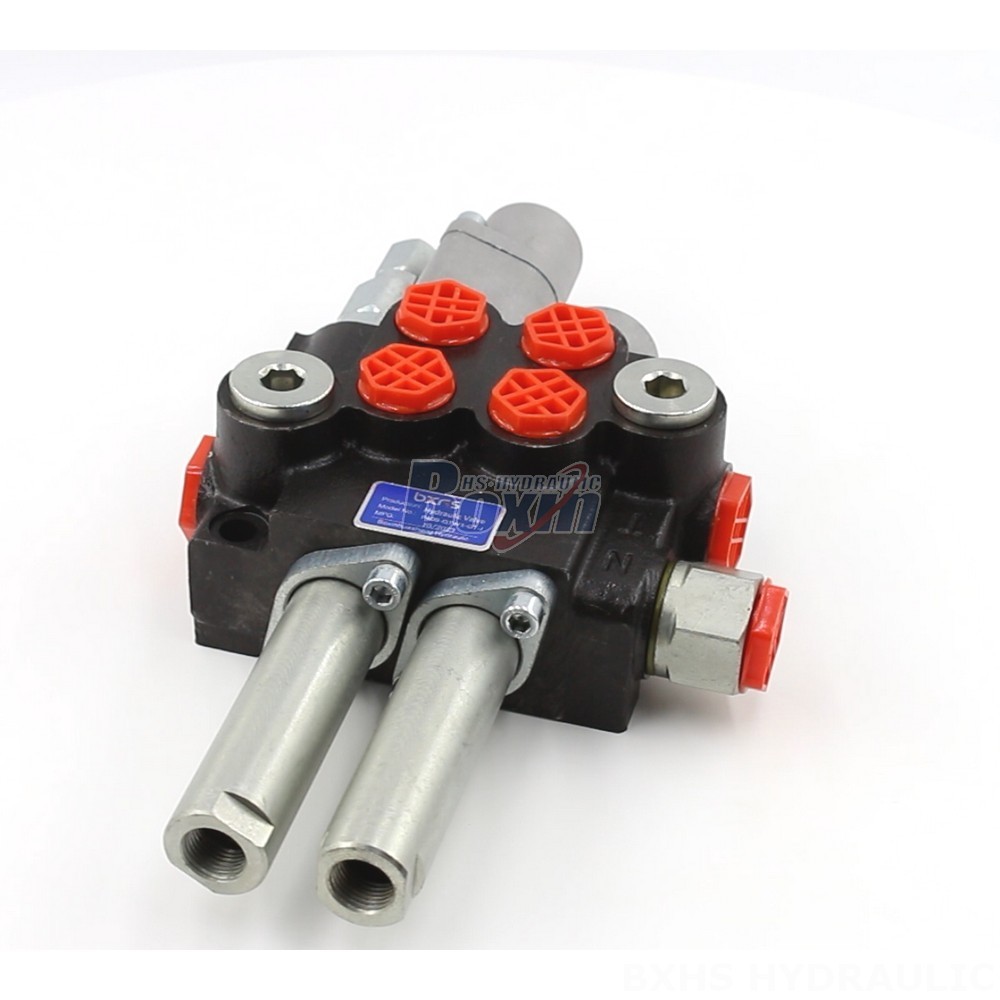

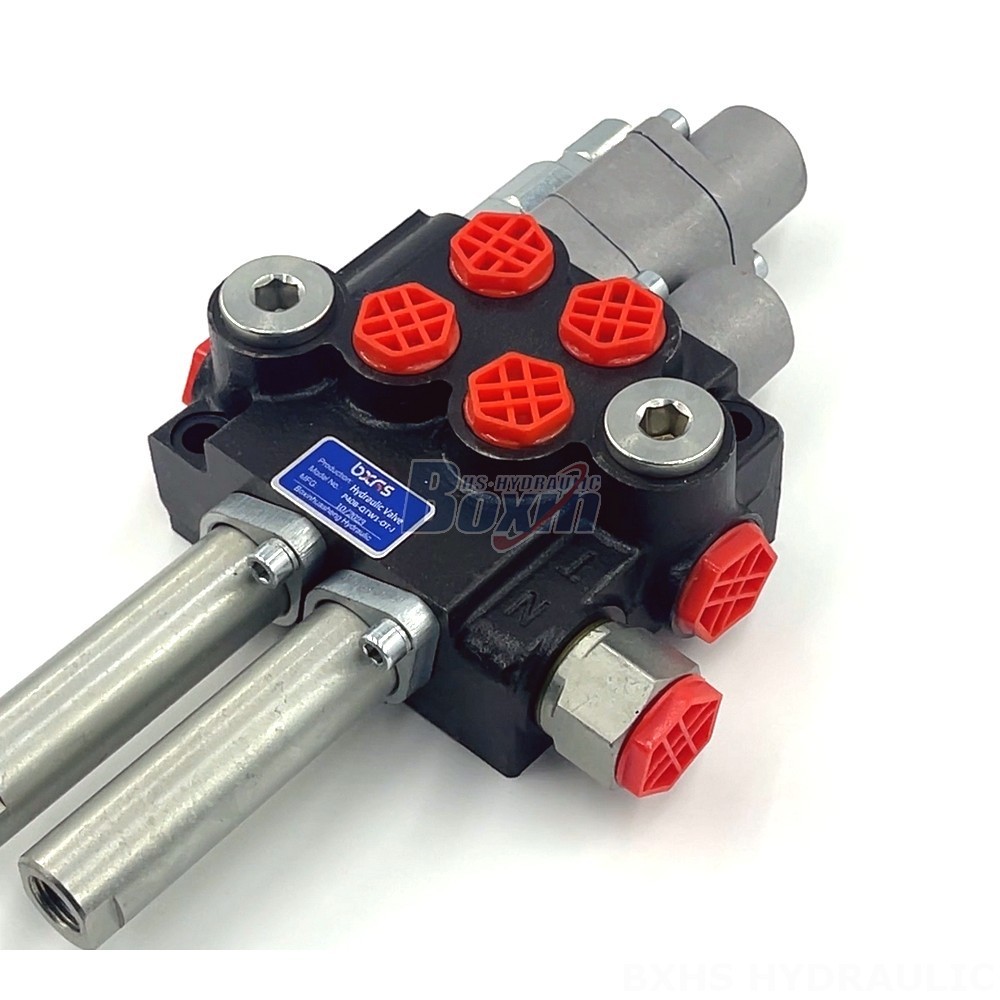

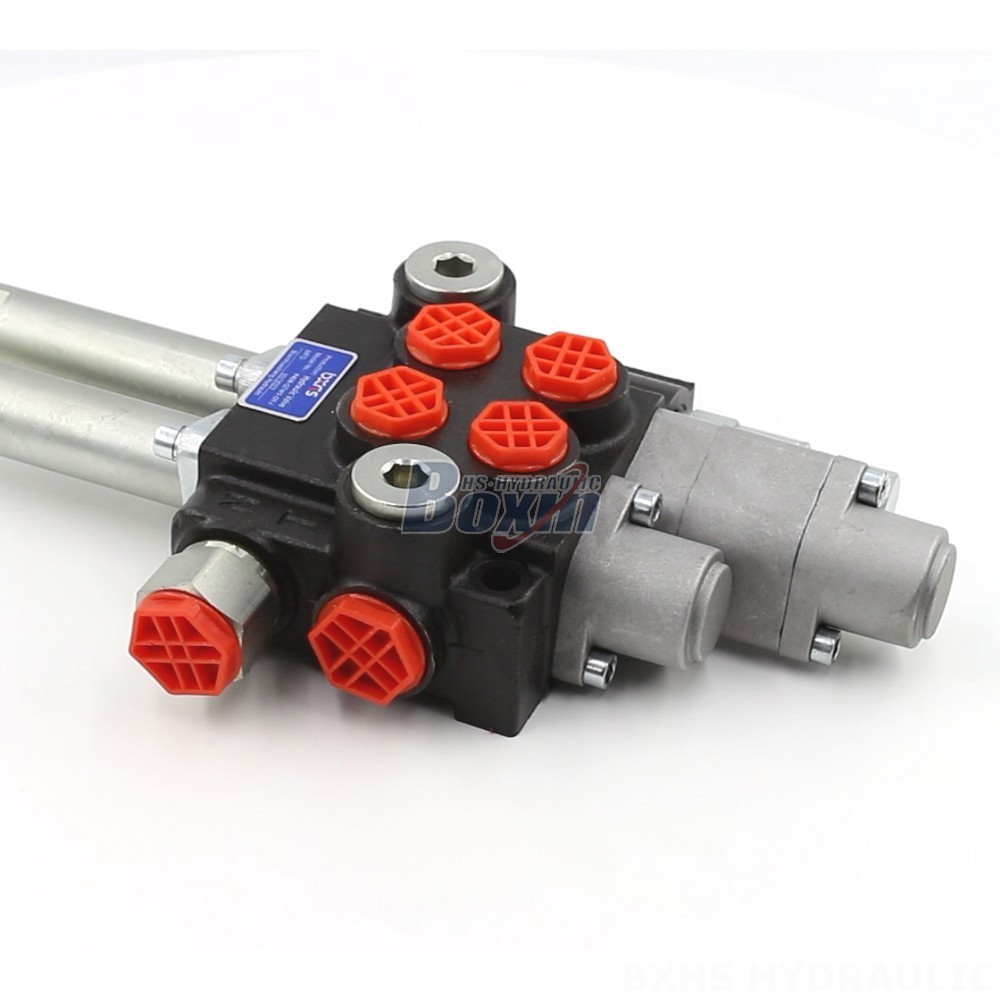

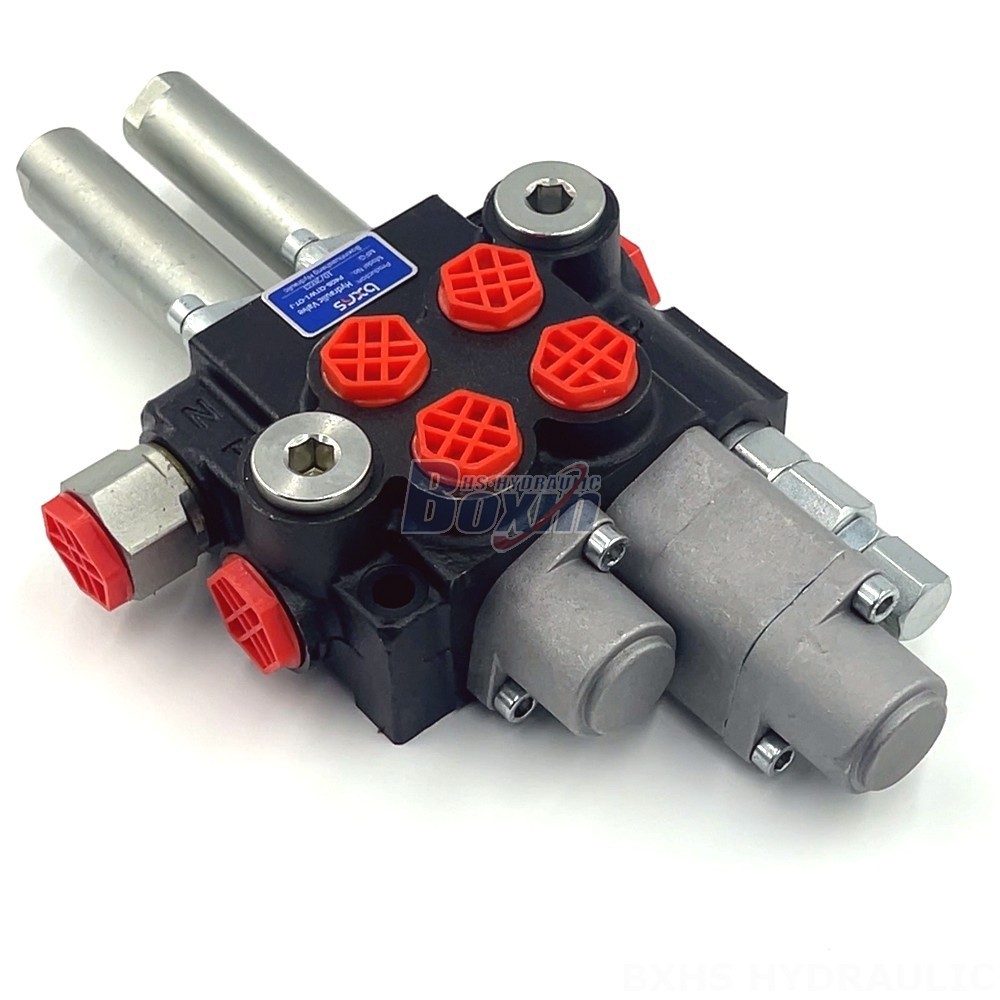

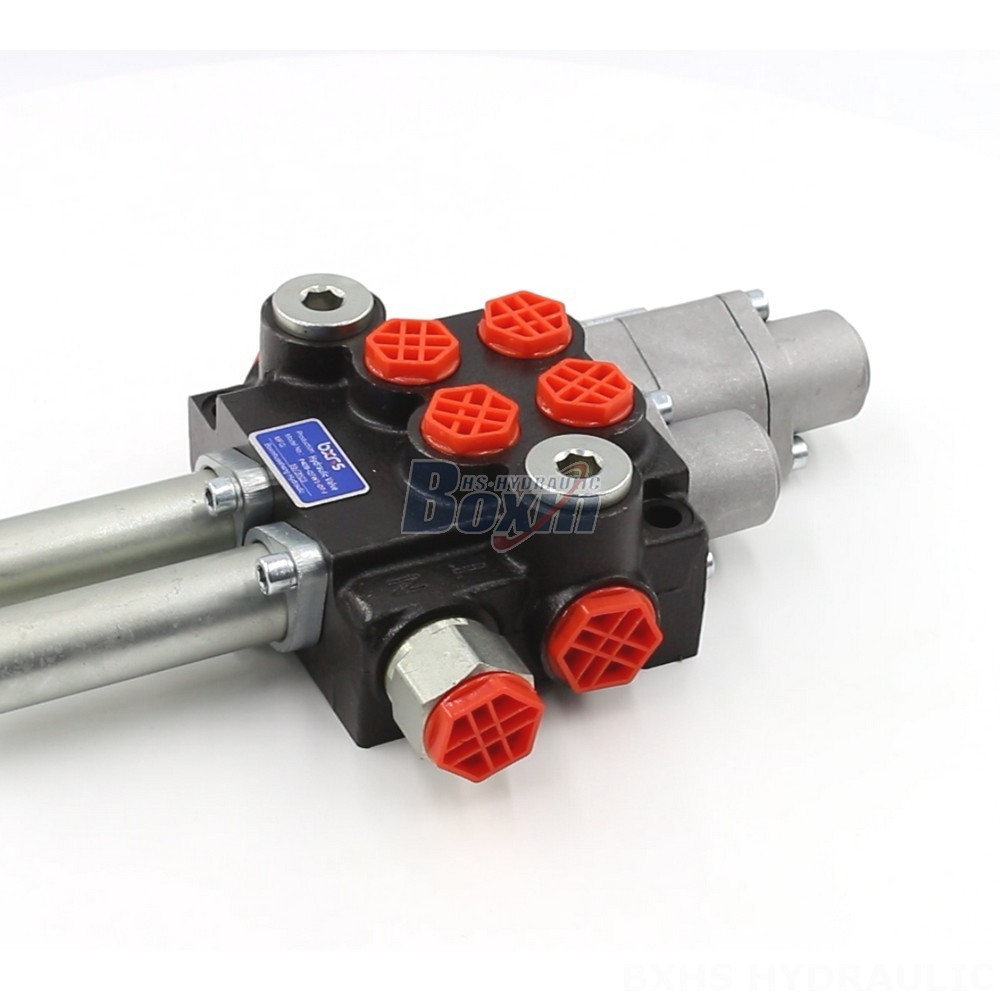

Introducing our exclusive factory deals on high-performance P40 Floating Cable 2 Spool Monoblock Directional Valves. These valves are meticulously engineered for seamless operation, providing precise flow control in demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, our valves excel in diverse industries, including material handling, construction, agriculture, and industrial vehicles. Their flexible 2-spool design and compatibility with various applications make them a versatile choice for your hydraulic system requirements.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 series valves feature a rugged monoblock construction, ensuring durability and leak-free performance. The floating cable control mechanism offers precise spool actuation, while the 2-spool design allows for independent control of two separate hydraulic circuits. These valves operate within a wide viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, ensuring reliable operation in challenging conditions. As a leading manufacturer, we offer these valves at competitive factory deals, enabling you to optimize your hydraulic system performance without breaking the bank. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our exclusive factory deals on P40 Floating Cable Directional Valves.
