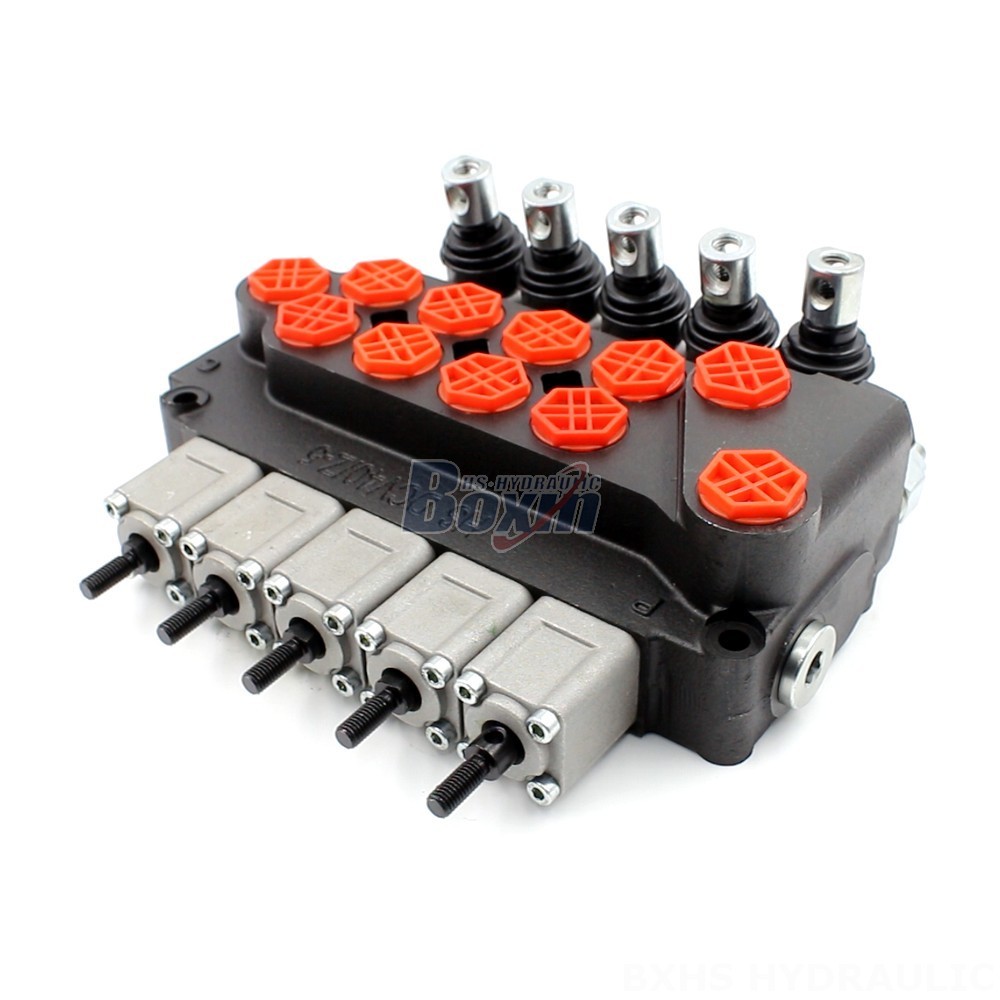

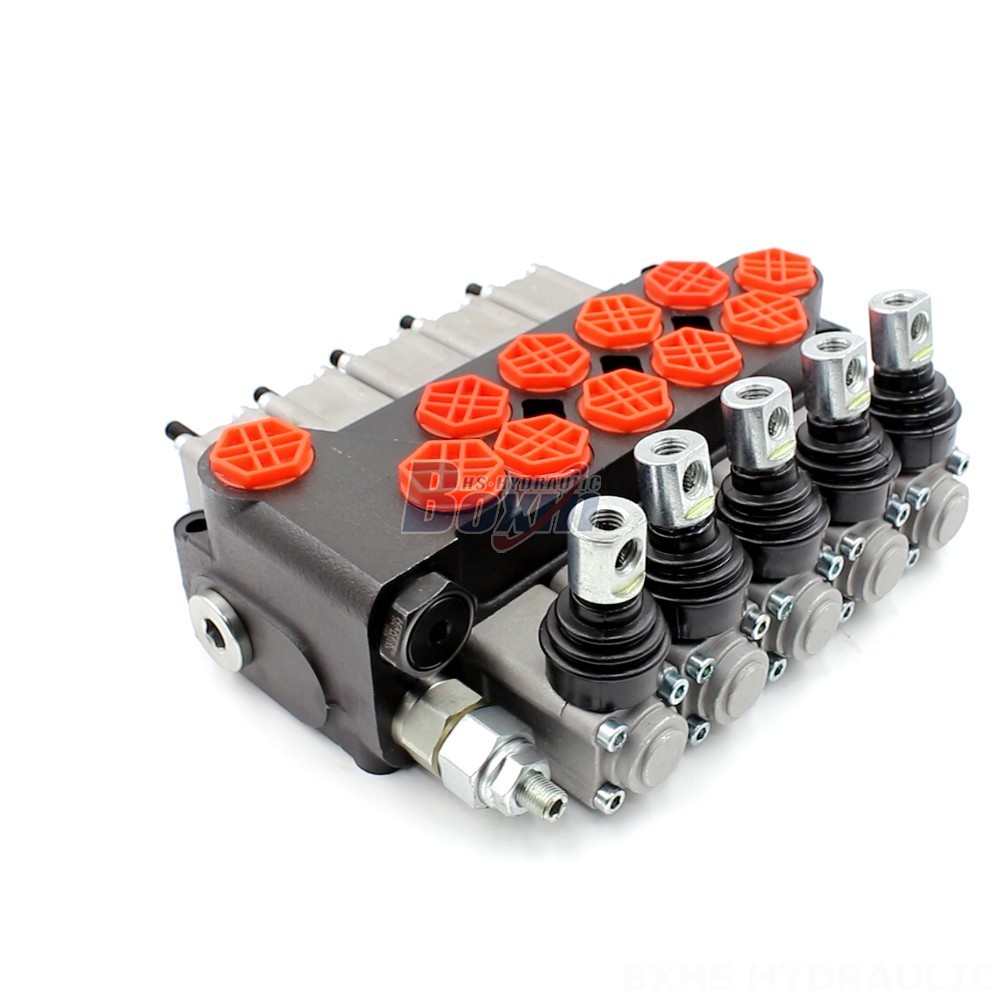

The DCV40Z Series is a 5-section, manual control, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 350 bar. It is ideal for a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| Série DCV40Z Válvula de Controle de Estabilizadores Parâmetros | |
|---|---|
| Método de Controle | Manual, Eletrohidráulico, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The DCV40Z Series is a high-performance, reliable hydraulic directional control valve designed for demanding applications. It features a robust monoblock construction with a 5-section spool for precise control of hydraulic flow. The valve offers a rated flow of 40 L/min and a maximum operating pressure of 350 bar. Its manual control allows for easy operation and adjustment. The DCV40Z series is perfect for various applications in material handling, construction, agriculture, and industrial vehicles. This includes telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this product as OEM, wholesale, and customized solutions. Contact us today for more details and pricing.
