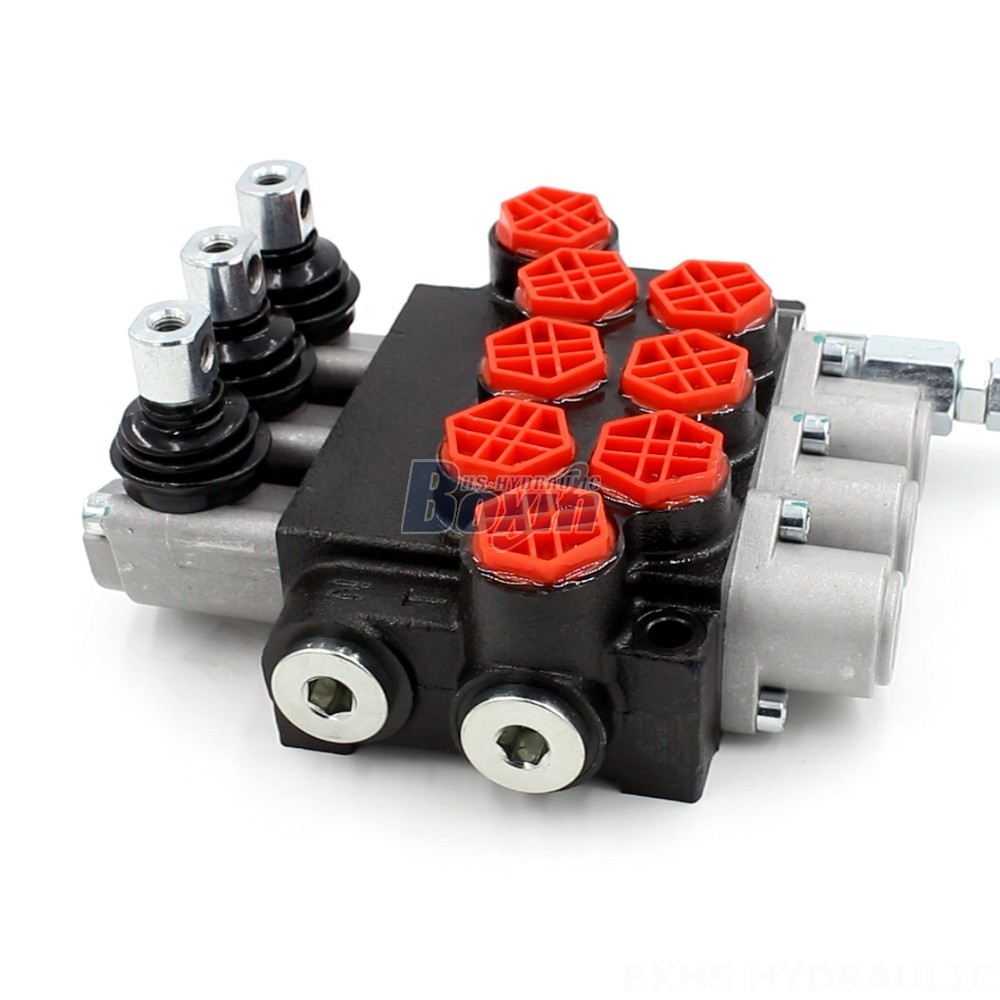

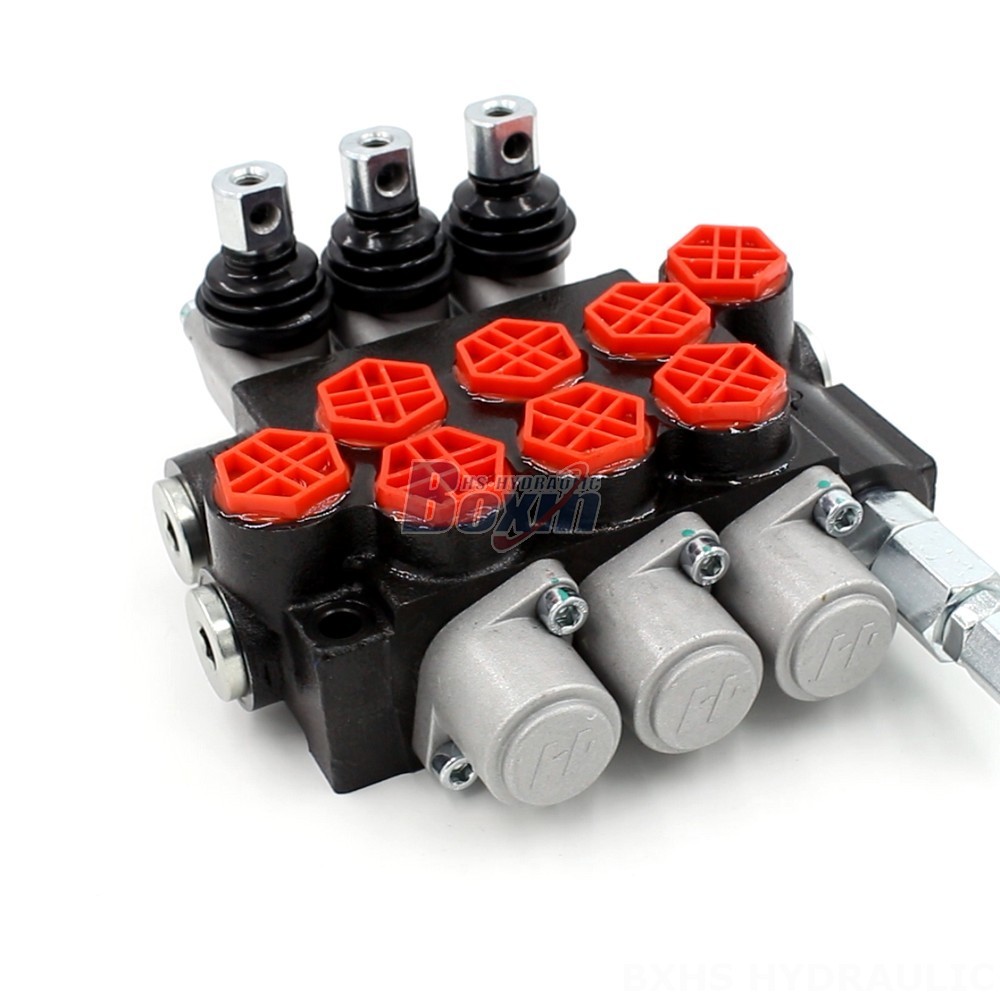

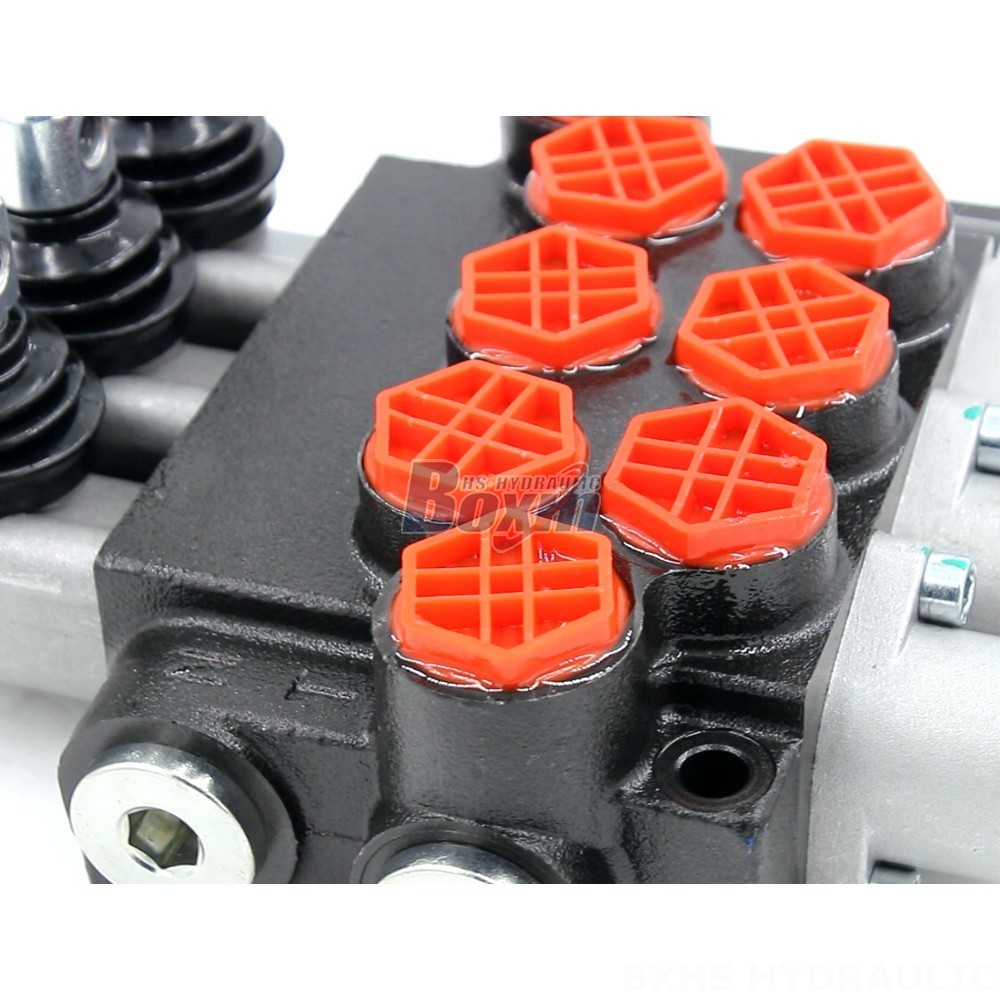

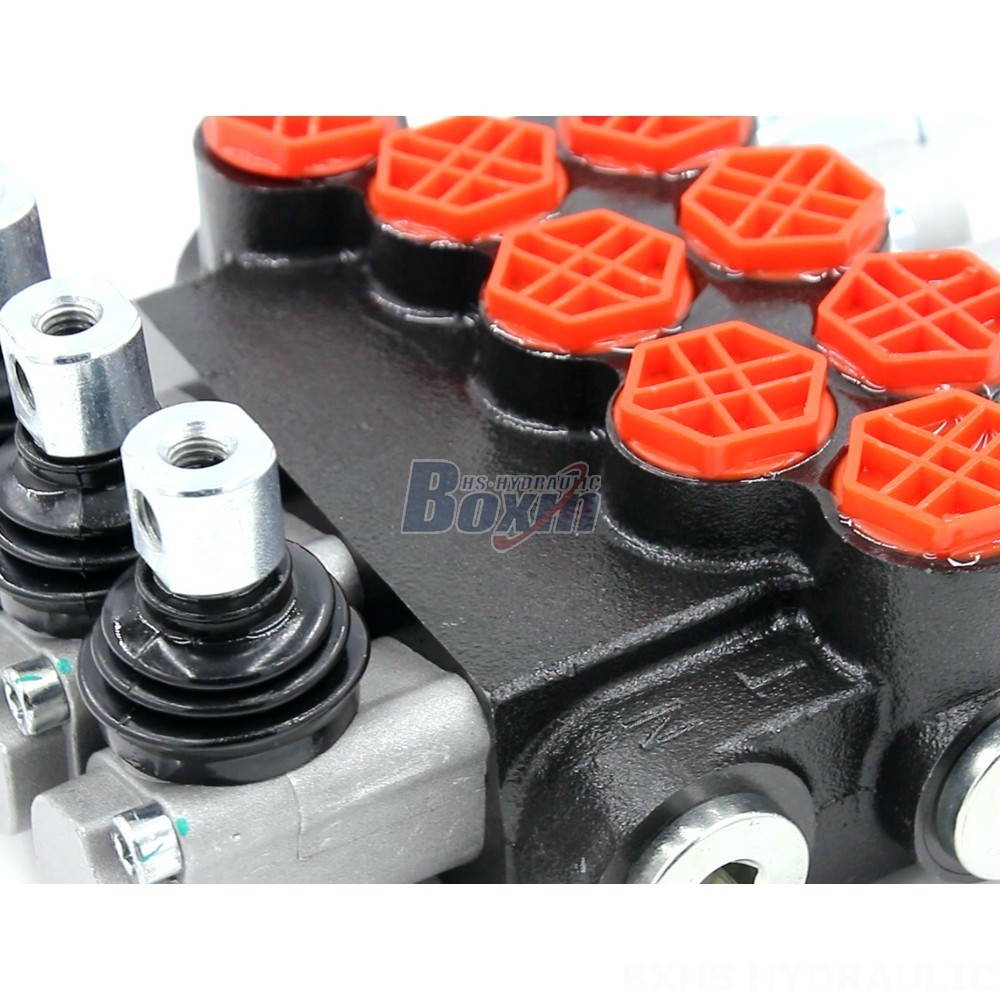

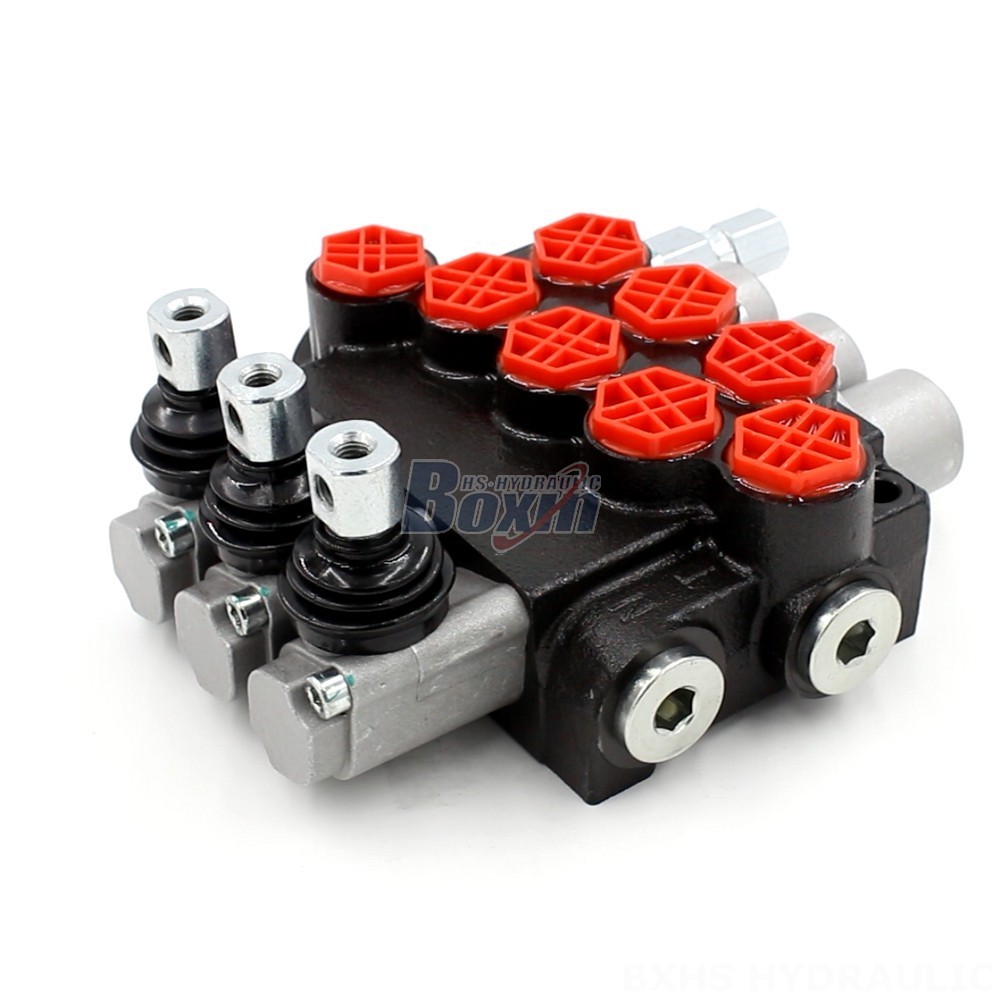

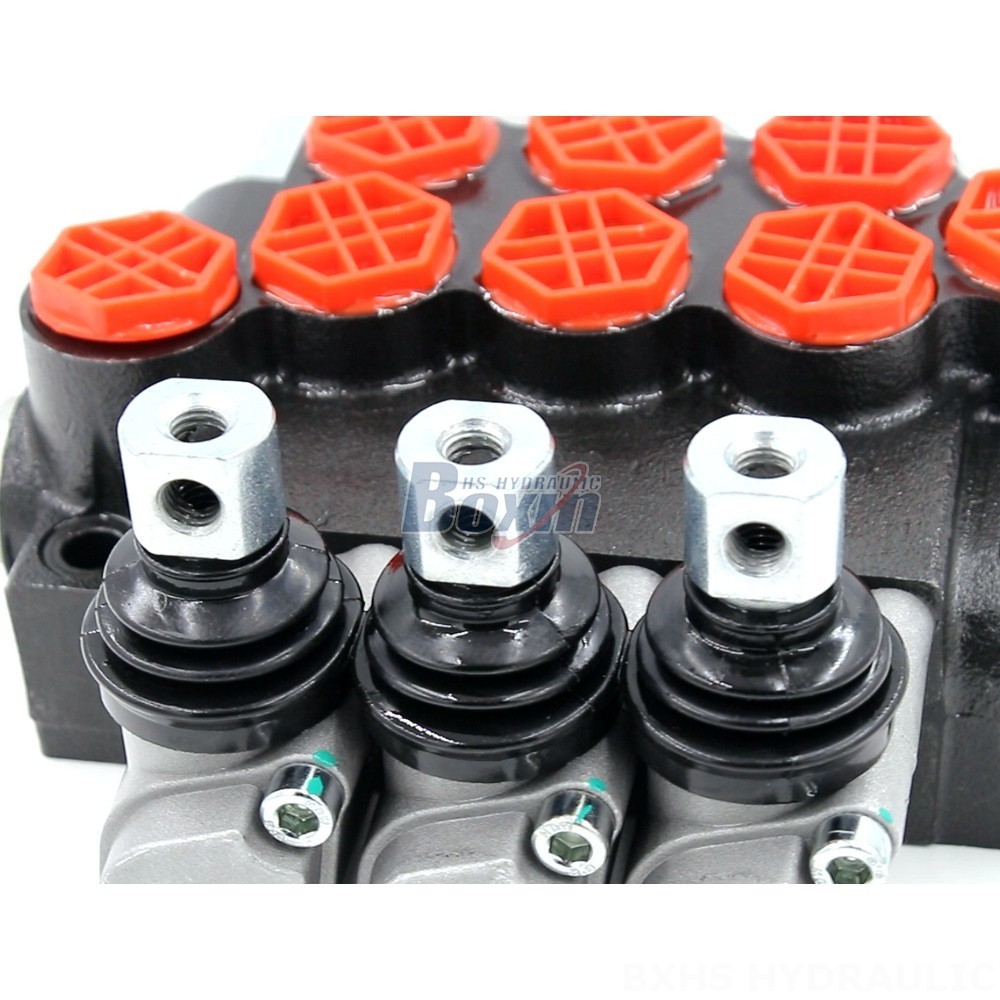

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

Método de Controle:Manual

Carrétel:3 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*21*13

Peso bruto:6.60 kg

Disponibilidade: Em estoque

1165 Visualizações estão procurando por este produto

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support

P40-G12-OT Hydraulic Components: Factory Direct Sales & Engineering Support drawing image

Introducing the P40-G12-OT Hydraulic Components, offering superior quality and performance. Manufactured directly in our factory, these components provide exceptional reliability and efficiency for various applications, including material handling, construction, agriculture, and industrial vehicles. With our engineering support and factory-direct sales, you're assured of expert guidance and cost-effective solutions.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-OT Hydraulic Components are meticulously engineered to deliver unmatched performance and durability. Featuring a monoblock valve design and manual control, these components ensure precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, they are capable of handling demanding hydraulic systems. The operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse operating conditions.

As a leading manufacturer, we offer factory-direct sales, providing you with competitive pricing and direct access to our production expertise. Our engineering support team is dedicated to assisting you with technical queries and ensuring the seamless integration of our components into your systems. Whether you're a distributor, wholesaler, agent, or trader, we invite you to partner with us and leverage our manufacturing capabilities to meet the growing demand for high-quality hydraulic solutions.
